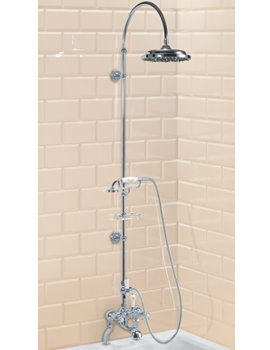

Deck Mounted Bath Shower Mixer With Riser And Curved Arm - 9In Rose
Overall Rating: Stars Rating 2 out of 2 customers rated 90%
Rate This:
MFC Code : H196-CL
Product Code : 9807
Delivery: £5.95
RRP : £1112.00

The deck-mounted  bath shower mixer from Burlington comes with a riser, an aesthetically appealing curved arm, a spout swivel for both left and right hand use, a built-in soap basket  and a  9inch shower, rose all finished in dazzling chrome. It is fitted with an aerator for use in high pressure areas and a flow straighter that monitors the flow and minimizes splashing and wastage in low pressure areas. Made of high grade brass it is guaranteed against manufacturing defects for 10 years by Burlington and is easy to install with simple instructions. The mixer comes fitted with Claremont handles and is also available with Birkenhead or Anglesey handles.

Read More About the Product

qty :
Check Availability 3 Working Days Apprx

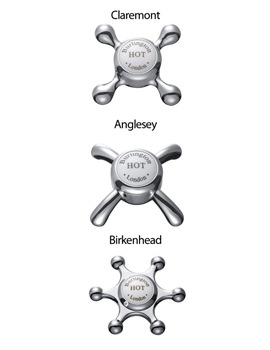

Shower Valve Handle Options
Shower Valve Handle Options

Shower Valve Handle Options. Note images for illustration purpose only

Claremont Bath Shower Mixer with rigid riser, curved shower arm, 9" Rose [H196-CL]

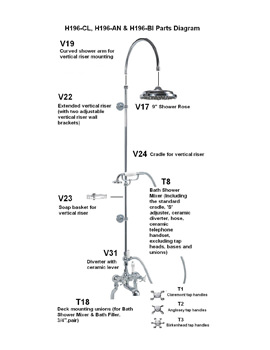

  • Consists of :

    [T8]  Bath Shower Mixer (Including the standard cradle, 'S' adjuster, ceramic diverter, hose, ceramic telephone handset, excluding tap heads, bases and unions)
    [T18]  Deck Mounting unions (for Bath Shower Mixer & Bath Filler, 3/4
    [V22]  Extended vertical riser (with two adjustable vertical riser wall brackets)
    [V19]  Curved Shower arm for vertical riser mounting
    [V17]  9" Shower Rose
    [V23]  Soap basket for vertical riser
    [V24]  Cradle for vertical riser
    [V31]  Diverter with ceramic lever
    [T1]    Claremont tap handles (pair)

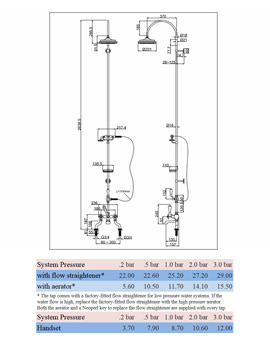

  • Riser Height 2638.5mm
  • Ø231mm shower rose
  • 1500mm long shower hose
  • Finishes : Chrome plated
  • Product Type : Traditional
  • Material : Bodies are of all brass construction

Bath Shower Mixer

  • Deck Mounted
  • Supplied with flow straighter - this is for use with low water pressure
  • Supplied with aerator - this is for use with high water pressure
  • Chrome plated bath shower mixer
  • Spout swivel to the left or right
  • Suitable for operation at (10 bar max.) and a minimum flow pressure of  (0.1 bar)
  • Tap indices are made from ceramic - absolutely no plastic
  • The aerators are designed to limit the flow of water to a fixed rate - regardless of the incoming water pressure- so you have optimal performance from your tap, without wasting any water
  • Aerators create the 'champagne' effect in the flow of the water
  • All bath shower mixers are designed so that they are compatible with all the over bath showering combinations that are available from Burlington.
  • Flow straighteners make the flow of the water cleaner, so there is less splashing
  • Manufactured from brass ingots and chrome plated to 0.3-0.4 micron
  • 10 Year Guarantee from Burlington
  • Bath shower mixer with Claremont Handle
  • Bath shower mixer available with a choice of Handles - Claremont, Birkenhead or Angelsey
  • For Fitting Instruction - Download PDF from Technical Tab

Available Optional Products :

  • Anglesey Valve Handle  [V2]
  • Birkenhead Valve Handle [V3]

The tap comes with a factory-fitted flow straightener for low pressure water systems. If the
water flow is high, replace the factory-fitted flow straightener with the high pressure aerator.
Both the aerator and a Neoperl key to replace the flow straightener are supplied with every tap
