Nuie Pearlstone 1050mm Wide D Shape Shower Tray

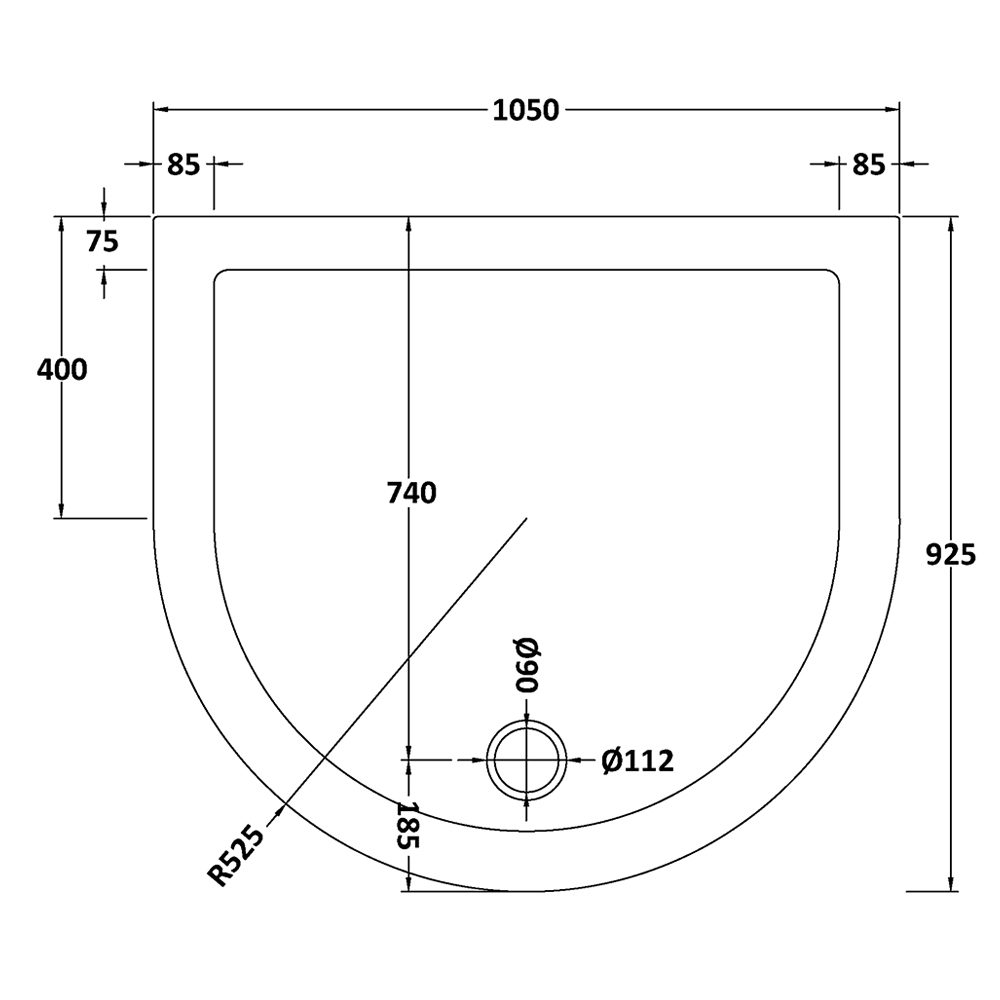

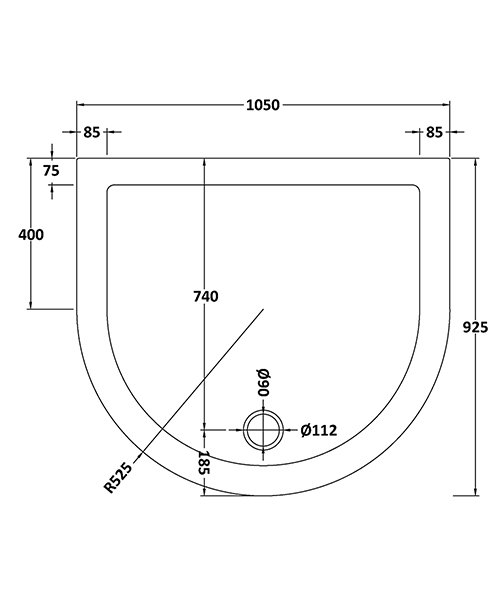

Technical drawing 22912 / NTP095
Additional image of Premier NTP095

Nuie Pearlstone 1050mm Wide D Shape Shower Tray

Nuie Logo
Available Finishes: Gloss White / Slate Grey
No Rating No Rating Write a Review
Rate This:
MFC Code : NTP095
Product Code : 22912
Delivery: £34.95
£103.70
RRP : £319.00
Finishes Available

OP-202109 - Gloss White

qty :
  • Dimension: Width 925mm (92.5cm) x Depth 1050mm (105cm)
  • Height 40mm (4cm)
  • Material: Acrylic Capped ABS Caco3 and Pu
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

Options & Accessories: You May Require

Available Tay Waste


Leg Set And Plinth Kit
Leg Set And Plinth

Leg sets and plinth kit for shower tray. Please note that image is for illustration purpose only.



About This Product

  • Dimension: Width 925mm (92.5cm) x Depth 1050mm (105cm)
  • Height 40mm (4cm)
  • Material: Acrylic Capped ABS Caco3 and Pu
  • Made in Britain
  • Manufactured using Acrylic capped and constructed from a polyurethane resin mixed with filler including volcanic ash
  • Slimline - At just 40-45mm high Pearlstone trays are amongst the sleekest on the market
  • Patented Technology - Made of the patented 'Pearlstone Matrix' making the range one of the strongest and lightest
  • Lightweight - The trays are up to 50% lighter than conventional stone resin trays - making them safer for handling and fitting
  • Waste shown in the image is not included - sold separately
  • Patented 'Pearlstone Matrix' has screw retention so that the optional feet from the leg set can be screwed directly into the base of the tray
  • Flat underside making levelling easier
  • Perfect for a modern and contemporary wetroom design
  • Raised edge design
  • Supplied with centre waste hole
  • Download Datasheet and Fitting Instruction PDF File from the Technical Info Section
  • Refer technical diagram for complete technical dimensions
  • Guarantee : Lifetime against any manufacturing defects
  • Available Optional Products:
  • Different finishes available Gloss White and Slate Grey
  • 90mm fast flow waste
  • Easy plumb leg sets.

Information Breakdown

Colour Gloss White
Warranty/Guarantee Lifetime
Material Acrylic Capped ABS Caco3 And Pu
Weight In Kg 31
Width of Rim 75, 85
Diameter of Drain hole 90
Radius 525
Height 40
Compliance/Approvals/Standard CE, UKCA
Depth 925
Distance tray edge to centre of drain hole 185
Drain Placement Centre
Suitable for raised installation Yes
Panel and leg set included Sold Separately
Tray Type Low Level

Technical Info

Nuie Pearlstone 1050mm Wide D Shape Shower Tray

Download Technical Data Sheet PDF

Download Fitting Instructions PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Details For DShape Shower Tray
    Finishes MFC Code Leg Set and Plinth Kit
    Gloss White NTP095 LEG7W
    Slate Grey TR71095 LEG7W
  • Details For Trap And Waste Cover
    White Trap MFC Code - White Black Trap MFC Code - Black
    Chrome Cover STW001 Chrome Cover STW007
    White Cover STW004 Black Cover STW002
    Brass Cover STW005 Brass Cover STW006
