Bristan 1901 Recessed Thermostatic Three Handle Control Shower Valve

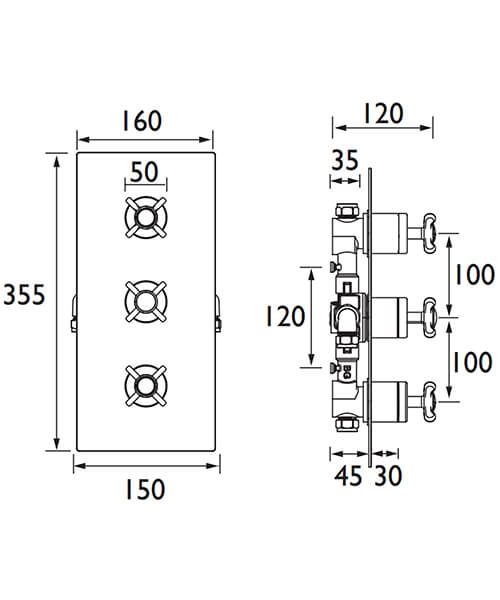

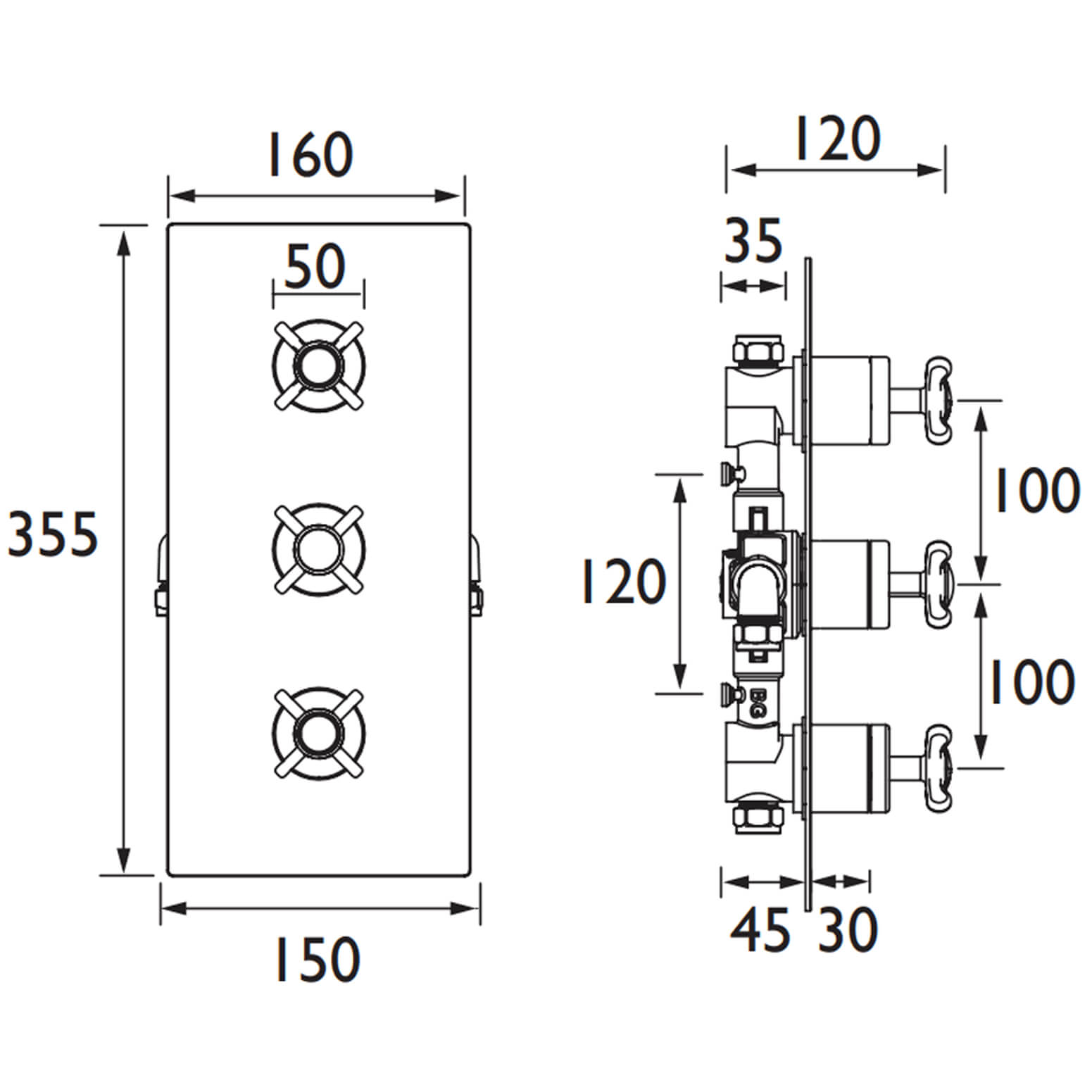

Technical drawing 44628 / N2 SHC3STP C
Additional image of Bristan N2 SHC3STP C

Bristan 1901 Recessed Thermostatic Three Handle Control Shower Valve

Bristan Logo
Finishes Available : Chrome / Gold
No Rating No Rating Write a Review
Rate This:
MFC Code : N2 SHC3STP C
Product Code : 44628
Delivery: £7.95
£290.35
RRP : £505.00
Finishes Available

OP-115047 - Chrome

qty :
  • Required minimum 0.2 to maximum 5.0 bar water pressure
  • Suitable for all plumbing systems
  • Inlet centres : 150mm
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 4 Working Days Apprx

About This Product

  • Required minimum 0.2 to maximum 5.0 bar water pressure
  • Suitable for all plumbing systems
  • Inlet centres : 150mm
  • Valve/cartridge type: Thermostatic cartridge & 3/4 inch ceramic disc valve
  • Metal back plate and handles for added durability
  • Supplied with wall outlet
  • Integral twin stopcocks
  • Fully serviceable from the front
  • Maximum hot water supply temperature is 80°c
  • Minimum cold water supply temperature is 4°c
  • Fitting depth including plasterboard and tiles is 45mm - 75mm
  • This shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space
  • 15mm inlet connections
  • Manufactured using high quality brass material
  • Available in 2 finishes
  • Refer technical diagram for complete technical dimensions
  • 5 years of guarantee against any manufacturing defects.

Information Breakdown

  • Colour
  • Chrome, Gold
  • Warranty/Guarantee
  • 5 Years
  • Material
  • Brass
  • Theme
  • Modern
  • Installation Type
  • Wall mounted
  • Inlet Centres
  • 150
  • Overall Height
  • 355
  • Minimum Operating Pressure Bar
  • 0.2
  • Handle Style
  • Crosshead
  • WRAS Approved
  • Yes
  • Temperature Control
  • Thermostatic
  • Backplate Width
  • 165
  • Backplate Height
  • 355
  • Number of Handles
  • 3
  • Orientation
  • Portrait
  • Overall Width
  • 165
  • Maximum Operating Pressure Bar
  • 5.0

Technical Info

Bristan 1901 Recessed Thermostatic Three Handle Control Shower Valve

Download Installation Instruction PDF


PRODUCT VARIATIONS INFO & MFC CODE
Available Finishes:
  • Chrome - N2 SHC3STP C
  • Gold - N2 SHC3STP G
