Hudson Reed Topaz Triple Concealed Thermostatic Shower Valve
Technical drawing 53509 / TSVT003
Additional image of hudsonreed TSVT003
Additional image of Hudson Reed Topaz Triple Concealed Thermostatic Shower Valve
Additional image for 53509 hudsonreed - TSVT003

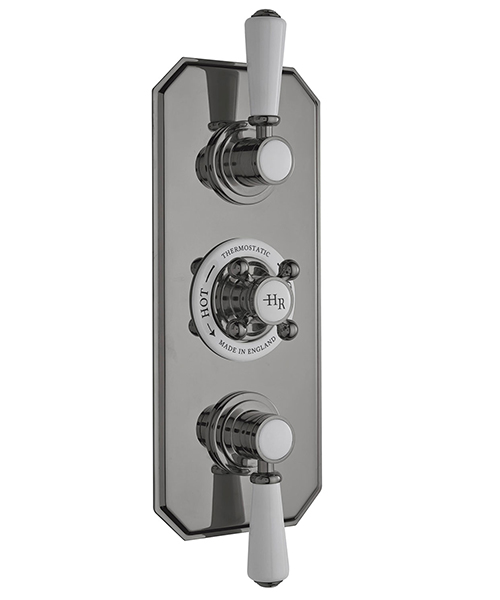

Hudson image

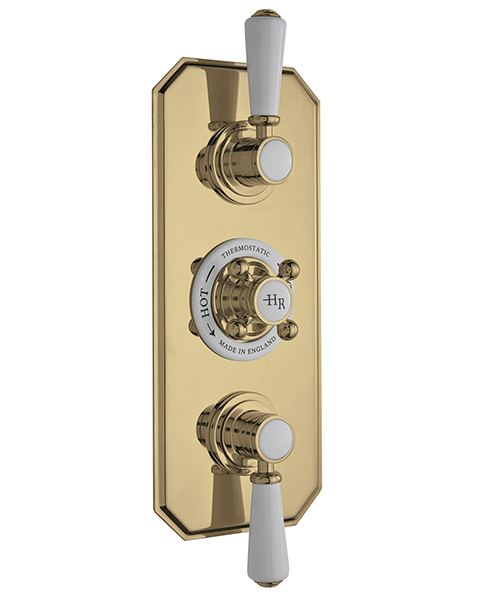

Alternate image of Hudson Reed Topaz Triple Concealed Thermostatic Shower Valve

Hudson Reed Topaz Triple Concealed Thermostatic Shower Valve

Hudson Reed Logo
Finishes Available: Chrome-White / Chrome-Black
No Rating No Rating Write a Review
Rate This:
MFC Code : TSVT003
Product Code : 53509
Delivery: £7.95
£229.95
RRP : £657.00
Finishes Available

OP-139589 - Chrome-White

qty :
  • Material: Brass and ABS
  • Dimensions: Width 120mm (12cm) x Depth 135mm (13.5cm) x Height 320mm (32cm)
  • Pipe Size: 22mm (2.2cm) (3/4inch Bsp)
Read More About the Product
Questions Ask Technical Question? Read Answers
Reviews Write a Review
Check Availability 3-4 Working Days Apprx

About This Product

  • Material: Brass and ABS
  • Dimensions: Width 120mm (12cm) x Depth 135mm (13.5cm) x Height 320mm (32cm)
  • Pipe Size: 22mm (2.2cm) (3/4inch Bsp)
  • No of Outlets: 2
  • Mount Type: Wall and Recessed
  • TMV2 Approved: Approval Number: 2603035
  • 1/4 Turn ceramic disc cartridge
  • Accurate flow control
  • Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut-off
  • In the event of hot or cold water failure, the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium buildup - even in hard water areas
  • Our valves are suitable for use with all systems: gravity-fed pumped unvented high-pressure, or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
  • The cartridge is fully reversible, meaning that if hot and cold supplies are the wrong way round, it doesn't need re-plumbing
  • Remove the cartridge, turn 180° and replace
  • WRAS approval no.: 1703023
  • Suitable for low-pressure water system
  • Requires a minimum of 0.1 bar or above water pressure to operate smoothly
  • Refer to the technical drawing for the complete size specifications
  • Download the Data Sheet and Fitting Instruction PDF file from the Technical Info Section
  • Guarantee: Twenty-year from Hudson Reed against manufacturing defects
  • Available Optional Product:
  • Different finishes are available: Chrome-White, Chrome-Black, Brushed Pewter-White and Brushed Brass-White

Information Breakdown

Colour Chrome
Warranty/Guarantee 20 Years
Theme Traditional
Backplate Width 120
Backplate Height 320
Temperature Control Thermostatic
Anti-Scald Yes
TMV2 Approved Yes
Number of Handles 3
Number of Outlet 2
Cartridge Included Yes
Cartridge Type 1/4 Turn Ceramic Disc
Minimum Operating Pressure (Bar) 0.1

Technical Info

Hudson Reed Topaz Triple Concealed Thermostatic Shower Valve

Download Technical Data Sheet PDF

Download Fitting Instruction PDF


PRODUCT VARIATIONS INFO & MFC CODE


You May Also Require

Related Product

View Related Product 67604 Ideal Standard Ceratherm C100 Square Built-In Thermostatic Shower Mixer £491.72 £ 492.04
View Related Product 72937 Ideal Standard Ceratherm T25 Thermostatic Exposed Chrome Shower Mixer Valve £128.38 £ 214.26
View Related Product 62833 RAK Feeling Round Dual Outlet Concealed Thermostatic Shower Valve With Handset £345.78 £ 703.00
View Related Product 67400 Flova Levo Concealed Thermostatic Shower Valve With SmartBOX £600.60 £ 780.00

Reviews

Review This Product

Questions & Answers

Ask Questions
Asked By: Maria
Hello Could you tell me if this thermostatic valve is suitable for the Hudson Reed Luxury Rigid Riser Kit WITHOUT DIVERTER? I was advised to buy the TOPAZ TWIN CONCEALED THERMOSTATIC SHOWER VALVE and it doesn't work because it can't switch from the handset to the shower head. Kind regards Maria
Answered By: AQVA Team
You will either need to order a twin valve with diverter or a triple valve to run this rigid riser
