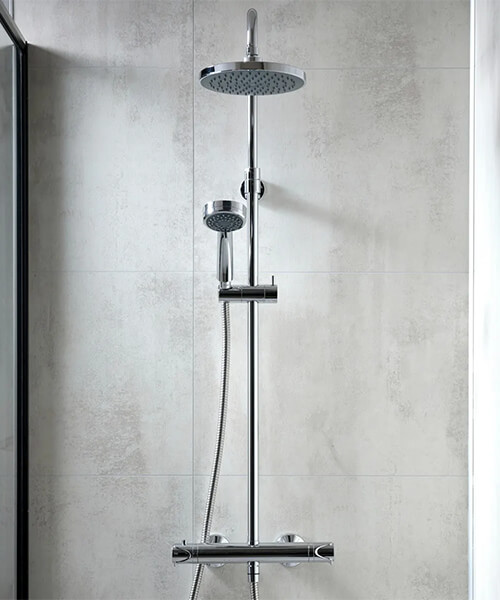

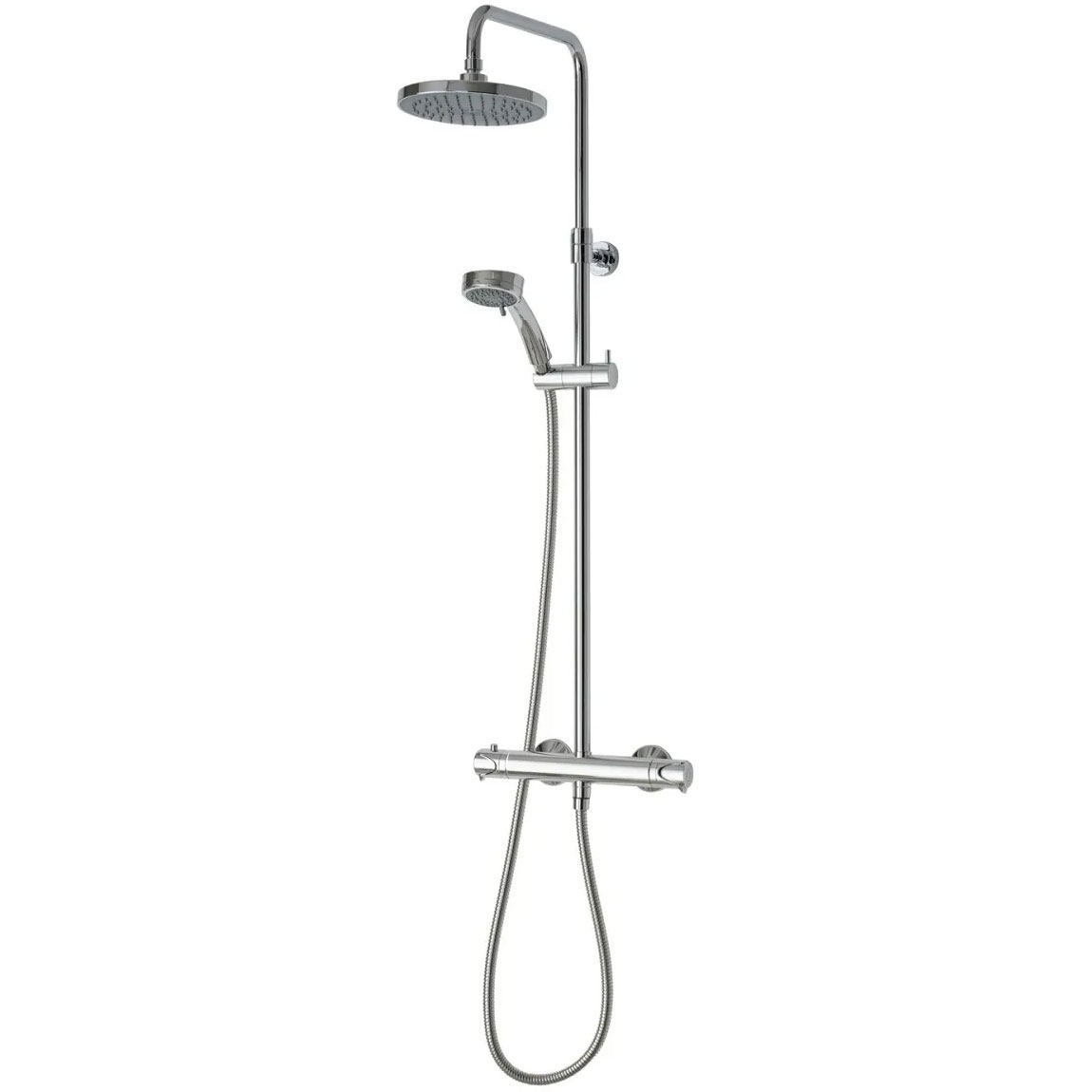

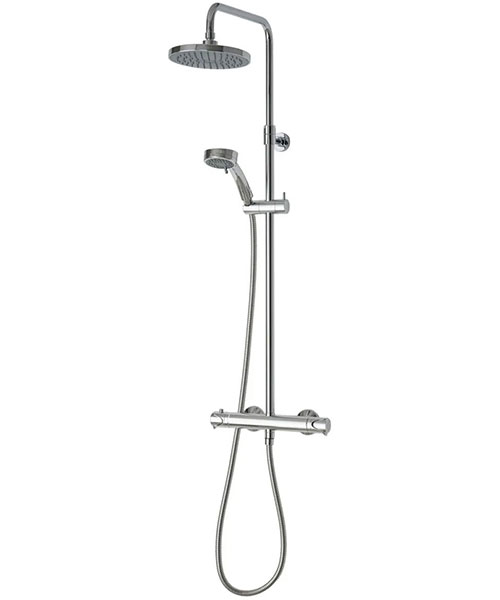

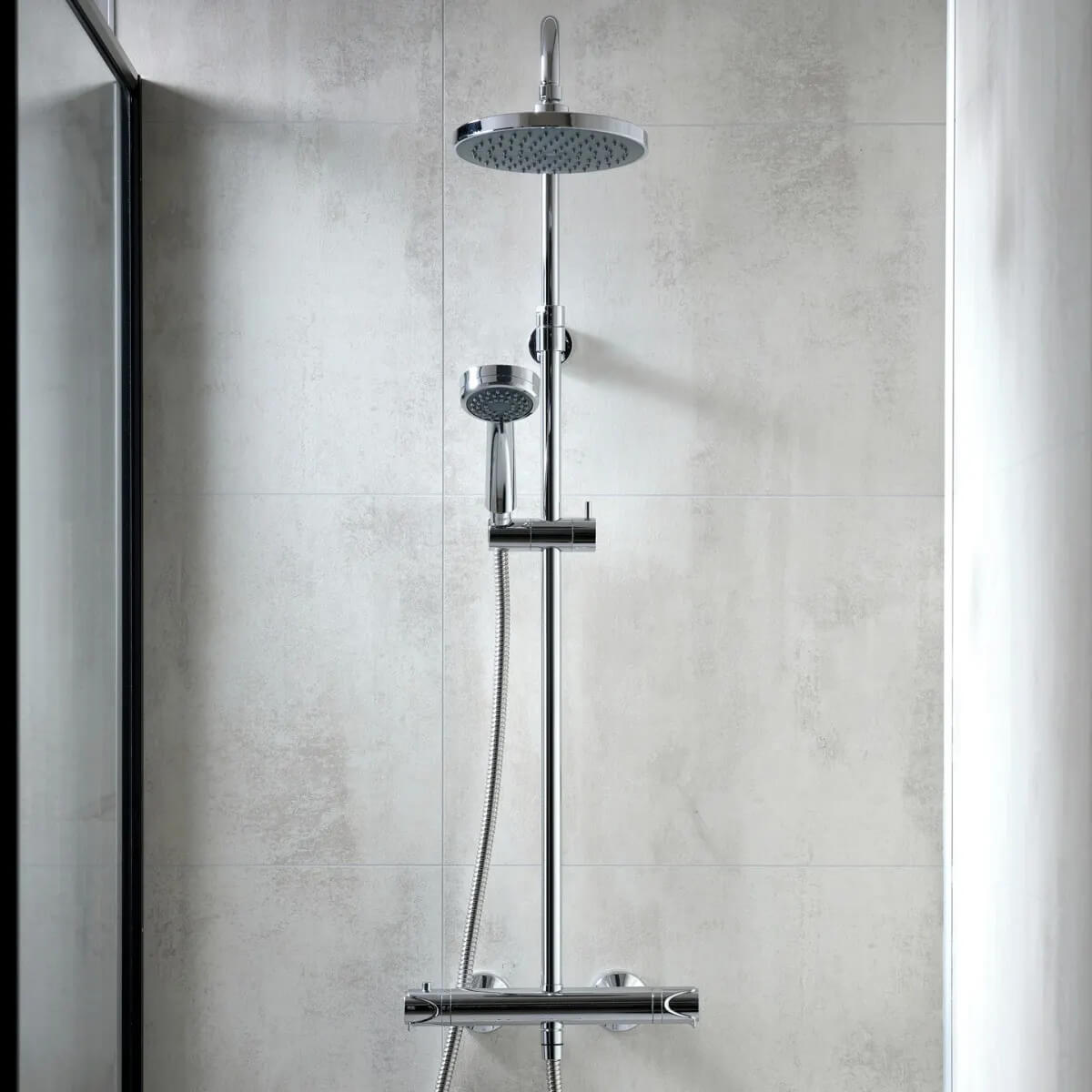

Name: Triton Dene Chrome Bar Diverter Mixer Shower Set
Brand: Triton
SKU: UNDETHBMDIV
Price: 202.12 GBP
Availability: InStock

Manufacturing code of this product : UNDETHBMDIV
Comes in fabulous chrome finish
Fixed shower head diameter : Ø200mm (Ø20cm)
Shower handset diameter : Ø84mm (Ø8.4cm)
Shower handset height : 230mm (23cm)
Rail diameter : Ø19mm (Ø1.9cm)
Rail length : 530mm (53cm)
Hose length : 1250mm (125cm)
Diverts water between large diameter fixed shower head and a three spray handset
Durable design including ceramic disc flow control
Suitable for high pressure systems
Includes all of the fittings, featuring the popular push-fit surface brackets
Height adjustable handset - ideal for families
Featuring thermostatic control
Open outlet flow rate : 5.5 l/min @ 0.5 Bar
Features automatic shutdown
Separate flow and temperature controls
Spray pettern of (handheld shower head) : 3
Spray pattern of (fixed shower head) : 1
Rub clean nozzle
Hose material : double interlocked stainless steel
WRAS approved valve
Plumbing system : high pressure systems, low pressure with pump
Water entry points : back
Inlet connections : 15mm push-fit (fixings to pipe) 3/4inch flat face union (valve to fixings)
Pipe inlet centres : 150mm
Outlet connection : 1/2 inch BSP bottom
Minimum running pressure/flow : 0.5 Bar @ 8 l/min
Maximum running pressure : 5 Bar
Maximum static pressure : 10 Bar

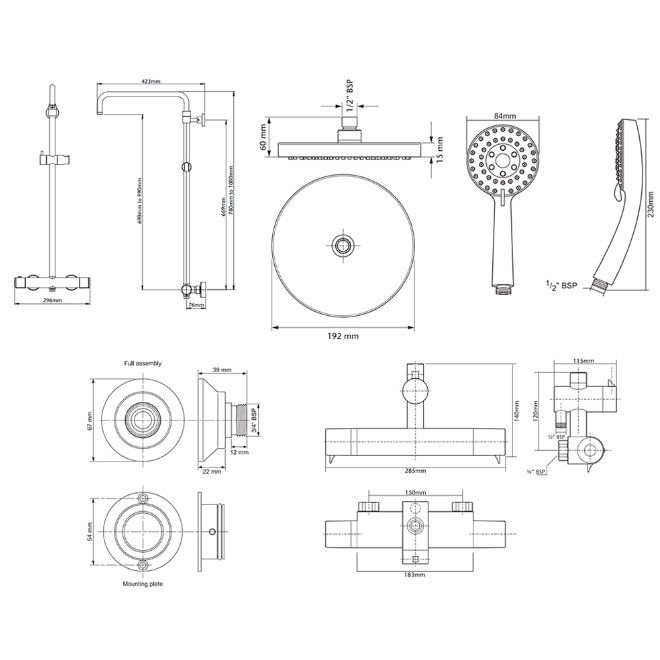

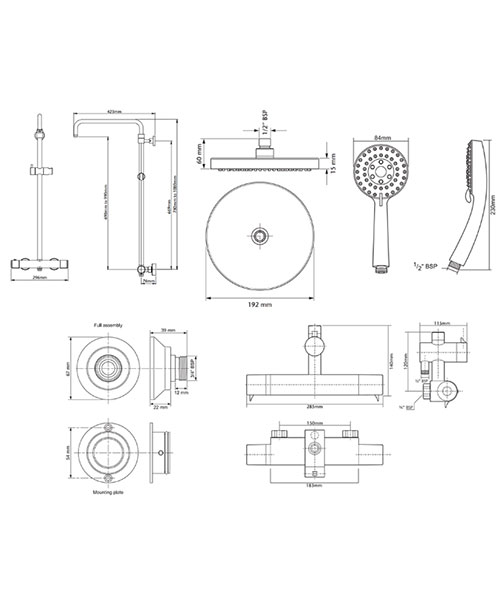

Refer technical diagram for complete technical dimensions
Download PDF from technical tab for installation instructions
5 years of guarantee against any manufacturing defects.

Download Installation Instruction PDF

Triton Dene Chrome Bar Diverter Mixer Shower Set
