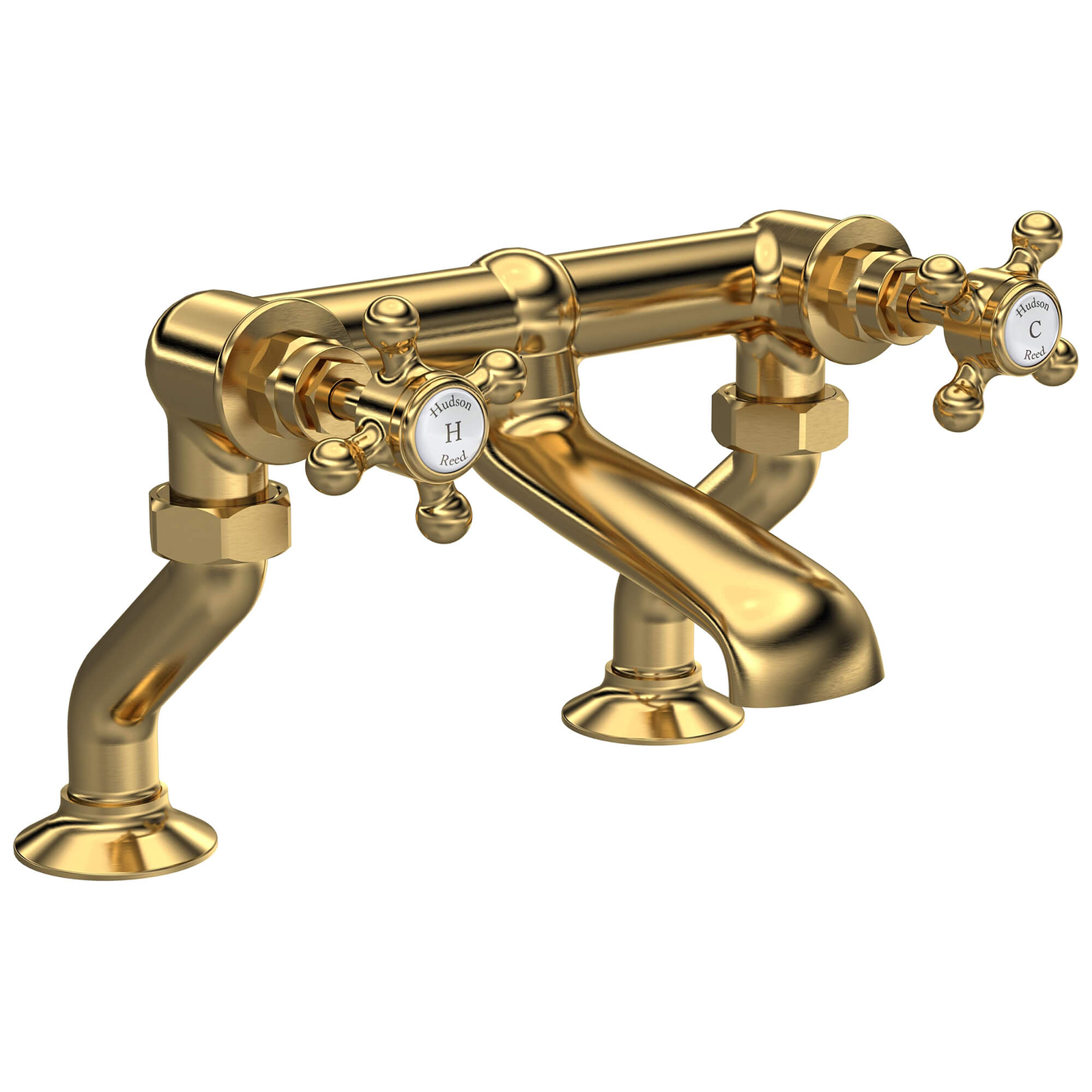

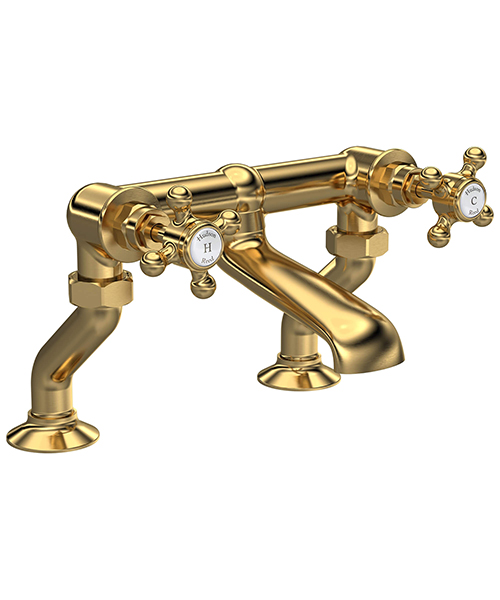

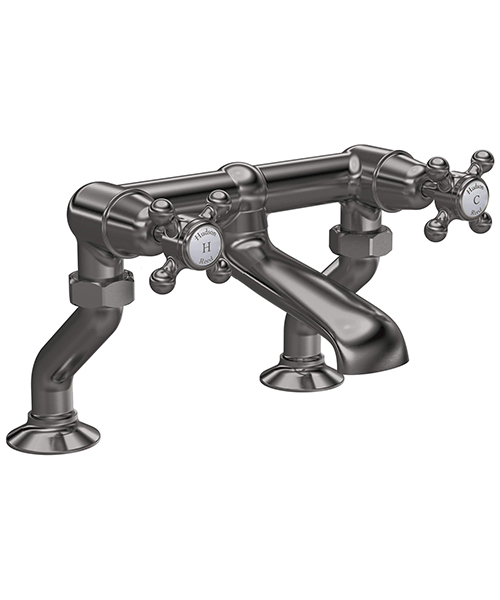

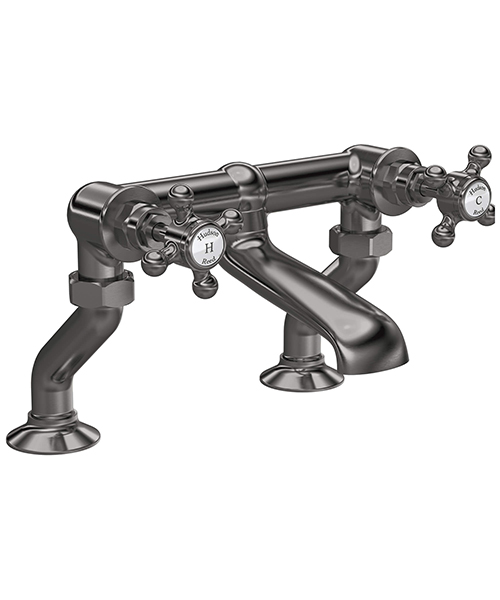

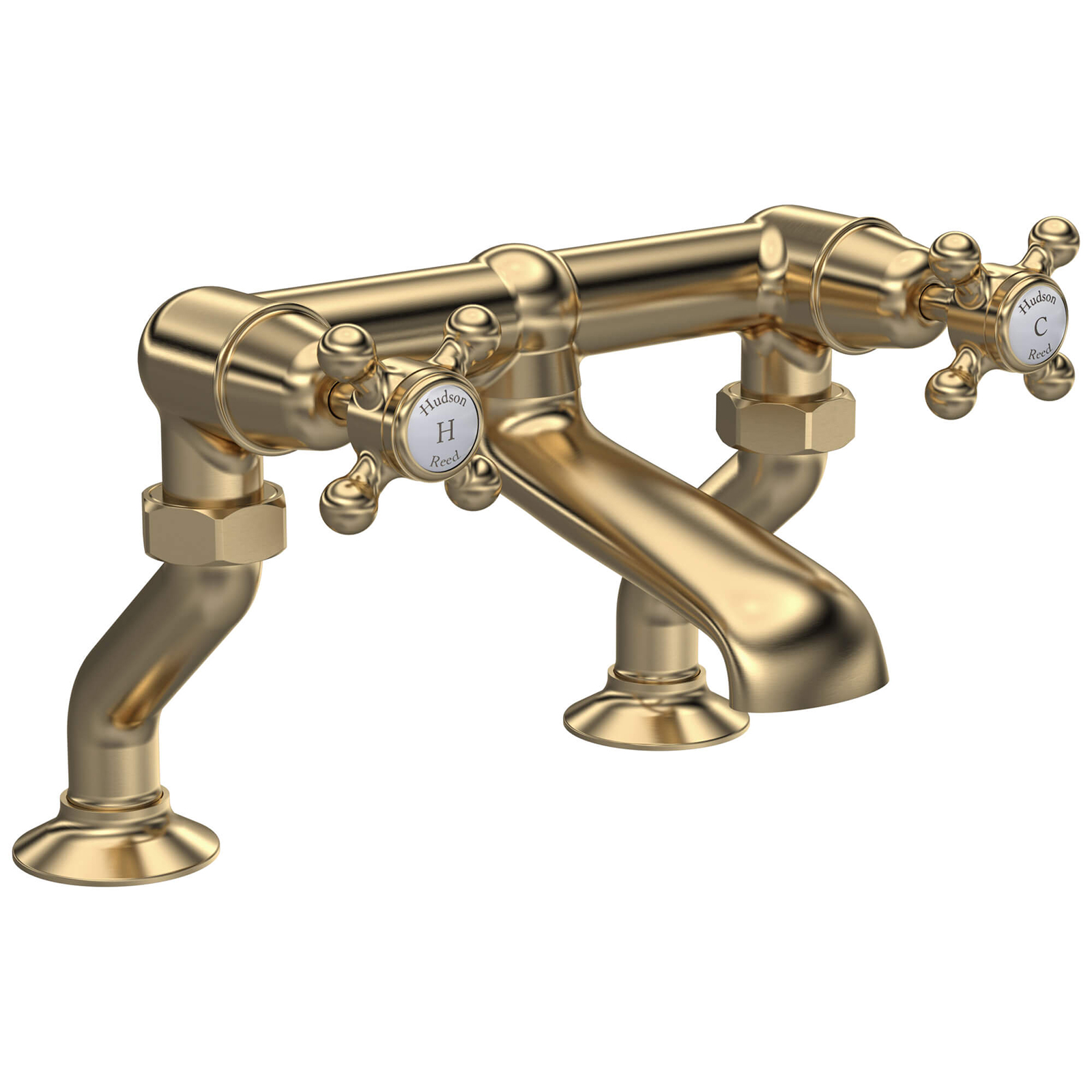

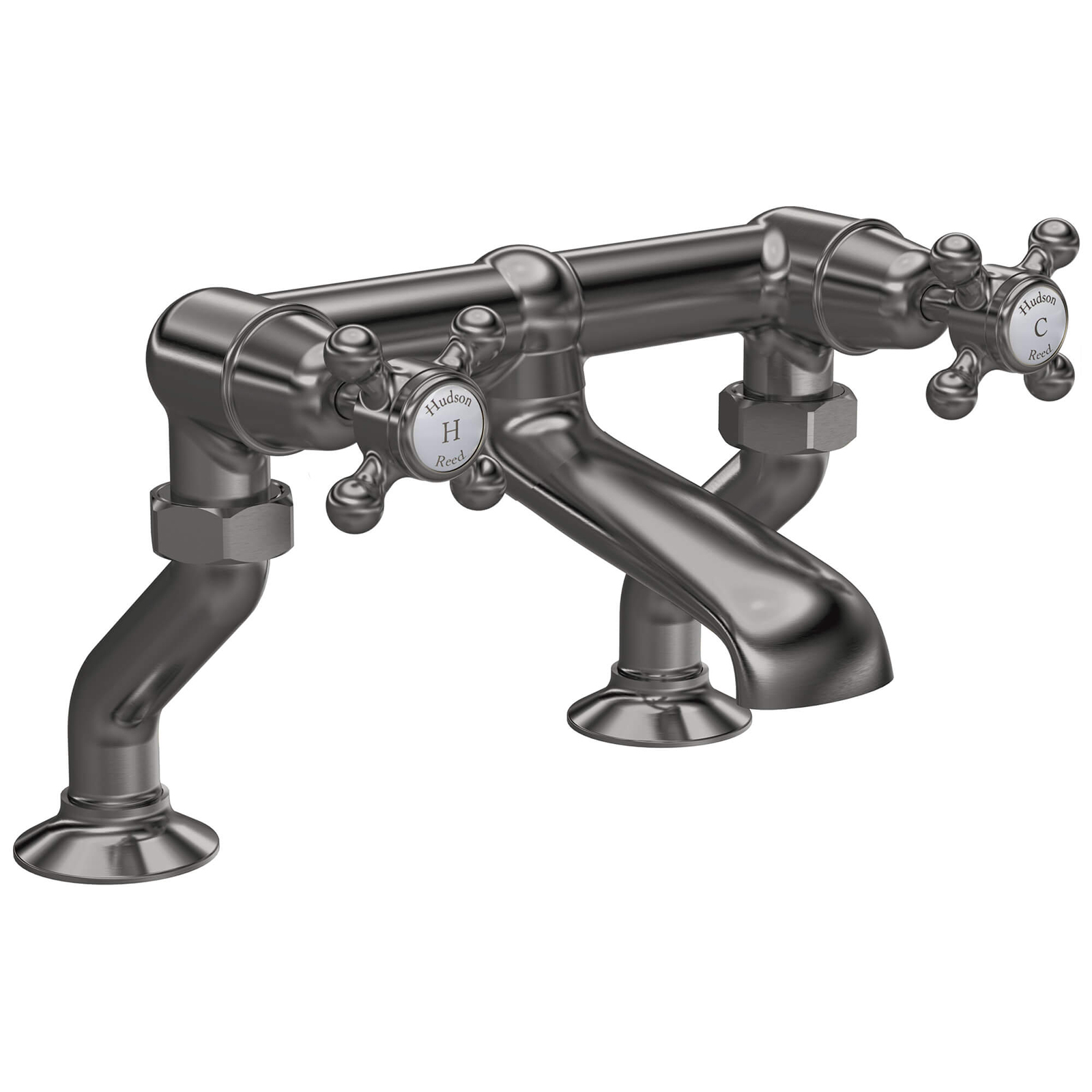

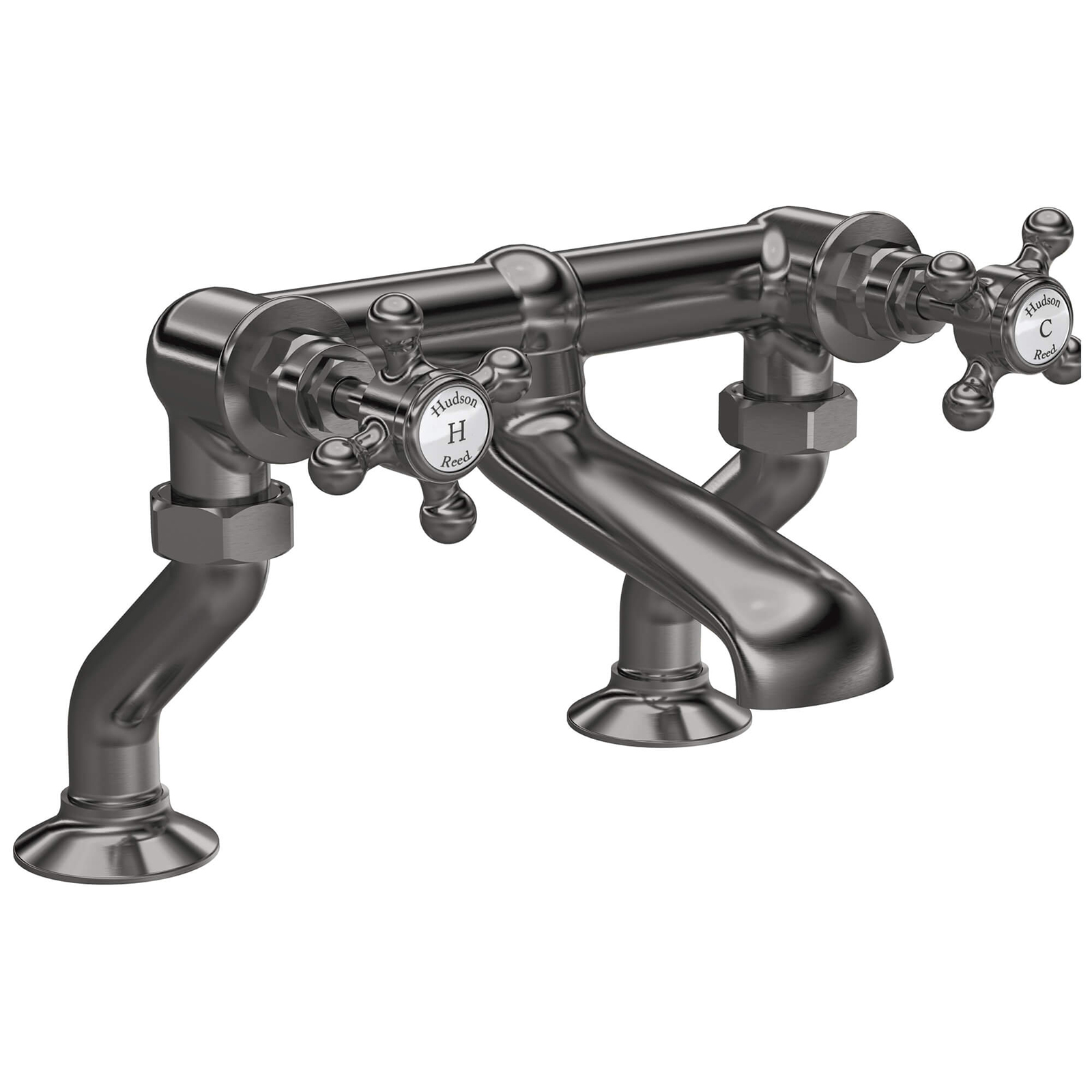

Hudson Reed Topaz Deck Mounted Bath Filler Tap

Name: Hudson Reed Topaz Deck Mounted Bath Filler Tap
Brand: Hudson Reed
SKU: BC303HX
Price: 157.6 GBP
Availability: InStock

No Rating

Write a Review

Rate This:

MFC Code : BC303HX

Product Code : 53912

Delivery: £7.95

£157.60

RRP : £412.00

Variation Available

OP-143356 - White Crosshead Handle - Hexagonal Collar

Deck-Mounted Dual-Handle Bath Filler
Stunning traditional bath filler offering a timeless design
Features ceramic disc technology for long life and ease of use
Manufactured using high-quality brass Material
Number of tap holes required: 2
Weight: 2kg
Cartridge type: 1/4 turn
Dimension: Width 262mm (26.2cm) x Depth 217mm (21.7cm)
Height 187mm (18.7cm)
Base to spout: 63mm (6.3cm)
Inlet Centre: 196mm (19.6cm)
Centre of the Inlet to the Centre of the Outlet: 121mm (12.1cm)
Pipe Centres: 90mm - 300mm (9cm - 30cm)
Pipe Size: 22mm (3/4" BSP)
Suitable for a low water pressure system
Required minimum 0.2 bar of water pressure for smooth flow
During installation, extra care must be taken to avoid damaging the fittings
Download the PDF from the technical Info Section for the technical data sheet and mounting instructions
Refer to the technical drawing for complete dimensions details
Guarantee: 20-Year for Chrome finish and 3-Year for Other Finishes Against Manufacturing Defects
Available Optional Product:
Different finishes are available Chrome, Brushed Brass and Brushed Pewter
Available with Black or White indices
Taps come in a Hexagonal or Dome Collar

Colour	Chrome
Warranty/Guarantee	20 Years
Theme	Traditional
Width	262
Height	187
No. of Tap Holes	2
Base To Spout	63
Spout Reach	176
Handle Style	Crosshead
Flow Rates (l/min)	0.1bar - 10, 0.5bar - 36.2, 1 bar - 53, 2 bar - 75.7, 3 bar - 92
Inlet Connections	G3/4 Inch
Valve Included	Yes
Inlet Centres	196
Installation Type	Deck Mounted
Minimum Operating Pressure (Bar)	0.2

Download Technical Data Sheet PDF

Download Mounting Instruction PDF

Specifications For Tap

Finish	Indices Finish	Handle Style	Collar	MFC
Chrome	White	Crosshead	Hexagonal Collar	BC303HX
Chrome	Black	Crosshead	Hexagonal Collar	BC403HX
-	-		-
Chrome	White	Crosshead	Dome Collar	BC303DX
Chrome	Black	Crosshead	Dome Collar	BC403DX
-	-		-
Brushed Brass	White	Crosshead	Hexagonal Collar	BC803HX
Brushed Brass	White	Crosshead	Dome Collar	BC803DX
-	-		-
Brushed Pewter	White	Crosshead	Hexagonal Collar	BC703HX
Brushed Pewter	White	Crosshead	Dome Collar	BC703DX
