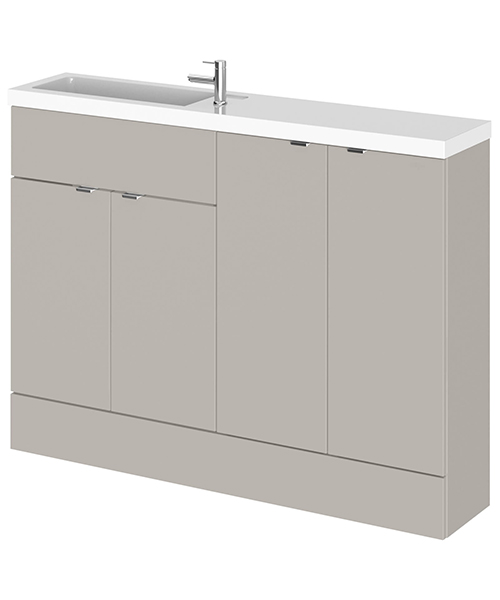

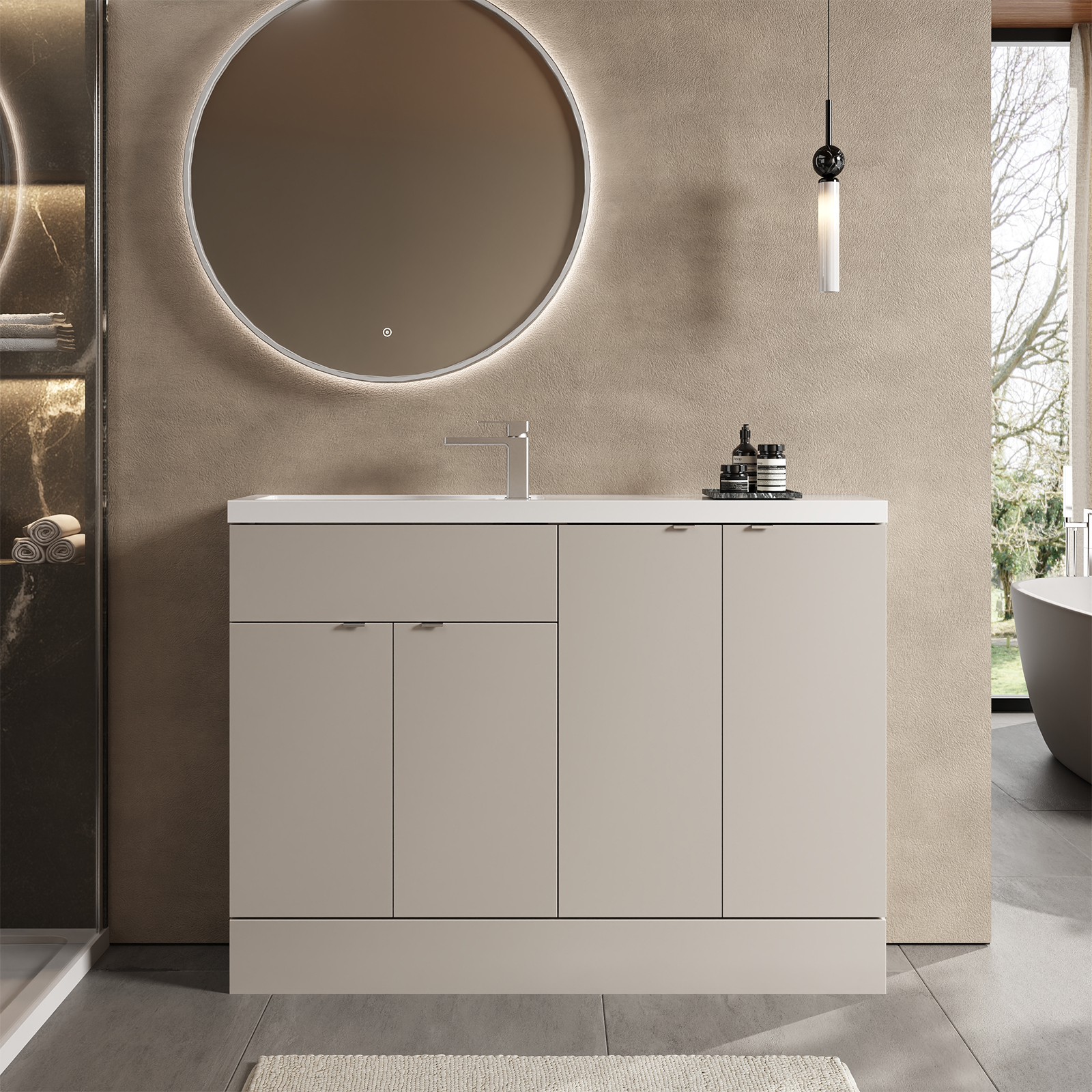

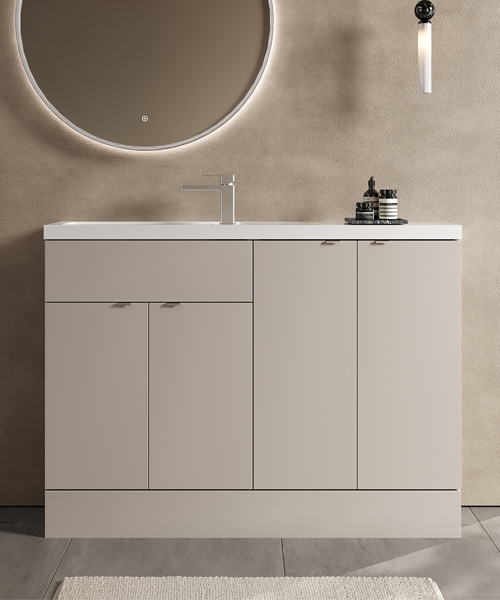

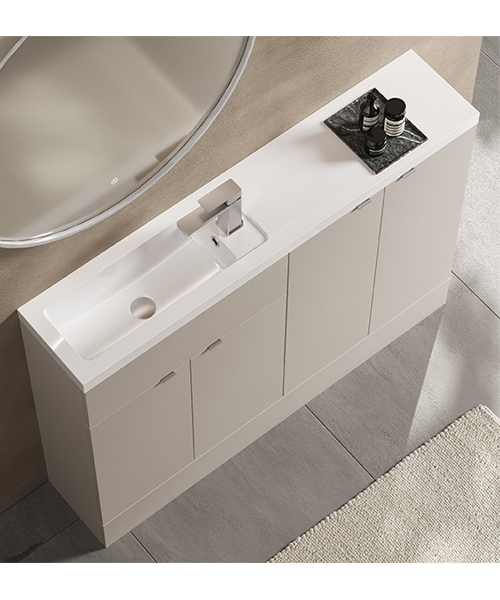

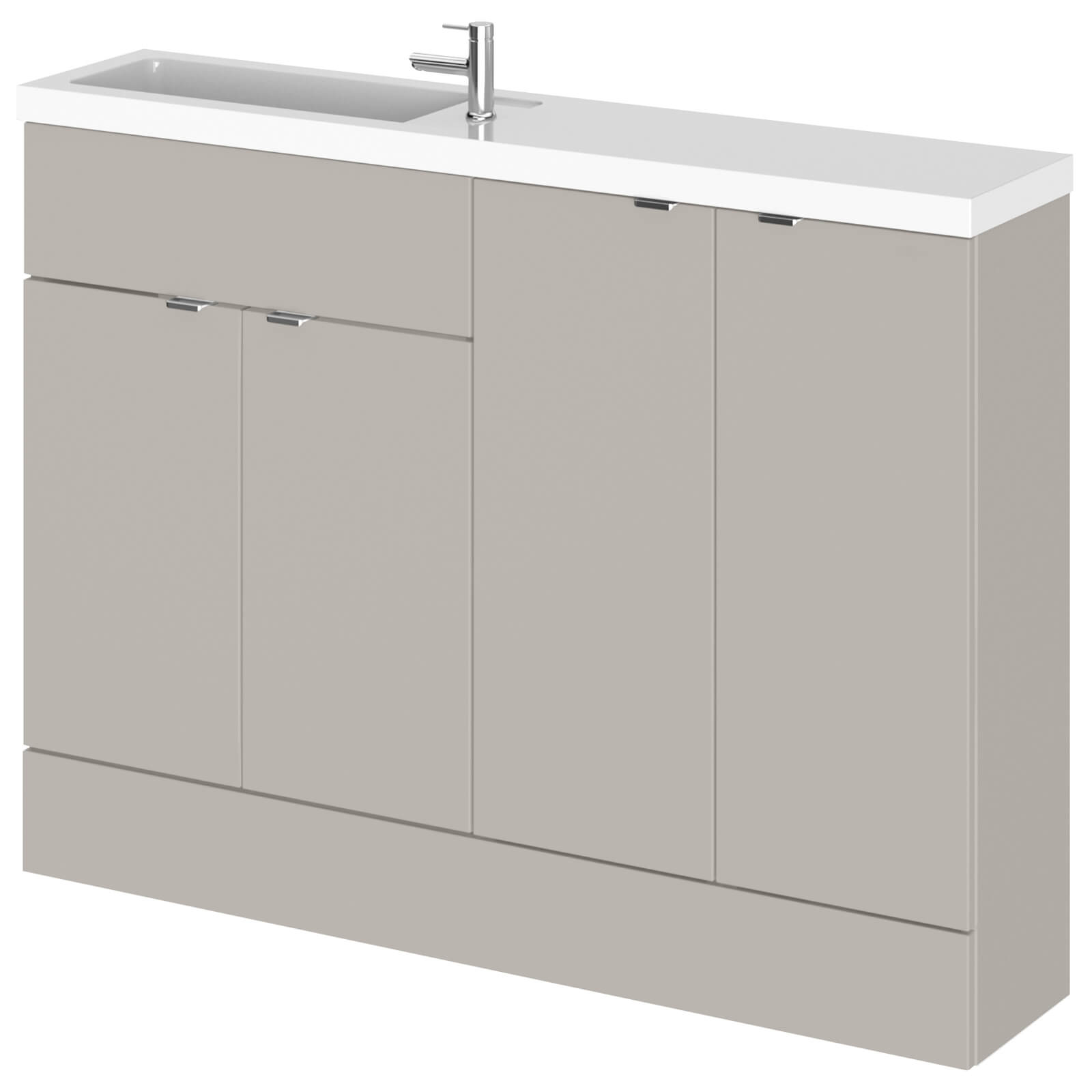

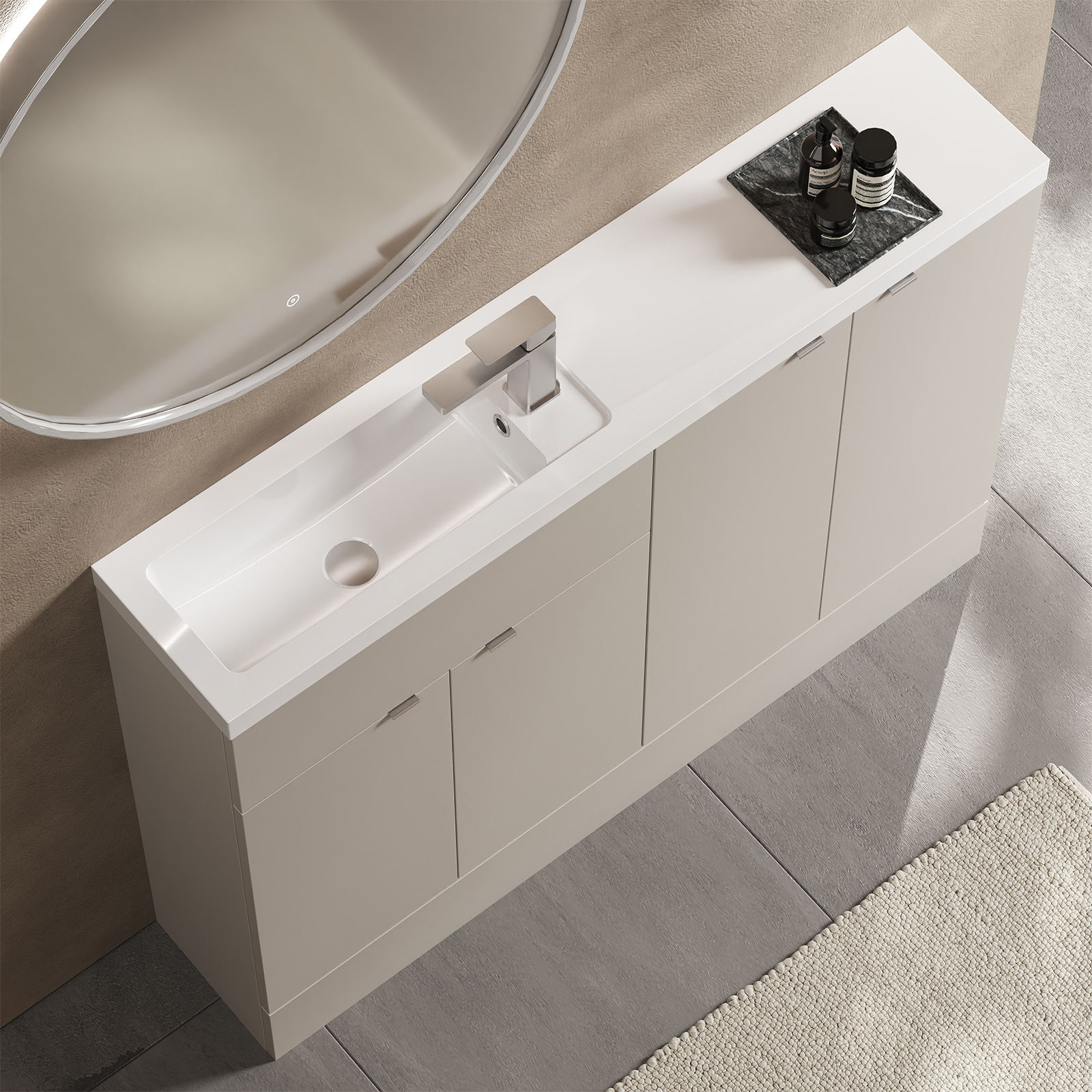

Hudson Reed Fusion 1200mm Compact Furniture Pack - Vanity And 2 Base Unit With Basin
Technical drawing 61777 / CBI125
Additional image of hudsonreed CBI125
Additional image of Hudson Reed Fusion 1200mm Compact Furniture Pack - Vanity And 2 Base Unit With Basin
Additional image for 61777 hudsonreed - CBI125
Hudson image
Alternate image of Hudson Reed Fusion 1200mm Compact Furniture Pack - Vanity And 2 Base Unit With Basin
Alternate image of Hudson Reed Fusion 1200mm Compact Furniture Pack - Vanity And 2 Base Unit With Basin

Hudson Reed Fusion 1200mm Compact Furniture Pack - Vanity And 2 Base Unit With Basin

Hudson Reed Logo
More Finishes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : CBI125
Product Code : 61777
Delivery: £34.95
£490.00
RRP : £1225.00
Finishes Available

OP-145932 - Gloss White

qty :
  • The product consists of a Vanity Unit, 2 x Base Units, a Plinth and a Basin
  • Overall Dimension: Width 1205mm (120.5cm) x Depth 260mm (26cm) x Height 904mm (90.4cm)
  • The tap shown in the image is not included
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • The product consists of a Vanity Unit, 2 x Base Units, a Plinth and a Basin
  • Overall Dimension: Width 1205mm (120.5cm) x Depth 260mm (26cm) x Height 904mm (90.4cm)
  • The tap shown in the image is not included
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instruction
  • Technical drawing available for more technical details
  • Guarantee: 5 Years from Hudson Reed against manufacturing faults.
  • Details of Compact Vanity Unit:
  • Dimension: Width:600mm (60cm) x Depth:253mm (25.3cm) x Height:864mm (86.4cm)
  • Cabinet Finish: MFC Painted Gloss
  • Fascia Finish: MDF Painted Gloss
  • Cabinet Thickness: 16mm (1.6cm)
  • Fascia Thickness: 18mm (1.8cm)
  • Supplied with 1 Internal shelf
  • 2 Soft Close door
  • Hinge Type: 95 Degree Clip-On Soft Close
  • FSC Certified
  • Fixing included
  • Construction Method: Cam and Wood Dowel
  • Units have a thinner depth, ideal for cloakrooms or smaller bathrooms
  • Supplied Rigid
  • Contemporary Wrap-Over handle in Satin Nickle finish included
  • Details of Basin:
  • Dimension: Width 1203mm (120.3cm) x Depth 255mm (25.5cm) x Height 135mm (13.5cm)
  • Inner bowl depth: 103mm (10.3cm)
  • Straight Polymarble basin
  • Supplied With 1 Tap Hole
  • Overflow and cover included
  • Details of Compact Base Unit
  • 2 Base units supplied
  • Dimension: Width: 300mm (30cm) x Depth: 253mm (25.3cm) x Height: 864mm (86.4cm)
  • Cabinet Finish: MFC Painted Gloss
  • Fascia Finish: MDF Painted Gloss
  • Cabinet Thickness: 16mm (1.6cm)
  • Fascia Thickness: 18mm (1.8cm)
  • Fixing included
  • Construction Method: Cam and Wood Dowel
  • Supplied Rigid
  • FSC Certified
  • 1 Soft and 1 Internal shelf in each base unit
  • Contemporary wrap-over handle in chrome finish included
  • Hinge type: 95 Degree Clip-On Soft Close
  • Details of Plinth:
  • Size: Width:1250mm x Depth:145mm x Height:18mm
  • Cabinet Finish: MFC Painted Gloss
  • Fascia Finish: MDF Painted Gloss
  • Cabinet and Fascia Thickness: 18mm
  • Construction Method: Cam and Wood Dowel
  • Available Optional Product
  • Choice of unit finishes available
  • Choice of other handles in different finishes available

Information Breakdown

Colour Gloss White
Warranty/Guarantee 5 Year
Theme Modern
Fixings included Yes
No. of Tap Holes 1
Number Of Doors 2
Furniture Material MFC Textured Woodgrain
Sink Included Yes
Sink Colour White
Vanity Cabinet Included Yes
Vanity Cabinet Width 600
Vanity Cabinet Height 864
Vanity Cabinet Depth 235
Compatible Handle

Technical Info

Hudson Reed Fusion 1200mm Compact Furniture Pack - Vanity And 2 Base Unit With Basin

Download Technical Data Sheet PDF

Download Mounting Instruction PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Details of Furniture Pack
    Finish Pack Code Vanity Unit MFC Base Unit MFC Basin Plinth
    Gloss White CBI125 OFF107 2x OFF181 PMB404 OFF191
    Anthracite Woodgrain CBI525 OFF507 2x OFF581 PMB404 OFF591
    Charcoal Black CBI625 OFF607 2x OFF681 PMB404 OFF691
    Gloss Grey CBI925 OFF907 2x OFF981 PMB404 OFF991
    Bleached Oak CBI3025 OFF3007 2x OFF3081 PMB404 OFF3091
