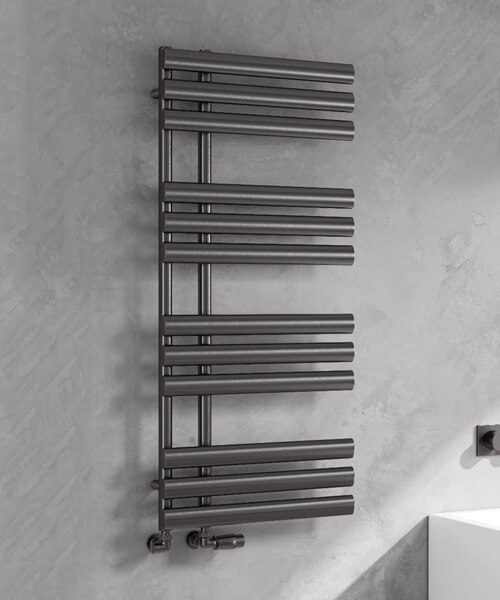

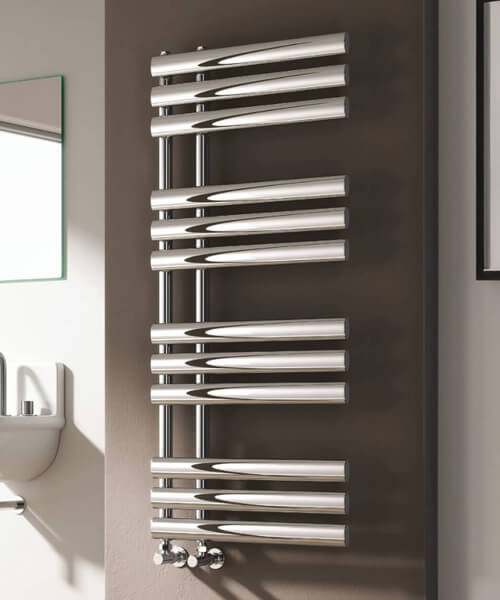

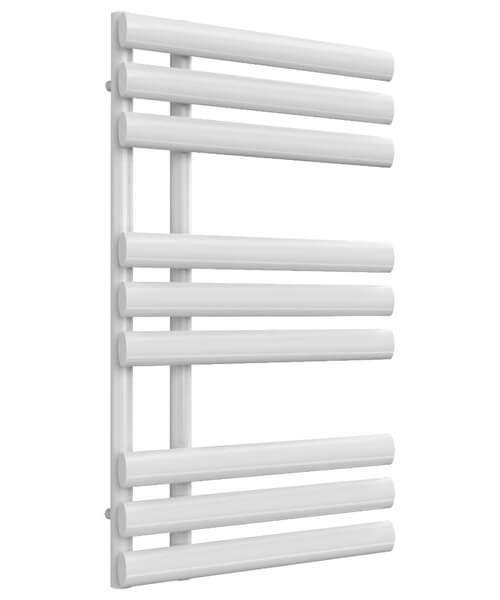

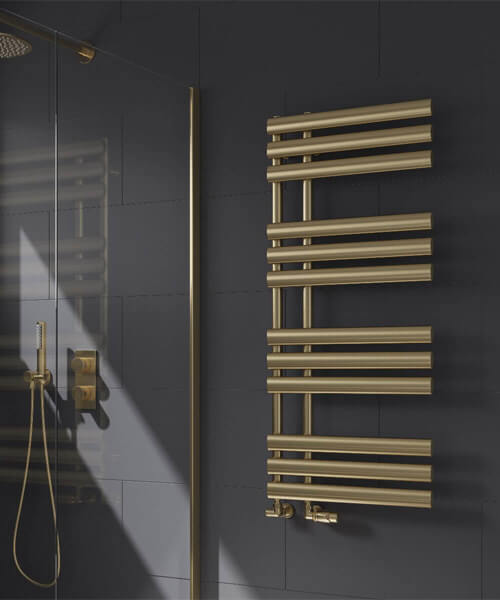

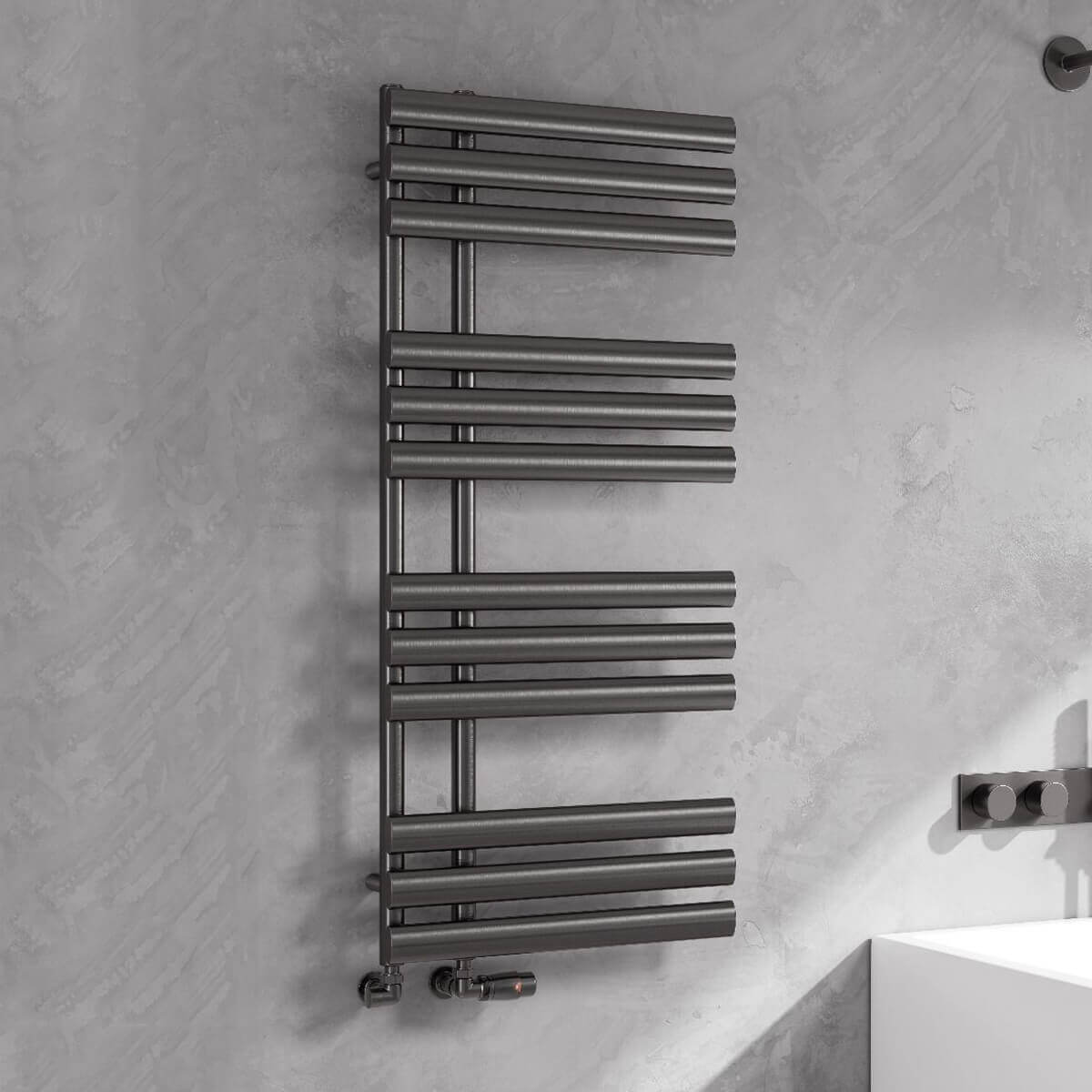

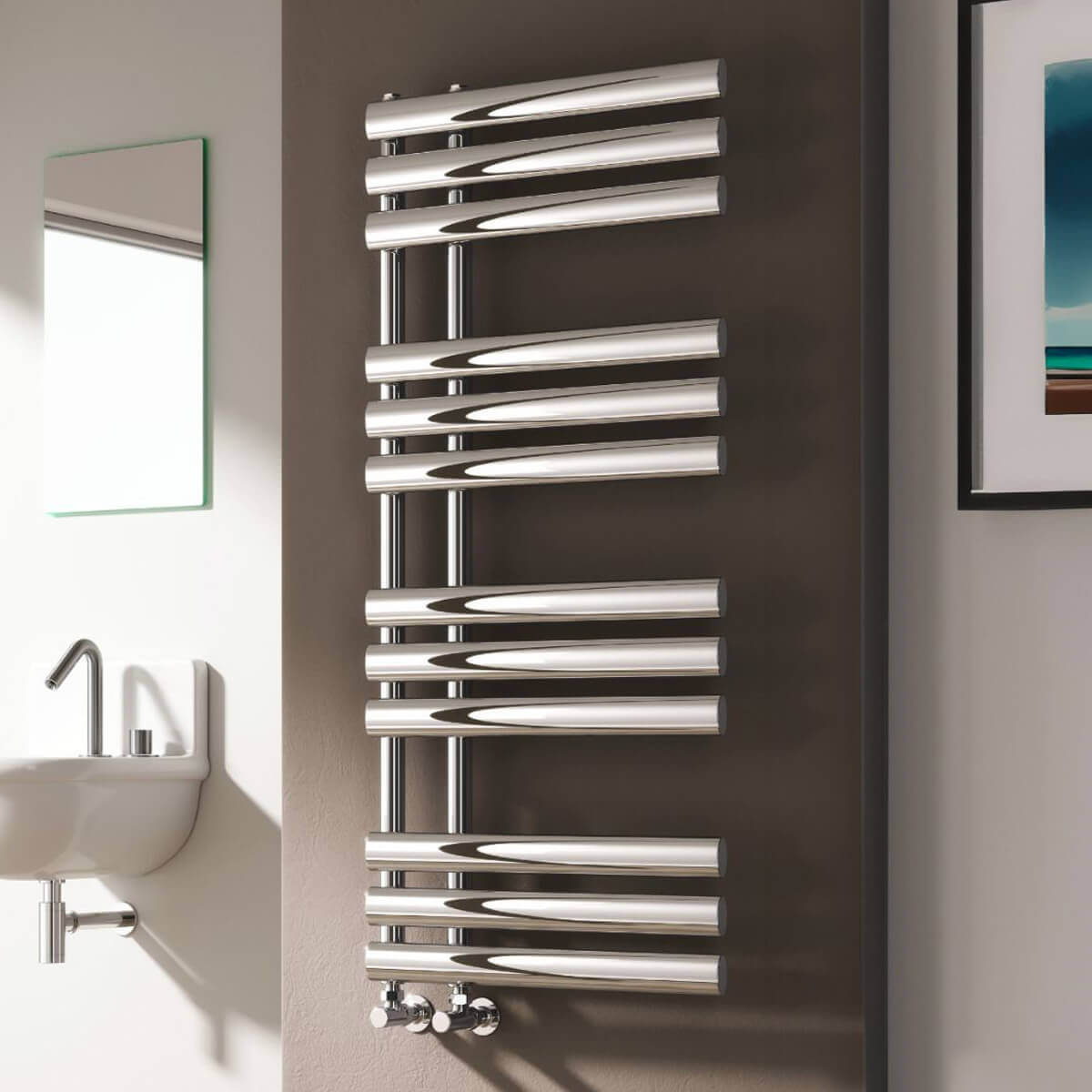

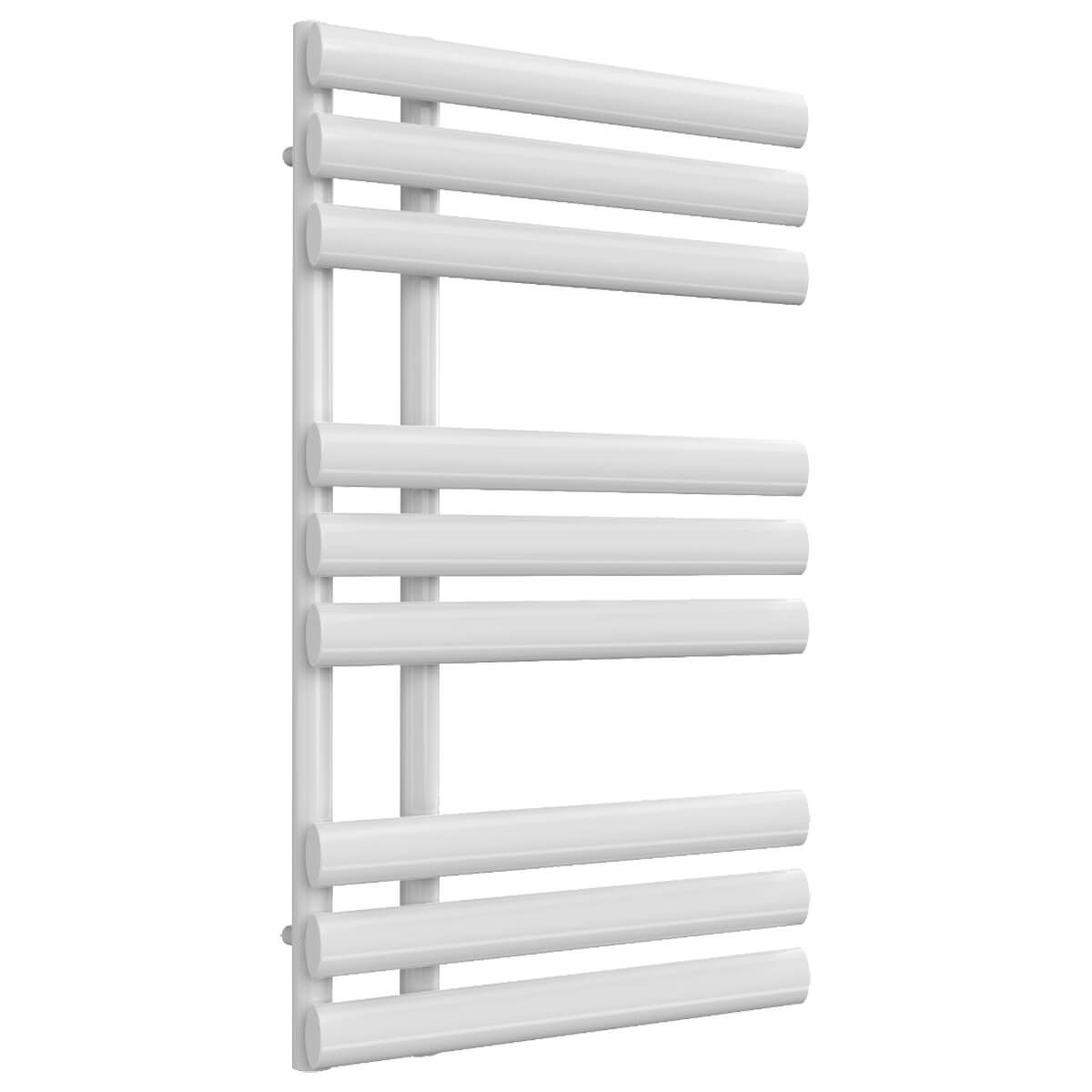

Reina Chisa Mild Steel Designer Towel Rail 500mm Wide

Reina Logo
More Variations Available
No Rating No Rating Write a Review
Rate This:
MFC Code : RND-CHS082W
Product Code : 65062
Delivery: £34.95
£141.60
RRP : £210.00
SELECT FINISH Step 1

SELECT Height Step 2

SELECT Variations Step 3

SELECT Heating Element Step 4

SELECT Essential Accessories Step 5

qty :
Compatible Valves Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

Options & Accessories: You May Require

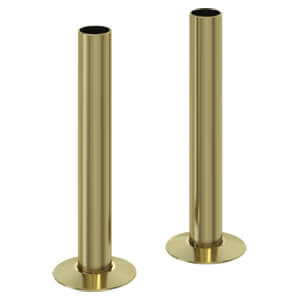

Chrome Pipe Kit
Accessories

Reina provides an optional Chrome Pipe Kit that you may require for the installation. These kit are highly recommended from the manufacturer. Please note: Image shown is for illustration purpose only.



About This Product

  • Choice of Finishes: White, Anthracite, Chrome, Brushed Brass and Brushed Gun Metal
  • Choice of Heights: 820mm and 1130mm
  • Choice of Variants: Central Heating, Dual Fuel and Electric
  • Choice of Heating Elements: Standard, On/Off Touch, Thermostatic: LST Mini Round, Mini Round, Touch, LST Weekly, Weekly, Wireless Programmable Thermostat and Square Thermostatic Wifi
  • Material: Mild steel
  • Width: 500mm (50cm)
  • Pipe Centres: 100mm (10cm)
  • Wall to Pipe Centres: 61-76mm (6.1cm - 7.6cm)
  • Distance from Wall: 102-117mm (10.2cm - 11.7cm)
  • Supplied with air vent and end plug
  • Brackets for radiator included
  • EN 442 compliant product
  • The valves shown in the image are not included
  • For BTU and Watts, Please Refer to the Chart in the PRODUCT VARIATIONS INFO and MFC CODE Section
  • For more information on Elements, Options, download the Elements PDF File from the Technical Info Section
  • Download the Data Sheet and Installation Guide PDF File from the Technical Info Section
  • Download the Heating Element and Manual Instruction PDF Files from the Technical Info Section

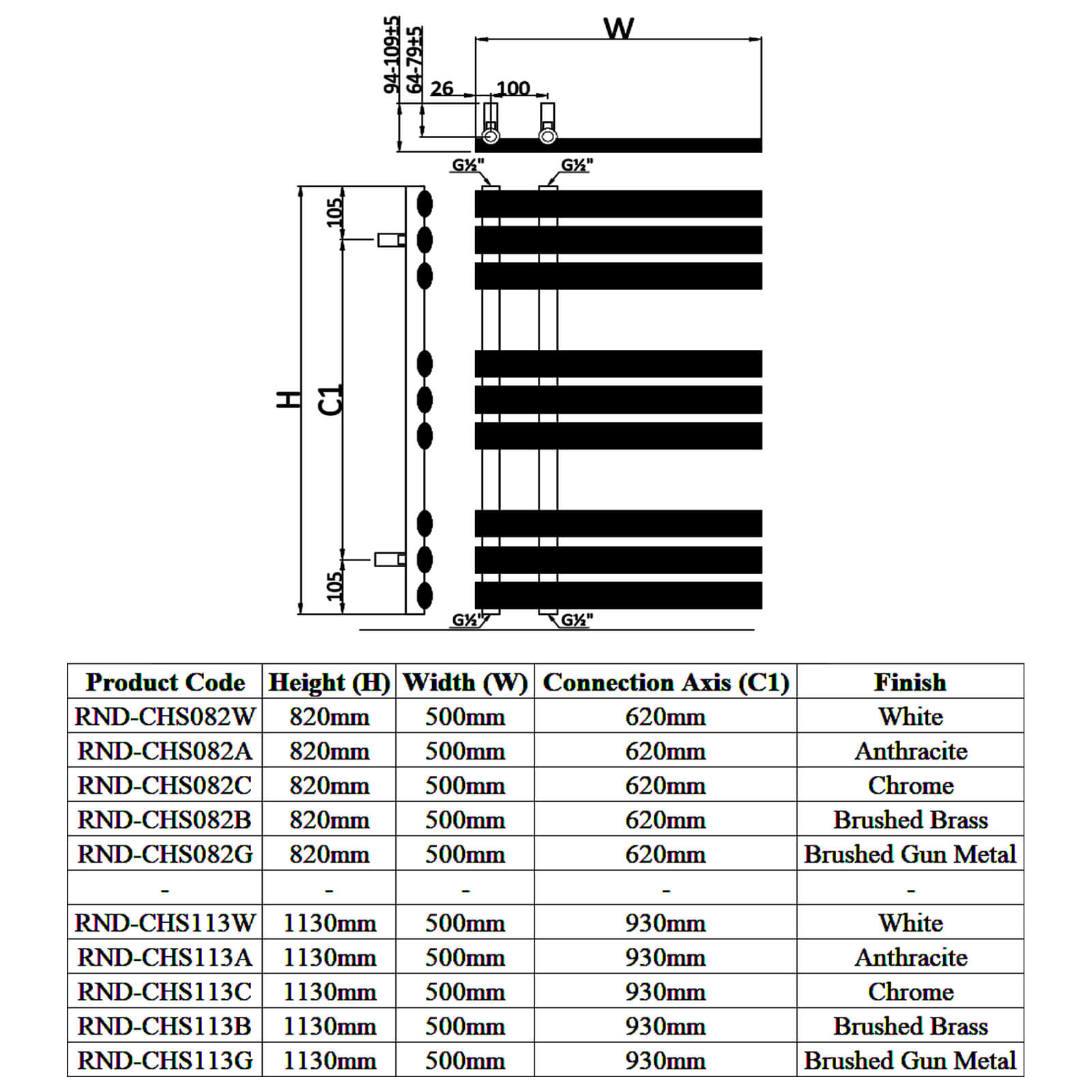

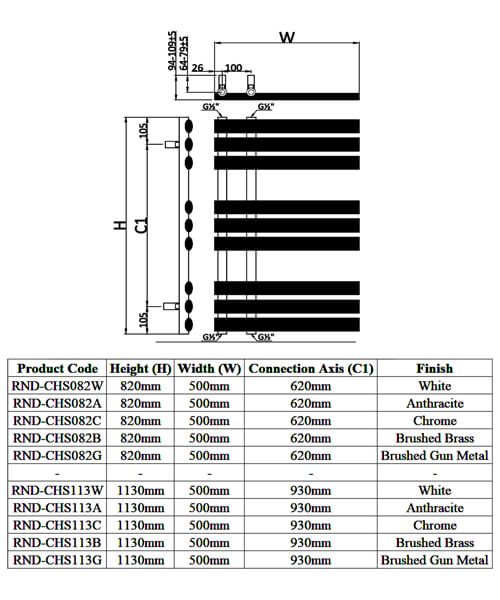

  • Refer to the technical diagram for complete technical specifications
  • Guarantee: Five-year from Reina against manufacturing defects
  • Please Note:
  • The appropriate wattage of the element (if selected) will be decided by the manufacturer once the order is placed
  • Available Optional Products:
  • T-Piece - For Dual Fuel Only
  • Liquid Filling For Electric Only
  • Compatible valves
  • Sleeving kit and chrome pipe kit

Information Breakdown

Colour White
Warranty/Guarantee 5 Years
Theme Modern
Width 500
Compliance/Approvals/Standard EN442
Orientation Vertical
BTU Output 50°C - 1298
Watts 50°C - 381
No. Of Bars 9
Tapping / Pipe Centres 100
Tapping / Pipe Centres 61-76
Valves Included Sold Separately
Wall to Centre of Inlet 61-76
Brackets Included Yes
Design Modern
Installation Type Wall Mounted
Compatible Valves

Technical Info

Reina Chisa Mild Steel Designer Towel Rail 500mm Wide

Download Technical Data Sheet PDF

Download Installation Guide PDF

Download Specification For Heating Elements PDF

Download Heating Element Manual Instructions PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Specification For 500 x 820mm Radiator
    Finishes White Anthracite Chrome Brushed Brass Brushed Gun Metal
    Width 500mm 500mm 500mm 500mm 500mm
    Height 820mm 820mm 820mm 820mm 820mm
    Pipe Centres 100mm 100mm 100mm 100mm 100mm
    Wall To Pipe Centre 61-76mm 61-76mm 61-76mm 69.5mm 69.5mm
    Wall Distance 102-117mm 102-117mm 102-117mm 112mm 112mm
    Tube Quantity 9 9 9 9 9
    Total Gap 2 2 2 2 2
    BTU - Delta-50 1298 1298 909 909 909
    Watts - Delta-50 381 381 266 266 266
    BTU - Delta-60 1662 1662 1163 1163 1163
    Watts - Delta-60 487 487 341 341 341
    MFC RND-CHS082W RND-CHS082A RND-CHS082C RND-CHS082B RND-CHS082G
  • Specification For 500 x 1130mm Radiator
    Finishes White Anthracite Chrome Brushed Brass Brushed Gun Metal
    Width 500mm 500mm 500mm 500mm 500mm
    Height 1130mm 1130mm 1130mm 1130mm 1130mm
    Pipe Centres 100mm 100mm 100mm 100mm 100mm
    Wall To Pipe Centre 61-76mm 61-76mm 61-76mm 69.5mm 69.5mm
    Wall Distance 102-117mm 102-117mm 102-117mm 112mm 112mm
    Tube Quantity 12 12 12 12 12
    Total Gap 3 3 3 3 3
    BTU - Delta-50 1877 1877 1295 1295 1295
    Watts - Delta-50 550 550 380 380 380
    BTU - Delta-60 2402 2402 1657 1657 1657
    Watts - Delta-60 704 704 486 486 486
    MFC RND-CHS113W RND-CHS113A RND-CHS113C RND-CHS113B RND-CHS113G
  • Specification For Heating Elements
    Variants Finish MFC
    Standard Heating Element Chrome ELM/S
    - - -
    On/Off Touch Element Chrome ELMOOT-C
    On/Off Touch Element Black ELMOOT-BL
    On/Off Touch Element Anthracite ELMOOT-A
    - - -
    LST Mini Round Thermostatic Element Chrome ELMMRNLST-C
    LST Mini Round Thermostatic Element Black ELMMRNLST-BL
    LST Mini Round Thermostatic Element Anthracite ELMMRNLST-A
    LST Mini Round Thermostatic Element White ELMMRNLST-W
    - - -
    Mini Round Thermostatic Element Chrome ELMMRNC
    Mini Round Thermostatic Element Black ELMMRNK
    Mini Round Thermostatic Element Anthracite ELMMRNA
    Mini Round Thermostatic Element White ELMMRNW
    - - -
    Touch Thermostatic Heating Element Chrome ELMTCH-C
    Touch Thermostatic Heating Element Anthracite ELMTCH-A
    Touch Thermostatic Heating Element Brushed Brass ELMTCH-BB
    - - -
    LST Weekly Thermostatic Element Chrome ELMWKYLST-C
    LST Weekly Thermostatic Element Black ELMWKYLST-BL
    LST Weekly Thermostatic Element Anthracite ELMWKYLST-A
    LST Weekly Thermostatic Element White ELMWKYLST-W
    - - -
    Weekly Thermostatic Element Chrome ELMWKYC
    Weekly Thermostatic Element Black ELMWKYK
    Weekly Thermostatic Element Anthracite ELMWKYA
    Weekly Thermostatic Element White ELMWKYW
    - - -
    Wireless Programmable Thermostat White ACC-WPRT7RF
    - - -
    Square Thermostatic Wifi Element Chrome ELM-SQR
  • Specification For Accessories
    TYPE Finish MFC
    T-Piece - For Dual Fuel Only Chrome ACCS/TP
    T-Piece - For Dual Fuel Only Anthracite ACCS/TPA
    T-Piece - For Dual Fuel Only White ACCS/TPW
    T-Piece - For Dual Fuel Only Brushed Brass ACCS/TPG
    T-Piece - For Dual Fuel Only Brushed Gun Metal ACCS/TPM
    - - -
    Liquid Filling For Electric Only - A/FILLING1
