Reina Grace Designer Steel Radiator 500mm Wide

Reina Logo
More Sizes And Finishes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : RND-GRC078W
Product Code : 61163
Shipping: FREE
£116.97
RRP : £189.00
SELECT FINISH Step 1

SELECT Height Step 2

SELECT Radiator Type Step 3

SELECT Heating Element Step 4

SELECT Essential Accessories Step 5

qty :
Compatible Valves Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Available in 2 sizes and 3 finishes - [See Option]
  • Valves shown in the image are not included
  • Brackets for radiator included
  • Supplied with Air vent and End plug
  • Suitable for central, electric and dual fuel heating systems
  • Material: Steel
  • Width: 500mm (50cm)
  • Pipe centres: 100 (10cm)
  • Wall to pipe centers: 61-76mm (6.1-7.6cm)
  • Distance from wall: 102-117mm (10.2-11.7cm)
  • EN 442 compliant product
  • For BTU and Watts, Please refer to the Product Variations Info and MFC Code section
  • Download Heating Element PDF files from the Technical Info section

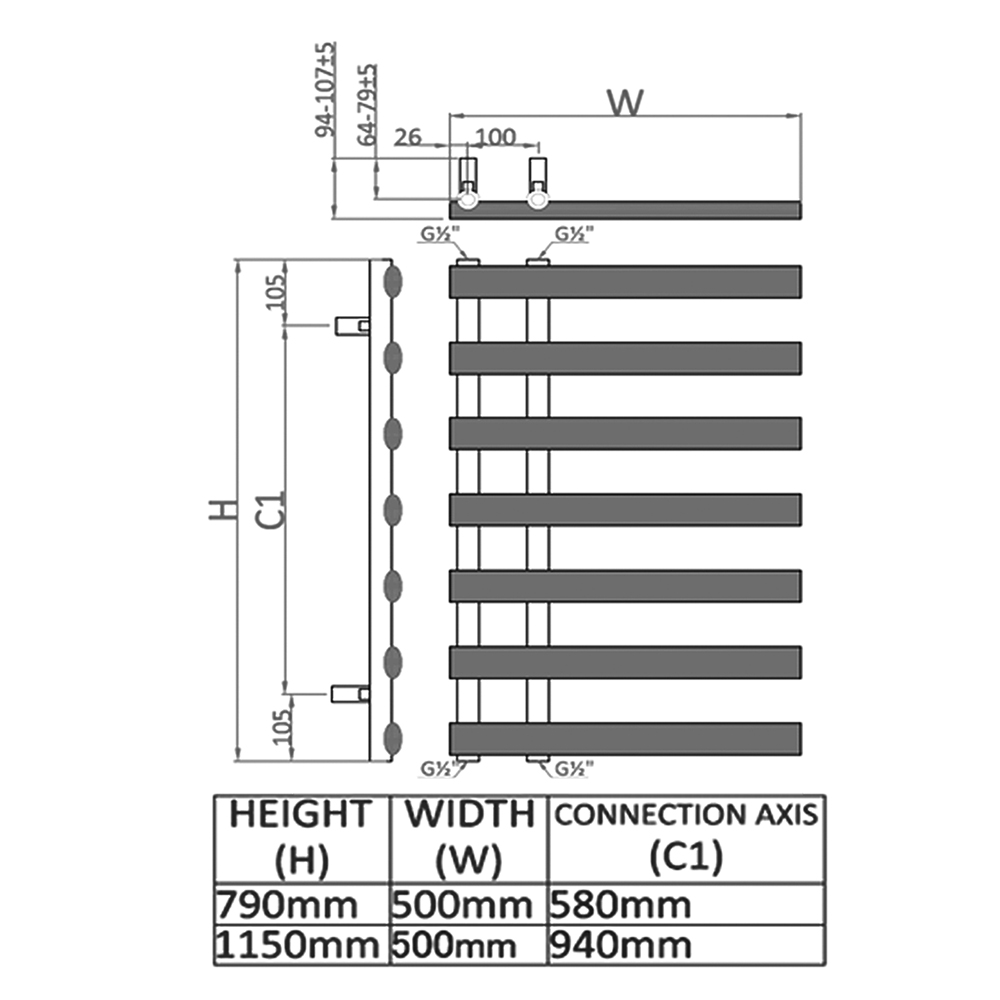

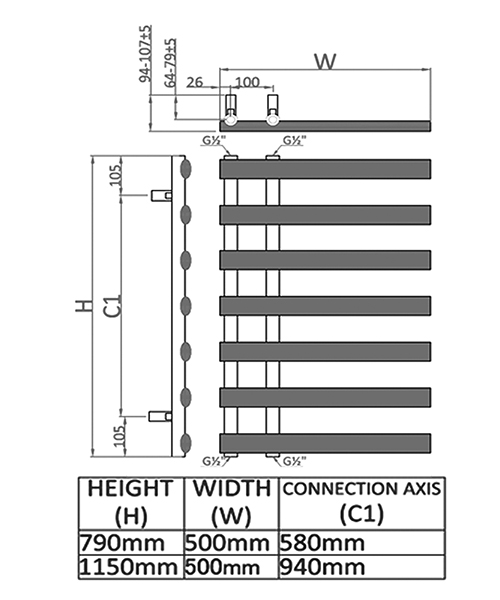

  • Refer technical diagram for complete technical dimensions
  • Guarantee: 5 years from Reina against manufacturing defects.
  • Available Optional Products:
  • Sizes: 500mm x 780mm (50cm x 78cm) and 500mm x 1140mm (50cm x 114cm)
  • Finishes: White, Anthracite and Chrome
  • Heating Elements
  • Valves
  • Chrome pipe kit
  • T-Piece - For Dual Fuel Only
  • Liquid Filling For Electric Only.
  • Please Note: The appropriate wattage of the element (if selected) will be decided by the manufacturer, once the order is placed.

Information Breakdown

Colour White, Anthracite, Chrome
Warranty/Guarantee 5 Years
Width 500
BTU Output 1210, 1710, 1419, 2023, 1419, 2023
Watts 355, 501, 416, 593, 416, 593
Tapping / Pipe Centres 100
Valves Included Sold Separately
Wall to Centre of Inlet 61-76
Design Modern
Compatible Valves

Technical Info

Reina Grace Designer Steel Radiator 500mm Wide

Download Installation Instruction PDF

Download Heating Element Manual Instructions PDF

Download Details Of Heating Elements PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Specification Of White Steel Designer Radiator
    Sizes 500 x 780mm 500 x 1140mm
    Pipe Centres 100mm 100mm
    Wall To Pipe Centre 61-76mm 61-76mm
    Wall Distance 102-117mm 102-117mm
    Tube Quantity 7 10
    Total Gap 6 9
    Watts - Delta-70 515 727
    BTU - Delta-70 1755 2480
    BTU - Delta-60 1439 2033
    BTU - Delta-50 1132 1600
    BTU - Delta-45 986 1393
    BTU - Delta-40 852 1204
    BTU - Delta-35 713 1008
    BTU - Delta-30 579 818
    BTU - Delta-25 226 319
    White MFC RND-GRC078W RND-GRC114W
  • Specification Of Anthracite Steel Designer Radiator
    Sizes 500 x 780mm 500 x 1140mm
    Pipe Centres 100mm 100mm
    Wall To Pipe Centre 61-76mm 61-76mm
    Wall Distance 102-117mm 102-117mm
    Tube Quantity 7 10
    Total Gap 6 9
    Watts - Delta-70 515 727
    BTU - Delta-70 1755 2480
    BTU - Delta-60 1439 2033
    BTU - Delta-50 1132 1600
    BTU - Delta-45 986 1393
    BTU - Delta-40 852 1204
    BTU - Delta-35 713 1008
    BTU - Delta-30 579 818
    BTU - Delta-25 226 319
    Anthracite MFC RND-GRC078A RND-GRC114A
  • Specification Of Chrome Steel Designer Radiator
    Sizes 500 x 780mm 500 x 1140mm
    Pipe Centres 100mm 100mm
    Wall To Pipe Centre 61-76mm 61-76mm
    Wall Distance 102-117mm 102-117mm
    Tube Quantity 7 10
    Total Gap 6 9
    Watts - Delta-70 355 501
    BTU - Delta-70 1210 1710
    BTU - Delta-60 992 1402
    BTU - Delta-50 781 1103
    BTU - Delta-45 680 961
    BTU - Delta-40 587 830
    BTU - Delta-35 492 695
    BTU - Delta-30 399 564
    BTU - Delta-25 156 220
    Chrome MFC RND-GRC078C RND-GRC114C
  • Details For Elements And Accessories
    Variants MFC
    Standard Element ELM/S
    On/Off Touch Element ELMOOT
    LST Mini Round Thermostatic Element ELMMRNLST
    Mini Round Thermostatic Element ELMMRN
    Touch Thermostatic Element ELMTCH
    LST Weekly Thermostatic Element ELMWKYLST
    Weekly Thermostatic Element ELMWKY
    T-Piece Connector ACCS/TP
    Liquid Filling - For Electric Only A/FILLING1
