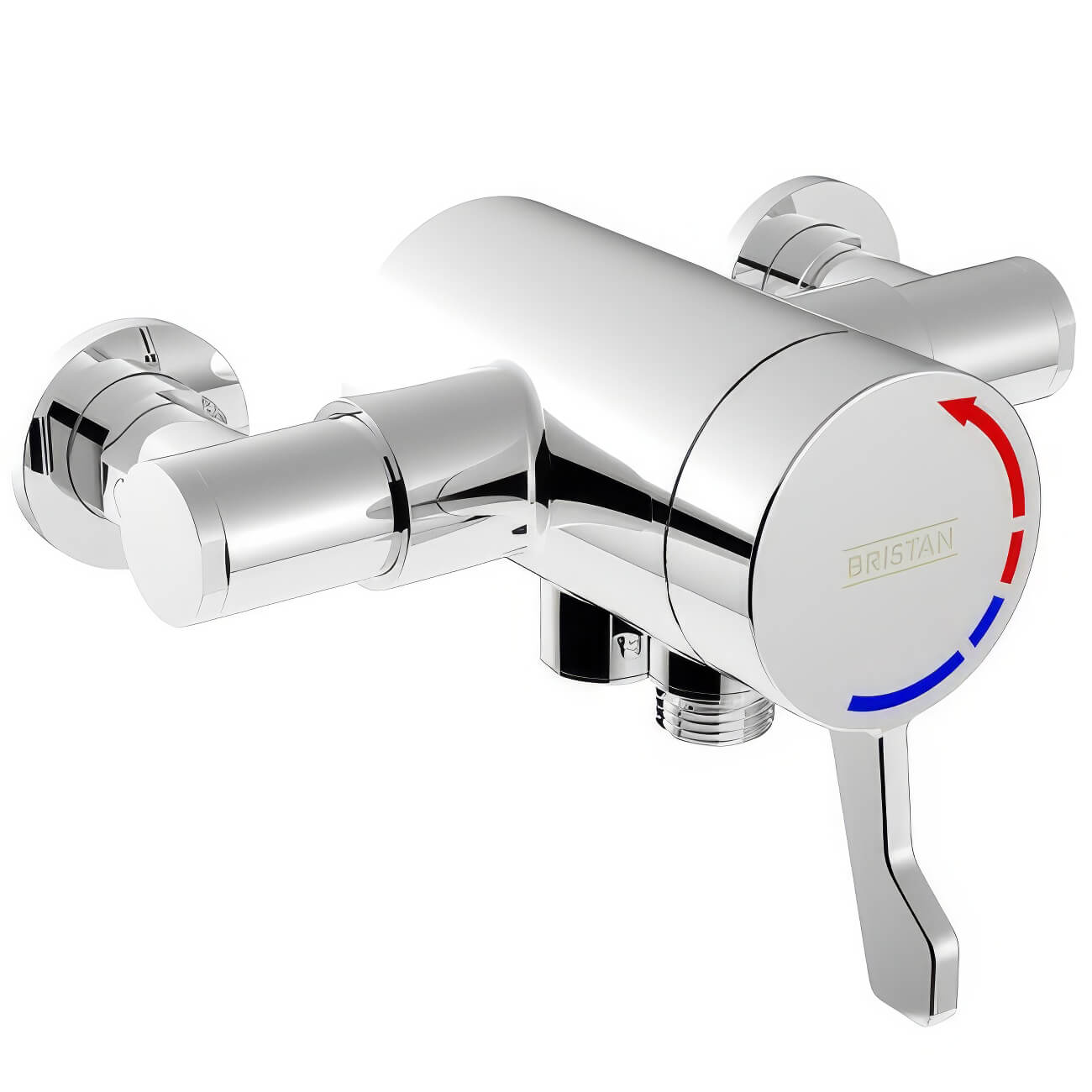

Bristan Opac Thermostatic Exposed Shower Valve - Chrome small Image 4

Bristan Opac Thermostatic Exposed Shower Valve - Chrome

Technical drawing 63378 / OP TS3650 EL C

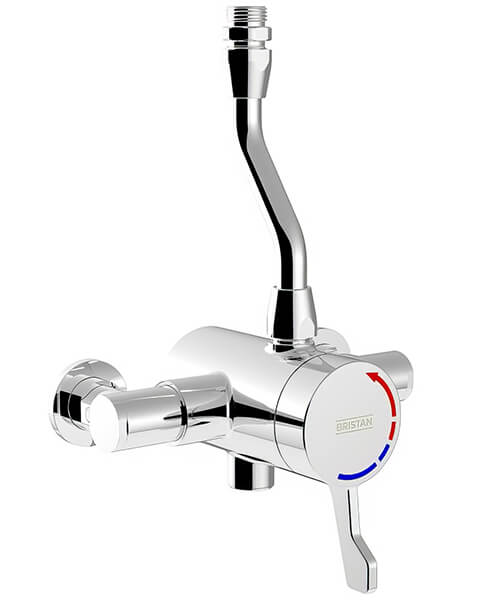

Additional image of Bristan OP TS3650 EL C

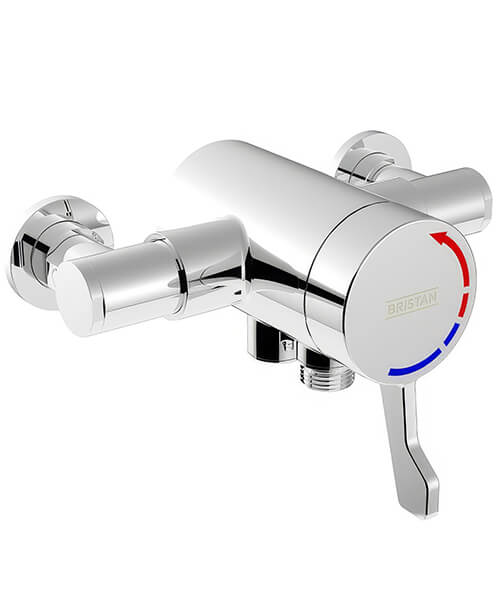

Bristan Opac Thermostatic Exposed Shower Valve - Chrome

Name: Bristan Opac Thermostatic Exposed Shower Valve - Chrome
Brand: Bristan
SKU: OP TS3650 EL C
Price: 370.8 GBP
Availability: InStock

More Variation Available

No Rating

Write a Review

Rate This:

MFC Code : OP TS3650 EL C

Product Code : 63378

Delivery: £7.95

£370.80

RRP : £617.00

Other Variation Available

Bottom Outlet

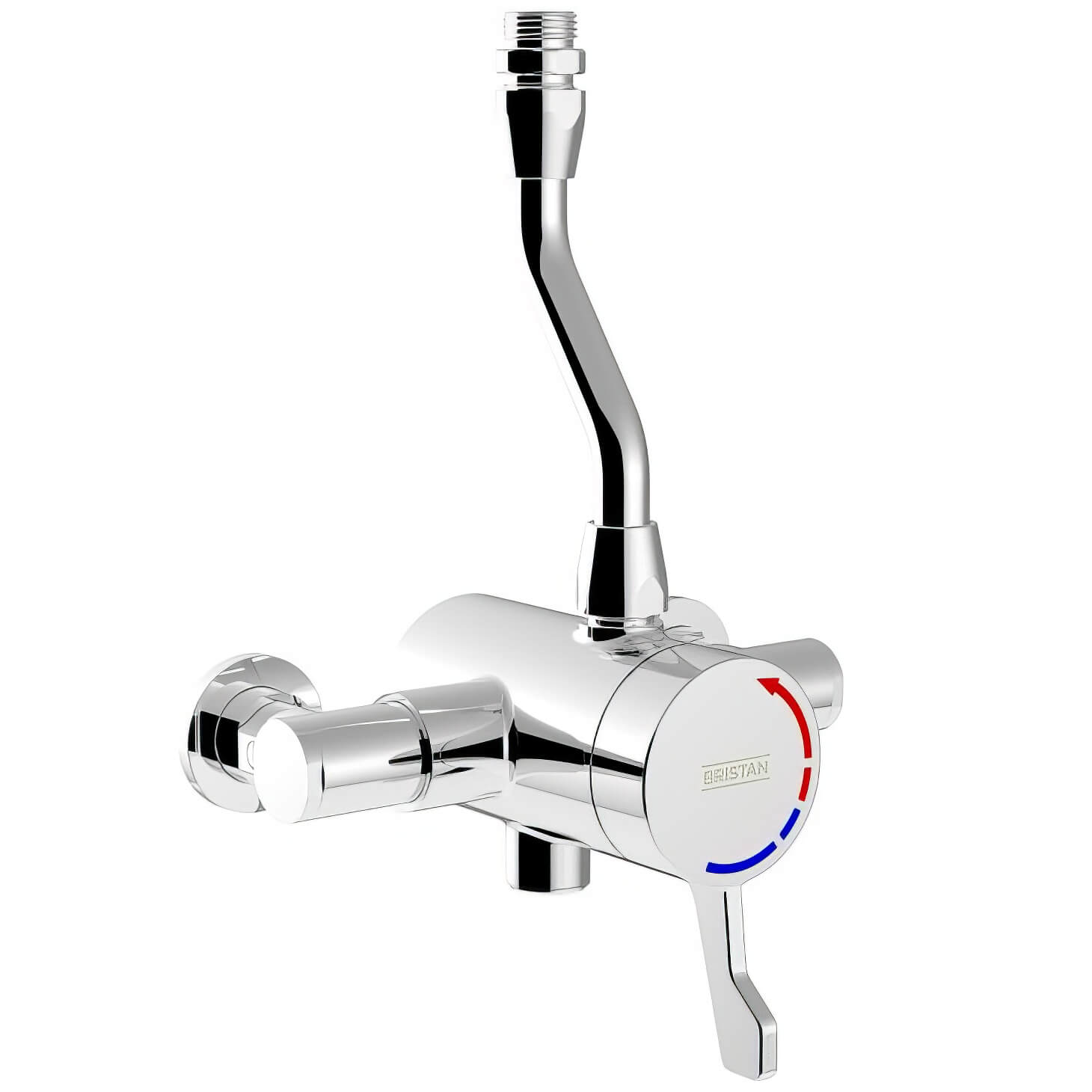

Top Outlet

OP-194031 - Bottom Outlet

qty :

WRAS Approved
Certified to NSF TMV2 and TMV3
Manufactured using high-quality brass material

About This Product

WRAS Approved
Certified to NSF TMV2 and TMV3
Manufactured using high-quality brass material
Available in 2 variations: Bottom and Top Outlet Shower Valve
It comes in a chrome-plated finish
Size of Valve: 185mm x 125mm [Width x Height]
No of Controls: 1
Shower Type: Exposed, Sequential
Valve/Cartridge Type: Sequential Cartridge
Maximum Hot Water Supply Temperature: 65°C
Maximum Static Pressure: 10 bar
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch
Isolation Valve Included: Yes
Check Valve Included: Yes
Easy isolation and filter removal
Integral thermal flushing for infection control
Plumbing System: Suitable for all plumbing systems
Single sequential control for both temperature and flow
Adjustable isolation inlet elbows allow centres between 140mm-160mm
Features automatic thermostatic system which turns off the valve in case of water supply failure
Suitable for low and high water pressure systems
Required Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure
Refer to the technical image for the technical dimension
Download the product datasheet and Installation Instruction PDF File from the Technical Info Section
1-year guarantee against any manufacturing defects

Information Breakdown

Colour	Chrome
Warranty/Guarantee	1 Year
Theme	Modern
Handle Style	Lever
Inlet Connections	15mm Compression
Inlet Centres	140-160
Temperature Control	Thermostatic
Anti-Scald	Yes
TMV2 Approved	Yes
TMV3 Approved	Yes
Number of Handles	1
Number of Outlet	1
Orientation	Landscape
Outlet Connection	G 1/2 Inch
Plumbing Option	Exposed
Maximum Operating Pressure (Bar)	5.0
Overall Width	185
Minimum Operating Pressure (Bar)	0.2
