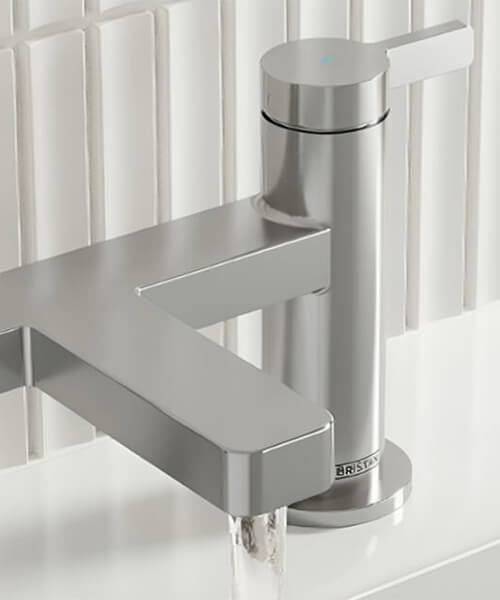

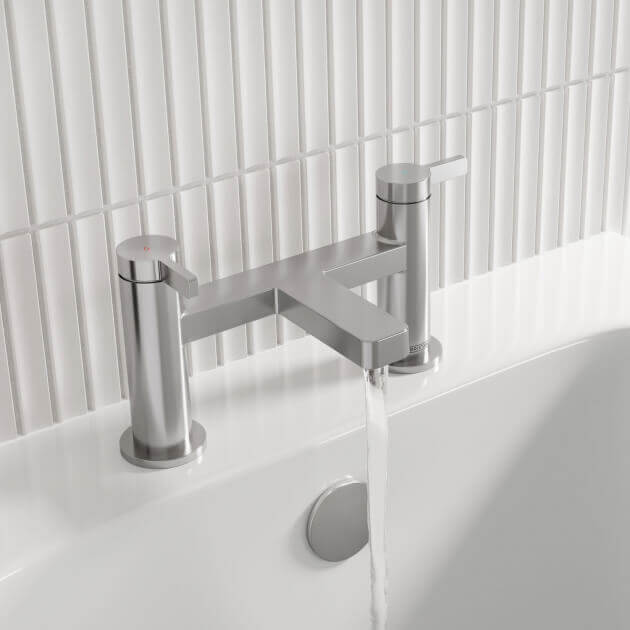

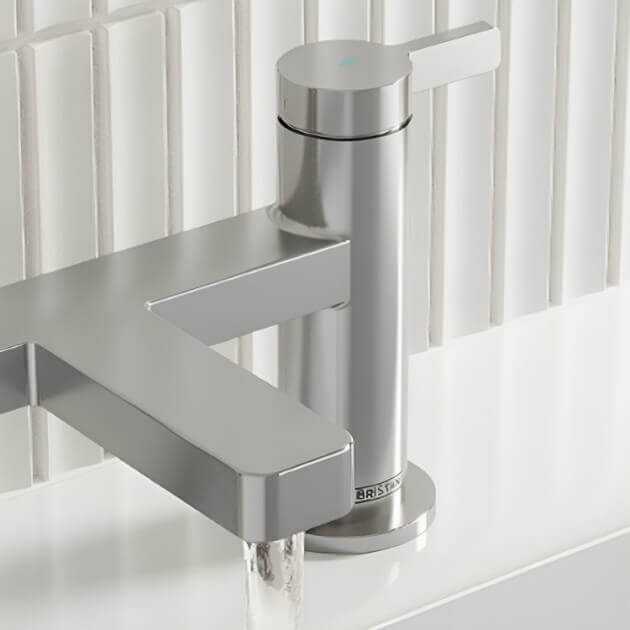

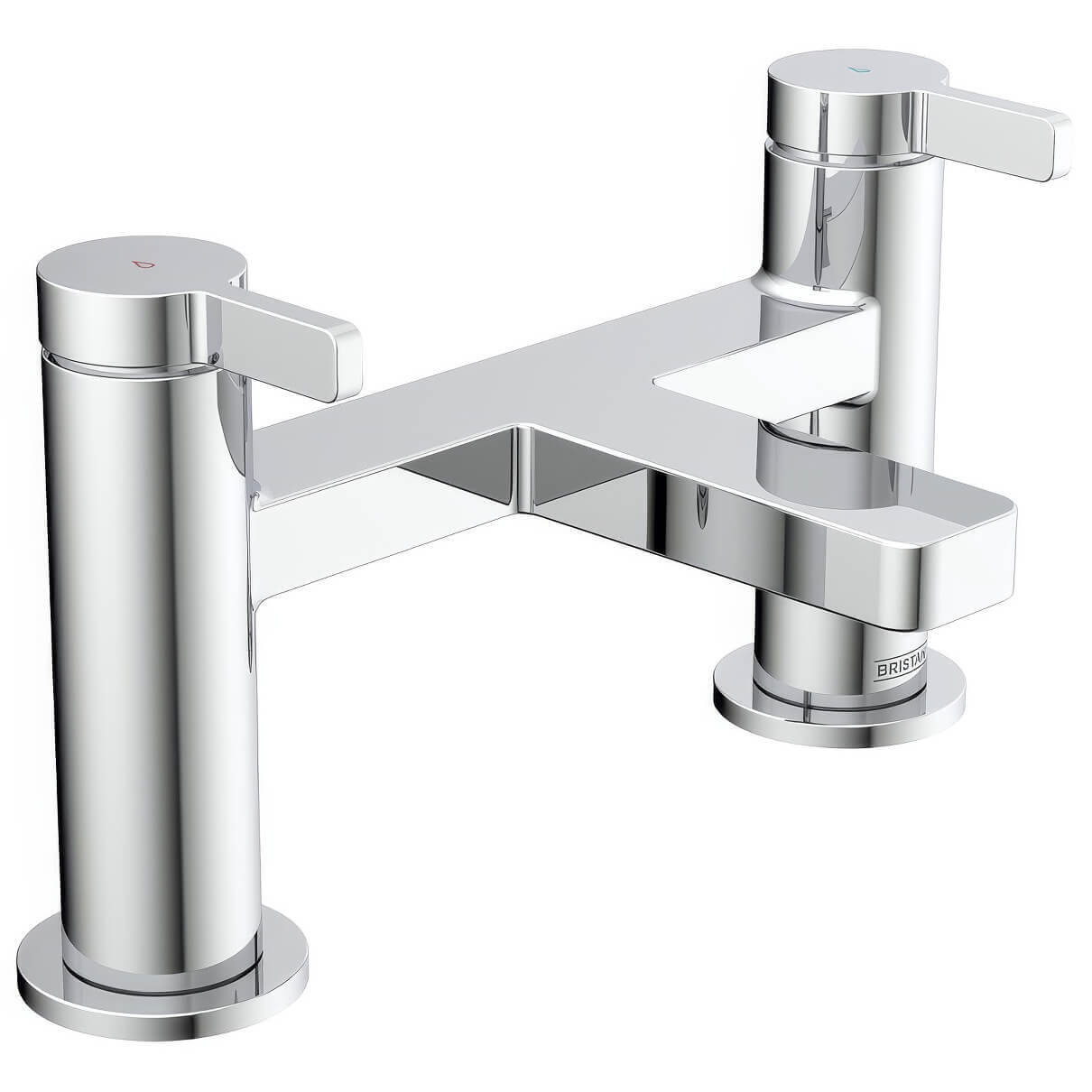

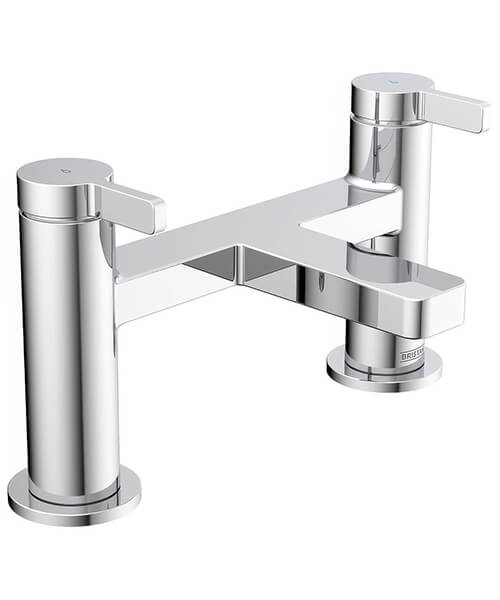

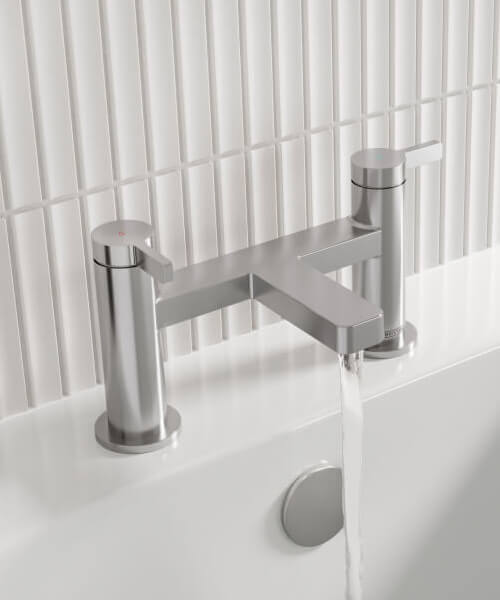

Bristan Elevar Contemporary Deck Mounted Bath Filler Tap

Bristan Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : ELE BF C
Product Code : 68467
Delivery: £7.95
£121.20
RRP : £197.00
SELECT FINISH Step 1

SELECT Select Variation Step 2

qty :
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • 1/4 Quarter Turn Mechanism
  • Manufactured Using Brass Material
  • Available in 2 Finishes: Chrome and Black
  • Size [mm]: 231 x 131 x 129mm [Width x Depth x Height]
  • Size [cm]: 23.1 x 13.1 x 12.9cm [Width x Depth x Height]
  • Base to Spout: 70mm [7cm]
  • Centre of Inlet to Centre of Outlet: 90mm [9cm]
  • Inlet Centres: 180mm [18cm]
  • Salt Spray Tested to Ensure Added Durability
  • Flow Type: Single
  • Number of Tap Holes: 2
  • Mount Type: Deck Mounted
  • Handle Type: Paddle Lever
  • Valve/Cartridge Type: 3/4 Inch Ceramic Disc Valve
  • Plumbing System: Suitable for All Plumbing Systems
  • Maximum Hot Water Temperature: 60°C
  • Maximum Static Pressure: 10 Bar
  • A Hard-Wearing, Flawless, Scratch-Resistant Chrome Finish that Lasts for Years
  • Long Life 1/4 Turn Ceramic Disc Valves for Added Durability and Smooth Control
  • Robust Metal Fixing Nut to Secure the Tap in Place, Reducing the Risk of Loosening Over Time
  • Suitable for Low and High Water Pressure Systems

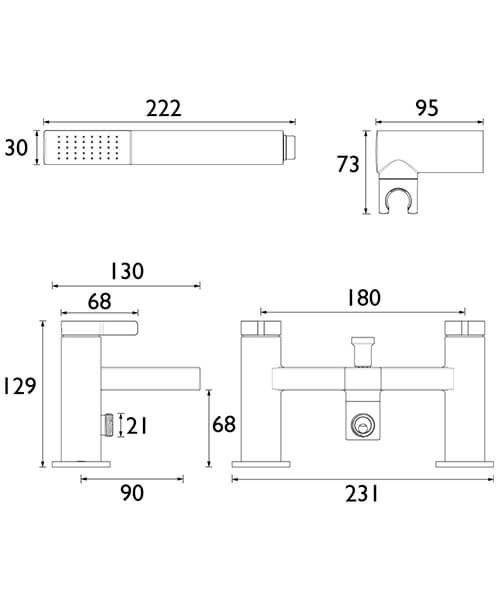

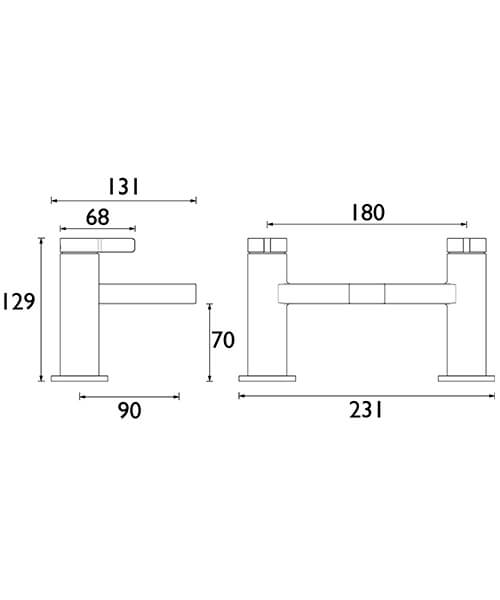

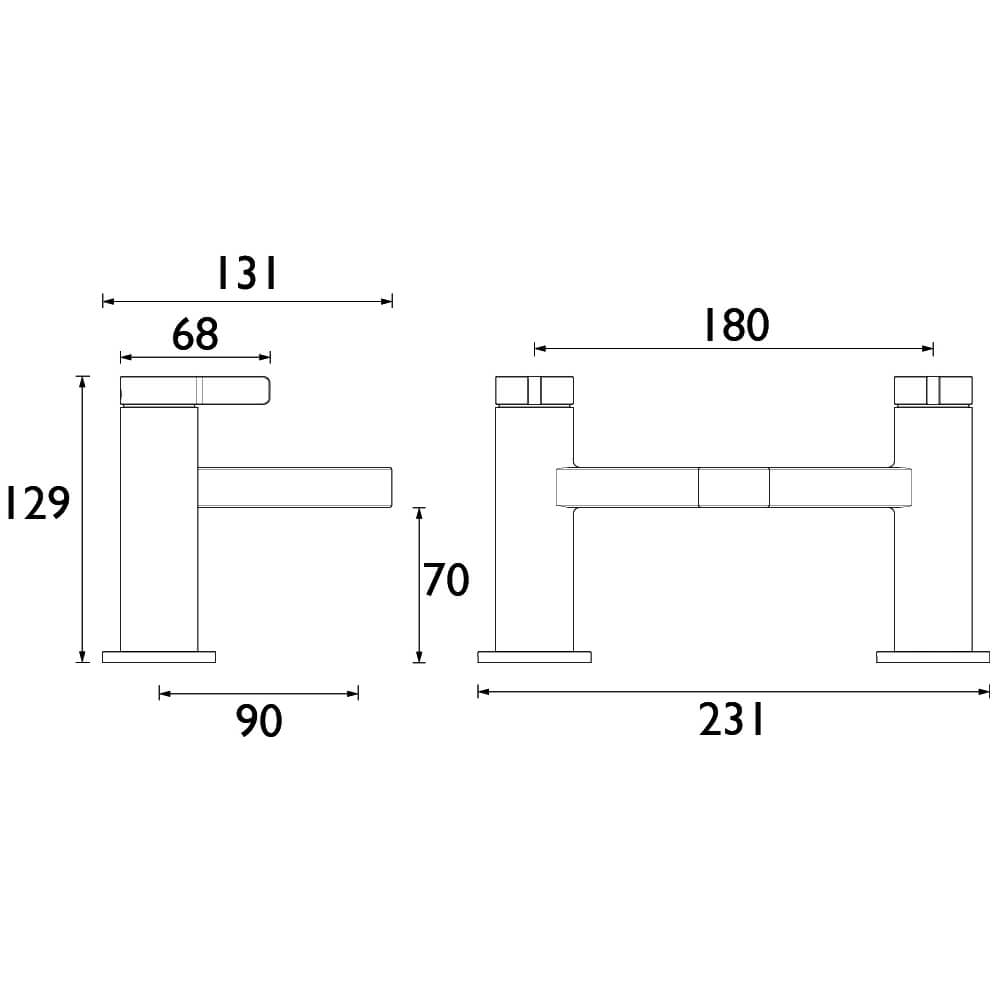

  • Refer to the Technical Image for the Technical Dimension
  • Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section
  • 10 Years On Parts and 1 Year On Labour Guarantee for Peace of Mind from Bristan
  • Details of Bath Filler Tap:
  • WRAS Approved
  • Base to Spout: 70mm [7cm]
  • Connection Inlet: 3/4 Inch BSP
  • Connection Outlet: M24 Recessed Honeycomb Aerator
  • Required Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure

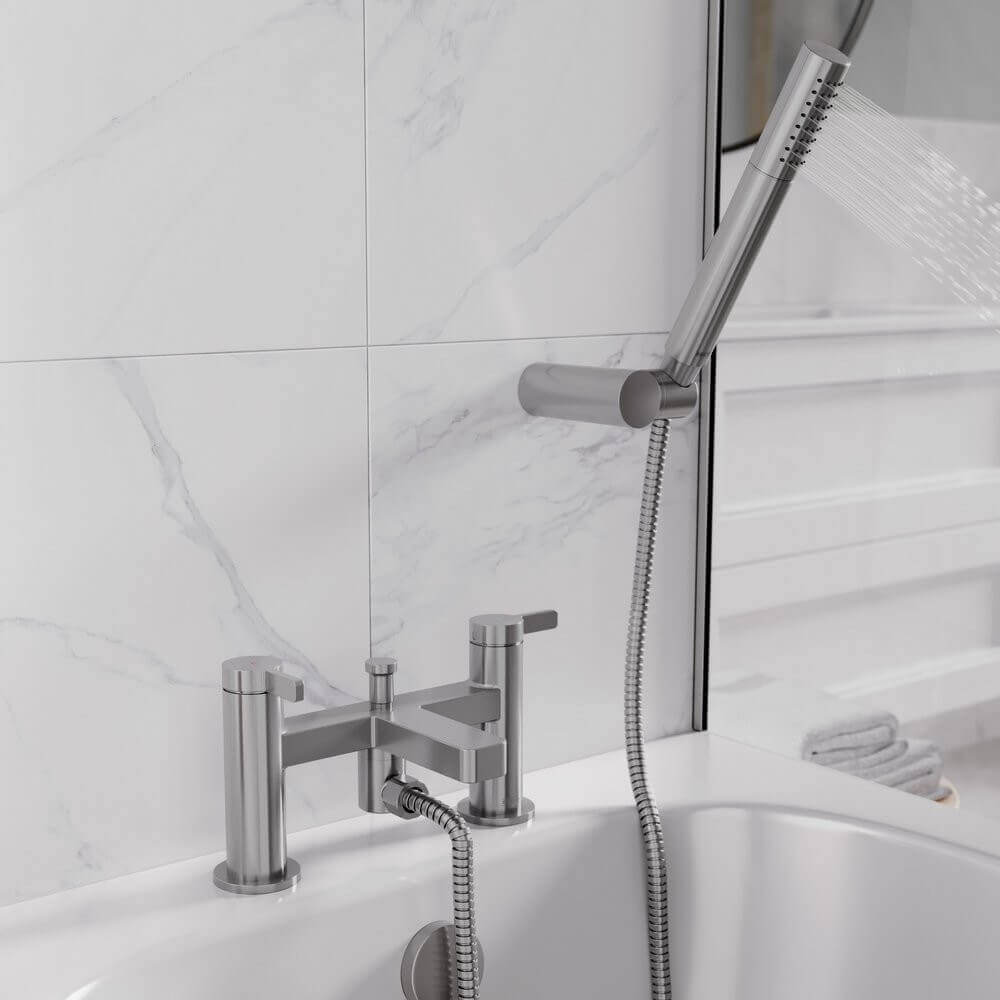

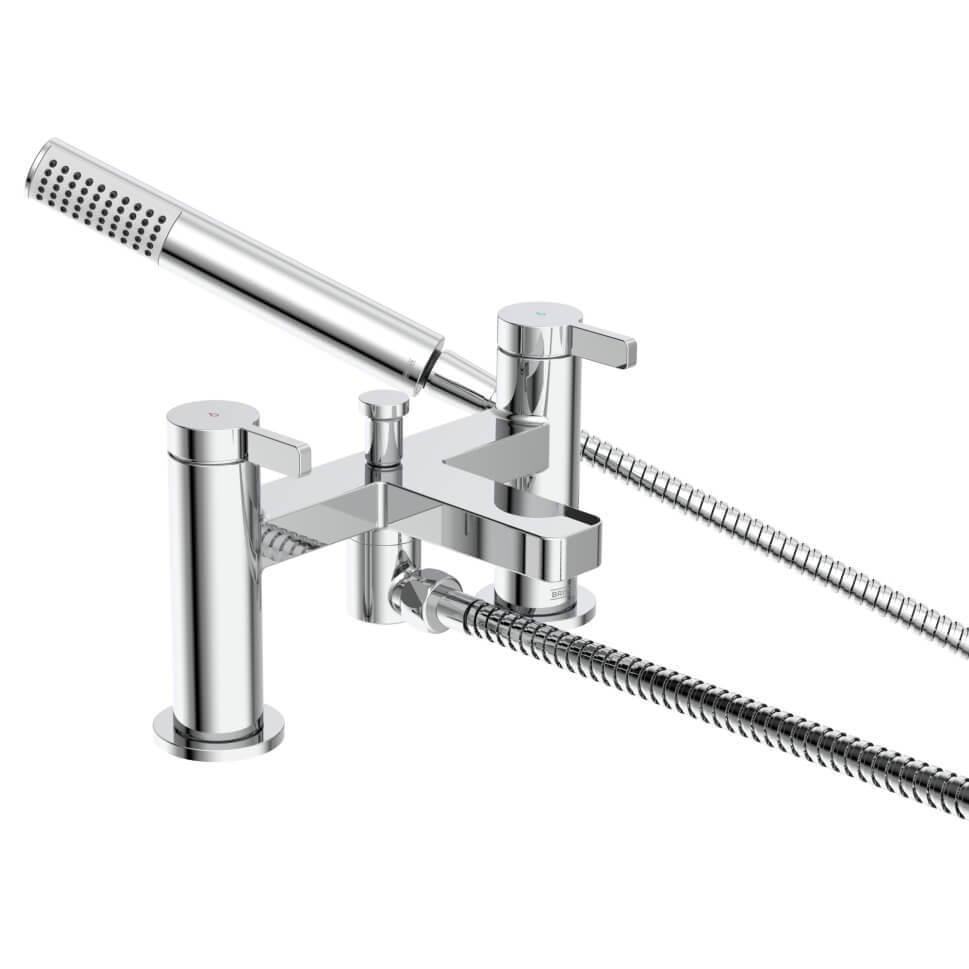

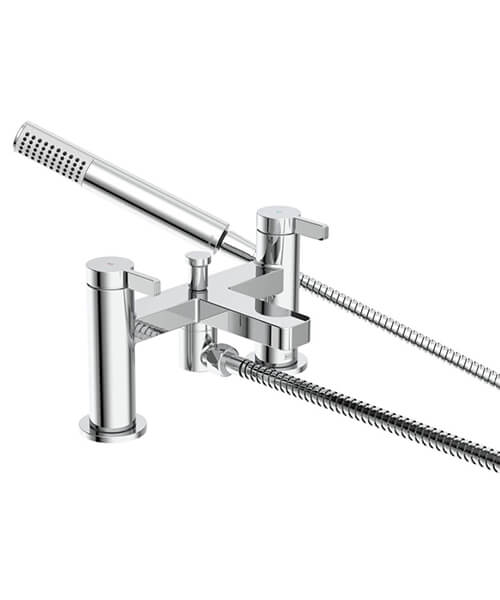

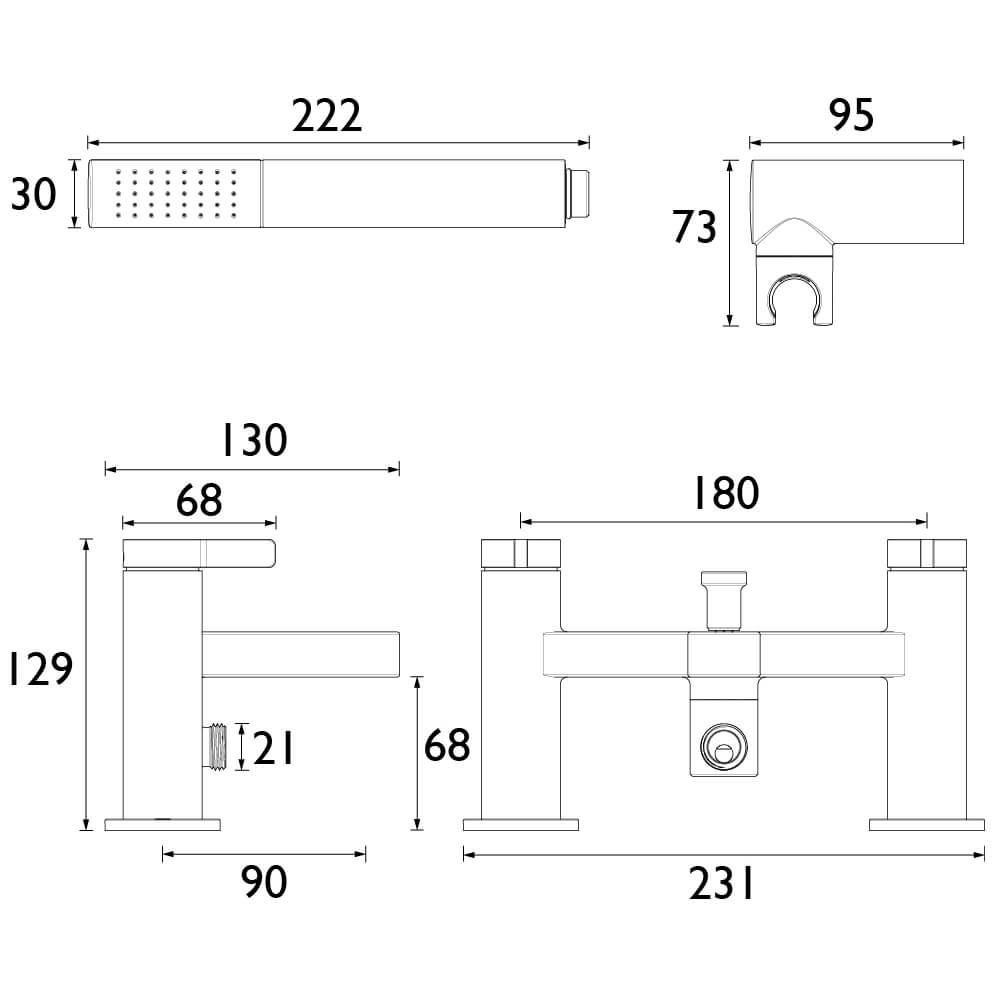

  • Details of Bath Filler Tap with Kit:

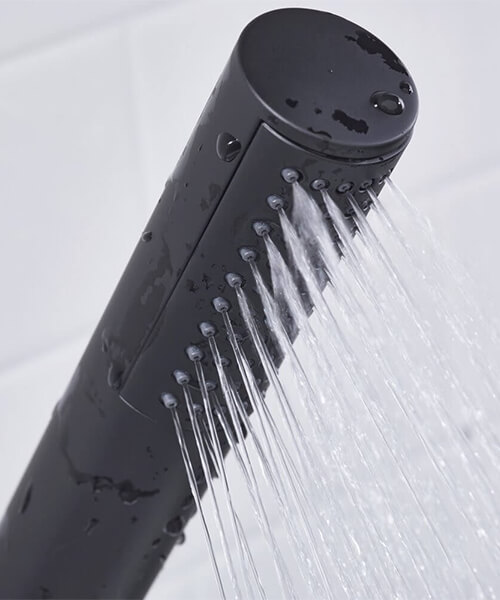

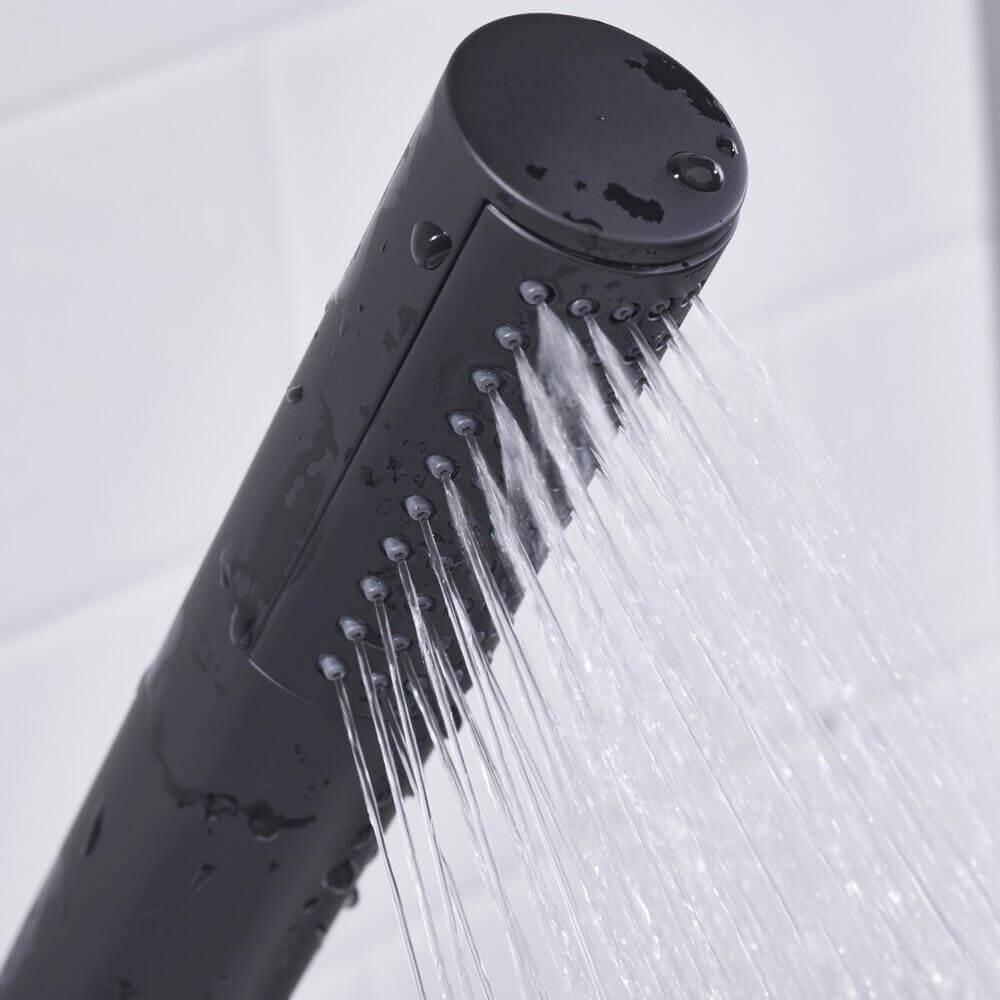

  • Size of Handset [mm]: 30 x 30 x 222mm [Width x Depth x Height]
  • Size of Handset [cm]: 3 x 3 x 22.2cm [Width x Depth x Height]
  • Base to Spout: 68mm [6.8cm]
  • Size of Handset Holder [mm]: 95 x 73 [Width x Depth]
  • Size of Handset Holder [cm]: 9.5 x 7.3 [Width x Depth]
  • Connection Inlet: 3/4 Inch BSP
  • Connection Outlet: G1/2 Inch
  • Hose Length: 1500mm
  • Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure

Information Breakdown

Colour Chrome, Black
Warranty/Guarantee 10 Years
Theme Modern
Material Brass
Width 213
No. of Tap Holes 2
Valve Type Ceramic Disc Valve
Base To Spout 70
Spout Reach 90
Handle Style Lever
WRAS Approved Yes
Inlet Connections 3/4 Inch BSP
Inlet Centres 180
Hose Included Yes
Hose Length 1500
Handshower Included Yes
Handset Included Yes
Installation Type Deck Mounted
Minimum Operating Pressure (Bar) 0.2

Technical Info

Bristan Elevar Contemporary Deck Mounted Bath Filler Tap
Bristan Elevar Contemporary Deck Mounted Bath Filler Tap

Download Product Data Sheet PDF

Download Installation Instructions PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Available Variations
    Finish Without Handset With Handset
    Chrome ELE BF C ELE BSM C
    Black ELE BF BLK ELE BSM BLK
