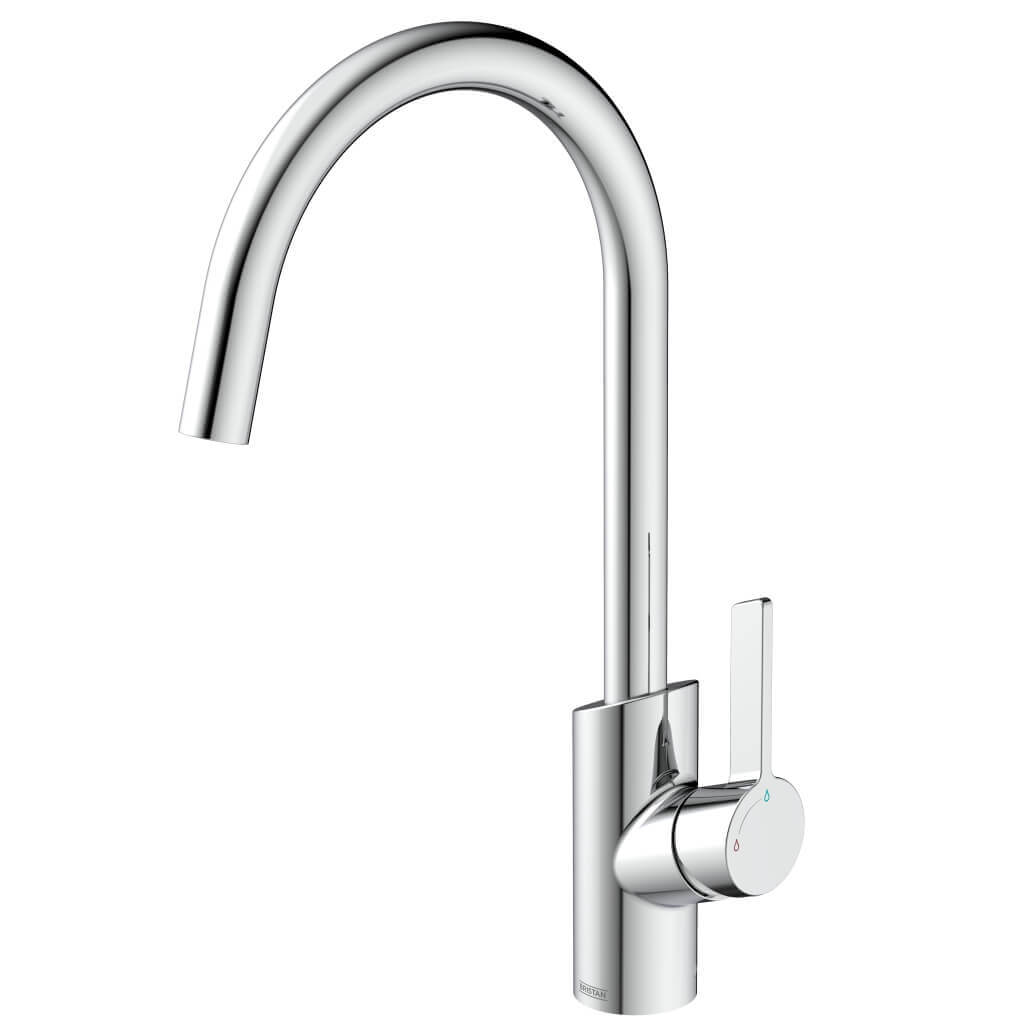

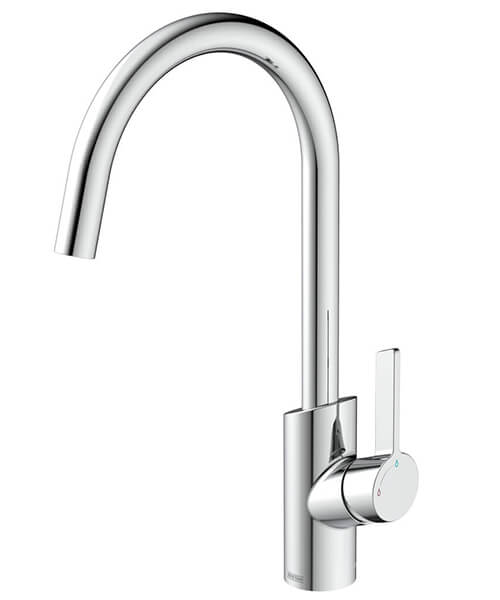

Bristan Maple Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout

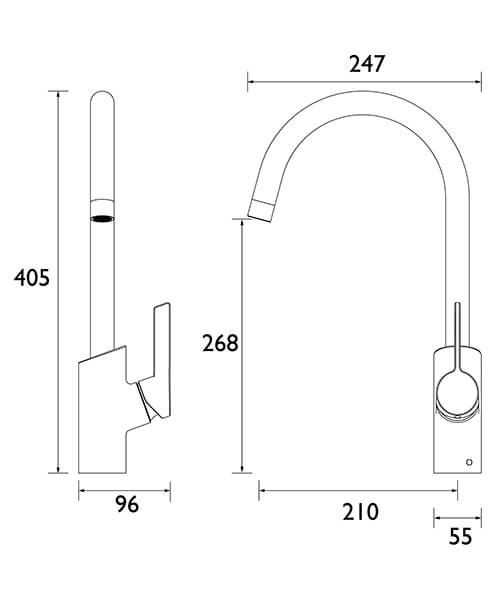

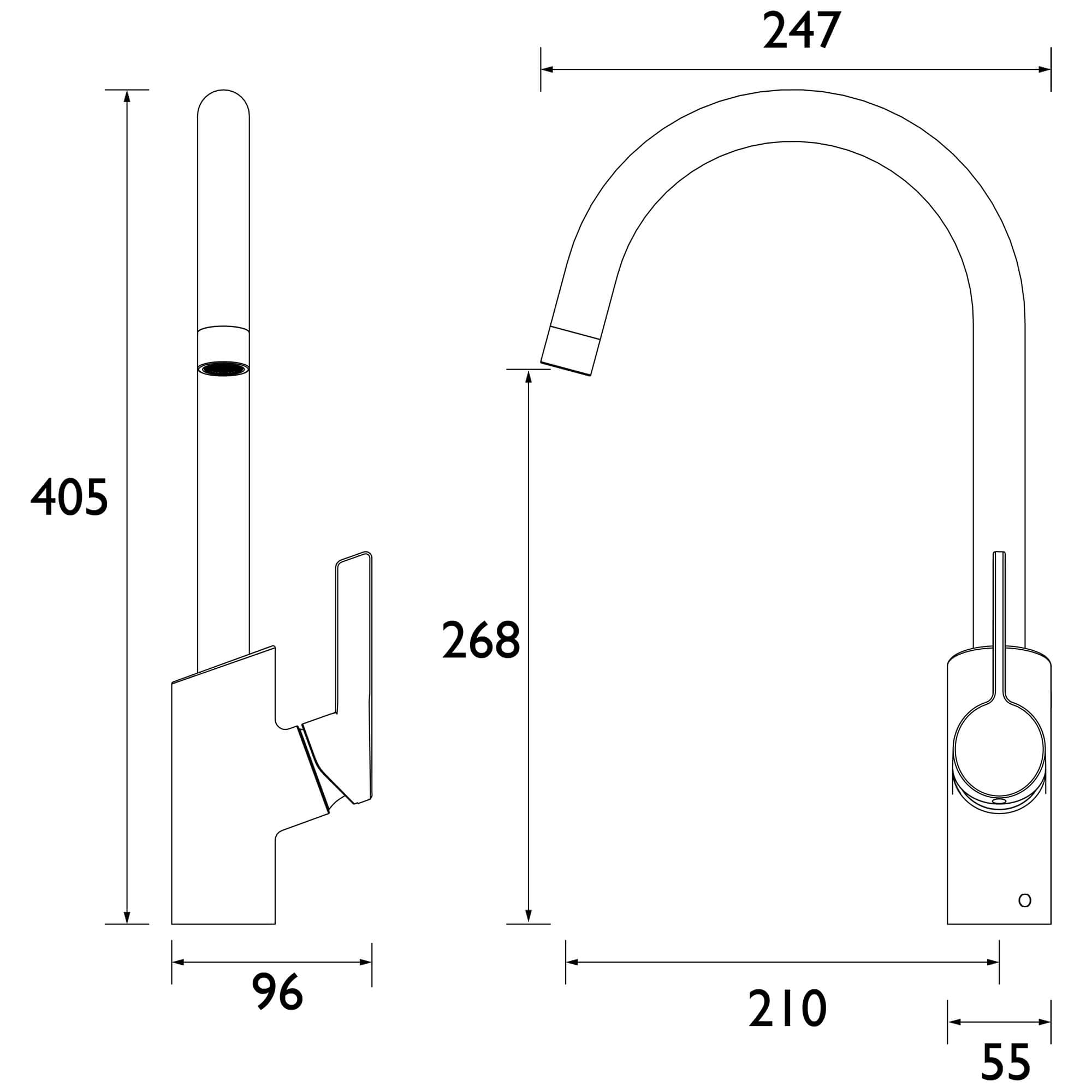

Technical drawing 68472 / MPL EFSNK C
Additional image of Bristan Maple Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout
Additional image for 68472 Bristan - MPL EFSNK C
Bristan image

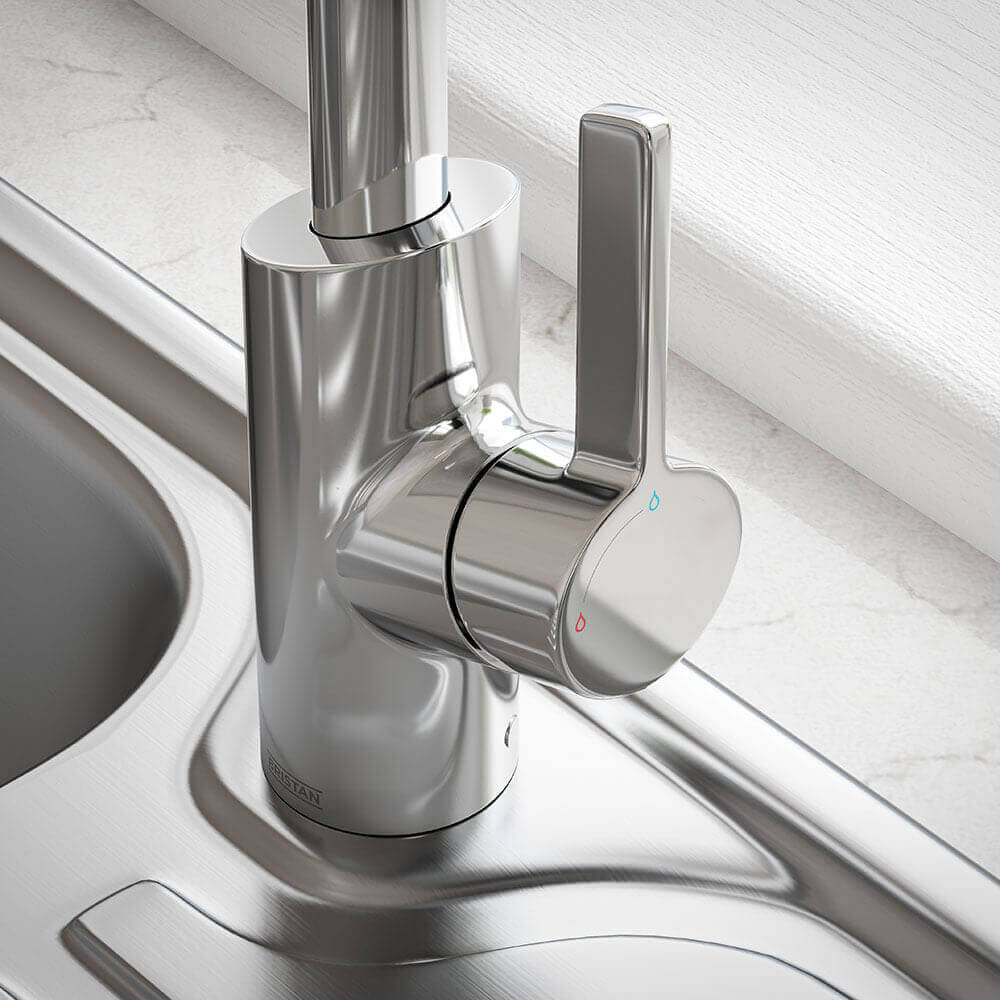

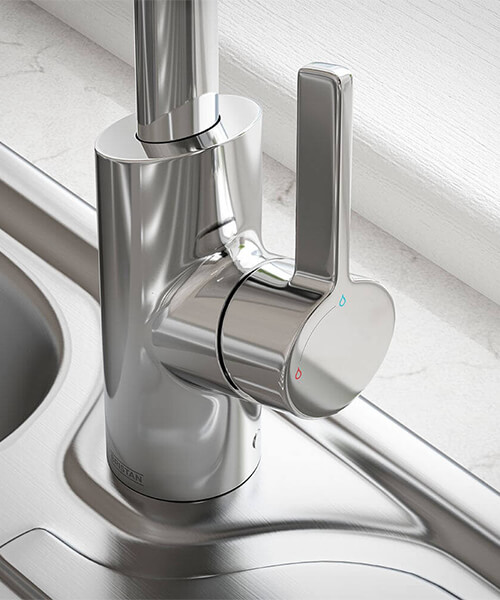

Alternate image of Bristan Maple Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout
Alternate image of Bristan Maple Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout
Alternate image of Bristan Maple Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout
Alternate image of Bristan Maple Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout
Alternate image of Bristan Maple Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout

Bristan Maple Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout

Bristan Logo
Available In 3 Finishes
No Rating No Rating Write a Review
Rate This:
MFC Code : MPL EFSNK C
Product Code : 68472
Delivery: £7.95
£98.40
RRP : £160.00
Finishes Available

OP-221857 - Chrome

qty :
  • Swivel Spout for Easy Use
  • WRAS Approved
  • Manufactured Using Brass Material
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Swivel Spout for Easy Use
  • WRAS Approved
  • Manufactured Using Brass Material
  • Supplied with Isolation Valves and Flexi Tails
  • Pack Includes: Allen Key, Isolation Valves, Top Fix Easyfit Base, Easyfit Tool and Flexi Tails
  • Available in 2 Finishes: Chrome, Black and Stainless Steel
  • Size [mm]: 96 x 247 x 405mm [Width x Depth x Height]
  • Size [cm]: 9.6 x 24.7 x 40.5cm [Width x Depth x Height]
  • Base to Spout: 268mm [26.8cm]
  • Centre of Inlet to Centre of Outlet: 210mm [21cm]
  • High-Quality Metal Fixings for Security and Durability
  • Flow Type: Single Flow
  • Isolation Included: Yes
  • Number of Tap Holes: 1
  • Mount Type: Deck Mounted
  • Handle Type: Paddle Lever
  • Connection Inlet: 1/2 Inch BSP Flexible Tails
  • Connection Outlet: Housed M22 8L/M Aerator

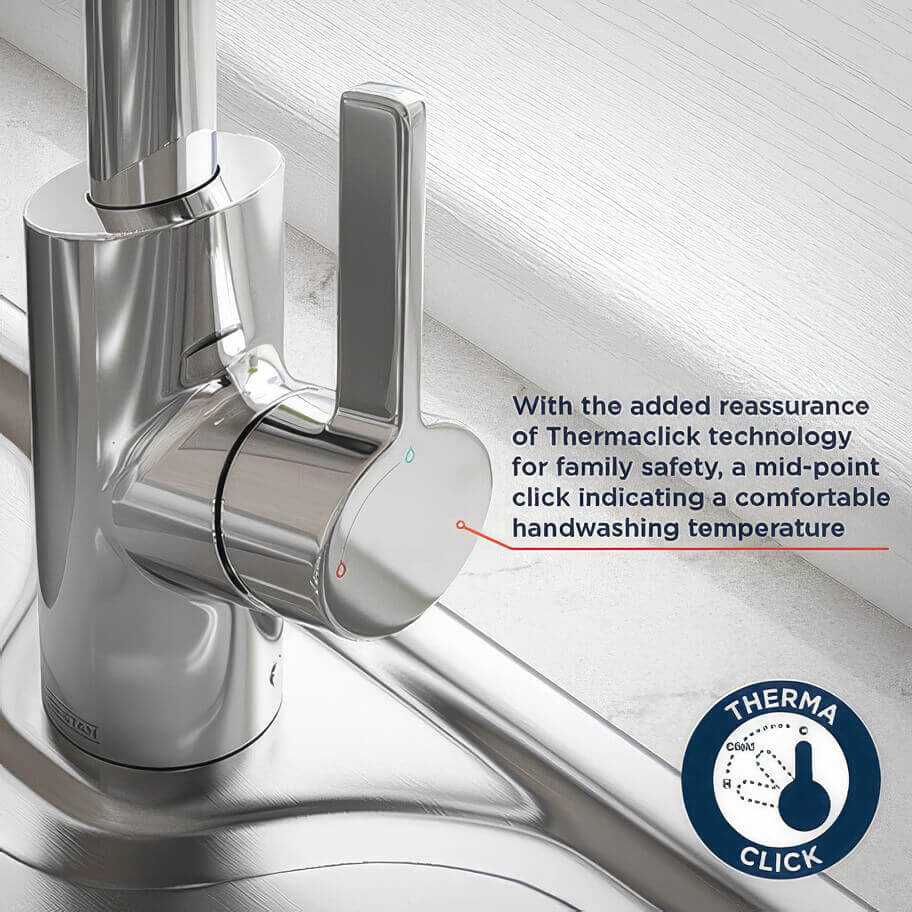

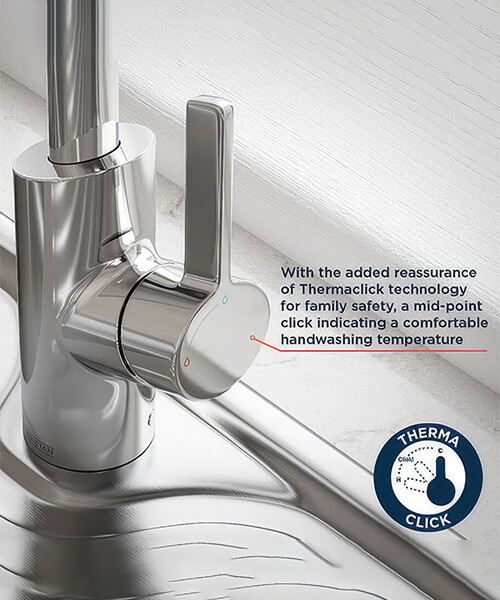

  • Valve/Cartridge Type: Thermaclick 35mm Eco Start Mirror Stepped Cartridge
  • Plumbing System Requirements: Suitable for All Plumbing Systems
  • Maximum Hot Water Temperature: 65°C
  • Maximum Static Pressure: 10 Bar
  • Includes Long-Life Ceramic Cartridge for Added Durability and Ease of Use
  • Unique Patented Top Fix Design for Simple Installation from Above the Sink
  • Push the Tap onto the Base and Secure it Into Position with the Supplied Easyfit Tool and Screws
  • Simply Drop and Twist the Top Fix Base Into the Tap Hole from Above and Lock it Into Place with the Allen Key Provided
  • Eco Start Technology Saves Energy by Having Cold Water as the Default Upright Start Position of the Tap Handle
  • Hot Water Only Flows When the Tap Lever Moves from its Upright Position, so the Boiler doesn’t Turn On Unnecessarily
  • Suitable for Low and High Water Pressure Systems
  • Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure
  • Refer to the Technical Image for the Technical Dimensions
  • Download the Product datasheet and Installation Instruction PDF File from the Technical Info Section
  • 10 Years Parts and 1 Year Labour Guarantee for Peace of Mind from Bristan

Information Breakdown

Warranty/Guarantee 10 Years
Theme Modern
Width 96
Valve Type Thermaclick 35mm Eco Start Mirror Stepped
Base To Spout 268
Spout Reach 210
Handle Style Lever
WRAS Approved Yes
Inlet Connections 1/2 Inch BSP
Spout Swivel Yes
Tails Flexible
Installation Type Deck Mounted
Minimum Operating Pressure (Bar) 0.3

Technical Info

Bristan Maple Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout

Download Product Data Sheet PDF

Download Installation Instructions PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Available Finishes
    Finish MFC

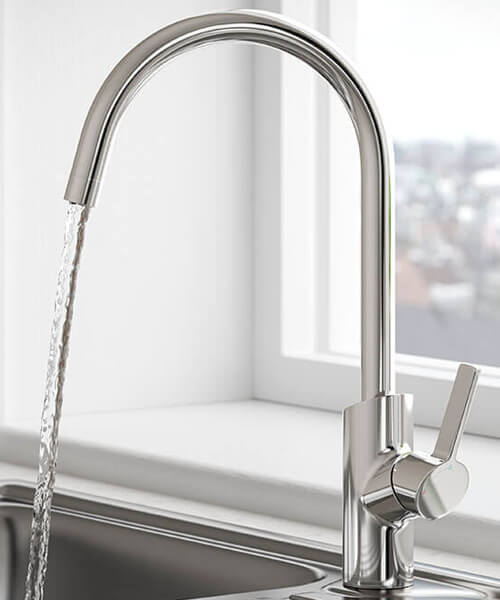

    Chrome MPL EFSNK C

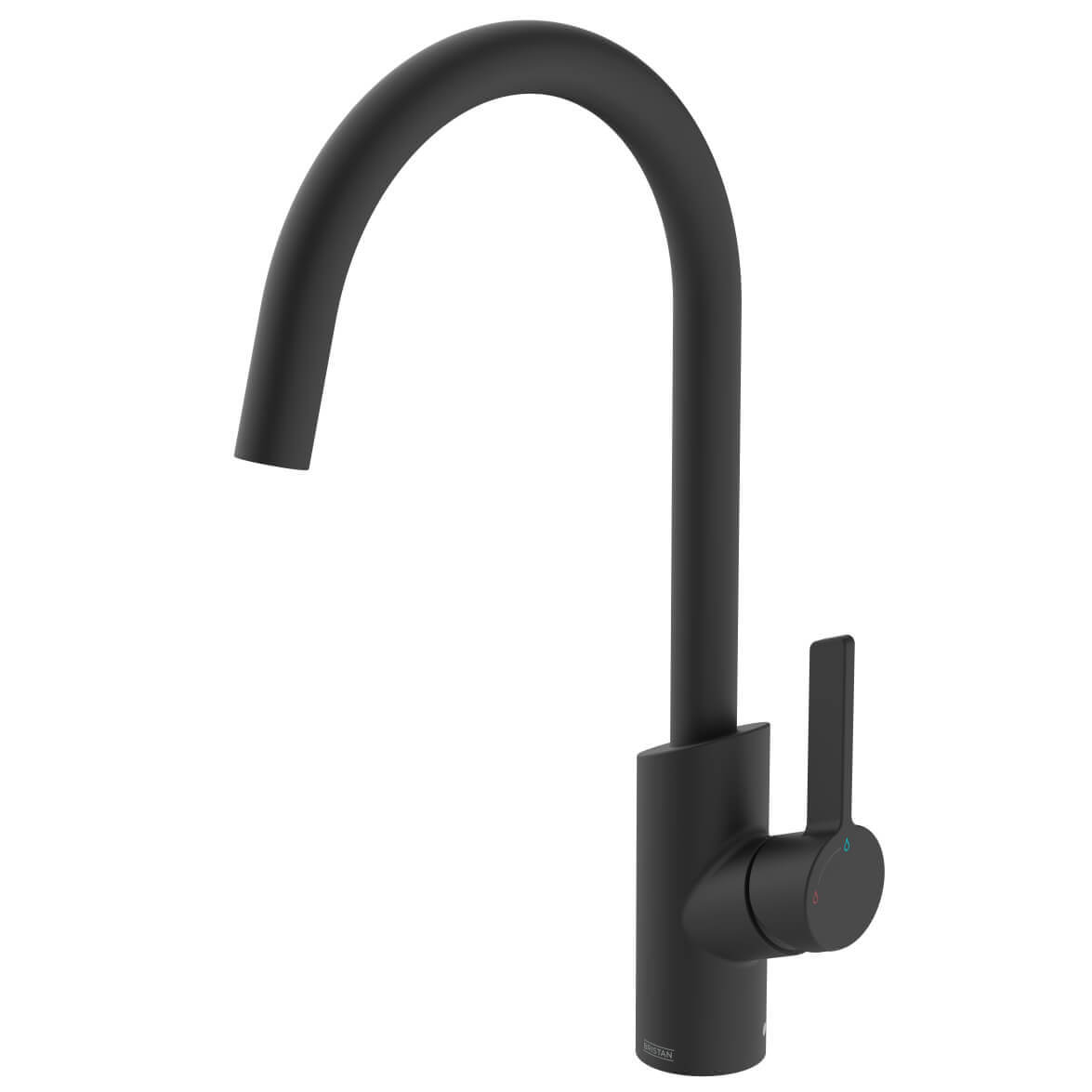

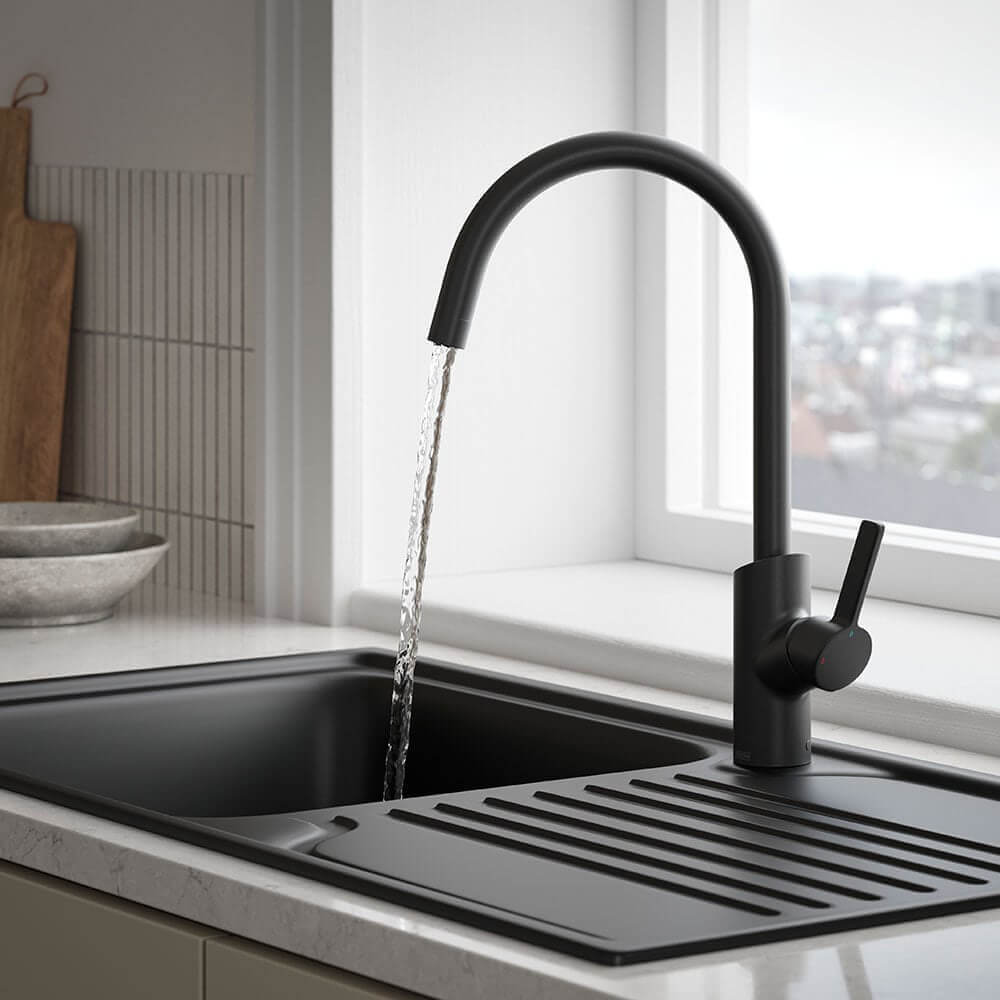

    Black MPL EFSNK BLK

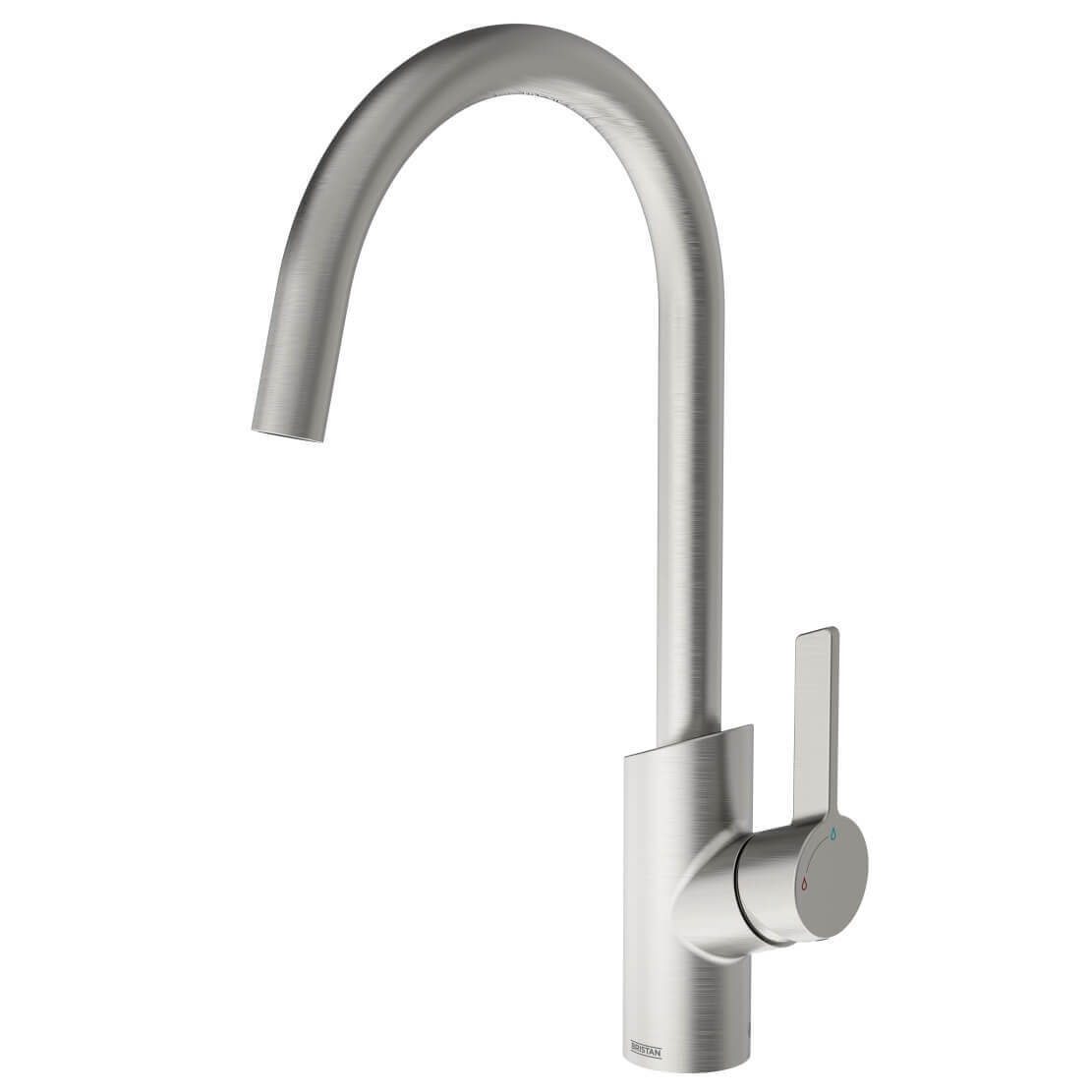

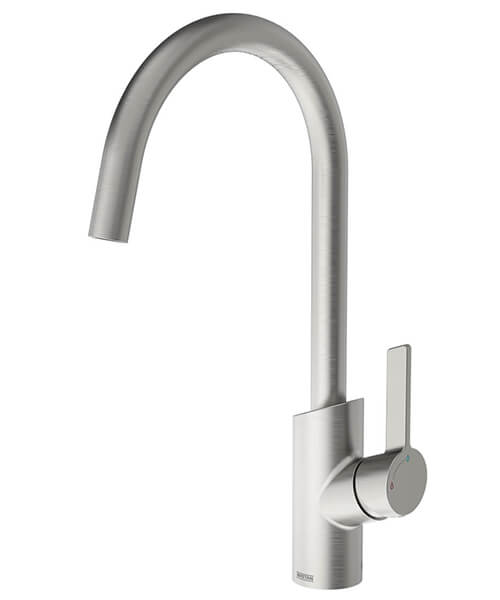

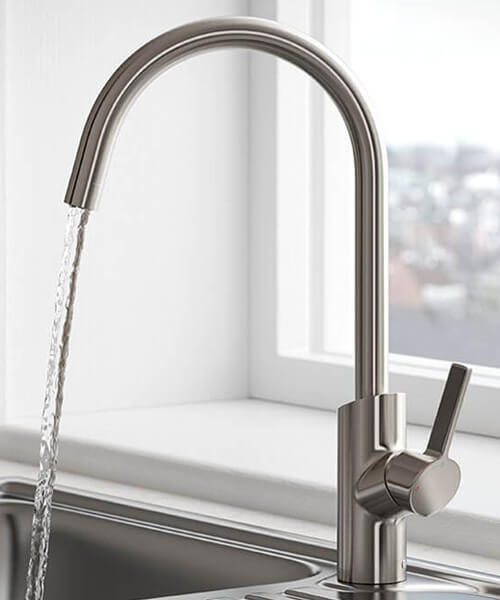

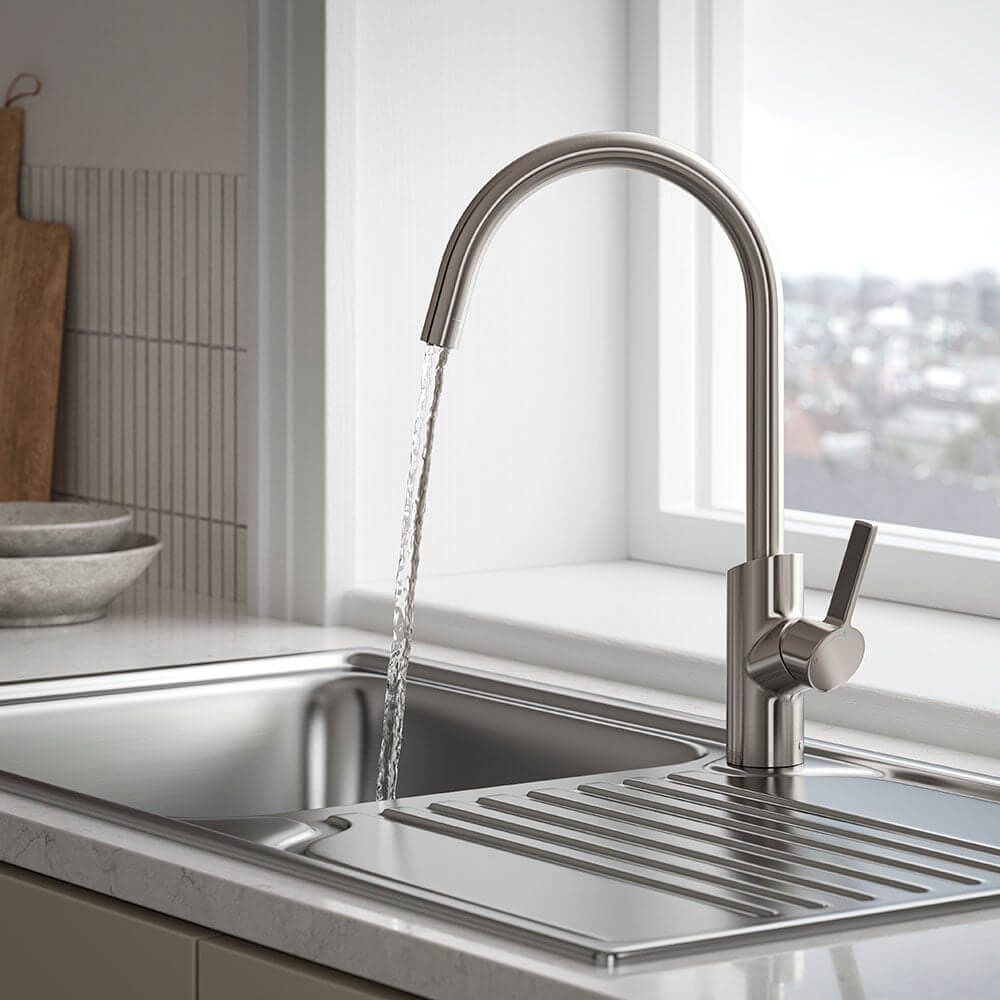

    Stainless Steel MPL EFSNK SS
