Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout

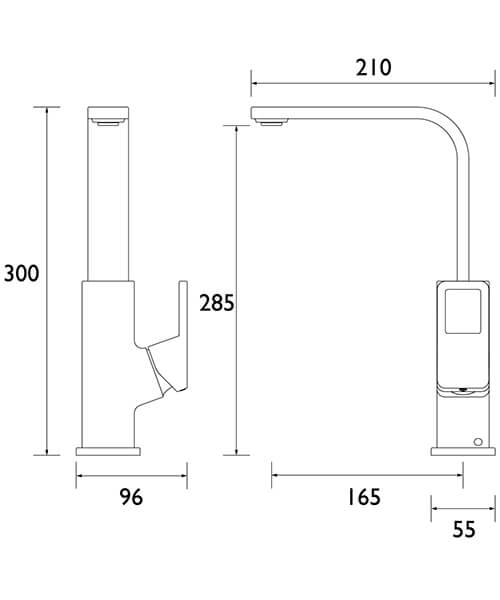

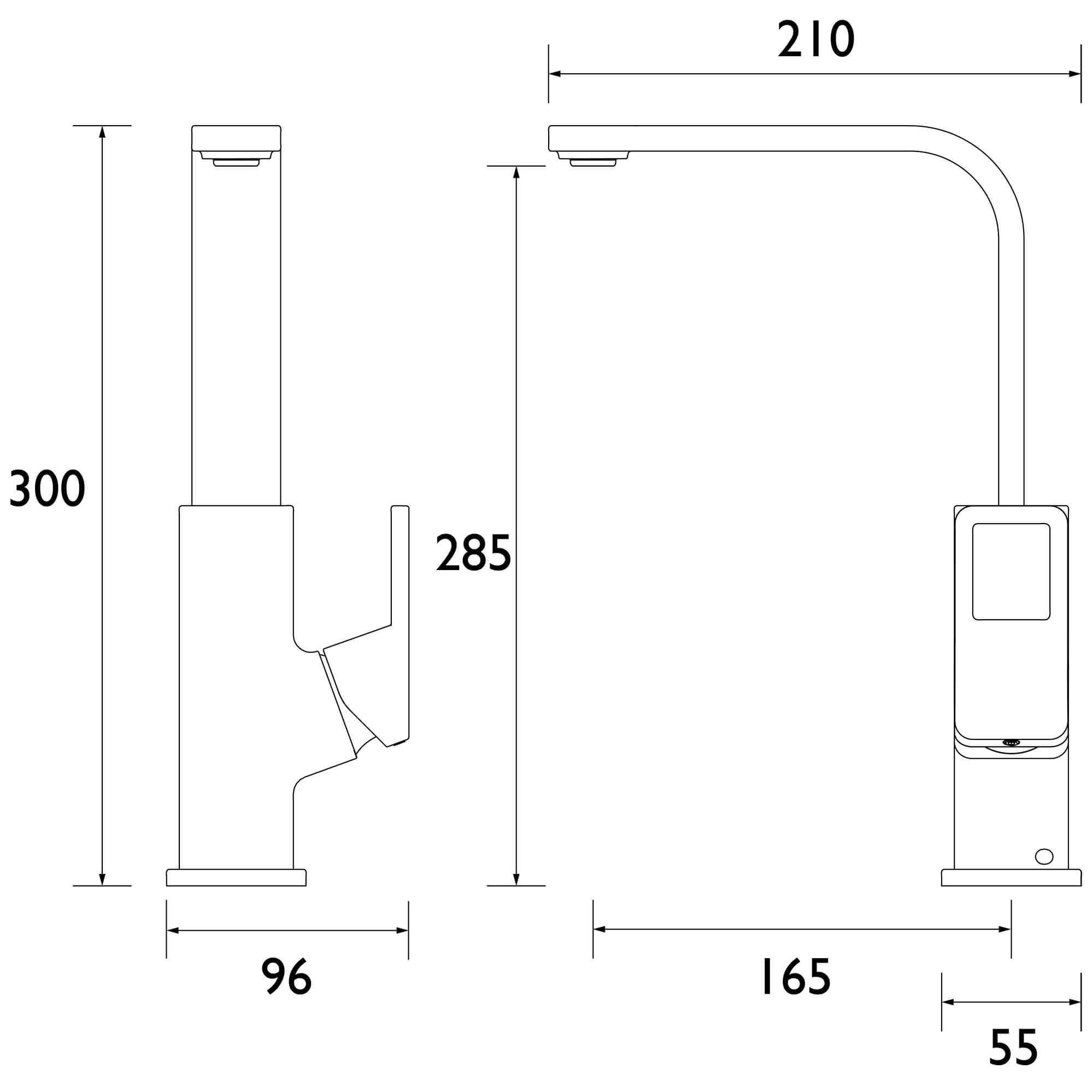

Technical drawing 68476 / SPR EFSNK C
Additional image of Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout
Additional image for 68476 Bristan - SPR EFSNK C
Bristan image
Alternate image of Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout
Alternate image of Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout
Alternate image of Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout
Alternate image of Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout
Alternate image of Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout
Alternate image of Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout
Alternate image of Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout
Alternate image of Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout

Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout

Bristan Logo
Available In 5 Finishes
No Rating No Rating Write a Review
Rate This:

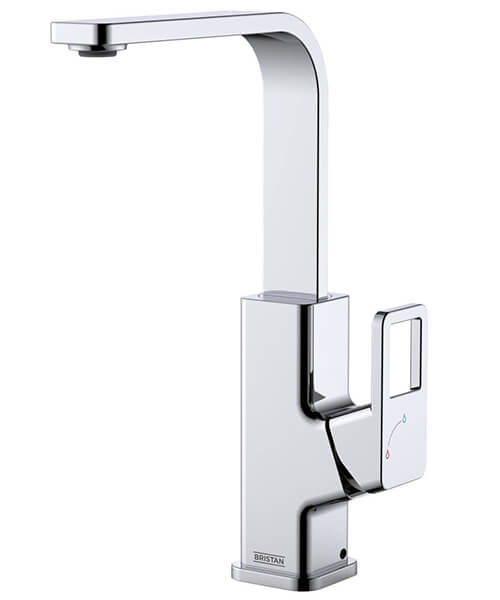

MFC Code : SPR EFSNK C
Product Code : 68476
Delivery: £7.95
£132.00
RRP : £210.00
Finishes Available

OP-221884 - Chrome

qty :
  • Manufactured Using Brass Material
  • WRAS Approved
  • Swivel Spout for Easy Use
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Manufactured Using Brass Material
  • WRAS Approved
  • Swivel Spout for Easy Use

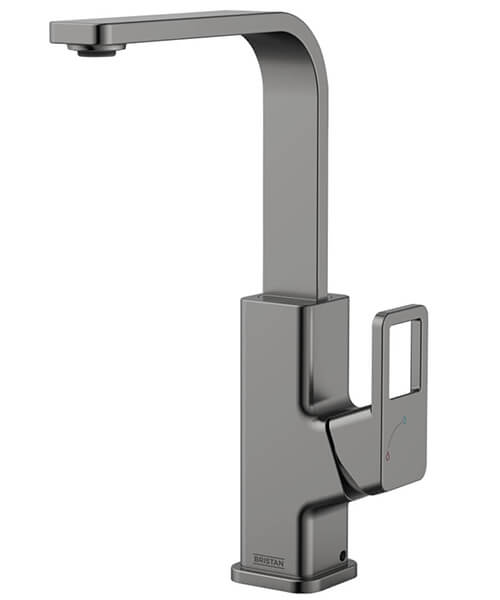

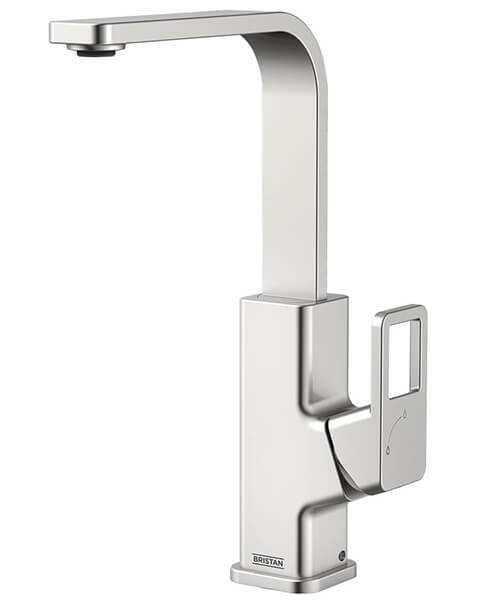

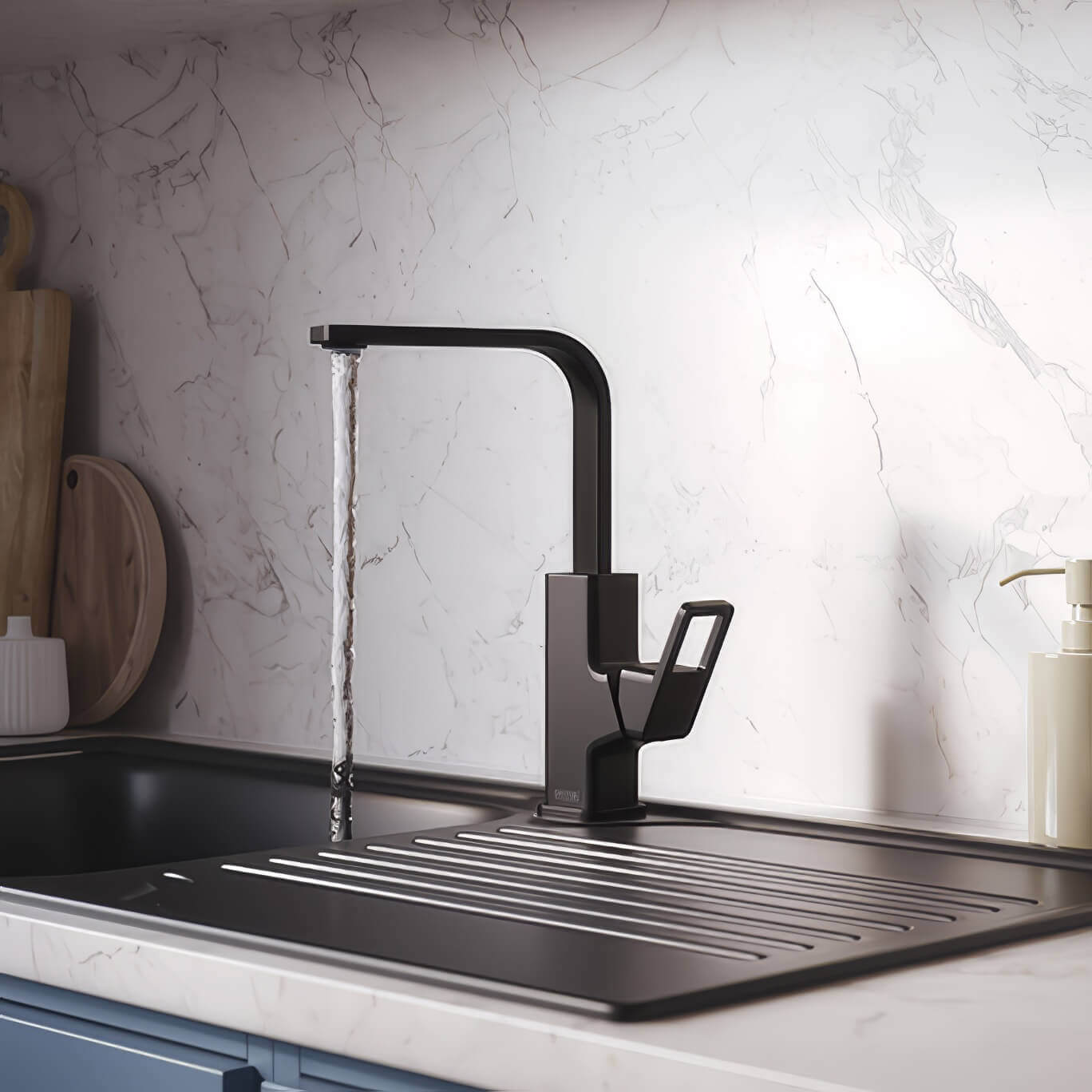

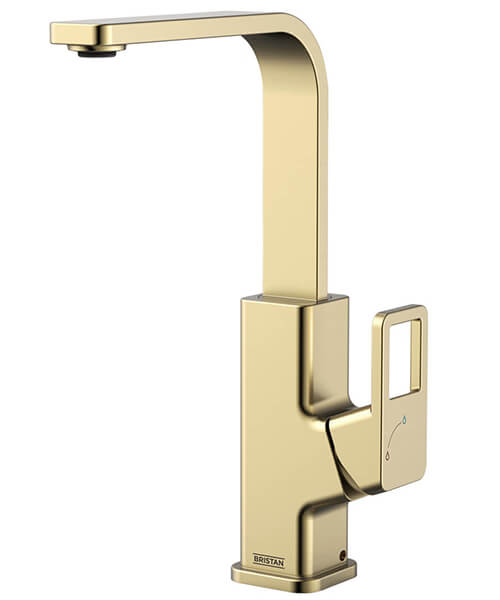

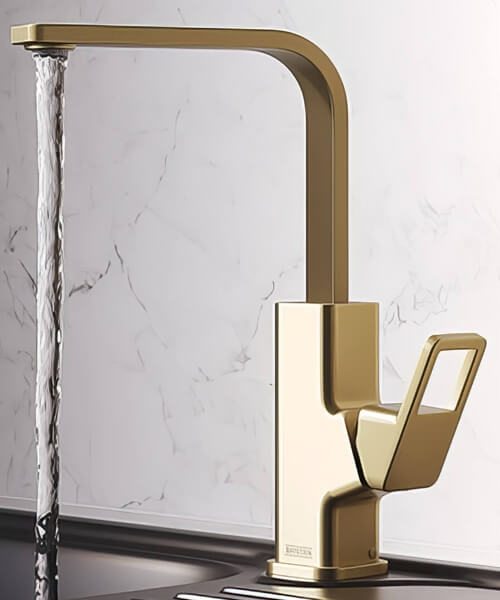

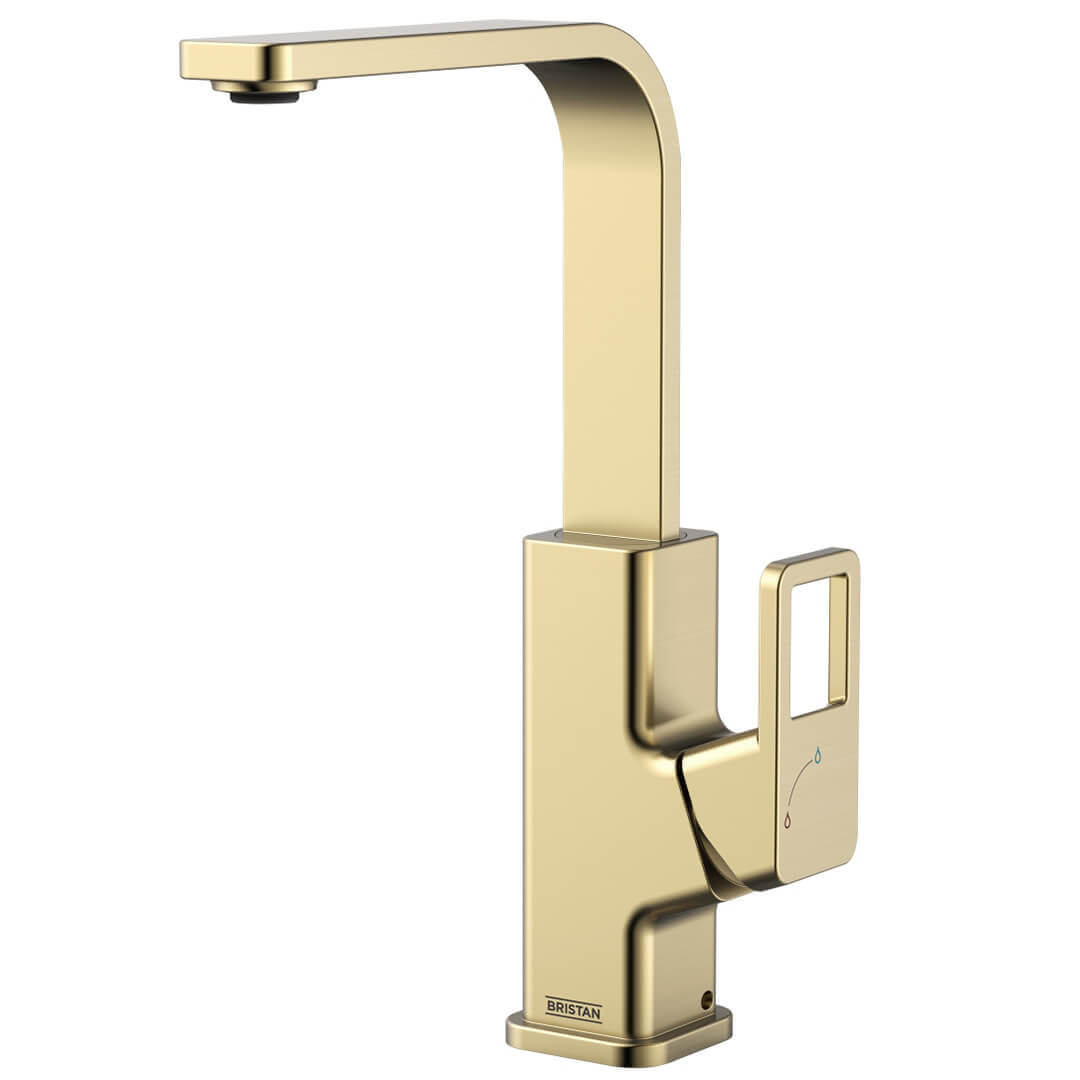

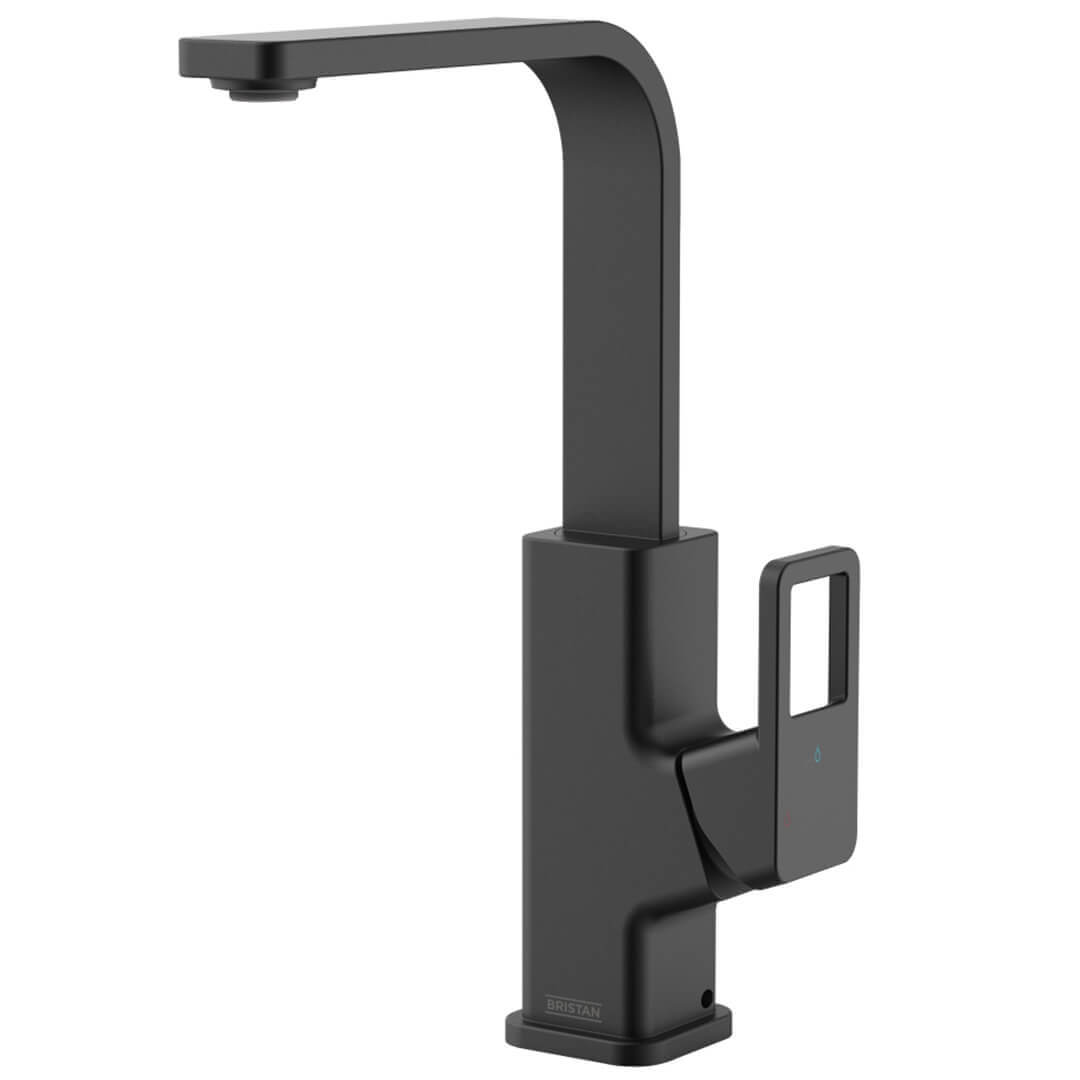

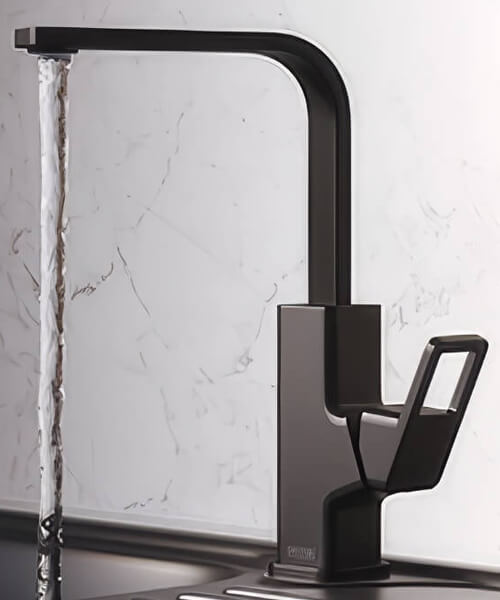

  • Available in 5 Finishes: Chrome, Black, Stainless Steel, Brushed Brass and Gun Metal
  • Size [mm]: 96 x 210 x 300mm [Width x Depth x Height]
  • Size [cm]: 9.6 x 21 x 30cm [Width x Depth x Height]
  • Base to Spout: 285mm [28.5cm]
  • Centre of Inlet to Centre of Outlet: 165mm [16.5cm]
  • Mount Type: Deck Mounted
  • Handle Type: Loop
  • Connection Inlet: 1/2 Inch BSP Flexible Tails
  • Connection Outlet: Housed M22 8L/M Aerator
  • Number of Tap Holes: 1

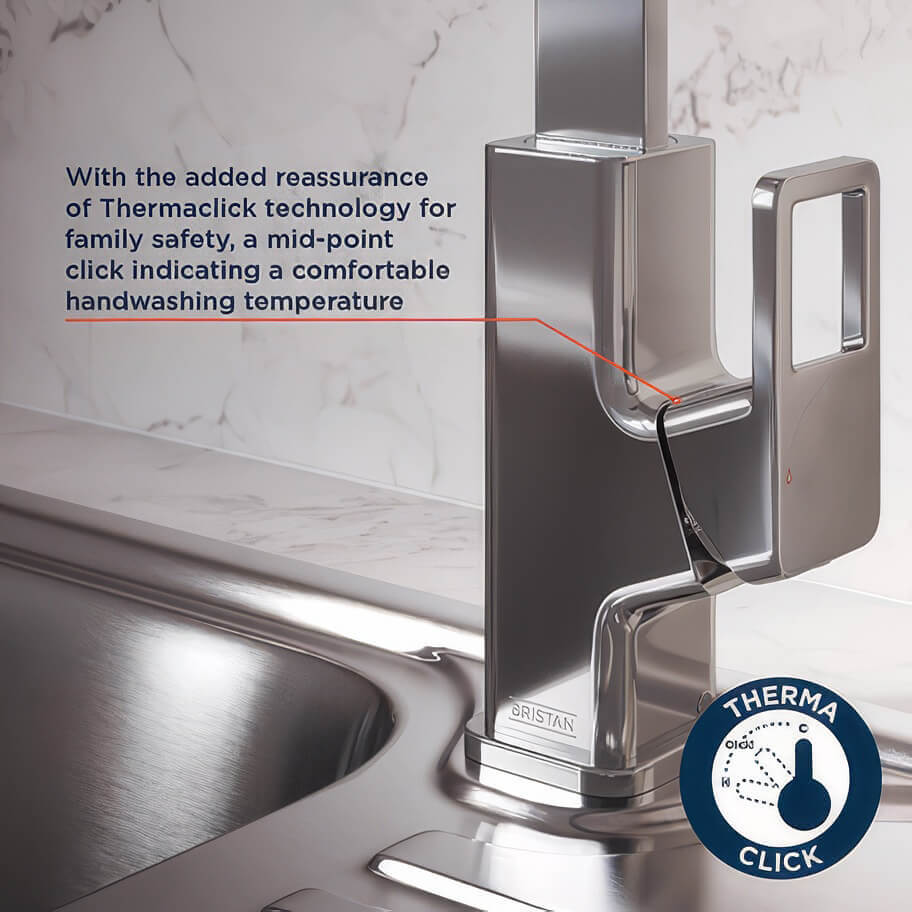

  • Valve/Cartridge Type: Thermaclick 35mm Eco Start Mirror Stepped Cartridge
  • Plumbing System Requirements: Suitable for All Plumbing Systems
  • Maximum Hot Water Temperature: 65°C
  • Maximum Static Pressure: 10 Bar
  • Flow Type: Single Flow
  • Isolation Included: Yes
  • High-Quality Metal Fixings for Security and Durability
  • Includes Long-Life Ceramic Cartridge for Added Durability and Ease of Use
  • Unique Patented Top Fix Design for Simple Installation from Above the Sink
  • Push the Tap onto the Base and Secure it Into Position with the Supplied Easyfit Tool and Screws
  • Simply Drop and Twist the Top Fix Base Into the Tap Hole from Above and Lock it Into Place with the Allen Key Provided
  • Supplied with Two Isolation Valves and Flexi Tails, Means You Can Connect to the Water Supply at this Point and Isolate the Base
  • Everything You Need in the Box, Including an Allen Key, Isolation Valves, Top Fix Easyfit Base, Easyfit Tool and Flexi Tails

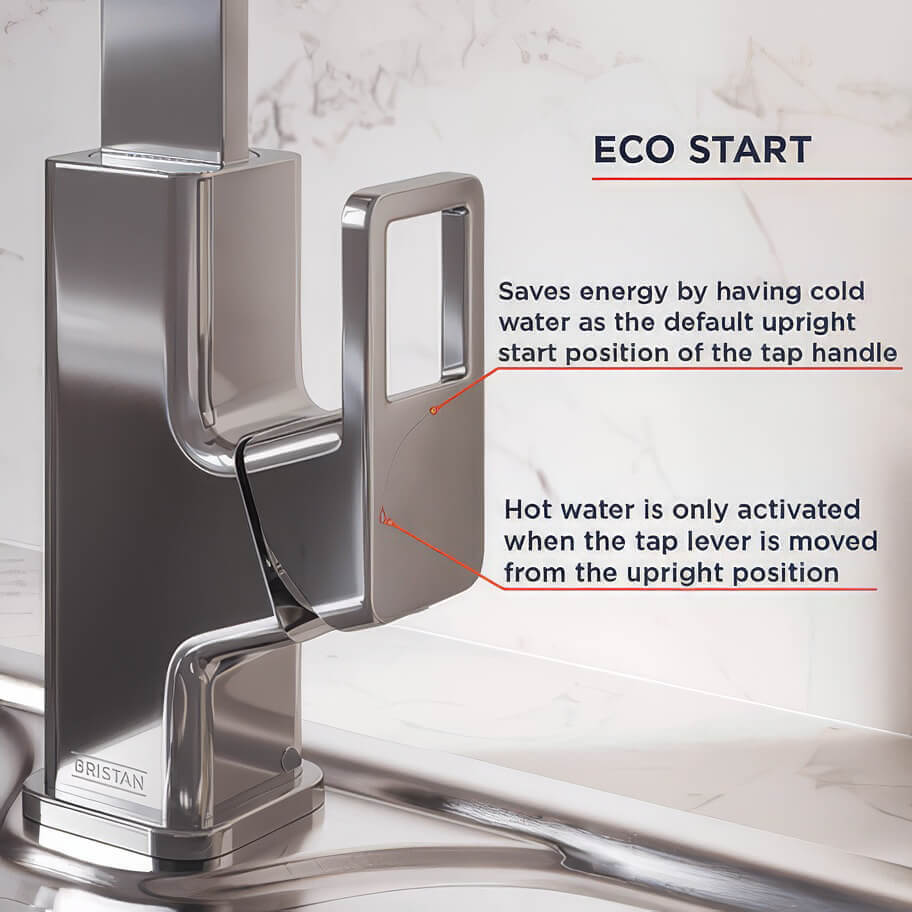

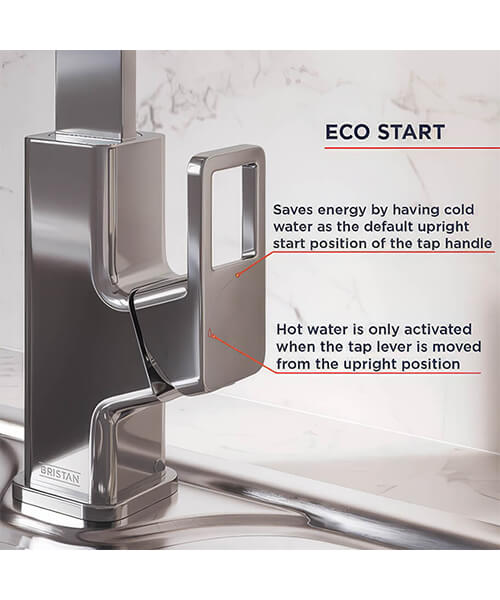

  • Eco Start Technology Saves Energy by Having Cold Water as the Default Upright Start Position of the Tap Handle
  • Hot Water Activates Only When the Lever is Moved from the Upright Start Position, Preventing Unnecessary Boiler Use
  • Suitable for Low and High Water Pressure Systems
  • Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure
  • Refer to the Technical Image for the Technical Dimension
  • Download the Product datasheet and Installation Instruction PDF File from the Technical Info Section
  • 10 Years On Parts and 1 Year On Labour Guarantee from Bristan

Information Breakdown

Warranty/Guarantee 10 Years
Theme Modern
Width 96
Valve Type Thermaclick 35mm Eco Start Mirror Stepped Cartridge
Base To Spout 285
Spout Reach 165
Handle Style Loop Lever
WRAS Approved Yes
Inlet Connections 1/2 Inch BSP
Spout Swivel Yes
Tails Flexible
Installation Type Deck Mounted
Minimum Operating Pressure (Bar) 0.3

Technical Info

Bristan Spruce Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap with Swivel Spout

Download Product Data Sheet PDF

Download Installation Instructions PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Available Finishes
    Finish MFC
    Chrome SPR EFSNK C
    Black SPR EFSNK BLK
    Stainless Steel SPR EFSNK SS
    Brushed Brass SPR EFSNK BB
    Gun Metal SPR EFSNK GM
