Ideal Standard Gusto Imx Single Lever Kitchen Mixer Tap With L-Shaped Spout

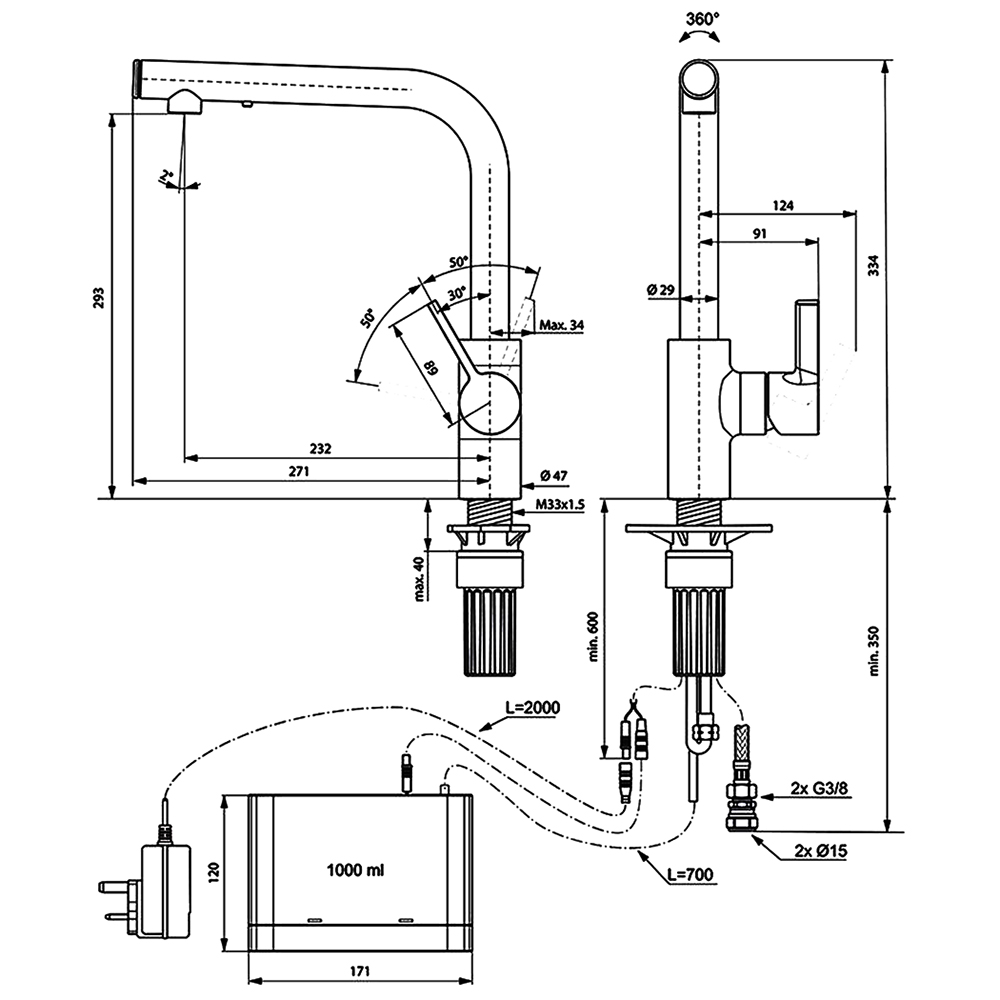

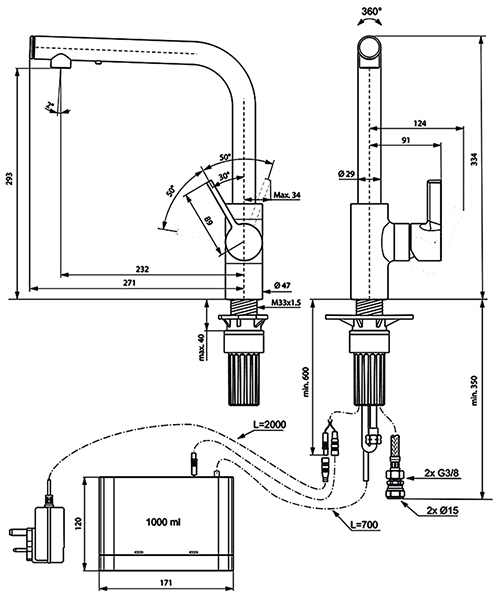

Technical drawing 72939 / A7818AA

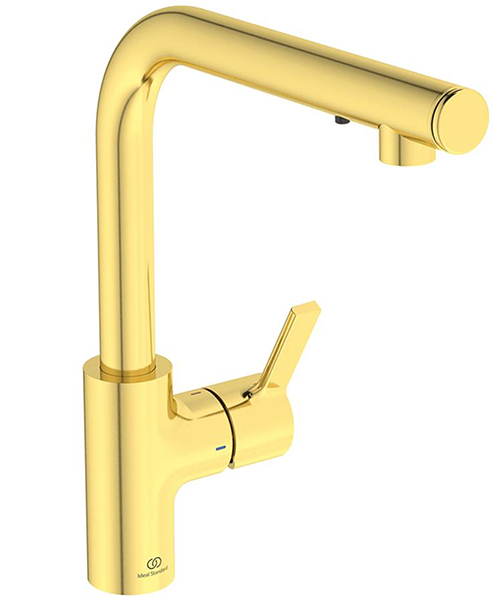

Additional image of idealstandard A7818AA
Additional image of Ideal Standard Gusto Imx Single Lever Kitchen Mixer Tap With L-Shaped Spout
Additional image for 72939 idealstandard - A7818AA
Ideal image

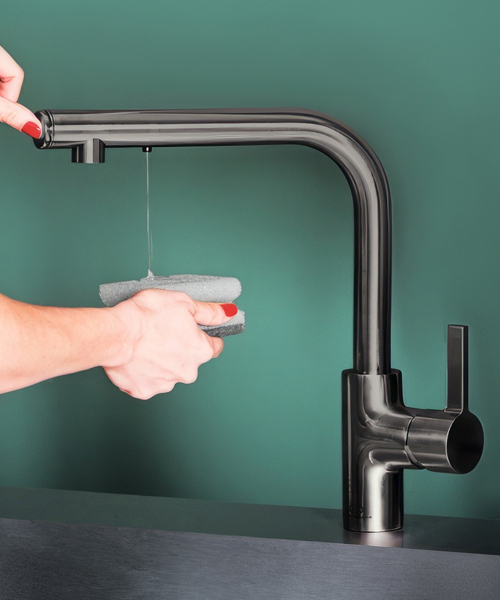

Alternate image of Ideal Standard Gusto Imx Single Lever Kitchen Mixer Tap With L-Shaped Spout

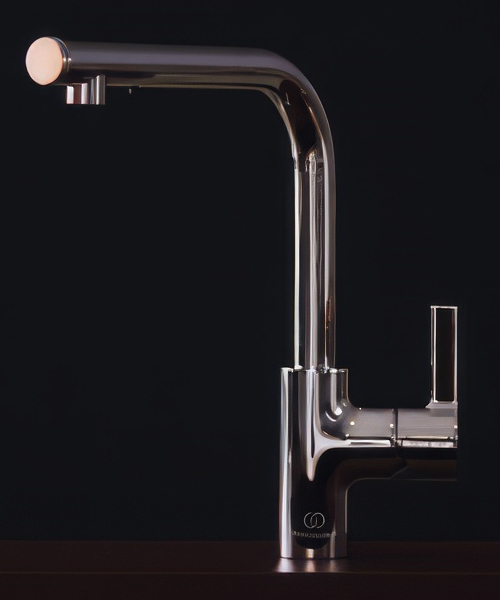

Alternate image of Ideal Standard Gusto Imx Single Lever Kitchen Mixer Tap With L-Shaped Spout
Alternate image of Ideal Standard Gusto Imx Single Lever Kitchen Mixer Tap With L-Shaped Spout

Ideal Standard Gusto Imx Single Lever Kitchen Mixer Tap With L-Shaped Spout

Ideal Standard Logo
More Finishes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : A7818AA
Product Code : 72939
Delivery: £34.95
£342.09
RRP : £570.14
Finishes Available

OP-222011 - Chrome

qty :

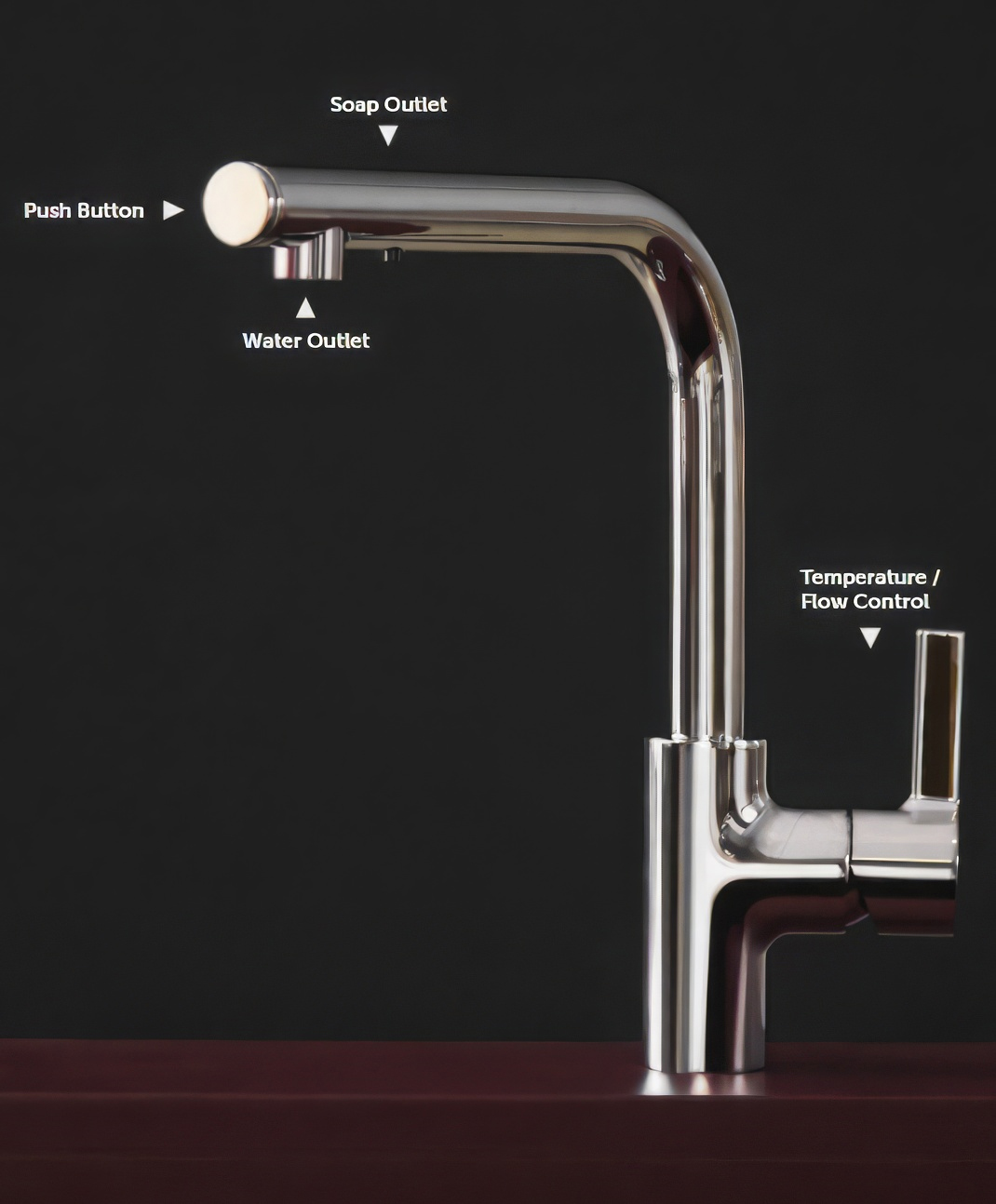

  • Integrated 1L soap dispenser with an easy-push metal button
  • A sophisticated 47mm-diameter brass body
  • An Intuitive hot and cold control metal lever with red and blue indicators
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Integrated 1L soap dispenser with an easy-push metal button
  • A sophisticated 47mm-diameter brass body
  • An Intuitive hot and cold control metal lever with red and blue indicators
  • Deck-mounted installation
  • Dimension:Depth 271mm (27.1cm) x Height 334mm (33.4cm)
  • The centre of the inlet to the centre of the outlet: 232mm (23.2cm)
  • Base to spout: 293mm (29.3cm)
  • Ø29mm Round spout
  • 360° Swivel Angle
  • Hidden aerator
  • Soap nozzle
  • AC Adapter 100 – 240Vac / Out 6.5Vdc
  • Flow Rate: 6.6 Litres Per Minute at 3 Bar Pressure System
  • Ideal for High Water Pressure Systems
  • Operates with a Minimum Water Pressure of 0.5 Bar and a Maximum of 10 Bar
  • Weight: 3.10 Kg
  • Perfect for use at home and hotels
  • Download the PDF from the technical Info Section for the mounting instructions and flow diagram
  • Technical drawing available for more technical details
  • Guarantee: 5 years from the manufacturer against manufacturing faults
  • Specification:
  • Temperature Limit Stops can be Pre-Set for Comfort and Safety
  • FirmaFlow Ceramic Cartridges fitted for a Long, High-Performance Lifespan are tested to 500,000 cycles, equivalent to 10-15 Years of Daily Use
  • Light Move - Enjoy a great experience thanks to the Light, Smooth Cartridge, which ensures that the Water Flow is just proper for you
  • EasyFix+ System Makes Fitting Quicker and Easier than ever. It's Up to 50% Faster than Standard Fitting and 15% Faster than our Original EasyFix System
  • SmartShine - The high-quality chrome finish makes our taps more scratch-resistant and easier to clean, providing you with years of enjoyment
  • IMX Technology - Features an integrated dispenser for soap or washing-up liquid, enhancing hygiene, cleanliness, and comfort while creating a neater kitchen surface
  • Vibrant, long-lasting shades using advanced PVD [Physical Vapour Deposition] technology
  • Superior scratch and abrasion resistance with fine layers of metal applied atom by atom
  • Enhanced surface durability by precisely controlling composition, hardness, and coating compounds
  • Proven durability independent testing shows Ideal Standard PVD taps remain scratch-free after 10,000 use cycles
  • Tested to international standards, the hand abrasion test conducted by Tribotron AG [IEC 68-2-70]
  • Available Optional Product:
  • Different finishes available: Chrome, Brushed Gold, Silver Storm, Sunset Rose and Magnetic Grey

Information Breakdown

Warranty/Guarantee 5 Years
Theme Modern
Base To Spout 293
Spout Reach 232
Max. Deck Thickness 40
Handle Material Metal
Handle Style Lever
Flow Rates (l/min) 3 Bar - 6.6 Ltr
Inlet Connections G 3/8"
Valve Included Yes
Technologies Imx
Installation Type Deck Mounted
Minimum Operating Pressure (Bar) 0.5

Technical Info

Ideal Standard Gusto Imx Single Lever Kitchen Mixer Tap With L-Shaped Spout

Download Mounting Instruction PDF

Download Flow Rate Diagram PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Specification For Tap
    Finish MFC
    Chrome A7818AA

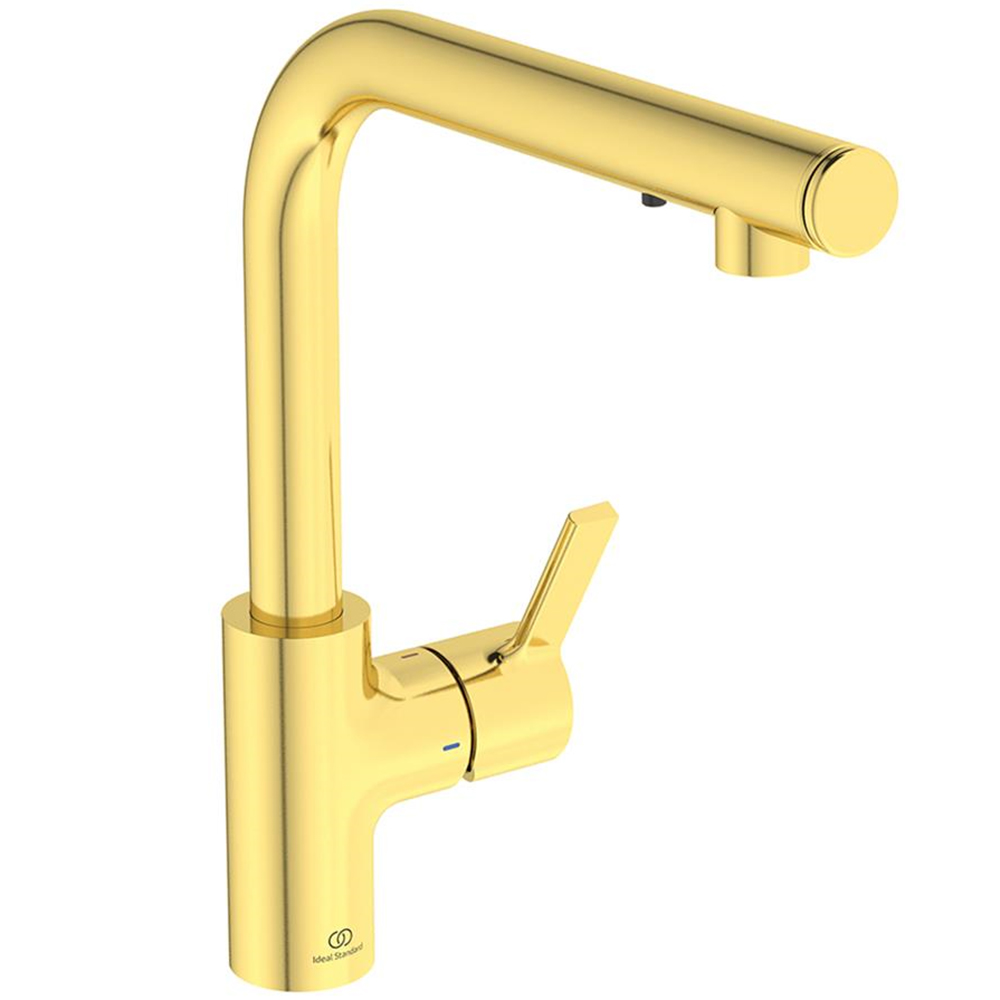

    Brushed Gold A7818A2

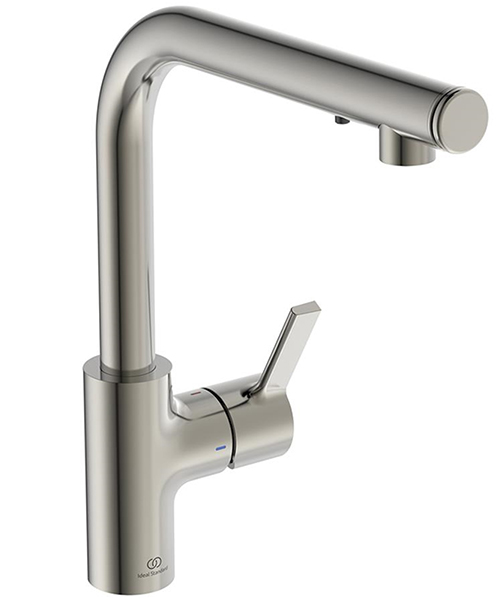

    Silver Storm A7818GN

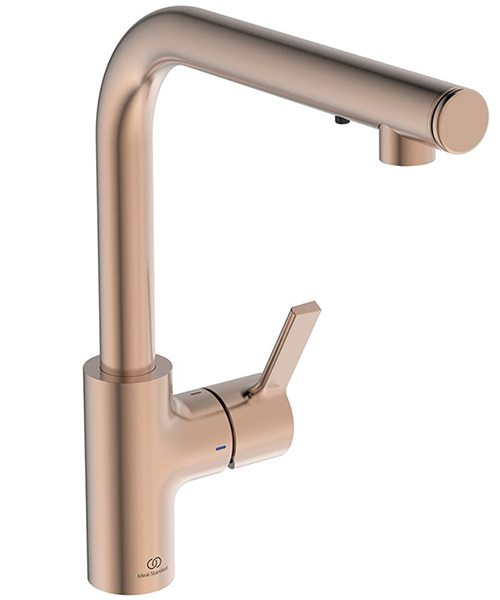

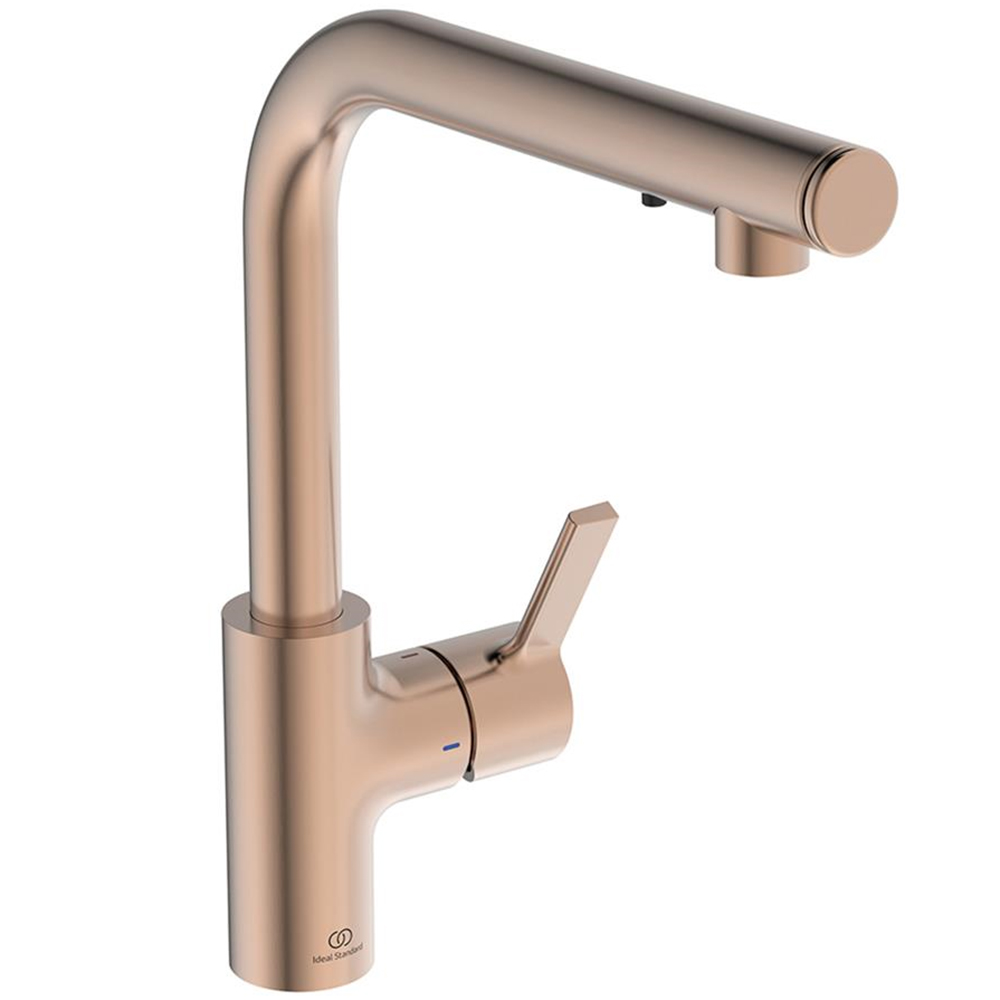

    Sunset Rose A7818J4

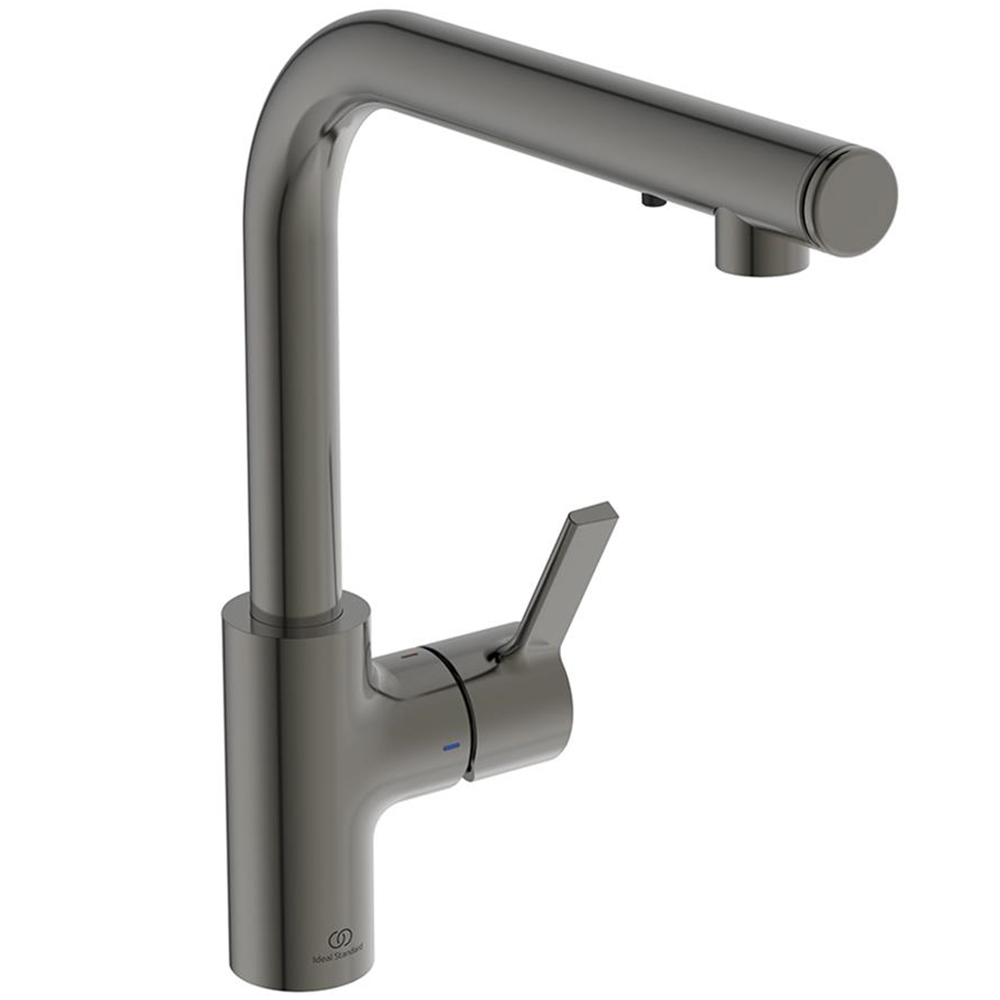

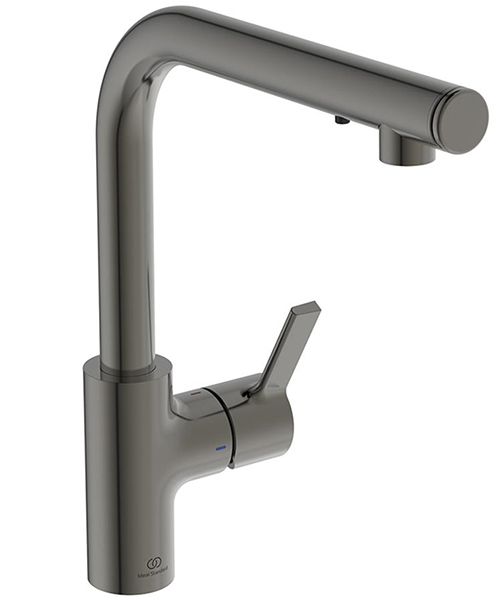

    Magnetic Grey A7818A5
