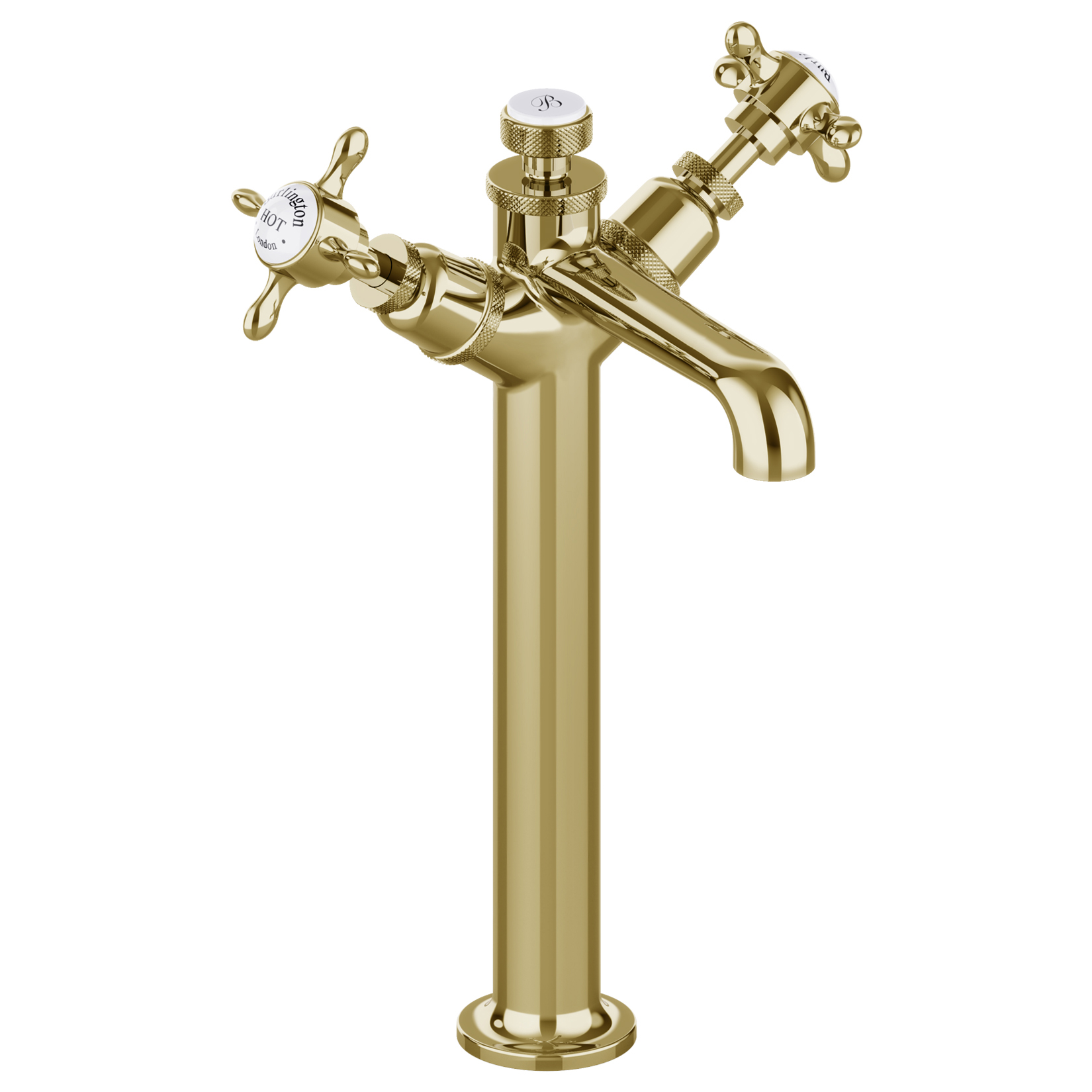

Burlington Guild Deck Mounted Tall Basin Mixer Tap small Image 4

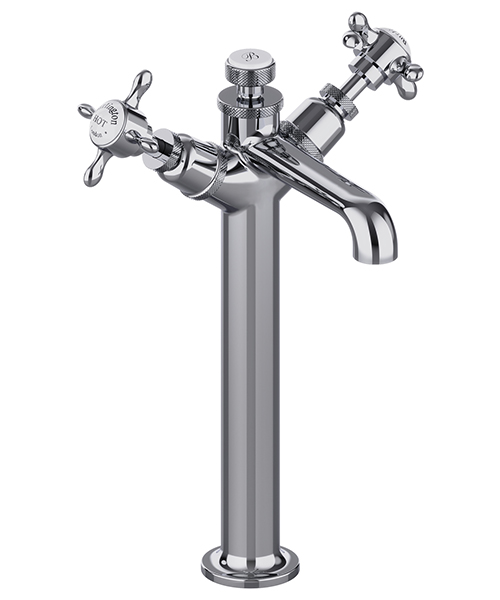

Burlington Guild Deck Mounted Tall Basin Mixer Tap

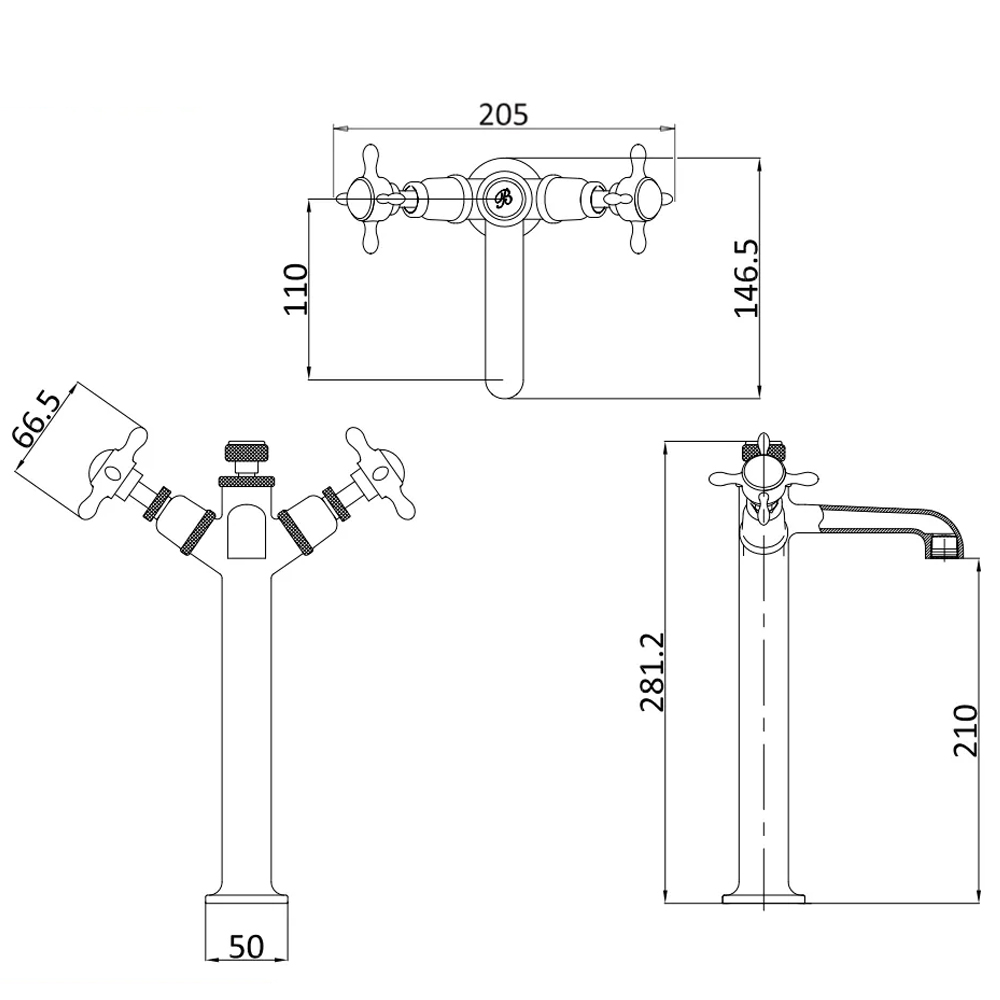

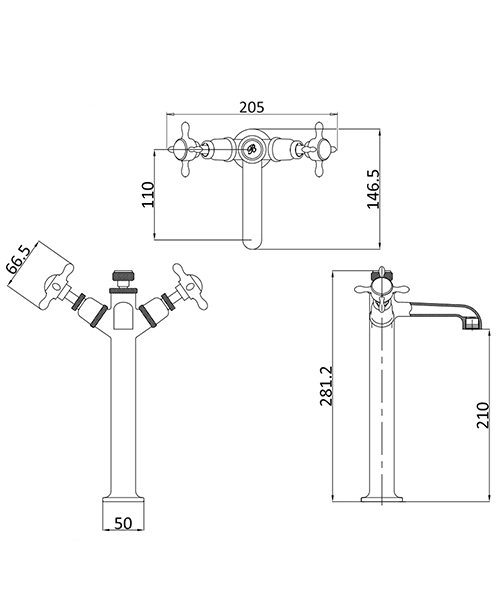

Technical drawing 71735 / GU112DNC

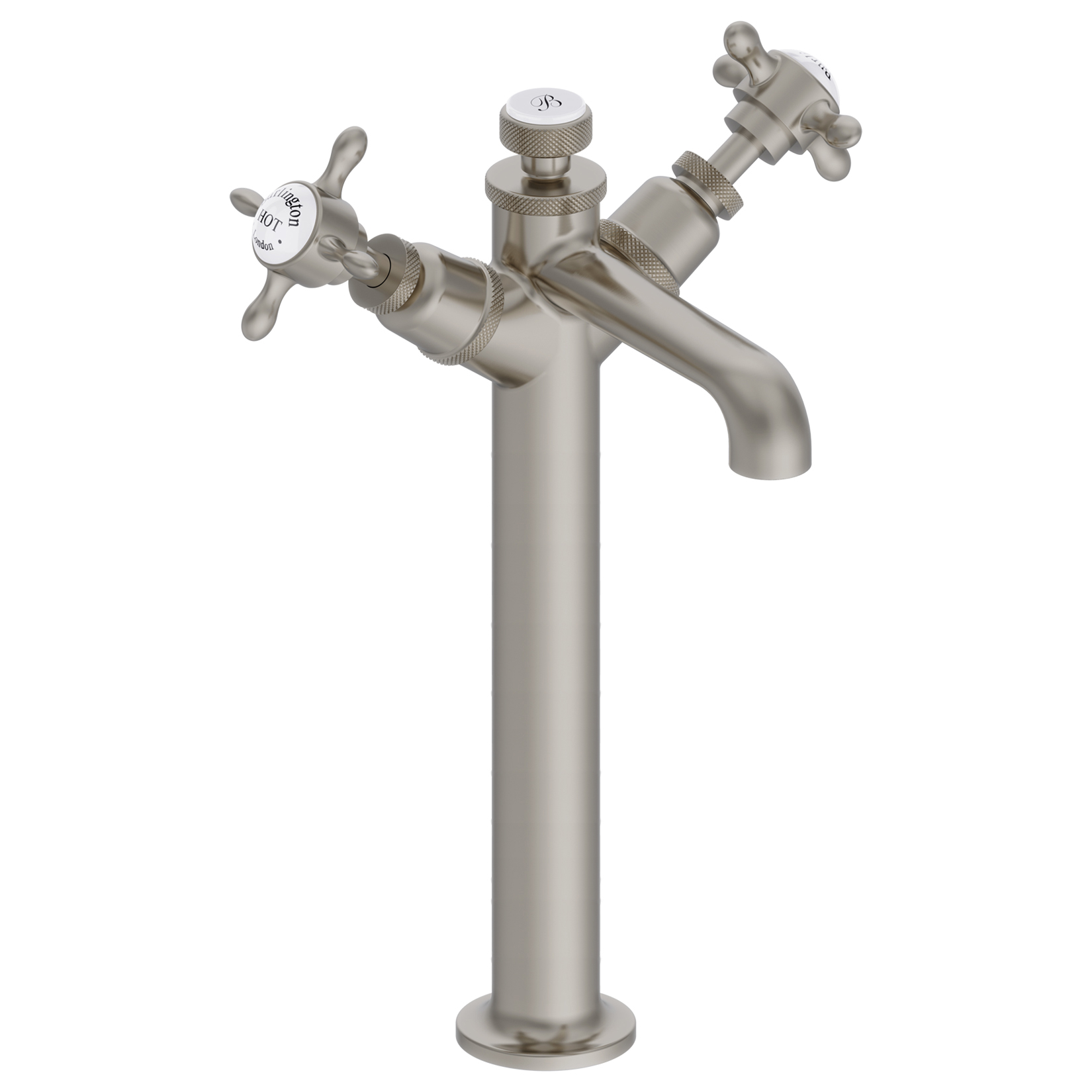

Additional image of Burlington GU112DNC

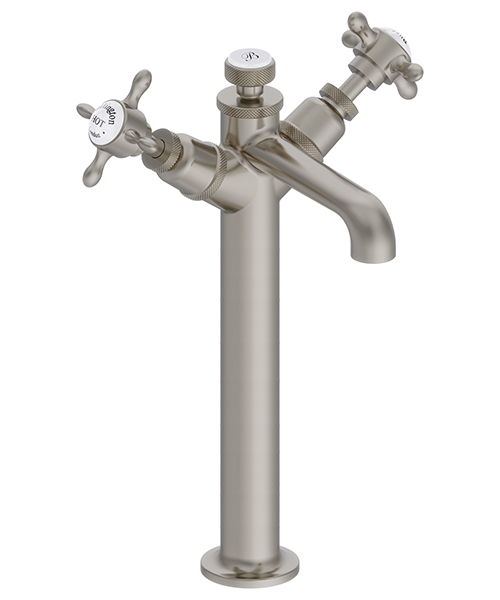

Additional image of Burlington Guild Deck Mounted Tall Basin Mixer Tap

Burlington Guild Deck Mounted Tall Basin Mixer Tap

Burlington Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : GU112DNC
Product Code : 71735
Delivery: £7.95
£279.20
Finishes Available

OP-222291 - Chrome

qty :
  • Available in different finishes
  • Material: Brass
  • Installation: Deck-mounted
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • Available in different finishes
  • Material: Brass
  • Installation: Deck-mounted
  • Width: 205mm (20.5cm)
  • Depth: 146.5mm (14.65cm)
  • Height: 281.2mm (28.12cm)
  • Centre of Inlet to Centre of Outlet: 110mm (11cm)
  • Base to spout: 210mm (21cm)
  • Inlet connections thread: M10 x 1
  • Quarter-turn operation
  • Ceramic disc cartridge
  • Traditional crosshead design
  • Knurling effect at various points throughout the tap
  • Suitable for low water pressure System
  • Minimum water pressure required: 0.2 bar
  • Maximum water pressure required: 5.0 bar
  • Flow rate (l/min): 0.2 Bar: 11.38, 0.5 Bar: 18, 1 Bar: 25.47, 2 Bar: 33.15, 3 Bar: 40.62, 4 Bar: 46.44, 5 Bar: 49.68
  • Aerator, flow straightener included
  • Standards: EN200, EN817
  • Refer to the technical diagram for complete size details
  • Guarantee: 15-year from the manufacturer
  • For installation instruction, download the PDF file

Information Breakdown

Colour Guild
Warranty/Guarantee 15 Years
Theme Traditional
Material Brass
Width 205
Height 281.2
No. of Tap Holes 1
Compliance/Approvals/Standard EN200, EN817
Base To Spout 210
Spout Reach 110
Handle Style Crosshead
Inlet Connections M10 x 1
Installation Type Deck Mounted
Minimum Operating Pressure (Bar) 0.2

Technical Info

Burlington Guild Deck Mounted Tall Basin Mixer Tap

Download Installation Instruction PDF
