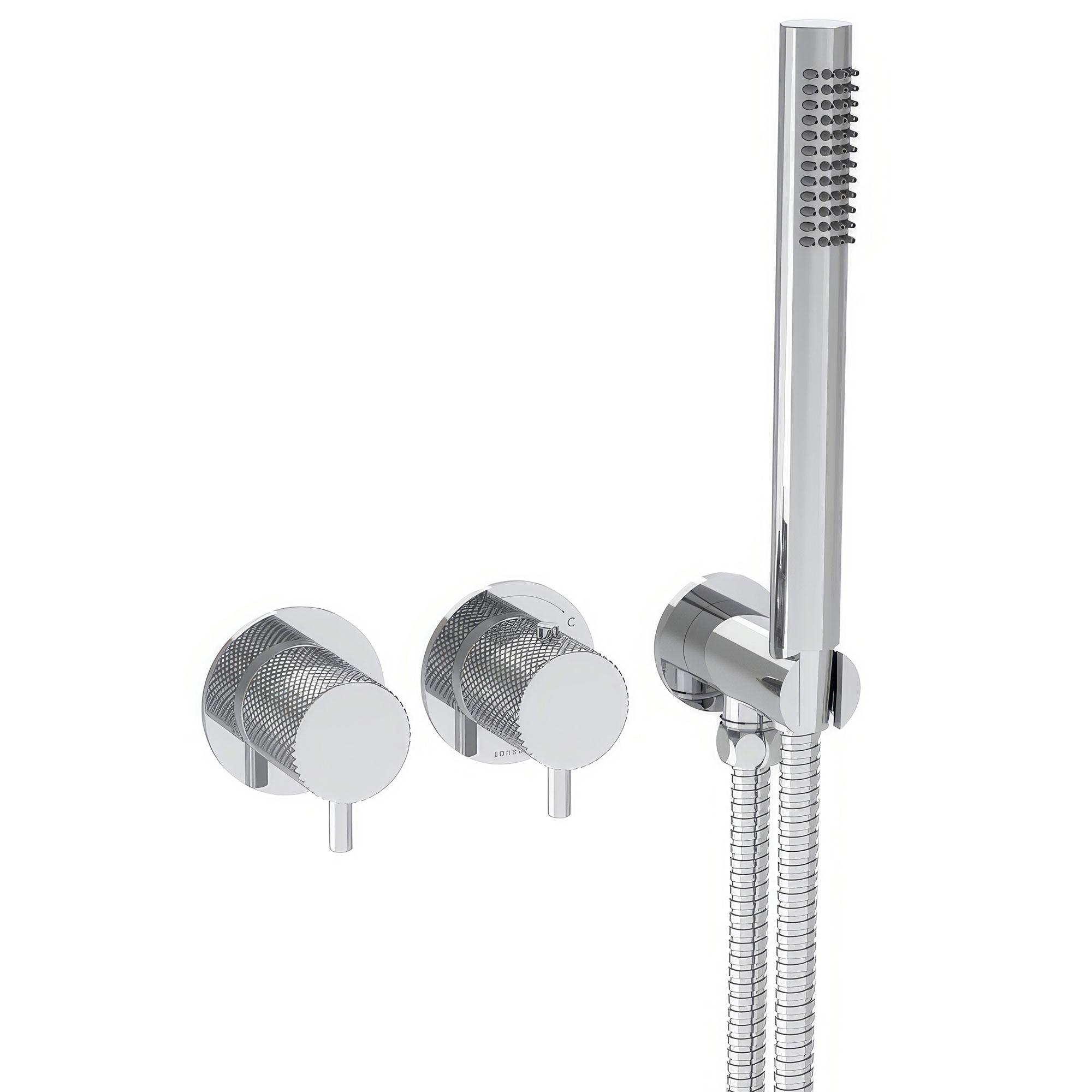

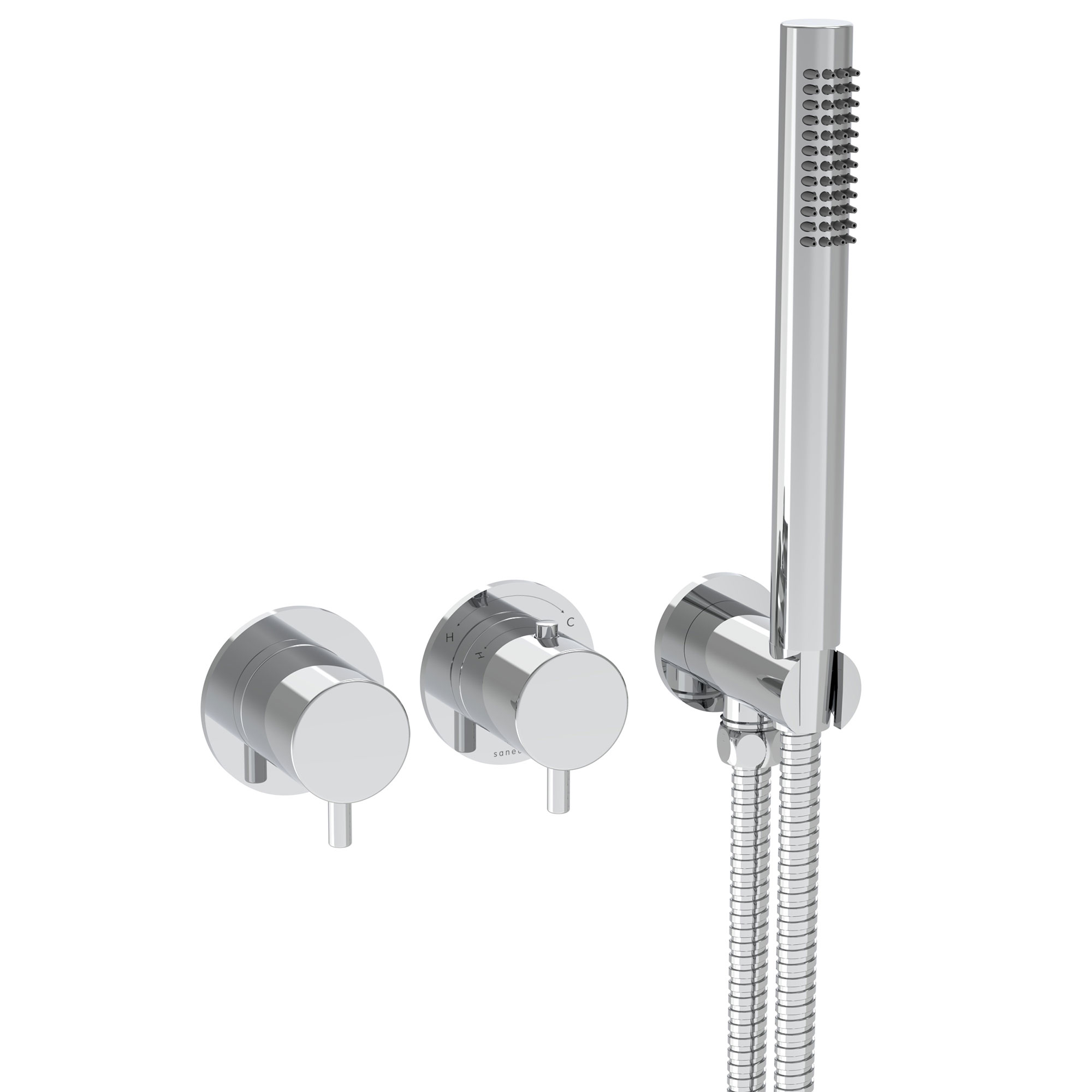

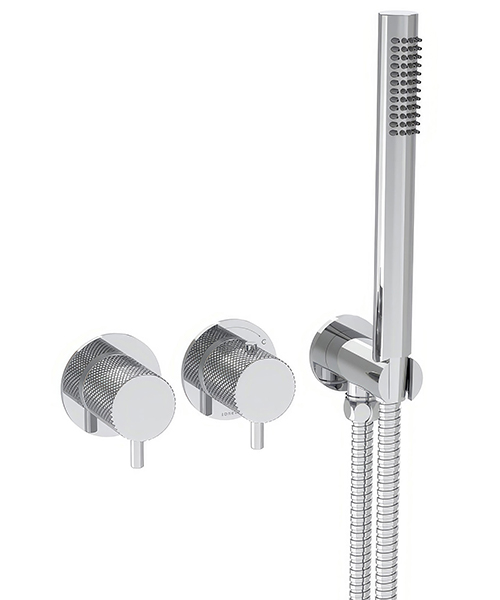

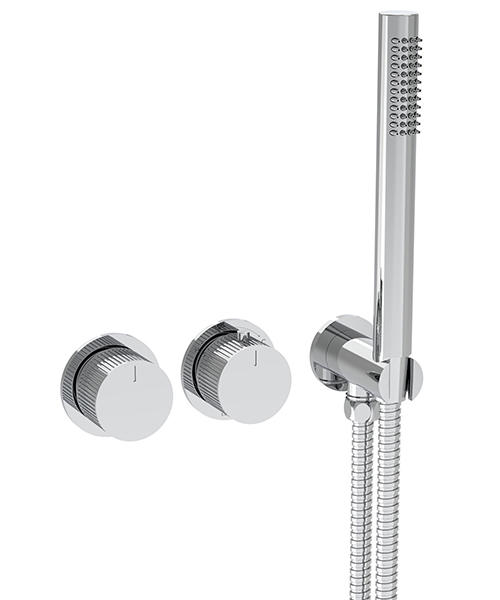

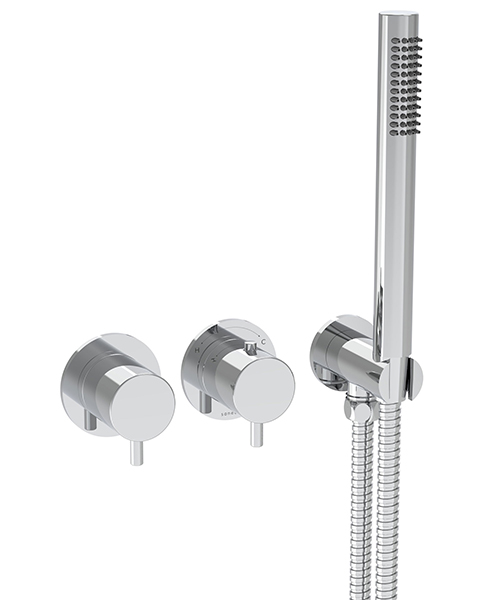

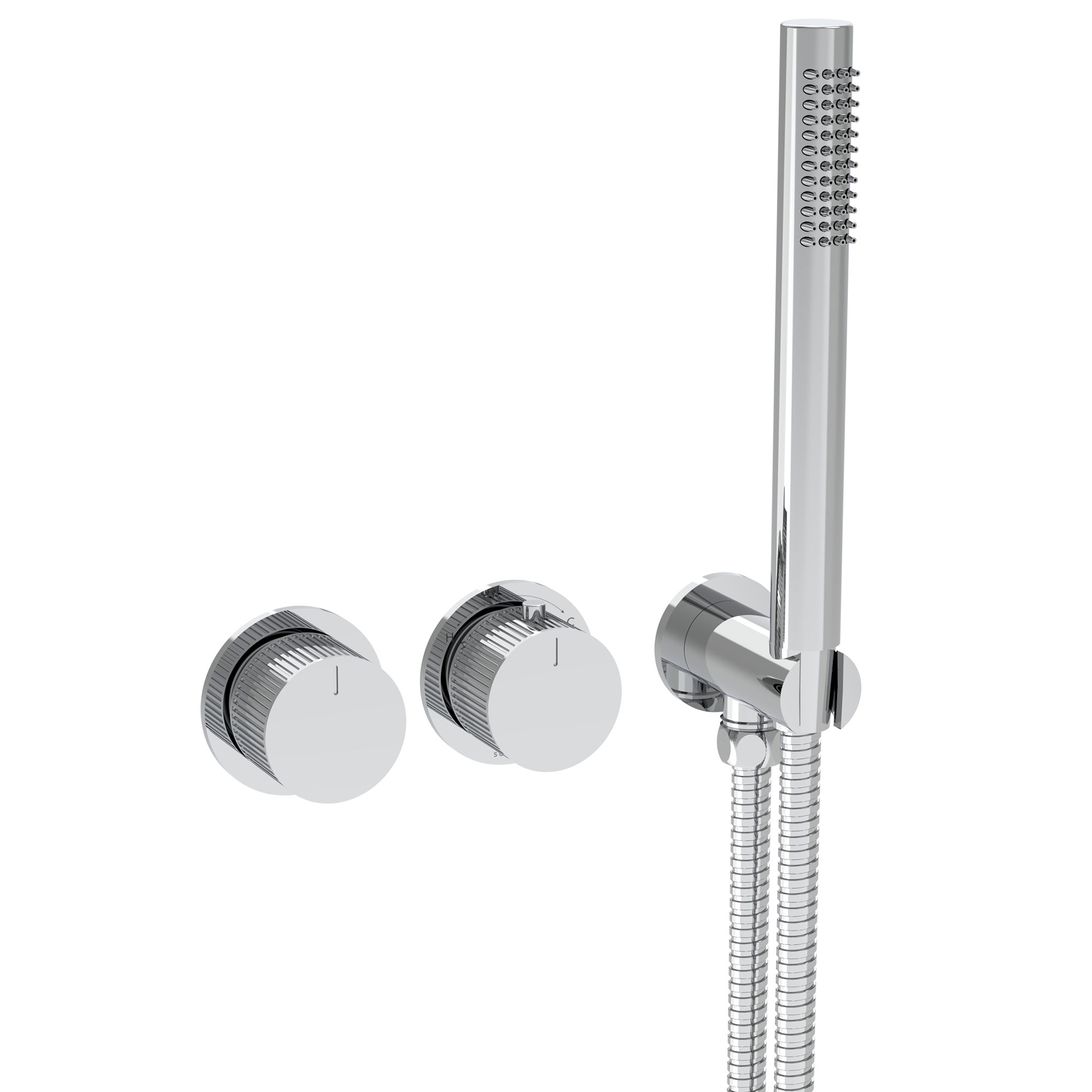

Saneux Cos 2-Way Concealed Thermostatic Shower Ring Valve Kit With Handset

Saneux Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : CO320LRV.H
Product Code : 71759
Delivery: £7.95
£476.25
RRP : £635.00
SELECT FINISH Step 1

SELECT Select Handle Step 2

qty :
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • Available in different variations
  • Shower Set Includes: Valve body, Valve handle, Diverter handle, Shower handset, Outlet elbow and holder, Shower hose, Ring valve and shroud, 2-way Diverter ring and shroud
  • Download the Installation Instruction Manual and AfterCare PDF

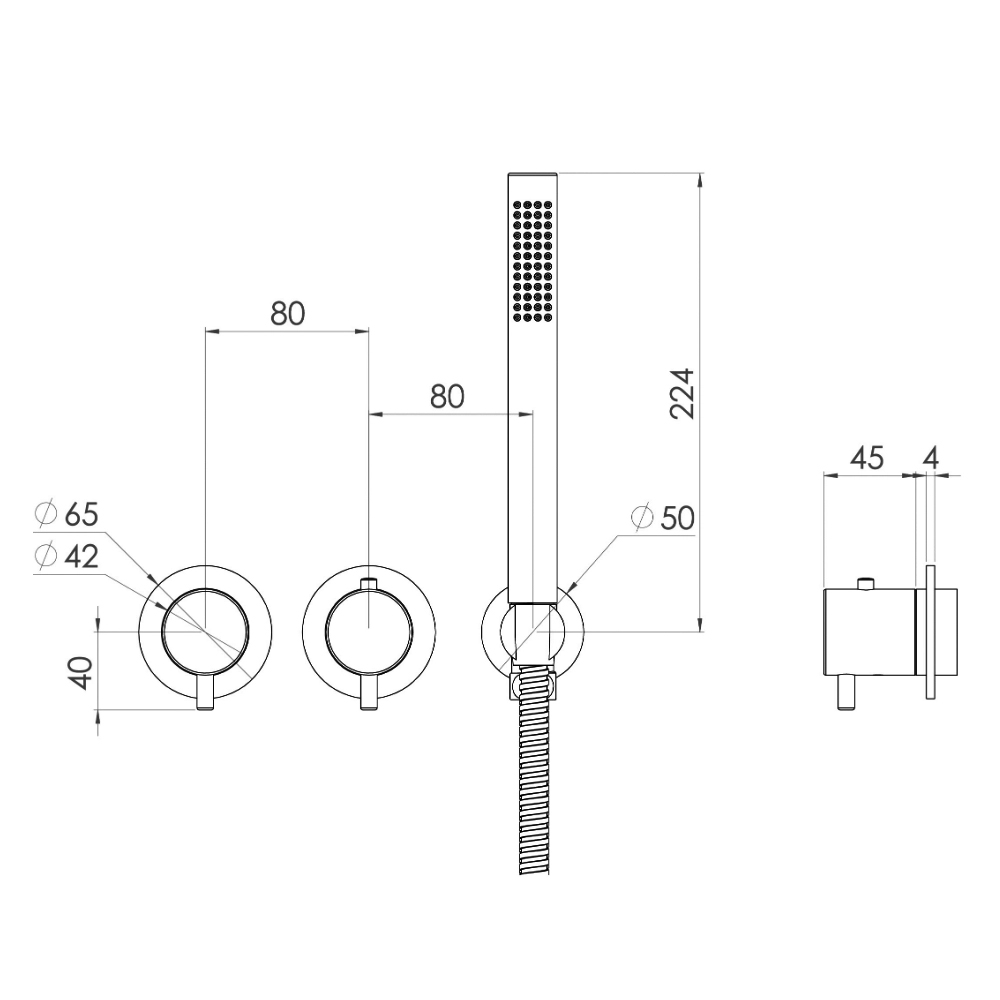

  • Refer to the technical drawing for size details
  • Guarantee: 5-Year from the manufacturer
  • Specification of Shower Ring Valve
  • Size of Handle: Ø65mm x Depth 49mm
  • 2 Handles
  • 2 Outlets
  • Material: Brass
  • 2-Way Thermostatic Ring
  • The top handle manages the on/off function
  • The bottom handle adjusts the temperature
  • Inlet centres: 80mm
  • PVD-coated finish
  • WRAS Approved
  • Suitable for medium-pressure water system
  • Requires a minimum 0.5 bar operating water pressure
  • Specification of Shower Handset
  • Size: Ø24 x Height 210mm
  • Shape: Slim round
  • Finish: PVD-coating
  • Includes outlet elbow and holder
  • 1500mm Stainless steel shower hose
  • G1/2-Inch inlet connection
  • Flow Rate:
  • 0.5 bar - 7.8 l/min
  • 1.0 bar - 16 l/min
  • 2.0 bar - 22.5 l/min
  • 3.0 bar - 28.5 l/min
  • 5.0 bar - 24.2 l/min

Information Breakdown

Colour Chrome
Warranty/Guarantee 5 Years
Theme Modern
Compliance/Approvals/Standard WRAS
Inlet Connections G1/2
Valve Included Yes
Inlet Centres 80
Hose Length 1500
Temperature Control Thermostatic
Anti-Scald Yes
Number of Handles 2
Diverter Included Yes
Minimum Operating Pressure (Bar) 0.5

PRODUCT VARIATIONS INFO & MFC CODE
  • Available Variations And Manufacturing Codes
    Finish Classic Handle Knurled Handle Fluted Handle
    Chrome CO320LRV.H CO320LRV.H.K CO320LRV.H.F
    Brushed Brass CO320LRV.H.BB CO320LRV.H.KBB CO320LRV.H.FBB
    Brushed Nickel CO320LRV.H.BN CO320LRV.H.KBN CO320LRV.H.FBN
    Satin Black CO320LRV.H.SB CO320LRV.H.KSB CO320LRV.H.FSB
    Brushed Bronze CO320LRV.H.BR CO320LRV.H.KBR CO320LRV.H.FBR
