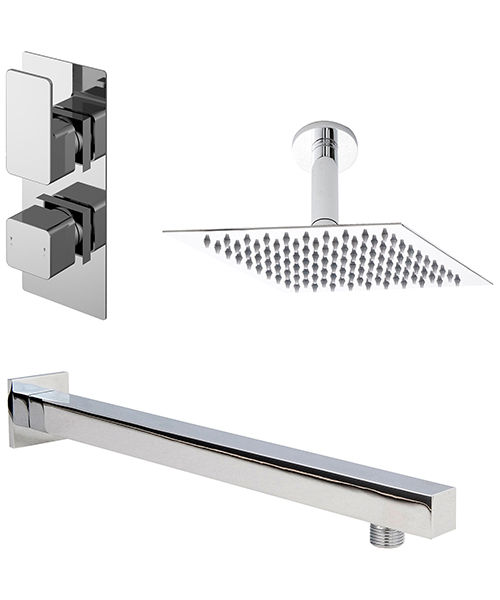

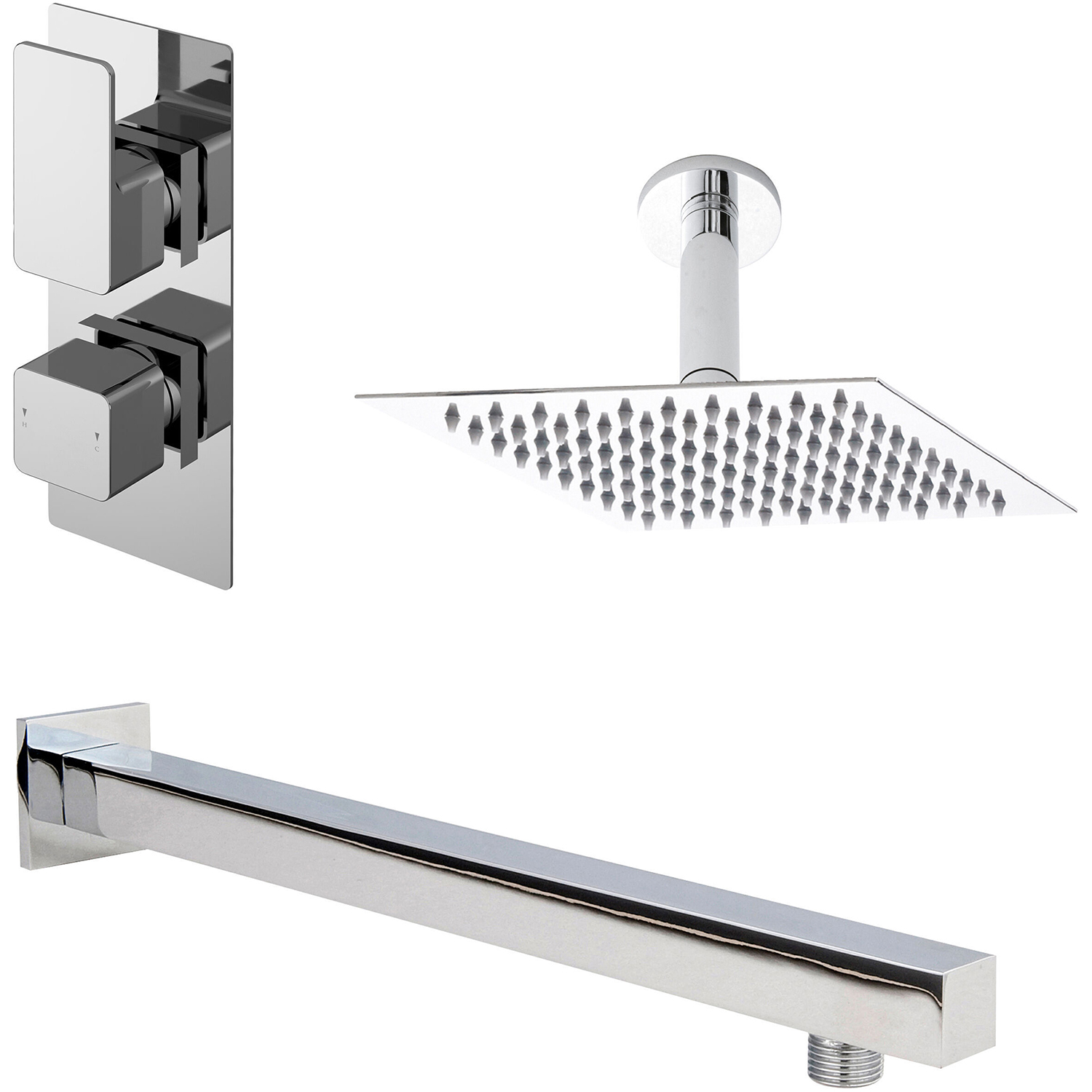

Nuie Windon Square Thermostatic Shower Valve With Fixed Head And Wall Arm small Image 4
Nuie Windon Square Thermostatic Shower Valve With Fixed Head And Wall Arm

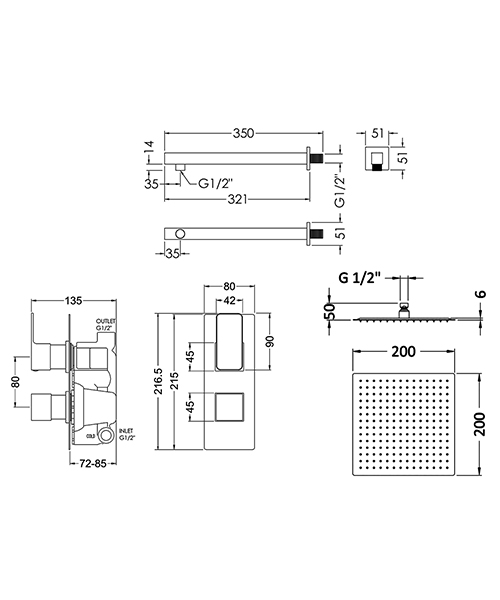

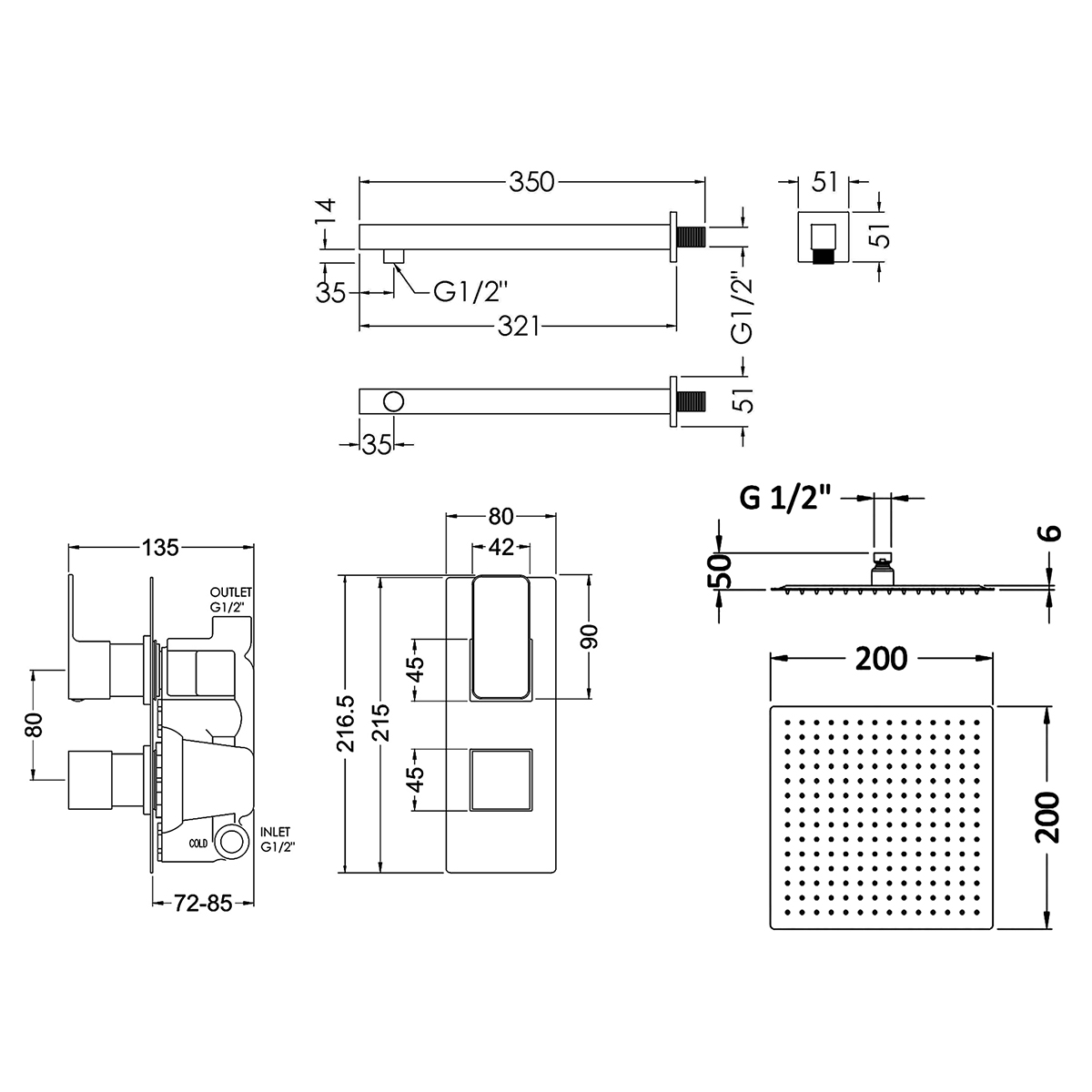

Technical drawing 72997 / SBS01TW1

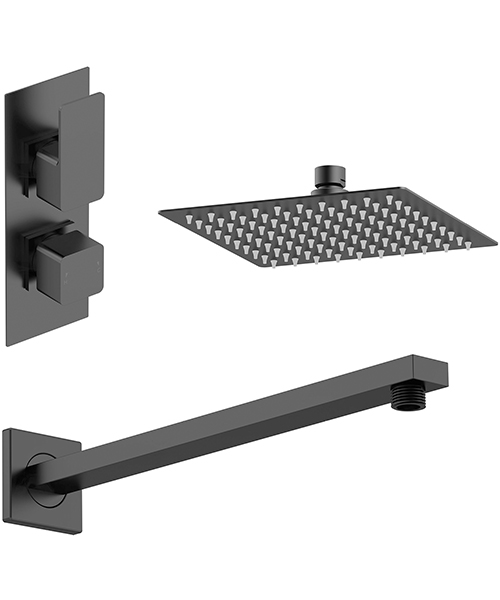

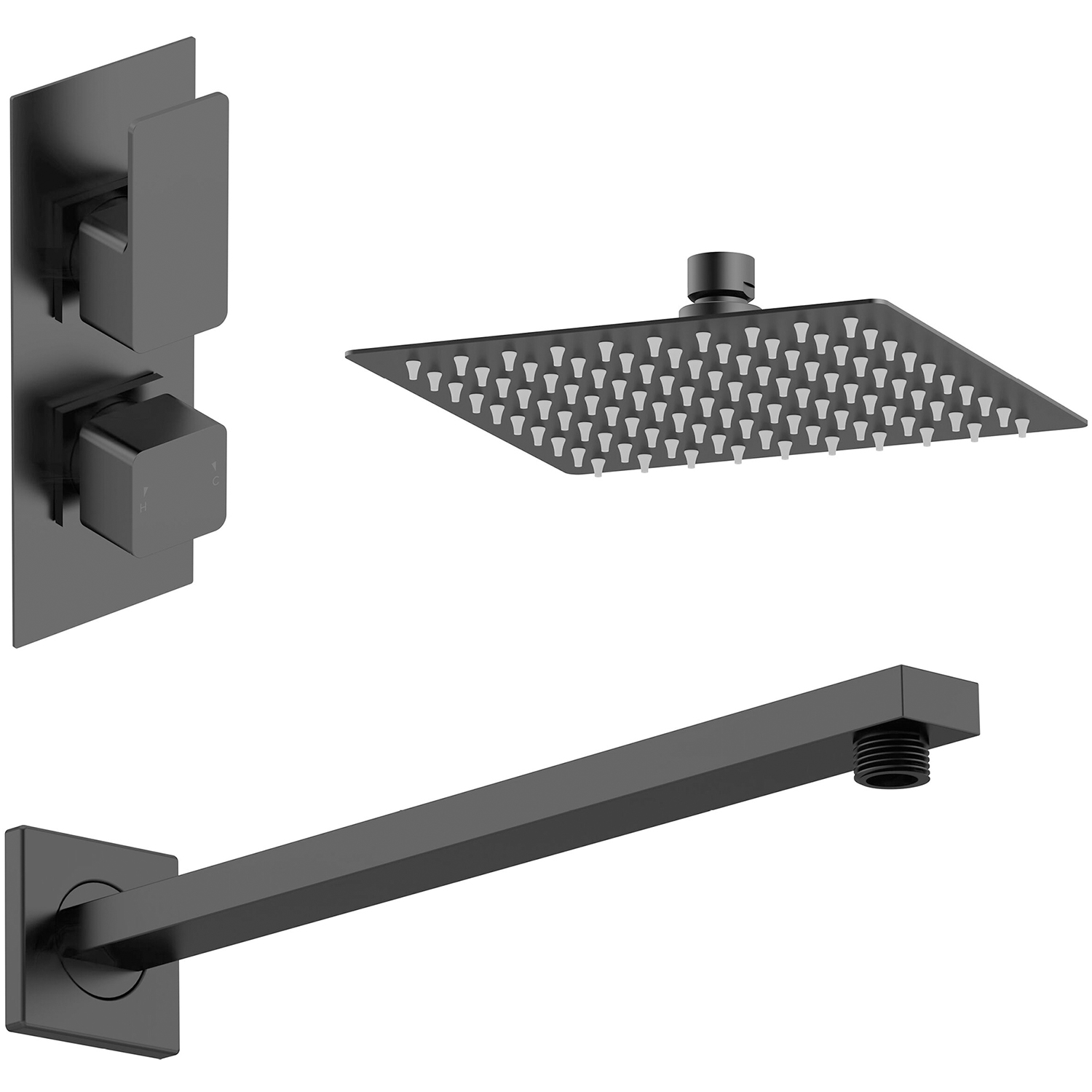

Additional image of Premier SBS01TW1

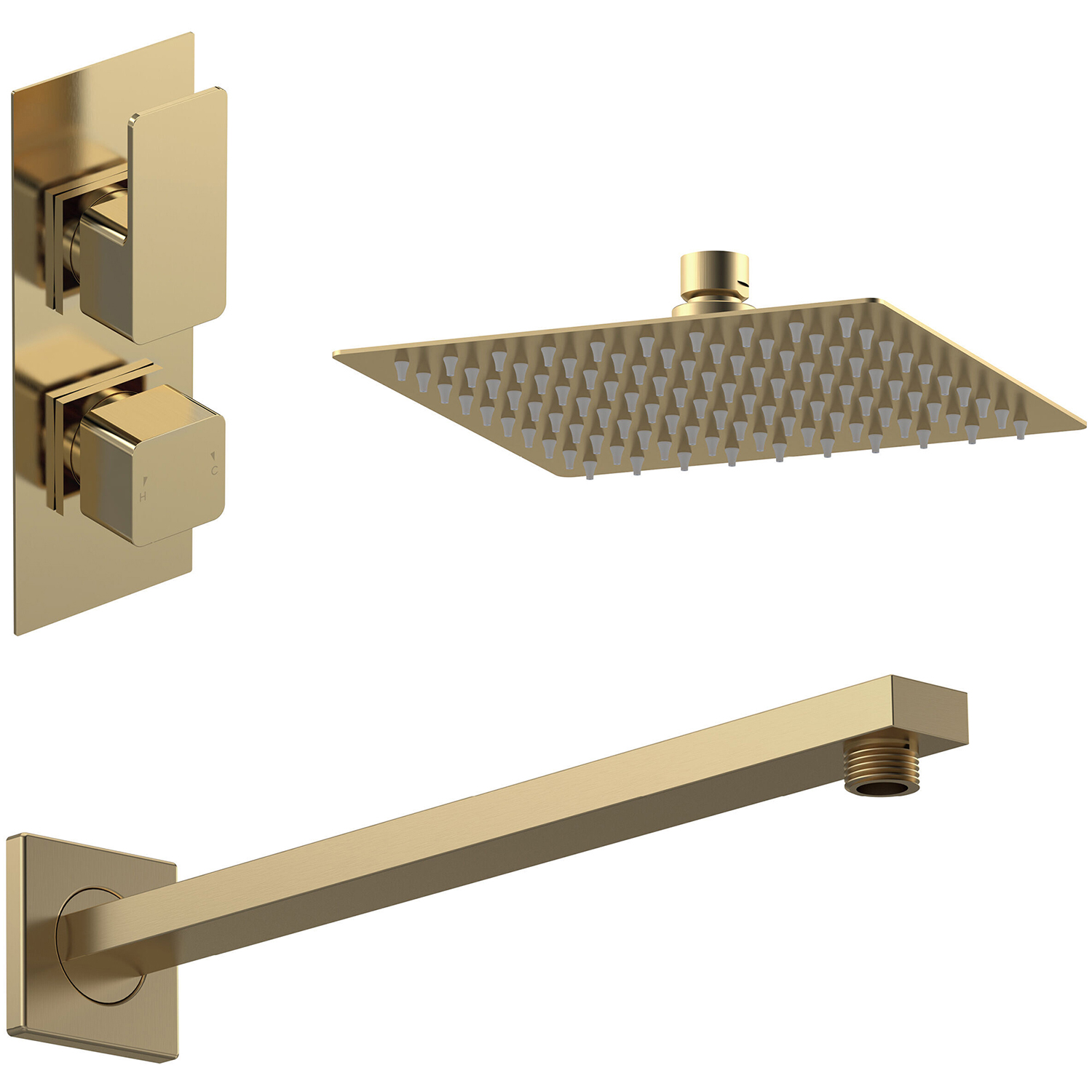

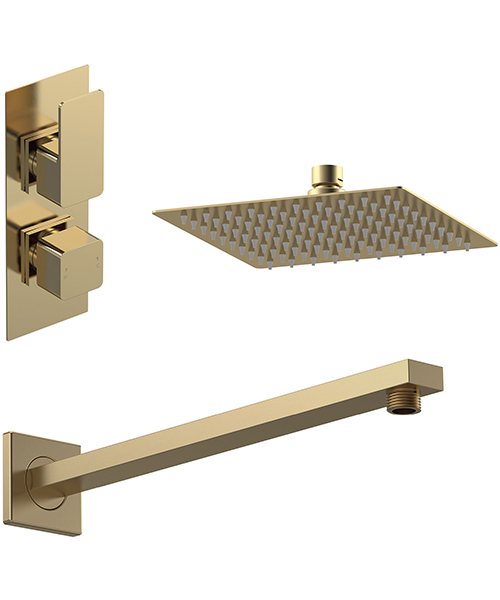

Additional image of Nuie Windon Square Thermostatic Shower Valve With Fixed Head And Wall Arm

Nuie Windon Square Thermostatic Shower Valve With Fixed Head And Wall Arm

Nuie Logo
Available Finishes: Chrome / Matt Black / Brushed Brass
No Rating No Rating Write a Review
Rate This:
MFC Code : SBS01TW1
Product Code : 72997
Delivery: £7.95
£300.00
RRP : £719.00
Finishes Available

OP-222517 - Chrome

qty :
  • Pack Includes: 2‑Outlet Square Concealed Thermostatic Shower Valve and Square Fixed Shower Head with Wall‑Mounted Arm
  • Sleek Modern Design
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instructions
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Pack Includes: 2‑Outlet Square Concealed Thermostatic Shower Valve and Square Fixed Shower Head with Wall‑Mounted Arm
  • Sleek Modern Design
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instructions
  • Technical drawing available for more technical details
  • Guarantee: 5 Years on Chrome Finish, 3 Years on Other Finishes
  • Specification of Shower Valve:
  • Made Using Brass and ABS Material
  • Stain and Rust-Resistant Valve
  • Number of Outlets: 1
  • Number of Handles: 2
  • WRAS and TMV2 Approved
  • TMV2 Approval Number: 2603035
  • Installation Type: Recessed and Wall
  • Comes Complete with Valve and Cartridge
  • Accurate Flow Control Thermostatic Valve
  • 1/4-Turn Ceramic Cartridge Disc
  • Dimension: Width 120mm (12cm) x Depth 135mm (135cm)
  • Height: 215mm (21.5cm)
  • Wall-Mount Cavity: Min. 72mm (7.2cm) and Max. 85mm (8.5cm)
  • Mountable in Vertical or Horizontal Orientation
  • Inlet and Outlet Connection: G 1/2 Inch
  • Compatible with low‑pressure water systems
  • Requires a minimum operating water pressure of 0.1 bar
  • Features:
  • Stain and Rust-Resistant Construction with Precise and Reliable Flow Control
  • Advanced Thermostatic Control Maintains Water Temperature Within ±2°C, Even During Pressure Fluctuations
  • Compatible with Concealed Shower Systems for a Seamless Installation
  • Patented Cartridge Design Resists Calcium Buildup, Making It Ideal for Hard Water Conditions
  • Suitable for All Plumbing Systems, Including Gravity-Fed, Pumped, Unvented High-Pressure, and Fully Modulated Combi-Boilers
  • Integrated Thermal Safety Protection Automatically Shuts off in Case of Hot or Cold Water Supply Failure, Preventing Scalding
  • Fully Reversible Cartridge Eliminates the Need for Re-Plumbing if Hot and Cold Supplies are Incorrectly Connected
  • Easy Maintenance-Remove, rotate the Cartridge by 180°, and Reinstall
  • Detail of Square Fixed Shower Head:
  • Single Shower Head Mode
  • Dimension: Width 200mm (20cm) x Depth 200mm (20cm)
  • Height 50mm (5cm)
  • Made Using Stainless Steel Material
  • Installation Type: Wall or Surface Mounted
  • Inlet Connection: G 1/2 Inch
  • Compatible with low‑pressure water systems
  • Requires a minimum operating water pressure of 0.5 bar
  • Detail of Wall-Mounted Arm:
  • Overall Length: 350mm (35cm)
  • Made Using Solid Brass Material
  • Connection Thread: G 1/2 Inch
  • Square shape
  • Available Optional Product
  • Available in different finishes: Chrome, Matt Black, Brushed Brass

Information Breakdown

Colour Chrome
Warranty/Guarantee Chrome - 5 Years, Other Finishes - 3 Years
Theme Modern
Compliance/Approvals/Standard WRAS, TMV2
Inlet Connections G 1/2"
Configuration Valve, Head and Arm
Temperature Control Theromstatic
Anti-Scald Yes
Auto shutdown if hot or cold supplies fail Yes
Shower Head Included Yes
Shower Head Size 200 x 200
Minimum Operating Pressure (Bar) 0.1 bar

Technical Info

Nuie Windon Square Thermostatic Shower Valve With Fixed Head And Wall Arm

Download Technical Data Sheet PDF

Download Mounting Instruction For Shower Valve PDF

Download Mounting Instruction For Shower Head PDF

Download Mounting Instruction For Shower Arm PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Available Finishes
    Finish MFC
    Chrome SBS01TW1
    Matt Black SBS41TW1
    Brushed Brass SBS81TW1
