73000 small Image 1
73000 small Image 2

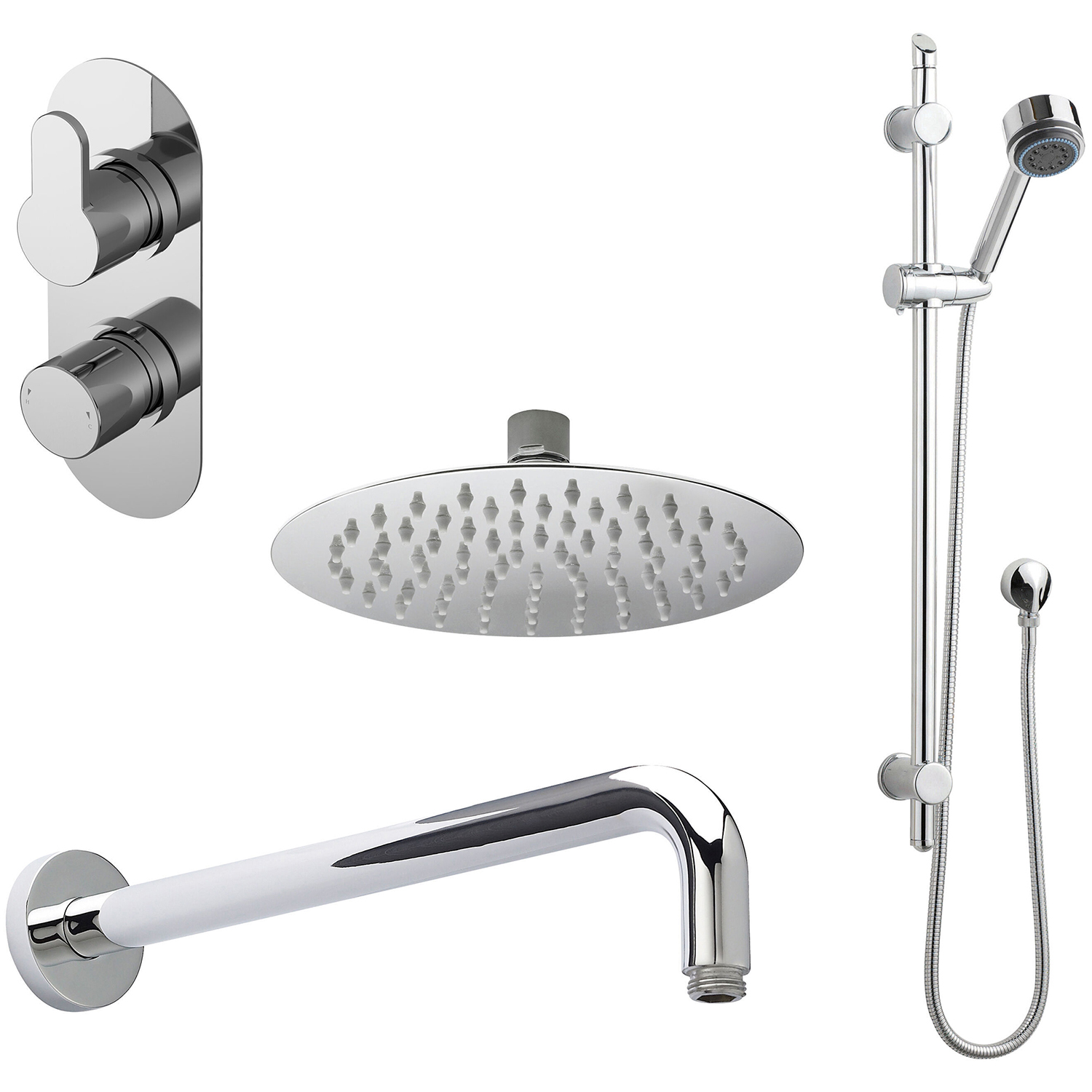

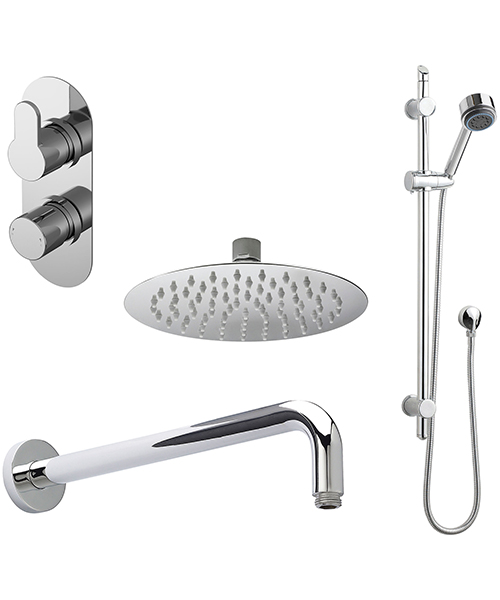

Nuie Arvan Chrome Thermostatic Valve With Fixed Head And Slider Rail Kit

Nuie Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : SBR06TW2
Product Code : 73000
Delivery: £7.95
£309.60
RRP : £774.00

Nuie Arvan Chrome Thermostatic Valve With Fixed Head And Slider Rail Kit.

Read More About the Product
qty :
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Manufacturing Code of this Product: SBR06TW2
  • Chrome finish
  • Minimalist, Sleek Round Design
  • Features: Easy to Clean
  • Compatible with High-Pressure water systems
  • Requires a minimum operating water pressure of 0.5 bar
  • Stain and rust-resistant construction with precise and reliable flow control
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instructions

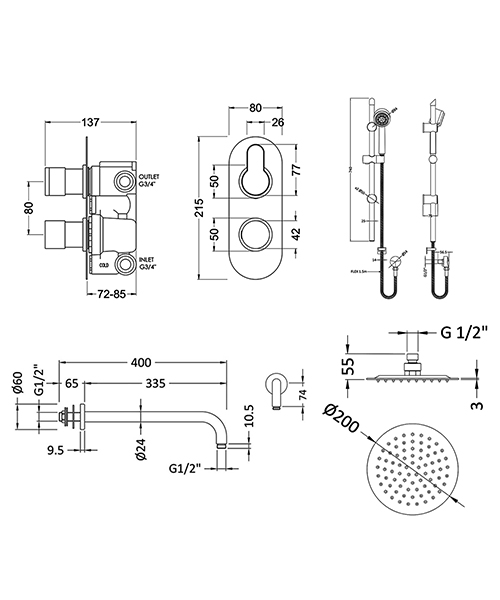

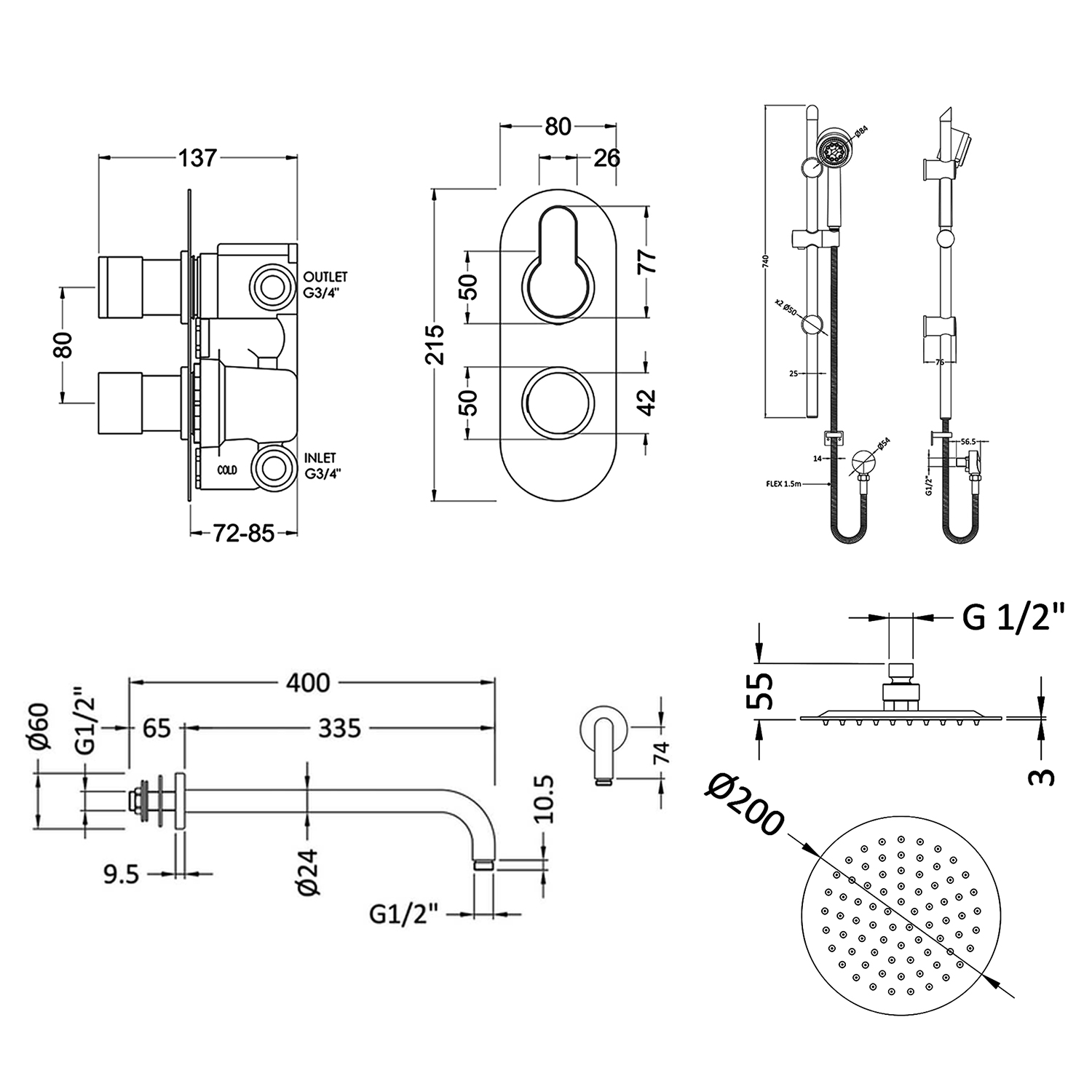

  • Technical drawing available for more technical details
  • Guarantee: 5-year from the manufacturer against any manufacturing defects
  • Detail of Shower Valve:
  • Made using Brass and ABS material
  • Number of Outlets: 2
  • Number of Handles: 2
  • WRAS and TMV2 Approved
  • TMV2 Approval Number: 2603035
  • Stain and rust-resistant valve
  • Comes with a valve and a cartridge
  • Accurate flow control thermostatic valve
  • 1/4-Turn ceramic cartridge disc
  • Overall dimension: Width 80mm (8cm) x Depth 136mm (13.6 cm)
  • Height 215mm (21.5cm)
  • Pipe Size: 22mm (2.2cm) (3/4-Inch BSP)
  • Wall-Mount Cavity: Min. 72mm (7.2cm) and Max. 85mm (8.5cm)
  • Inlet and Outlet Connection: G 1/2 Inch
  • Control type: Manual
  • Suitable for both vertical and horizontal installation
  • Features:
  • Advanced thermostatic control maintains water temperature within +/-2 °C, even during pressure fluctuations
  • Compatible with concealed shower systems for a seamless installation
  • Patented cartridge design resists calcium buildup, making it ideal for hard water conditions
  • Suitable for all plumbing systems, including gravity-fed, pumped, unvented high-pressure, and fully modulated combi-boilers
  • Integrated thermal safety protection automatically shuts off in case of hot or cold water supply failure, preventing scalding
  • Fully reversible cartridge eliminates the need for re-plumbing if hot and cold supplies are incorrectly connected
  • Easy maintenance: remove, rotate the cartridge by 180°, and reinstall
  • Detail of Slide Rail Kit with Outlet Elbow and Handset:
  • Made using Brass and ABS material
  • Comes complete with handset and hose
  • Rail height: 740mm (74cm)
  • Diameter of handset: Ø200mm (20cm)
  • Hose length: 1500mm (150cm)
  • Multiple-function handset
  • Outlet elbow included
  • Pipe size: 15mm (1.5cm) (1/2-Inch BSP)
  • Detail of Fixed Shower Head:
  • Made using Stainless Steel material
  • Features a single-function shower head
  • Dimension: Diameter Ø200mm (20cm) x Height 55mm (5.5cm)
  • Inlet connection: G 1/2 Inch
  • Installation type: Wall or surface-mounted
  • Detail of Wall-Mounted Arm:
  • Made using solid brass material
  • Length: 335mm (33.5cm)
  • Connection Thread: G 1/2 Inch

Information Breakdown

Colour Chrome
Warranty/Guarantee 5 Years
Theme Modern
Compliance/Approvals/Standard WRAS, TMV2
Inlet Connections G 1/2"
Hose Included Yes
Configuration Valve, Head, Arm, Outlet, Handset And Hose
Temperature Control Theromstatic
Anti-Scald Yes
Diverter Included Yes
Showerhead Finish Chrome
Riser Rail & Kit Finish Chrome
Auto shutdown if hot or cold supplies fail Yes
Handset Included Yes
Spray Patterns (Shower Handset) 3
Spray Patterns (Shower Head) 1
Shower Head Included Yes
Shower Head Size 200
Rail Length 740
Diverter Type Integrated
Outlet Elbow Included Yes
Minimum Operating Pressure (Bar) 0.5

Technical Info

Nuie Arvan Chrome Thermostatic Valve With Fixed Head And Slider Rail Kit

Download Technical Data Sheet PDF

Download Mounting Instruction For Shower Valve PDF

Download Mounting Instruction For Slide Rail Kit PDF

Download Mounting Instruction For Shower Head PDF

Download Mounting Instruction For Shower Arm PDF
