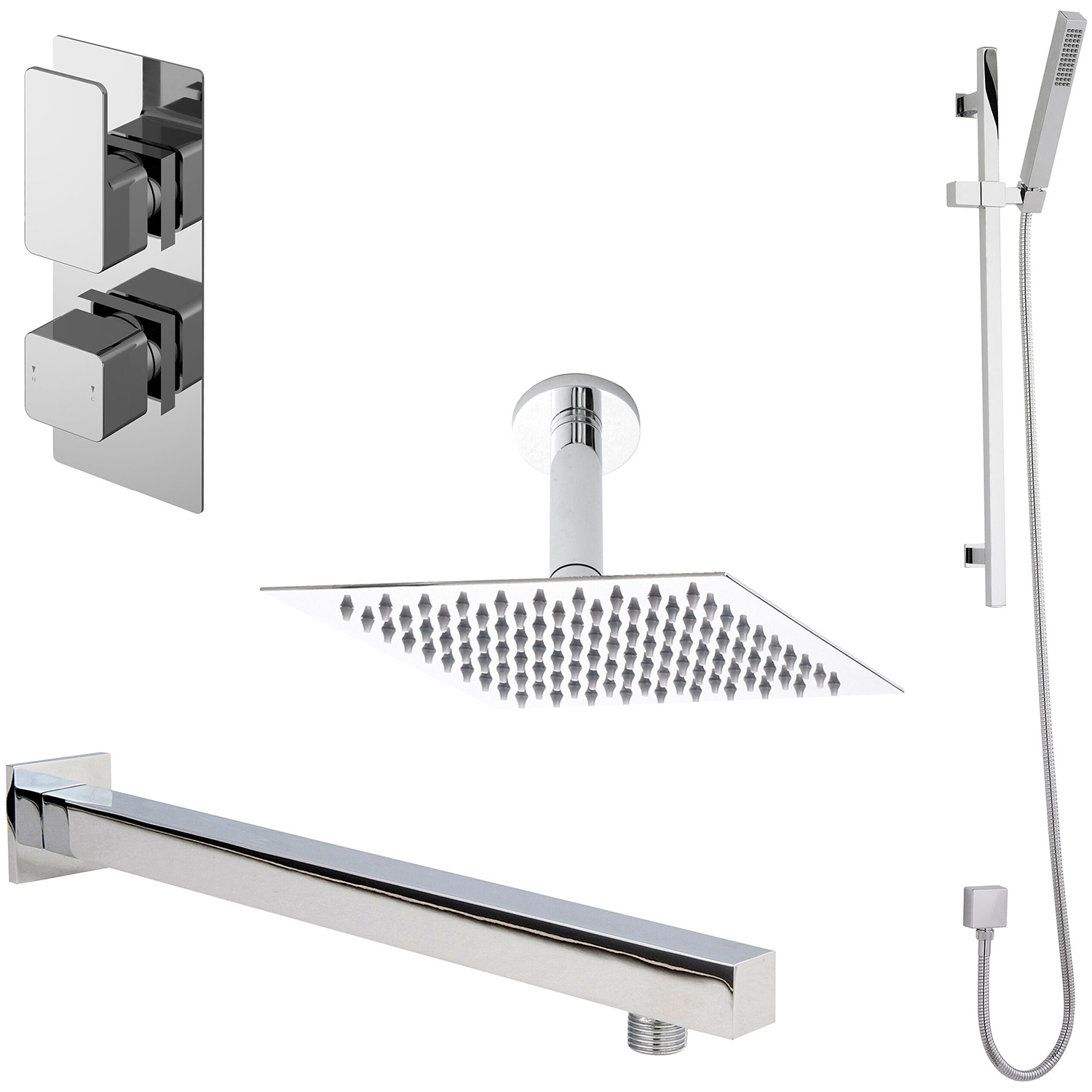

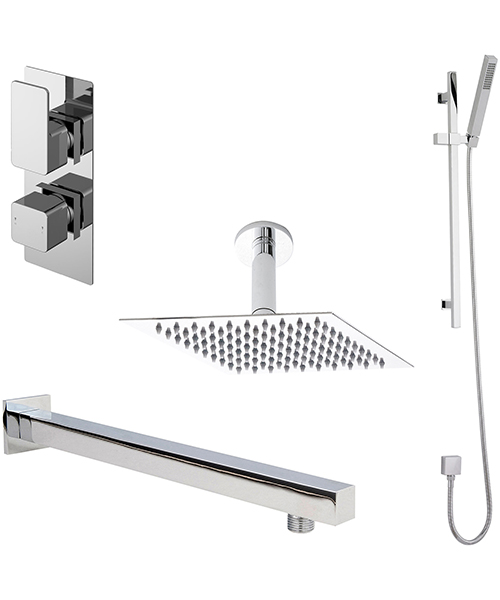

Nuie Windon Chrome Thermostatic Valve With Fixed Head And Slider Rail Kit

Nuie Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : SBS06TW2
Product Code : 75501
Delivery: £7.95
£429.20
RRP : £1073.00

Nuie Windon Chrome Thermostatic Valve With Fixed Head And Slider Rail Kit.

Read More About the Product
qty :
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Manufacturing code of this product: SBS06TW2
  • Includes a 4-outlet concealed thermostatic valve with an integrated diverter and matching outlet elbow
  • Comes complete with a square fixed shower head, wall-mounted arm, and a slide rail kit featuring a handset and hose
  • Finish: Chrome
  • Features: Easy to Clean
  • Minimalist, Sleek Square Design
  • Stain and rust-resistant construction with precise and reliable flow control
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instructions

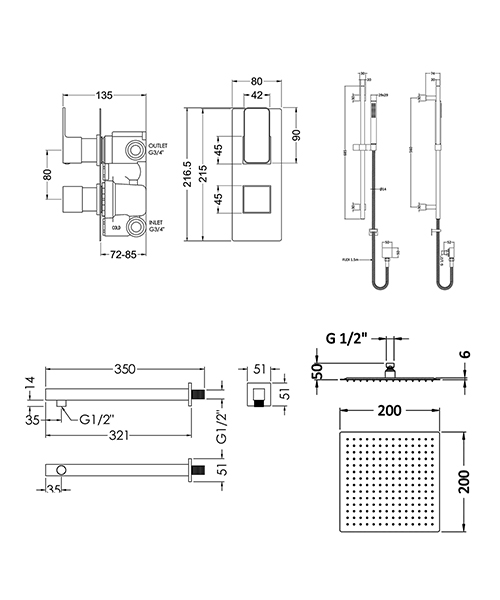

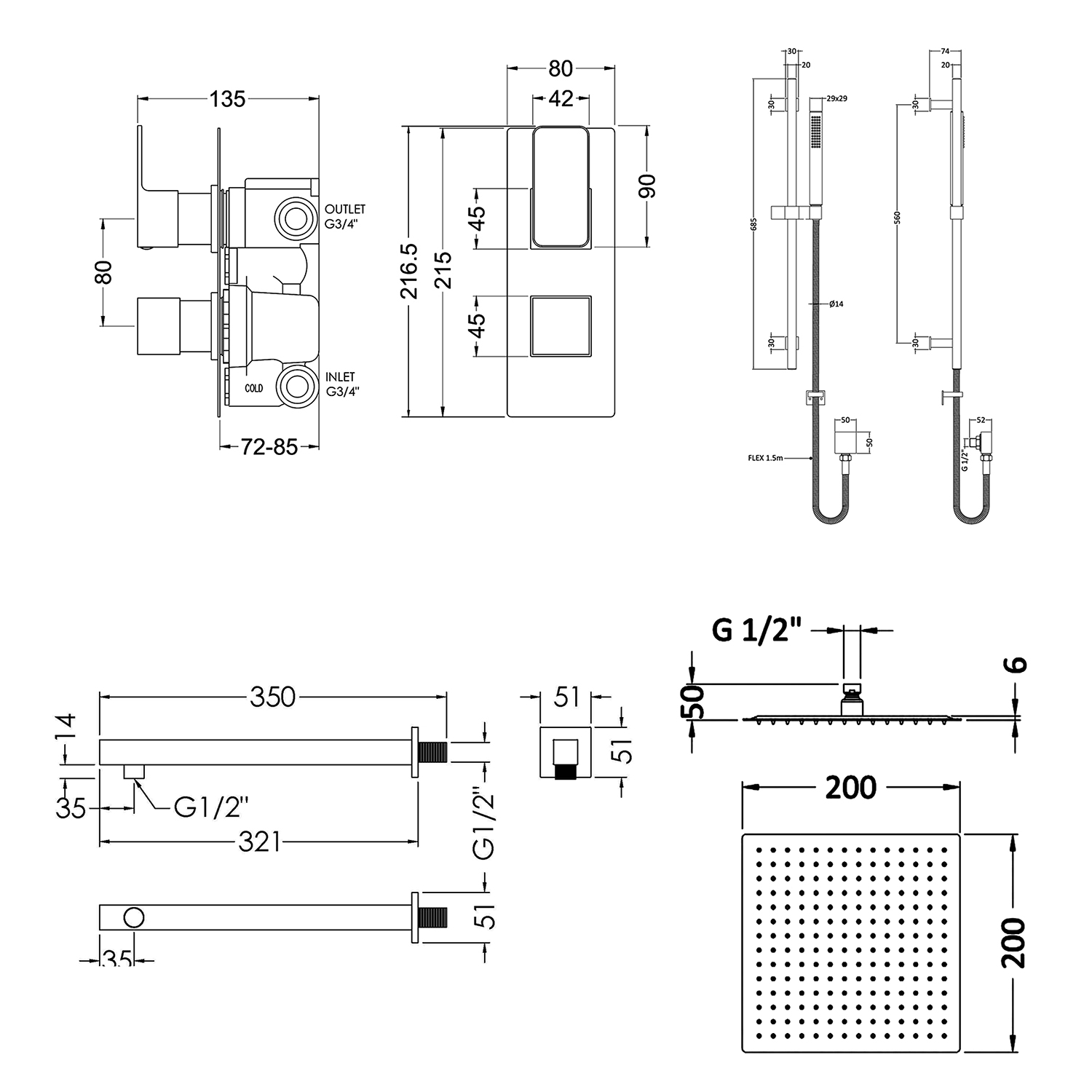

  • Technical drawing available for more technical details
  • Guarantee: 5-year warranty from the manufacturer against any manufacturing defects
  • Detail of Shower Valve
  • WRAS and TMV2 Approved
  • TMV2 Approval Number: 2603035
  • Number of outlets: 2
  • Number of handles: 2
  • Constructed using Brass and ABS material
  • Installation type: Recessed and wall
  • Stain and rust-resistant valve
  • Supplied with a valve and a cartridge
  • Accurate flow control thermostatic valve
  • 1/4-Turn ceramic cartridge disc
  • Overall dimension: Width 80mm (8cm) x Depth 136mm (13.6cm)
  • Height 215mm (21.5cm)
  • Wall-mount cavity: Min. 72mm (7.2cm) and max. 85mm (8.5cm)
  • Pipe Size: 22mm [2.2cm] [3/4-Inch BSP]
  • Inlet and Outlet Connection: G 1/2 Inch
  • Control type: Manual
  • Compatible with high-pressure water systems
  • Requires a minimum operating water pressure of 0.5 bar
  • Suitable for both vertical and horizontal installation
  • Features:
  • Advanced thermostatic control maintains water temperature within +/-2 °C, even during pressure fluctuations
  • Compatible with concealed shower systems for a seamless installation
  • Patented cartridge design resists calcium buildup, making it ideal for hard water conditions
  • Suitable for all plumbing systems, including gravity-fed, pumped, unvented high-pressure, and fully modulated combi-boilers
  • Integrated thermal safety protection automatically shuts off in case of hot or cold water supply failure, preventing scalding
  • Fully reversible cartridge eliminates the need for re-plumbing if hot and cold supplies are incorrectly connected
  • Easy maintenance: remove, rotate the cartridge by 180°, and reinstall
  • Detail of Slide Rail Kit with Outlet Elbow and Handset:
  • Constructed using Brass and ABS material
  • Includes outlet elbow, handset, and flexible hose
  • Dimension: Width 118mm (11.8cm) x Depth 74mm (7.4cm)
  • Height 685mm (68.5cm)
  • Hose length: 1500mm (150cm)
  • Pipe size: 15mm (1.5cm) (1/2-Inch BSP)
  • Rectangular handset with single-setting function
  • Mount-Type: Wall or surface
  • Compatible with low-pressure water systems
  • Requires a minimum operating water pressure of 0.1 bar
  • Details of Fixed Shower Head:
  • Single-function shower head
  • Constructed using stainless steel material
  • Dimension: Width 200mm (20cm) x Depth 200mm (20cm)
  • Height 55mm (5.5cm)
  • Inlet connection: G 1/2 Inch
  • Installation Type: Wall or surface-mounted
  • Compatible with medium-pressure water systems
  • Requires a minimum operating water pressure of 0.5 bar
  • Detail of Wall-Mounted Arm:
  • Constructed using solid brass material
  • Length: 350mm (35cm)
  • Connection Thread: G 1/2 Inch

Information Breakdown

Colour Chrome
Warranty/Guarantee 5 Years
Theme Modern
Compliance/Approvals/Standard WRAS, TMV2
Inlet Connections G 1/2"
Hose Included Yes
Configuration Valve, Head, Arm, Outlet, Handset And Hose
Temperature Control Theromstatic
Anti-Scald Yes
Diverter Included Yes
Showerhead Finish Chrome
Riser Rail & Kit Finish Chrome
Auto shutdown if hot or cold supplies fail Yes
Handset Included Yes
Spray Patterns (Shower Handset) 1
Spray Patterns (Shower Head) 1
Shower Head Included Yes
Shower Head Size 200
Rail Length 685
Diverter Type Integrated
Outlet Elbow Included Yes
Minimum Operating Pressure (Bar) 0.5

Technical Info

Nuie Windon Chrome Thermostatic Valve With Fixed Head And Slider Rail Kit

Download Technical Data Sheet PDF

Download Mounting Instruction For Shower Valve PDF

Download Mounting Instruction For Slide Rail Kit PDF

Download Mounting Instruction For Shower Head PDF

Download Mounting Instruction For Shower Arm PDF
