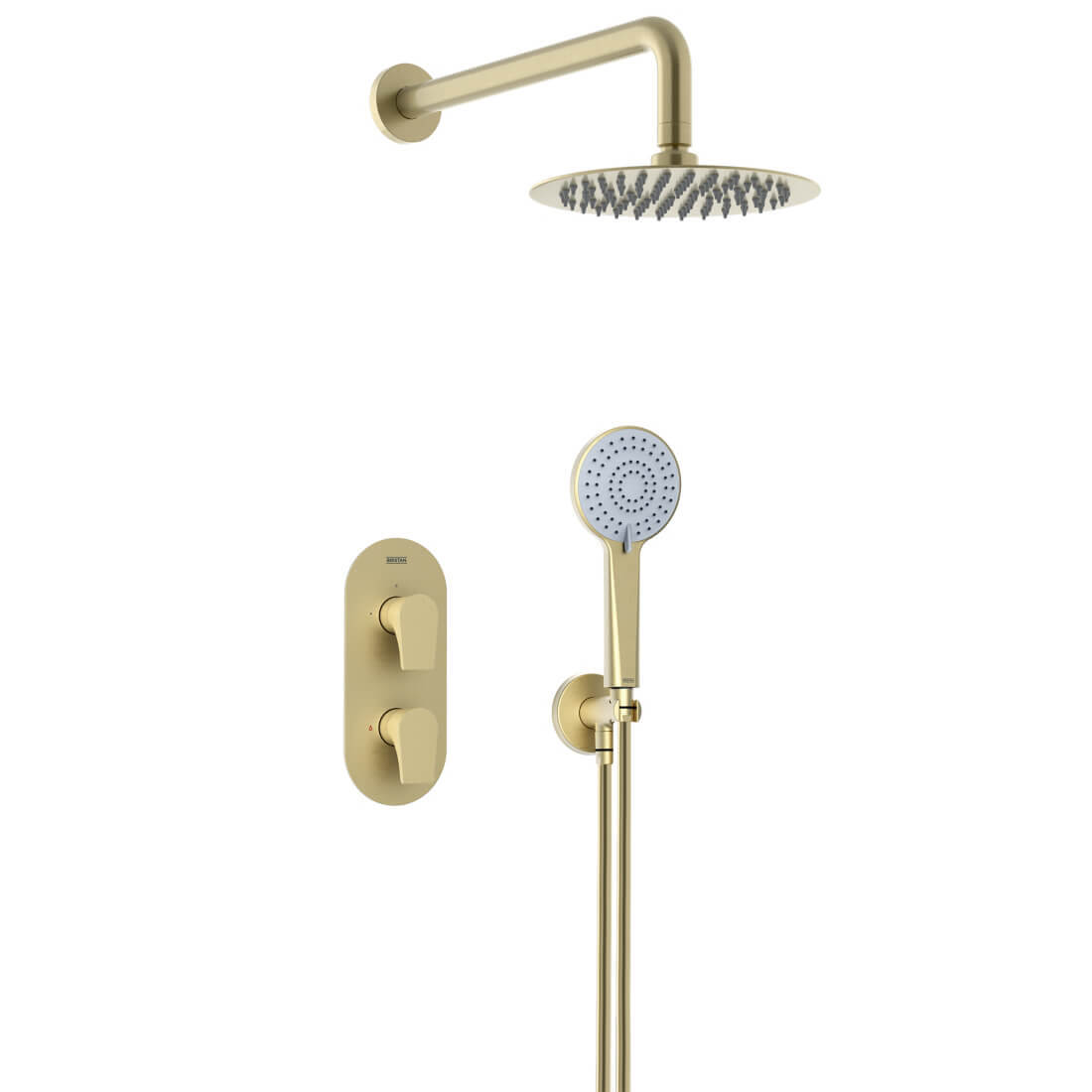

Bristan Hourglass Concealed Thermostatic Shower Valve with Head and Handset Kit small Image 4

Bristan Hourglass Concealed Thermostatic Shower Valve with Head and Handset Kit

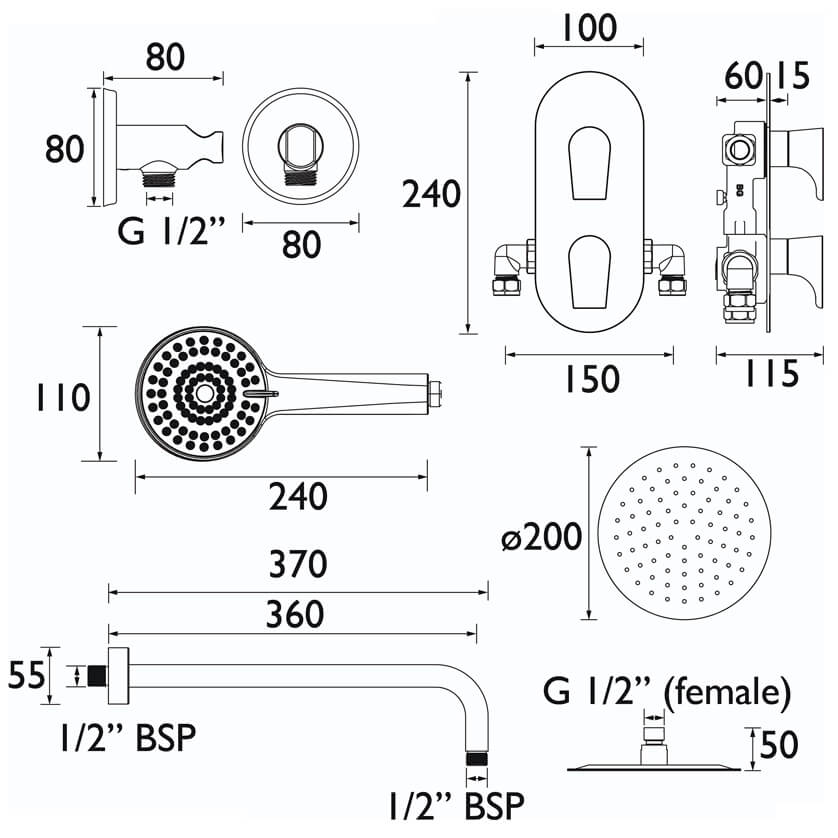

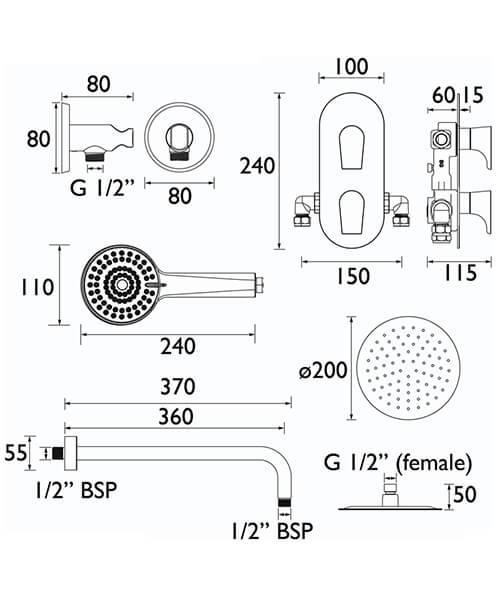

Technical drawing 68499 / HOURGLASS BLK SHWR PK2

Additional image of Bristan HOURGLASS BLK SHWR PK2

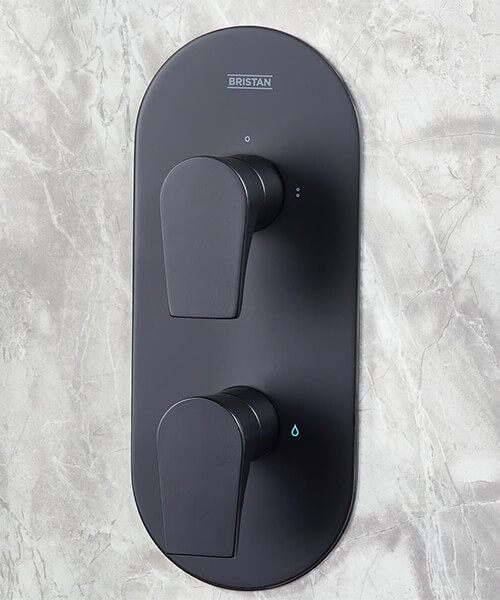

Additional image of Bristan Hourglass Concealed Thermostatic Shower Valve with Head and Handset Kit

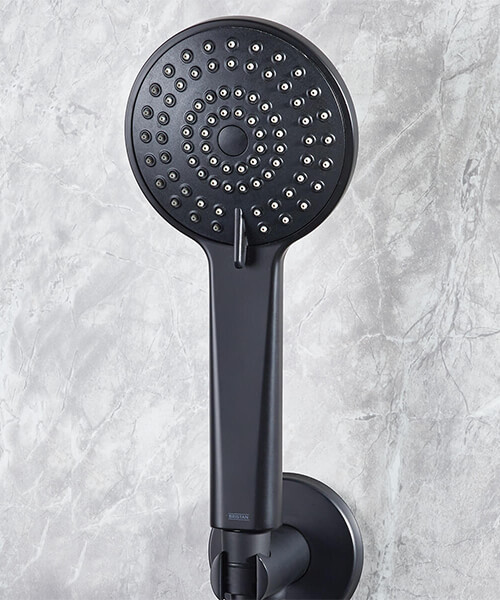

Additional image for 68499 Bristan - HOURGLASS BLK SHWR PK2

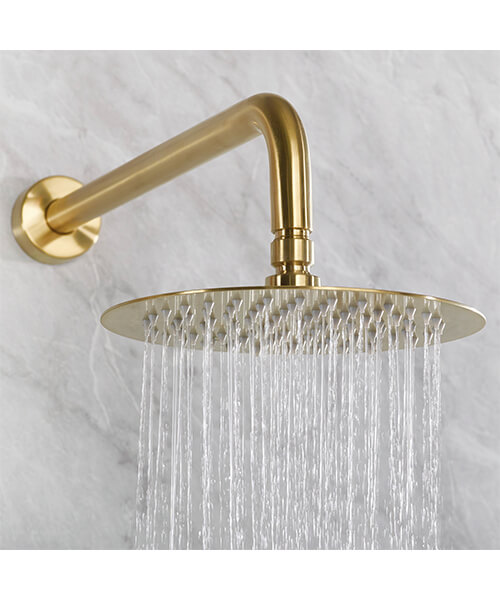

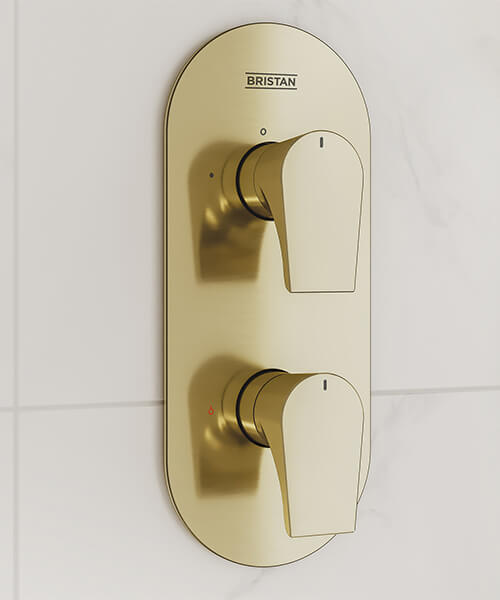

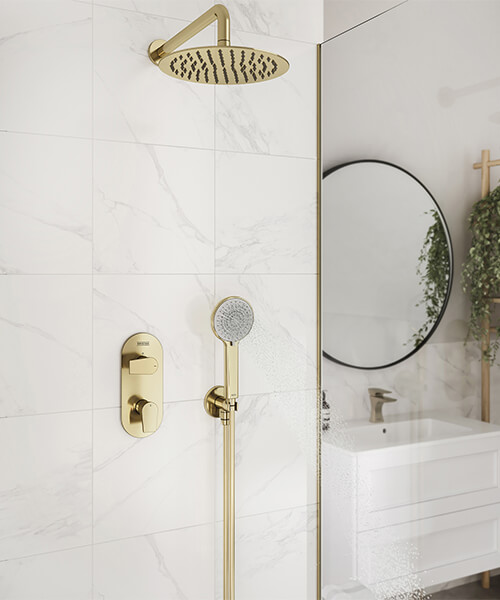

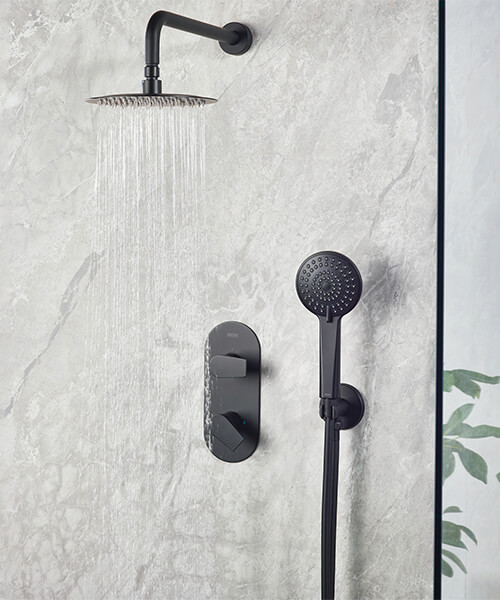

Alternate image of Bristan Hourglass Concealed Thermostatic Shower Valve with Head and Handset Kit

Bristan Hourglass Concealed Thermostatic Shower Valve with Head and Handset Kit

Name: Bristan Hourglass Concealed Thermostatic Shower Valve with Head and Handset Kit
Brand: Bristan
SKU: HOURGLASS BLK SHWR PK2
Price: 374.4 GBP
Availability: InStock

Finishes: Matt Black, Brushed Brass

No Rating

Write a Review

Rate This:

MFC Code : HOURGLASS BLK SHWR PK2

Product Code : 68499

Delivery: £29.95

£374.40

RRP : £690.00

Finishes Available

OP-222585 - Matt Black

qty :

Choice of finishes: Matt Black, Brushed Brass
Manufactured using brass and ABS material
Thermostatic cartridge with preset temperature safety stop at 42°C for family-safe showering

About This Product

Choice of finishes: Matt Black, Brushed Brass
Manufactured using brass and ABS material
Thermostatic cartridge with preset temperature safety stop at 42°C for family-safe showering
Automatic shut-off in the event of hot or cold water supply failure for family-safe showering

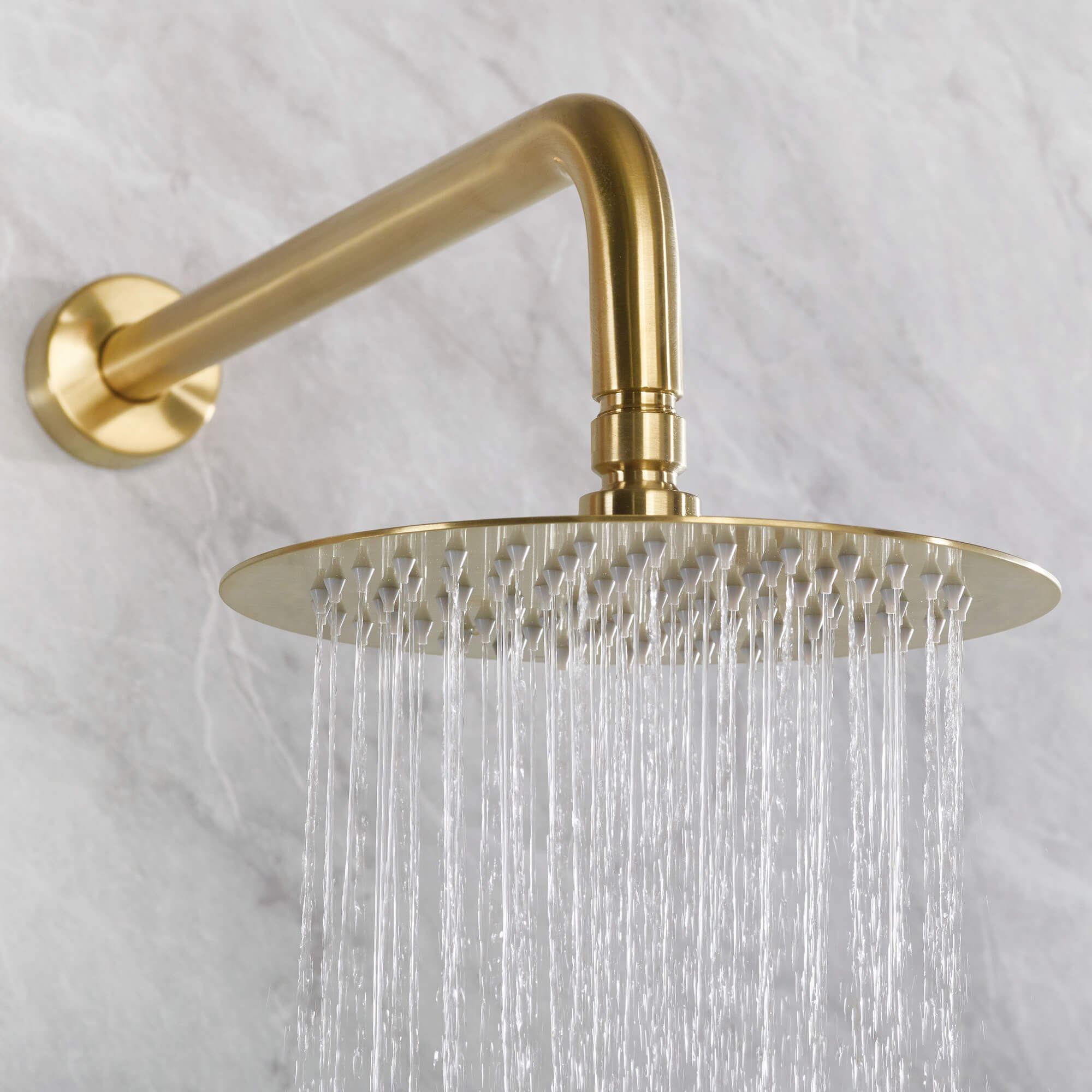

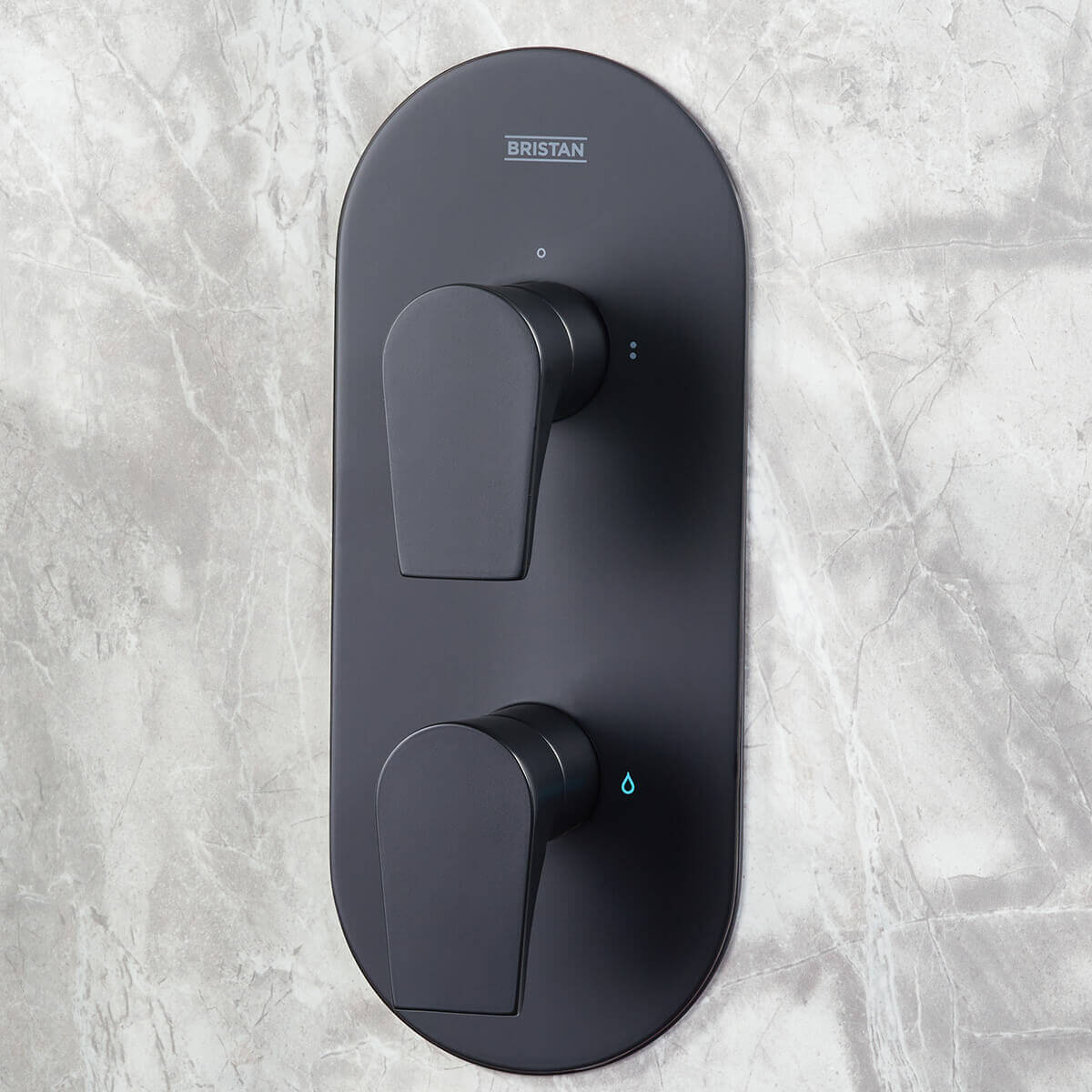

Pack includes: Shower Valve with Integral 2-Outlet Diverter, Slimline 200mm Round Drench Head with Shower Arm, and Shower Kit with an Adjustable Riser Rail Plus a Multi-Function Handset and Wall Outlet
Number of controls: 2
Shower type: Dual Control
Size of showerhead: Ø200mm [20cm]
Shower head type: Fixed Head
Valve/cartridge type: 40mm Single Lever Cartridge
Length of shower arm: 370mm [37cm]
Size of valve [mm]: 100 x 115 x 240mm [Width x Depth x Height]
Size of valve [cm]: 10 x 11.5 x 240cm [Width x Depth x Height]
Size of handset [mm]: 110 x 250mm [Width x Height]
Size of handset [cm]: 11 x 25cm [Width x Height]
Maximum hot water supply temperature: 65ºC
Maximum static pressure: 10 Bar
Connection inlet: 15mm Compression
Connection outlet: G 1/2 Inch
Check valve included: Yes
Suitable for all plumbing systems, ideally balanced
Suitable for low and high water pressure systems
Requires a minimum of 0.2 bar to a maximum of 5 bar of water pressure
The cartridge can be accessed from the front for easy servicing
Rub-clean drench head: Easily Remove Limescale and Debris by Rubbing a Finger or Cloth Over the Nozzles
Slim design recessed shower valve will fit into a cavity space as small as 35mm for hassle-free installation
A higher temperature can be selected, if required, by selecting the override function
Dual control: Flow and Temperature are Operated Separately, Giving Accurate Control of Both
Easy installation with an adjustable faceplate that fits total wall depths from 60mm to 75mm for a perfect flush finish
Refer to the technical drawing for size details
Download the installation instructions PDF files from our technical info section
Lifetime guarantee from the manufacturer against any manufacturing defects

Information Breakdown

Colour	Matt Black
Warranty/Guarantee	Lifetime
Theme	Modern
Inlet Connections	15mm Compression
Hose Included	Yes
Temperature Control	Thermostatic
Diverter Included	Yes
Showerhead Finish	Matt Black
Riser Rail & Kit Finish	Matt Black
Spray Patterns (Shower Handset)	Multi Function
Shower Head Included	Yes
Shower Head Size	Ø200
Outlet Elbow Included	Yes
Minimum Operating Pressure (Bar)	0.2

Technical Info

Download Installation Instructions PDF

PRODUCT VARIATIONS INFO & MFC CODE

Available Finish

Finish	MFC
Matt Black	HOURGLASS BLK SHWR PK2
Brushed Brass	HOURGLASS BB SHWR PK
