Crosswater Gallery 8 Walk In Shower Enclosure

Crosswater Logo

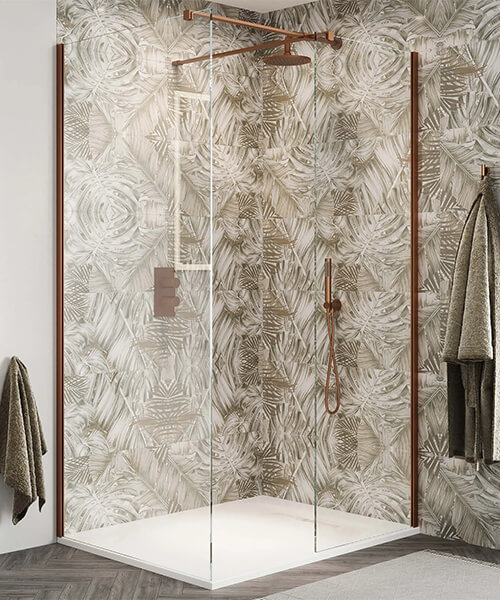

Crosswater Gallery 8 Walk In Shower Enclosure
No Rating No Rating Write a Review
Rate This:
MFC Code : GR050008CF
Product Code : 75071
Delivery: £34.95
£118.40
RRP : £148.00
SELECT Select Sizes Step 1

SELECT Select Side Panel Step 2

SELECT Wall Profile Step 3

SELECT Deflector Panel Step 4

SELECT Pair Of Hinges For Hinged Deflector Panel Step 5

SELECT Pair Of Glass To Glass Bracket Step 6

qty :
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 10-14 Working Days Apprx

Options & Accessories: You May Require

Compatible Bracing Bar
Compatible Bracing Bar

Bracing Bar Available In 4 Finishes Please Select Options From Below. Note : Image Is For Illustration Purpose Only.


Compatible Accessories
Compatible Accessories

Accessories To Complete Shower Enclosure. Note : Image Is For Illustration Purpose Only.



About This Product

  • Available in more variations
  • Refer to the technical diagram for complete technical dimensions
  • Download installation instructions in PDF
  • Lifetime guarantee against any manufacturing defects.
  • Features Of Glass Panel :
  • Height of glass: 2000mm
  • Glass thickness: 8mm toughened safety glass
  • Quality Approvals: BS EN 14428
  • Reversible panel
  • Polished edge glass
  • 15mm width adjustment for easy fitting
  • Concealed fixings
  • Suitable for tray or tiled floors (wetroom)
  • Features Of Wall Profiles :
  • 304 stainless steel
  • Four wall fitting points
  • Clear PVC Squeeze gasket for easy adjustment and stability
  • Profile cover cap
  • Can support panels up to 500mm without a bracing bar

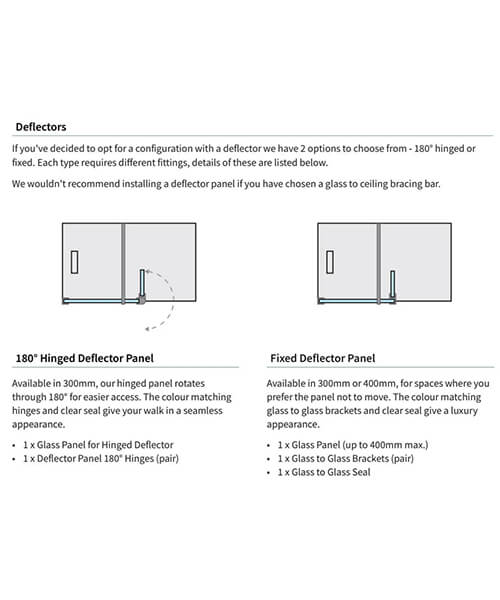

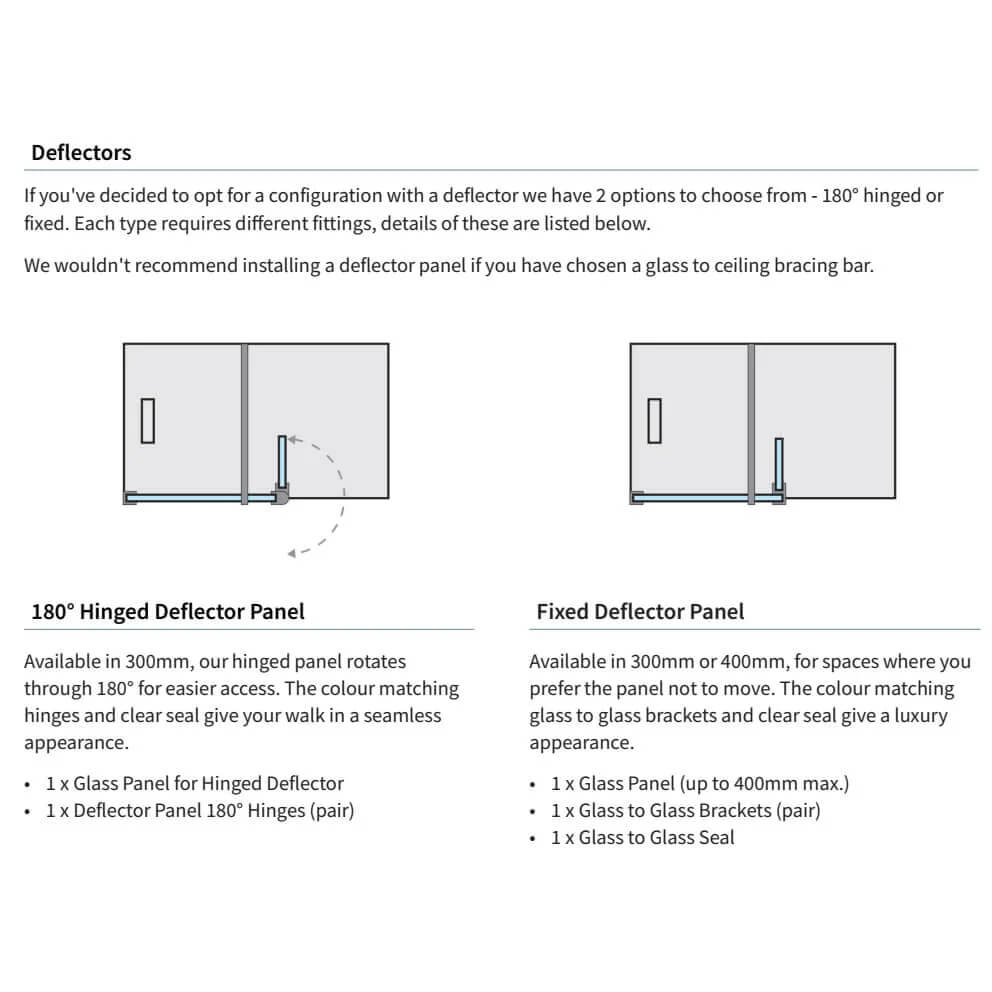

  • Features Of Deflector Glass With Seal :
  • Size : 300mm x 2000mm [Width x Height]
  • Glass thickness: 8mm toughened safety glass
  • Quality Approvals: BS EN 14428
  • Reversible design
  • Polished edge glass
  • Clear PVC bubble seal for deflector panel 1845mm high
  • Clear PVC vertical fixed panel glass seal 1845mm high
  • Clear PVC bottom seal 311mm
  • Requires 180° deflector hinge GRDEFHINGE

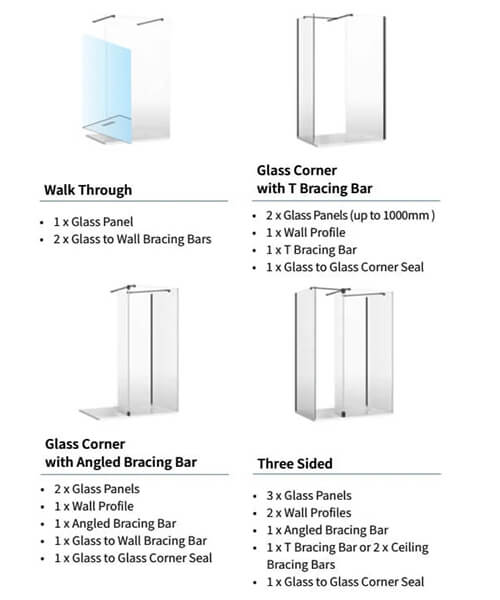

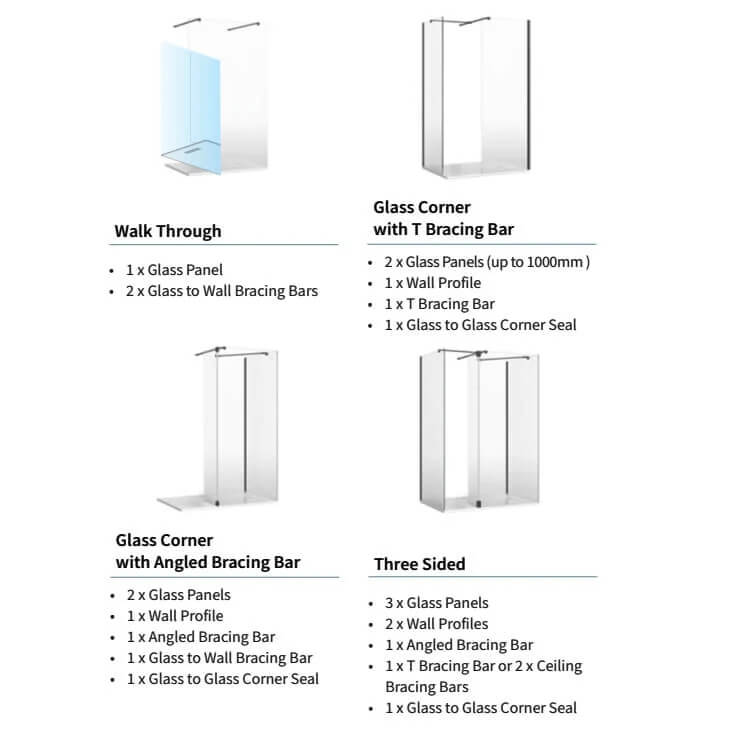

  • Features Of T Bracing Bar :
  • Size : 1200mm x 1200mm
  • Maximum fixed panel width long side 1400mm
  • Maximum fixed panel width return panel 1000mm
  • Solid brass wall bracket/glass clamp
  • 304 Stainless steel stabilising bar
  • Can be cut to length on site
  • Required for fixed panels above 600mm wide
  • Can support panels up to 1000mm
  • Features Of Glass To Wall Bracing Bar :
  • Length: 1200mm
  • Can support panels up to 1400mm
  • Features Of Glass to Ceiling Bracing Bar
  • Length: 600mm
  • Can support panels up to 1000mm
  • Features Of Glass to Glass Corner Seal
  • Suitable for joining two fixed glass panels.

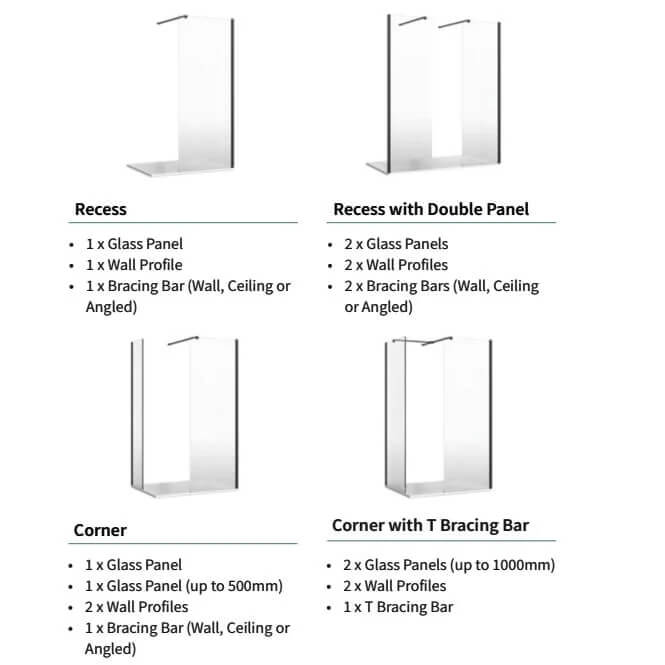

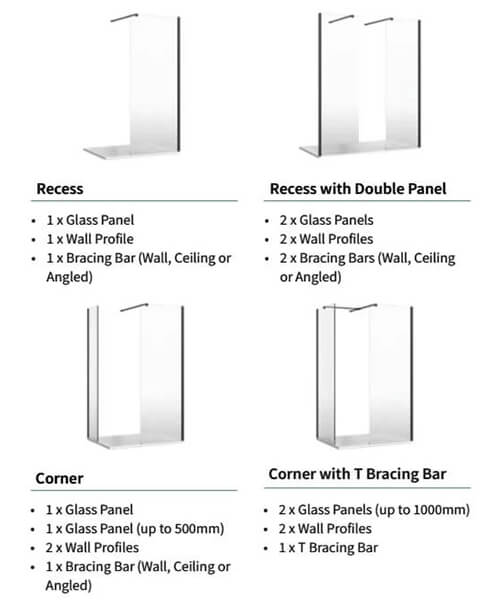

  • Note: For fixed deflector panel glass to glass wall bracing bar are required please select from the options given below. Panels up to 500mm can be supported with a wall profile alone, Panels 600mm and wider require a bracing bar, Please allow 500mm minimum entry space.

Technical Info

Download Installation Instructions PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Details Of Panels
    Product Type Width Height MFC
    Panel 455mm 2000mm GR050008CF
    Panel 555mm 2000mm GR060008CF
    Panel 655mm 2000mm GR070008CF
    Panel 715mm 2000mm GR076008CF
    Panel 755mm 2000mm GR080008CF
    Panel 855mm 2000mm GR090008CF
    Panel 955mm 2000mm GR100008CF
    Panel 1055mm 2000mm GR110008CF
    Panel 1155mm 2000mm GR120008CF
    Panel 1355mm 2000mm GR140008CF
    Fixed Deflector Panel 300mm 2000mm GR030008CF
    Fixed Deflector Panel 400mm 2000mm GR040008CF
    Hinged Deflector Panel 300mm 2000mm GRDEFLEC300
  • Details Of Accessories
    Finishes Wall Profile Hinges For Hinged Deflector Panel Glass To Glass Bracket
    Brushed Brass GRPROFILEF GRDEFHINGEF GRBRACKF
    Matt Black GRPROFILEMB GRDEFHINGEMB GRBRACKMB
    Polished Stainless GRPROFILEPSS GRDEFHINGEPSS GRBRACKPSS
    Brushed Stainless GRPROFILEV GRDEFHINGEV GRBRACKV
    Brushed Bronze GRPROFILEBZ GRDEFHINGEBZ GRBRACKBZ
    Slate GRPROFILET GRDEFHINGET GRBRACKT
