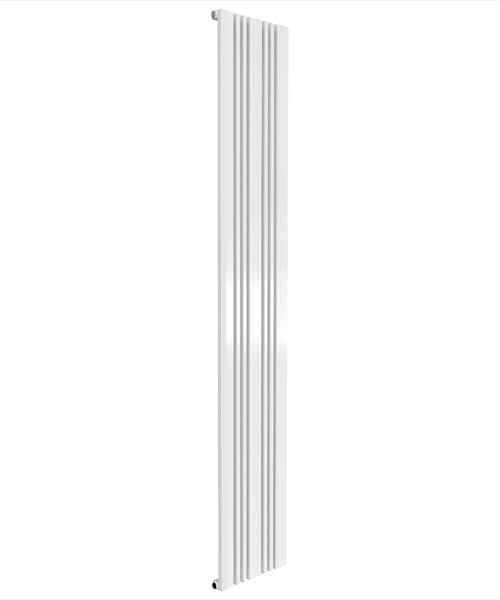

Reina Bonera Vertical Mild Steel Designer Radiator 1800mm High

Reina Bonera Vertical Mild Steel Designer Radiator 1800mm High

Name: Reina Bonera Vertical Mild Steel Designer Radiator 1800mm High
Brand: Reina
SKU: RND-BNR3218W
Price: 210 GBP
Availability: InStock

More Sizes And Finishes Available

No Rating

Write a Review

Rate This:

MFC Code : RND-BNR3218W

Product Code : 9019

Delivery: £34.95

£210.00

RRP : £330.00

SELECT FINISH Step 1

SELECT Width Step 2

324 [mm]
456 [mm]

qty :

Compatible Valves Read More About the Product

Accessories

Reina provides an optional Chrome Pipe Kit that you may require for the installation. These kit are highly recommended from the manufacturer. Please note: Image shown is for illustration purpose only.

None
OP-221714 - 130mm Anthracite Pipe Kit - ACC/PSKA + £20.13 [ View Image ]
OP-221715 - 130mm White Pipe Kit - ACC/PSKW + £20.13 [ View Image ]

About This Product

Choice of Finishes: White and Anthracite
Available in different Widths: 324mm and 456mm
Material: Mild steel
Fuel Type: Central heating system
Height: 1800mm (180cm)
Wall to Pipe Centres: 65mm (6.5cm)
Distance from Wall: 100mm (10cm)
Supplied with Air Vent and End Plug
Brackets for radiator included
EN 442 Compliant Product
The valves shown in the image are not included
For BTU and Watts, Please Refer to the Chart in the PRODUCT VARIATIONS INFO and MFC CODE section
Download the Data Sheet and Installation Guide PDF File from the Technical Info Section

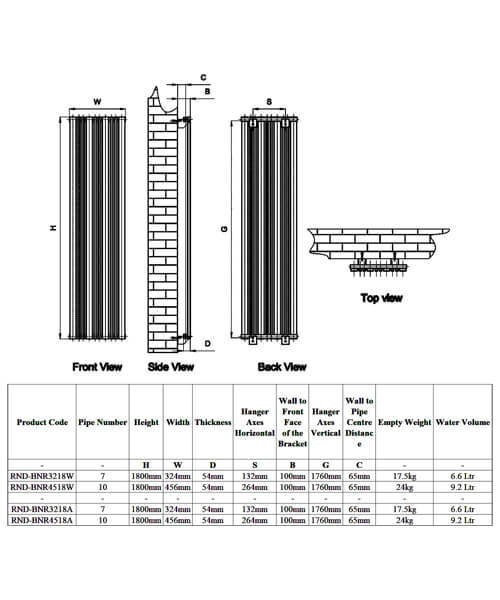

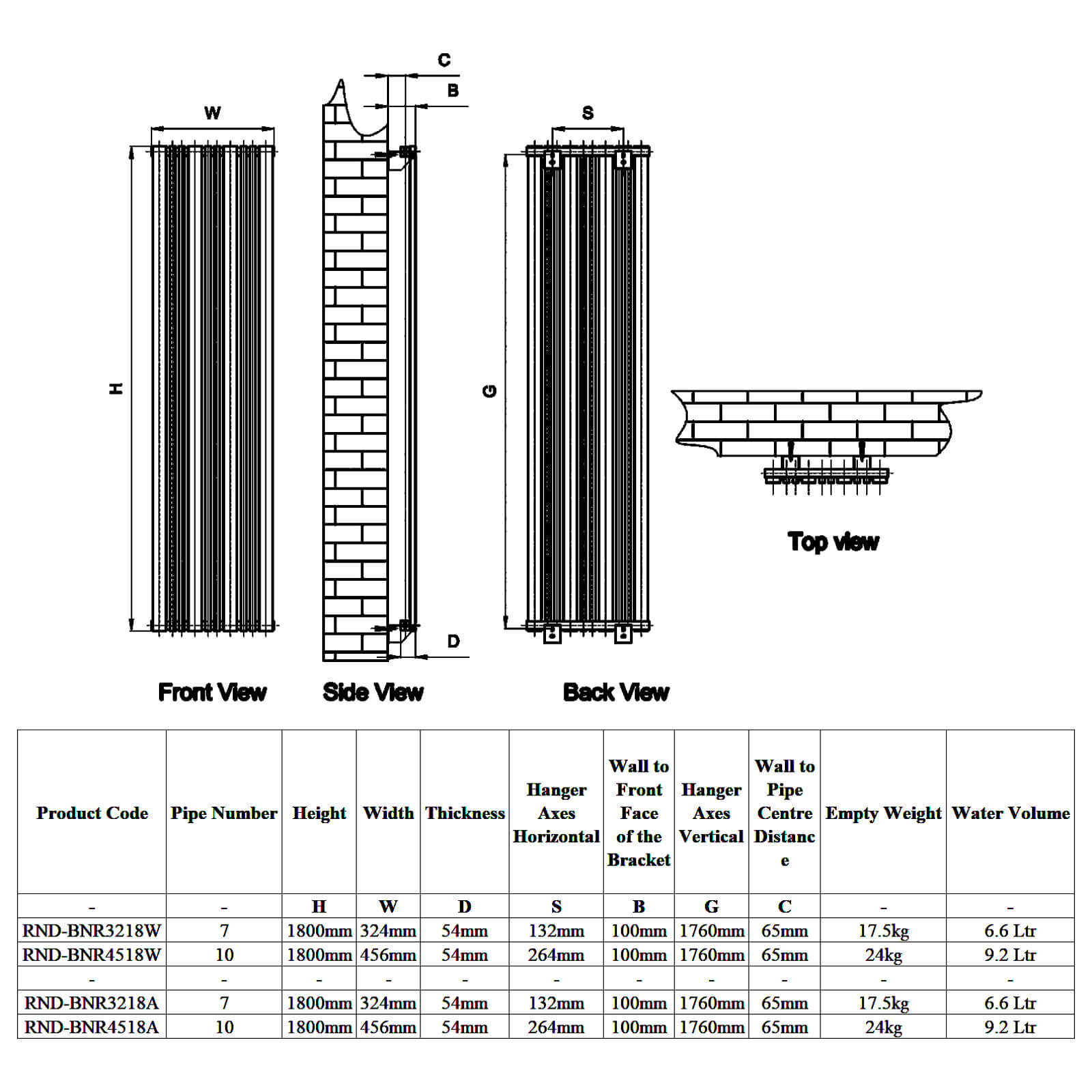

Refer to the technical diagram for complete technical specifications
Guarantee: Five-year from Reina against manufacturing defects
Available Optional Products:
Compatible valves
Sleeving kit and chrome pipe kit

Information Breakdown

Colour	White
Warranty/Guarantee	5 Years
Width	246
BTU Output	3919
Watts	1149
Tapping / Pipe Centres	324
Valves Included	Sold Separately
Brackets Included	Yes
Design	Modern

Compatible Valves

Technical Info

Download Technical Data Sheet PDF

Download Installation Guide PDF

PRODUCT VARIATIONS INFO & MFC CODE

Specification For White Radiator

Width	324mm	456mm
Fuel Type	Central Heating	Central Heating
Height	1800mm	1800mm
Finish	White	White
Pipe Centres	324mm	456mm
Wall To Pipe Centre	65mm	65mm
Wall Distance	100mm	100mm
Tube Quantity	7	10
BTU - Delta-50	2509	3491
Watts - Delta-50	736	1024
BTU - Delta-60	3212	4469
Watts - Delta-60	942	1311
MFC Code	RND-BNR3218W	RND-BNR4518W

Specification For Anthracite Radiator

Width	324mm	456mm
Fuel Type	Central Heating	Central Heating
Height	1800mm	1800mm
Finish	Anthracite	Anthracite
Pipe Centres	324mm	456mm
Wall To Pipe Centre	65mm	65mm
Wall Distance	100mm	100mm
Tube Quantity	7	10
BTU - Delta-50	2509	3491
Watts - Delta-50	736	1024
BTU - Delta-60	3212	4469
Watts - Delta-60	942	1311
MFC Code	RND-BNR3218A	RND-BNR4518A
