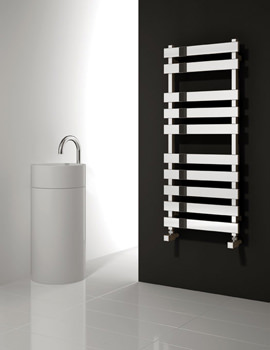

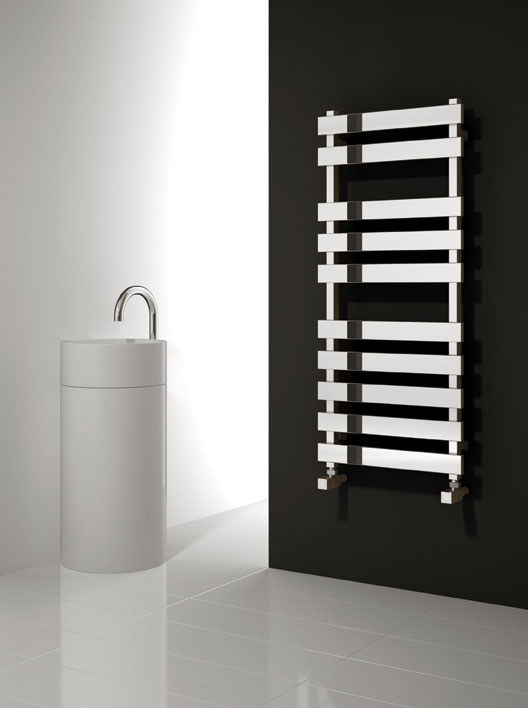

Name: Reina Kreon Polished 500mm Wide Stainless Steel Designer Towel Rail
Brand: Reina
SKU: RNS-KN5078
Price: 345.22 GBP
Availability: InStock

About This Product

Available in different heights: 780mm and 1160mm - [See Option]
Available in different variants: Central heating, Dual Fuel and Electric - [See Option]
Choice of heating element available - [See Option]
Finish: Polished
Material: Stainless steel
Width: 500mm (50cm)
Pipe centre: 460mm (46cm)
Wall to pipe centres: 65-80mm (6.5-8cm)
Wall distance: 90-105mm (9-10.5cm)
Brackets for radiator included
Supplied with Air vent and End plug
EN 442 Compliant Product
The valves shown in the image are not included
For BTU and Watts, Please Refer to the Chart in the Product Variations Info and MFC Code section
For more information on Elements options download the Elements PDF File from the Technical Info Section
Refer technical drawing for more details
Guarantee: Twenty-five-year from Reina against manufacturing defects
Available Optional Product:
Sleeving kit and chrome pipe kit
Compatible Valves
T-Piece - For Dual Fuel Only
Liquid Filling For Electric Only
Please Note:
The appropriate wattage of the element (if selected) will be decided by the manufacturer, once the order is placed.

Information Breakdown

Colour	Polished
Warranty/Guarantee	25
Theme	Modern
Width	50
Width	500
Orientation	Vertical
BTU Output	2602
Watts	763
No. Of Bars	7
Tapping / Pipe Centres	460
Valves Included	Sold Separately
Wall to Centre of Inlet	85-100
Brackets Included	Yes
Installation Type	Wall-Mounted

Compatible Valves

Technical Info

Reina Kreon Polished 500mm Wide Stainless Steel Designer Towel Rail

Download Heating Elements PDF

Download Heating Element Manual Instructions PDF

PRODUCT VARIATIONS INFO & MFC CODE

Specification For Designer Towel Rail

Variants	Height - 780mm	Height - 1160mm
Fuel Type	Central Heating / Electric / Dual Fuel	Central Heating / Electric / Dual Fuel
Width	500mm	500mm
Finish	Polished	Polished
Pipe Centres	460mm	460mm
Wall To Pipe Centre	65-80mm	65-80mm
Wall Distance	90-105mm	90-105mm
Tube Quantity	7	10
Watts - Delta-70	763	945
BTU - Delta-70	2602	3223
BTU - Delta-60	2133	2642
BTU - Delta-50	1679	2079
BTU - Delta-45	1462	1811
BTU - Delta-40	1263	1565
BTU - Delta-35	1058	1310
BTU - Delta-30	859	1064
BTU - Delta-25	334	414
MFC	RNS-KN5078	RNS-KN5116

Specification For Heating Element

Variants	MFC
Standard Heating Element	ELM/S
On/Off Touch Element	ELMOOT
LST Mini Round Thermostatic Element	ELMMRNLST
Mini Round Thermostatic Element	ELMMRN
Touch Thermostatic Heating Element	ELMTCH
LST Weekly Thermostatic Element	ELMWKYLST
Weekly Thermostatic Element	ELMWKY

Specification For Accessories

TYPE MFC

T-Piece - For Dual Fuel Only ACCS/TP

Liquid Filling For Electric Only A/FILLING1
