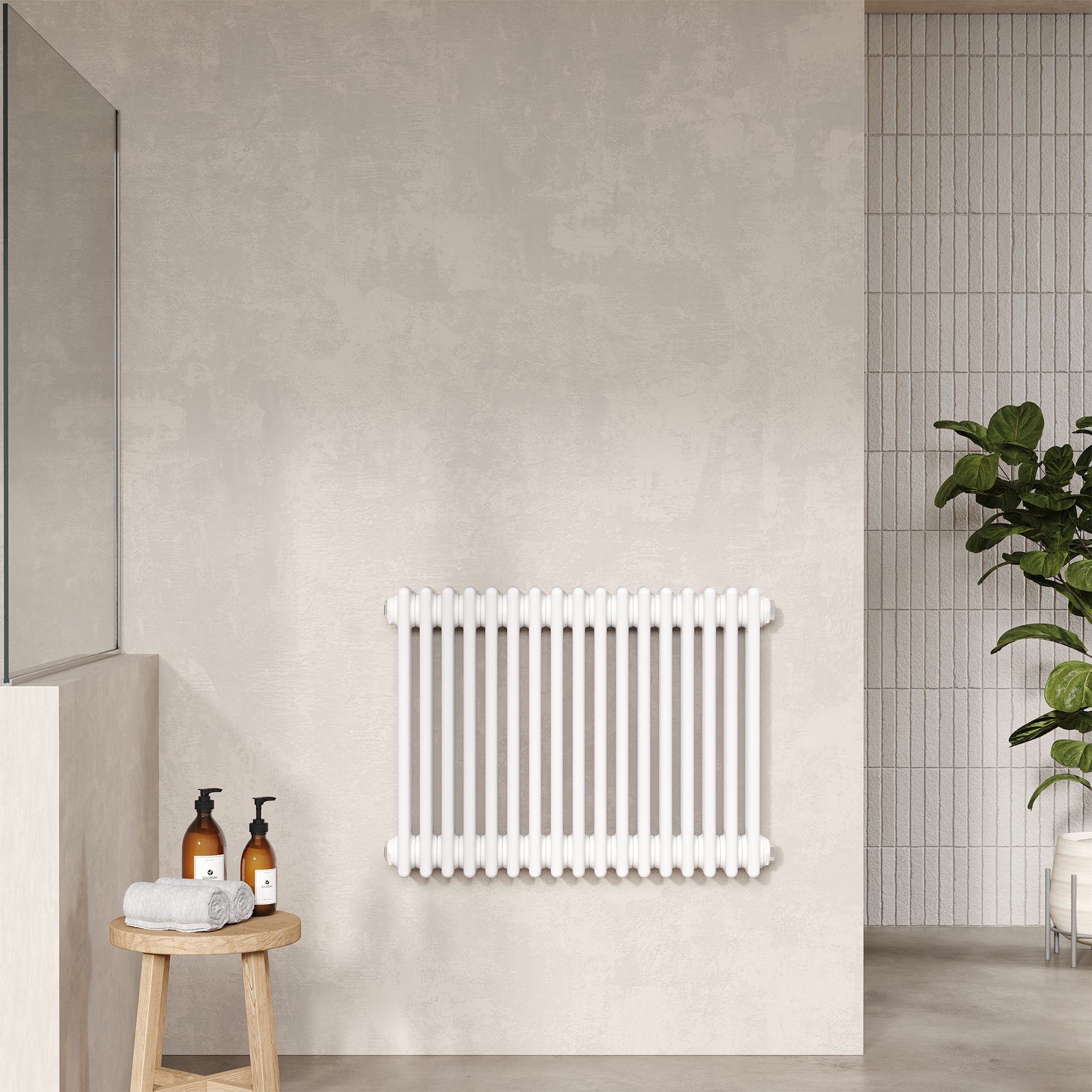

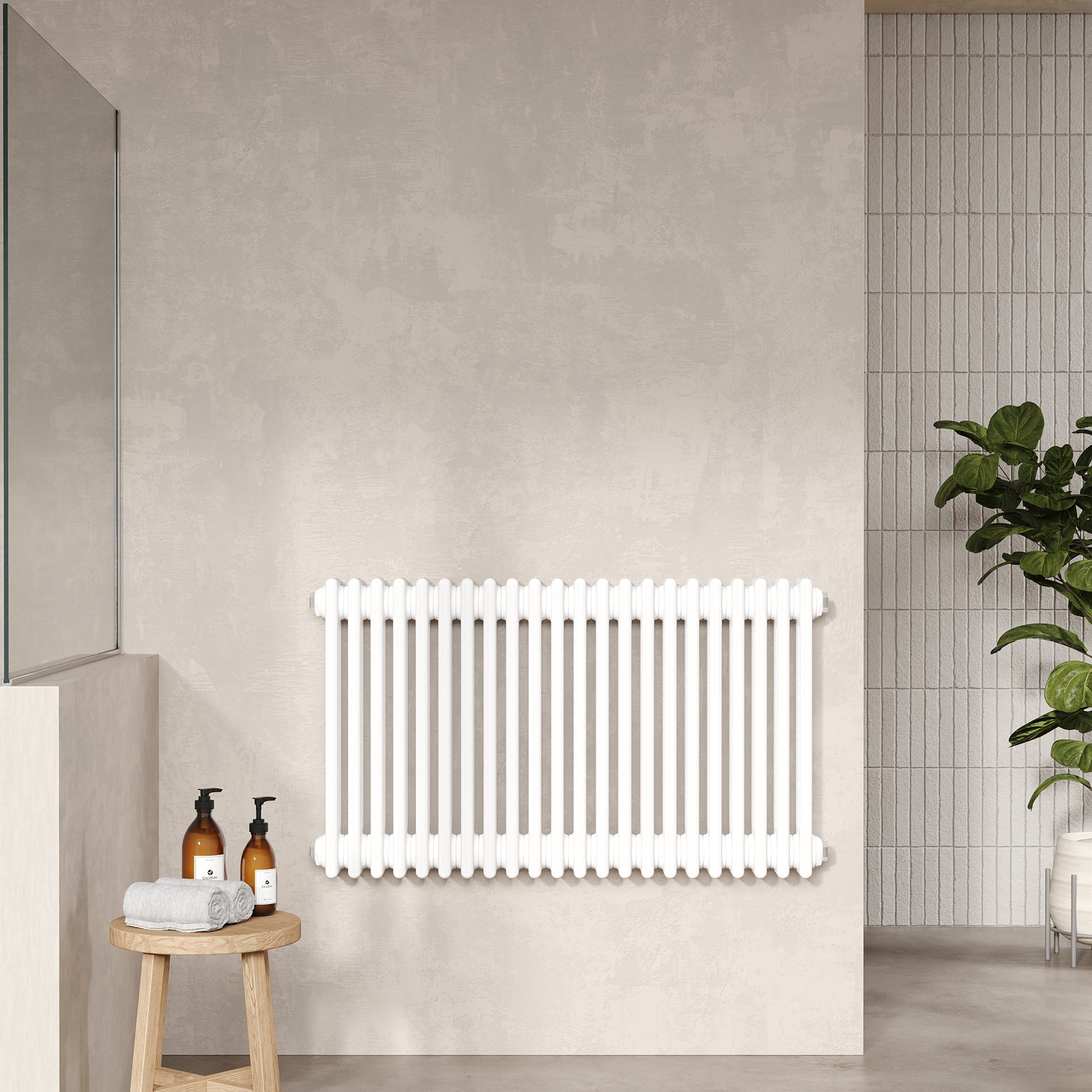

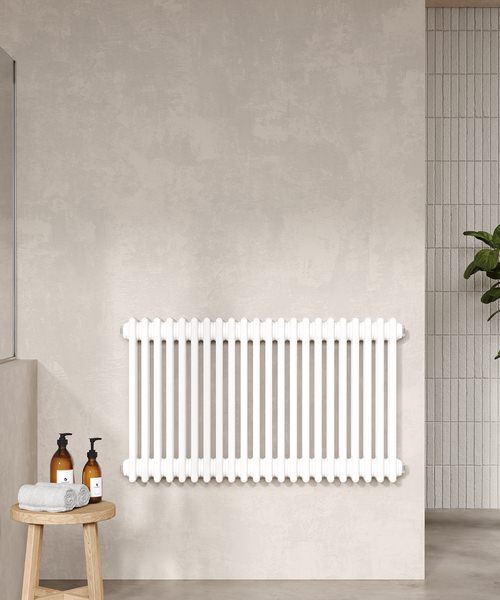

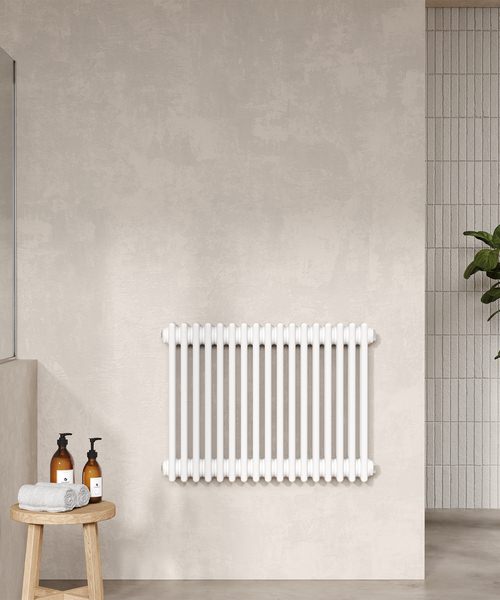

Hudson Reed Colosseum 600mm High Traditional Triple Column Radiator

Hudson Reed Logo
Widths Available: 606mm / 786mm / 1011mm
No Rating No Rating Write a Review
Rate This:
MFC Code : HX304
Product Code : 12852
Delivery: £29.95
£138.21
RRP : £368.00
Variation Available

OP-141713 - 606mm Width - White High Gloss


qty :

Check Availability 5-7 Working Days Apprx
Hudson Reed Radiator Valves
Optional Radiator Valves

Hudson Reed Provides manual and thermostatic valves, these are available as either straight, corner or angled valve options. Please Note: Image shown is just for illustration purpose only.



Floor Mounted Legs
Hudson Reed Floor Mounted Legs

Hudson Reed provides legs to make your Radiator floor mounted. Which is Highly Strong and Durable to provides a complete support to your radiator. Please Note: Image shown is for illustration purpose only.



About This Product

  • Available in 606mm ,786mm or 1011mm widths [See Option]
  • Dimensions: Depth 100mm (10cm) x Height 600mm (60cm)
  • Traditional design
  • Material: steel
  • Installation type: wall mounted
  • Supplied with brackets
  • Fixing screws included
  • All tappings are 1/2" British standard pipe
  • Wall to centre of tappings: 75
  • Tube diameter: 25mm
  • Valves shown in the image are not included
  • Refer technical drawing for complete dimensions details
  • Download fitting instruction PDF from the technical tab
  • Guarantee: 20 years from the Manufacturer.
  • Specifications For 606mm Width Radiator:
  • Comes in white high gloss finish
  • Heat Output at 30°C: BTU/hr 1348 and Watts 395
  • Heat Output at 50°C: BTU/hr 2559 and Watts 750
  • Heat Output at 60°C: BTU/hr 3242 and Watts 920
  • Pipe centres: 561mm
  • Number of Sections/Panels: 39
  • Packaging Volume: 63 Litres
  • Specifications For 786mm Width Radiator:
  • Comes in white high gloss finish
  • Heat Output at 30°C: BTU/hr 1765 and Watts 517
  • Heat Output at 50°C: BTU/hr 3348 and Watts 981
  • Heat Output at 60°C: BTU/hr 4241 and Watts 1233
  • Pipe centres: 651mm
  • Number of Sections/Panels: 51
  • Packaging Volume: 81 Litres
  • Specifications For 1011mm Width Radiator:
  • Choice of White, Silver, Black high gloss finishes available [See Option]
  • Heat Output at 30°C: BTU/hr 2283 and Watts 669
  • Heat Output at 50°C: BTU/hr 4334 and Watts 1270
  • Heat Output at 60°C: BTU/hr 5491 and Watts 1560
  • Pipe centres: 1101mm
  • Number of Sections/Panels: 66
  • Packaging Volume: 102 Litres.
  • Optional Products:
  • Compatible valves
  • Leg set for floor mounted installation
Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Information Breakdown

Colour White
Warranty/Guarantee 20 Years
Material Steel
Width 606
Projection (Depth) 100
Height 600
Orientation Horizontal
BTU Output @ 50°C 2559, @ 30°C 1348, @ 60°C 3242
Watts @ 50°C 750, @ 30°C 395, @ 60°C 920
Tapping / Pipe Centres 561
Valves Included Sold Separately
Wall to Centre of Inlet 75
Tube Diameter 25
Volume In Litres 63
Brackets Included Yes
No. of Columns 3
No. of Sections 39
Installation Type Wall Mounted

Technical Info


PRODUCT VARIATIONS INFO & MFC CODE
Available Sizes And Finishes Along With Manufacturing Code:
  • 606mm Width In White High Gloss Finish - RAL NO: 9016 - HX304
  • 786mm Width In White High Gloss Finish - RAL NO: 9016 - HX305
  • 1011mm Width In White High Gloss Finish - RAL NO: 9016 - HX306
  • 1011mm Width In Silver High Gloss Finish - RAL NO: 9043 - HXS06
  • 1011mm Width In Black High Gloss Finish - RAL NO: 9005 - HXB06
