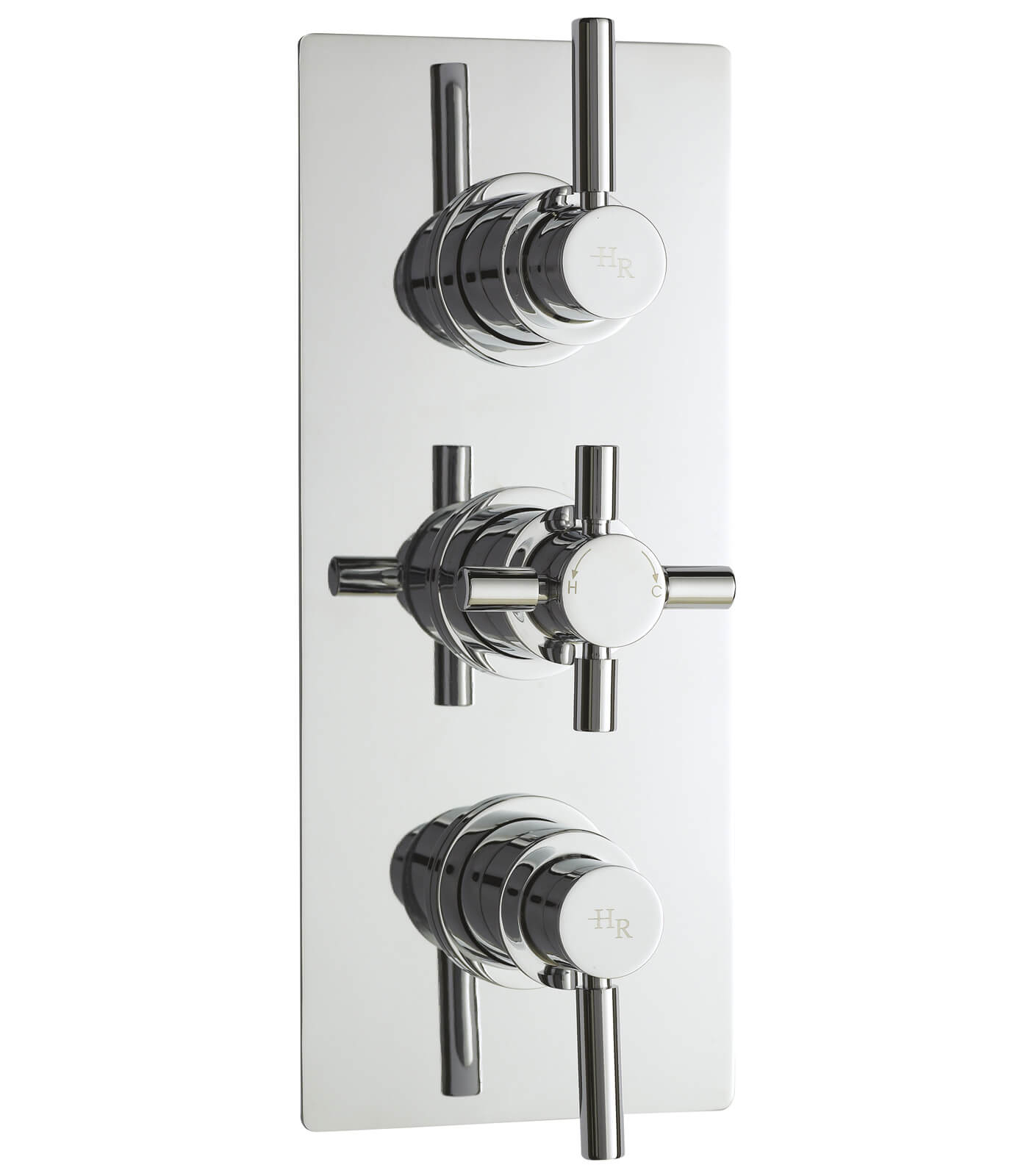

Hudson Reed Tec Pura Plus Triple Concealed Thermostatic Shower Valve

Hudson Reed Logo
More Variations Available
Overall Rating: Stars Rating 2 out of 2 customers rated 70%
Rate This:
MFC Code : A3003
Product Code : 16092
Delivery: £7.95
£204.01
RRP : £557.00
SELECT FINISH Step 1

SELECT Variation Step 2

qty :
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Choice of different finish: Chrome, Matt Black and Brushed Brass - [Optional]
  • Available in different variants: Without Diverter Or With Diverter - [Optional]
  • Dimension of back plate: Width 80mm (8cm) x Depth 137mm (13.7cm) x Height 280mm (28cm)
  • Minimalist sleek design
  • Backplate shape: Rectangular
  • Handle design: Lever and Cross-head
  • 1/4 Turn ceramic disc cartridge
  • Can be installed vertically or horizontally
  • Mount Type: Wall/ Recessed
  • Quarter turn valve operated
  • Manufactured using the latest technique of thermostat
  • Valves are thermostatically controlled using a Valquest patented cartridge
  • Accurate flow control with excellent flow rate even at low pressure
  • Suitable for low water pressure system
  • Required minimum 0.1 bar water pressure for smooth working
  • Thermostatic control to +/- 2 to 3°C even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In
  •  In the event of hot or cold water failure, the valve will shut down the
  • The water supply provides full thermal protection and prevents scalding
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas
  • The cartridge is fully reversible; meaning doesn't need re-plumbing if hot and cold supplies are the wrong way around it
  • Remove the cartridge, turn 180°, and replace
  • Features stain rust resistant
  • Suitable for all plumbing systems - gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • TMV2 approval no.: BC1875/0817
  • TMV3 approval no.: BC1119/1212
  • WRAS approval no.: 1703023
  • Refer technical drawing for more technical specification
  • Download Data Sheet and Fitting instructions PDF's from technical tab
  • Guarantee: 20 years from Hudson Reed against manufacturing defects.
  • Specification For Without Diverter:
  • Pipe Size: 15mm (1/2inch Bsp)
  • Weight: 5.32kg
  • No. of Outlets: 2
  • Suitable for low-pressure water system
  • Requires a minimum of 0.1 bar or above water pressure to operate smoothly
  • Specification For With Diverter:
  • Pipe Size: 15mm and 22mm
  • Weight: 5.77kg
  • No. of Outlets: 3
  • Suitable for medium pressure water system
  • Requires a minimum of 0.5 bar or above water pressure to operate smoothly.

Information Breakdown

Colour Chrome
Warranty/Guarantee 20 Years
Theme Modern
Handle Style Lever, Crosshead
Min-Max Wall Mount 86
Backplate Width 80
Backplate Height 280
Temperature Control Thermostatic
Anti-Scald Yes
TMV2 Approved Yes
TMV3 Approved Yes
Number of Handles 3
Orientation Vertical or Horizontal
Plumbing Option Concealed
Cartridge Included Yes
Cartridge Type 1/4 Turn Ceramic Disc
Minimum Operating Pressure (Bar) 0.1

Technical Info

Hudson Reed Tec Pura Plus Triple Concealed Thermostatic Shower Valve

Download Technical Data Sheet For With Or Without Diverter PDF

Download Fitting Instructions PDF
