Rangemaster Atlantic Quad Stainless Steel 1.5B Undermount Sink 600 x 450mm

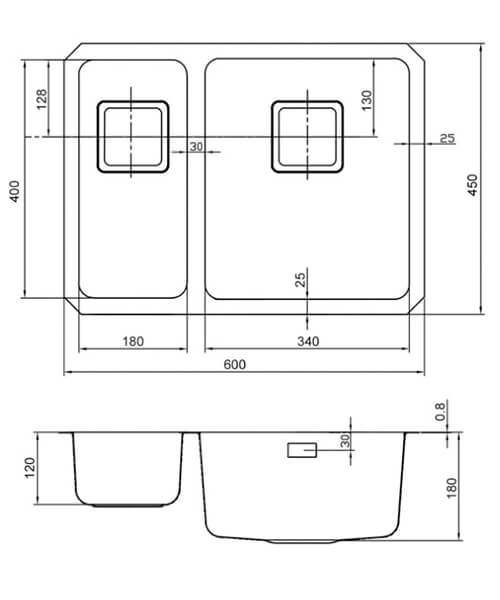

Technical drawing 48766 / QUB3418L/
Additional image of rangemaster QUB3418L/

Rangemaster Atlantic Quad Stainless Steel 1.5B Undermount Sink 600 x 450mm

Rangemaster Logo
Available Variation: Left Hand Bowl / Right Hand Bowl
No Rating No Rating Write a Review
Rate This:
MFC Code : QUB3418L/
Product Code : 48766
Delivery: £34.95
£526.53
RRP : £658.16
Other Variation Available

Notify me when available

  • Manufacturing code: QUB3418L/
  • Material:  18/10 high grade 0.8mm gauge stainless steel
  • Finish: Micro-Sheen with ground edge
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 10 Working Days Apprx

About This Product

  • Manufacturing code: QUB3418L/
  • Material:  18/10 high grade 0.8mm gauge stainless steel
  • Finish: Micro-Sheen with ground edge
  • 1.5 bowl with 25mm (2.5cm) radius corners
  • Small Bowl Position: Left hand (right hand optional)
  • Sizes Denotes: Length (Left to Right) x Width (Front to Back)
  • Overall Dimensions: 600mm (60cm) Length x 450mm (45cm) Width
  • Main Bowl Dimension: 340 (34cm) Length x 400mm (40cm) Width x 180mm (18cm) Depth
  • Second Bowl Dimension: 180mm (18cm) Length x 400mm (40cm) Width x 120mm (12cm) Depth
  • Fits into a minimum 600mm (60cm) base unit, denotes the measurement which the bowl need to fit into
  • Include: 90mm (9cm) square basket strainer waste kit (square waste is not compatible with waste disposal unit, it requires optional adapter)
  • Images shown are only for illustration purposes

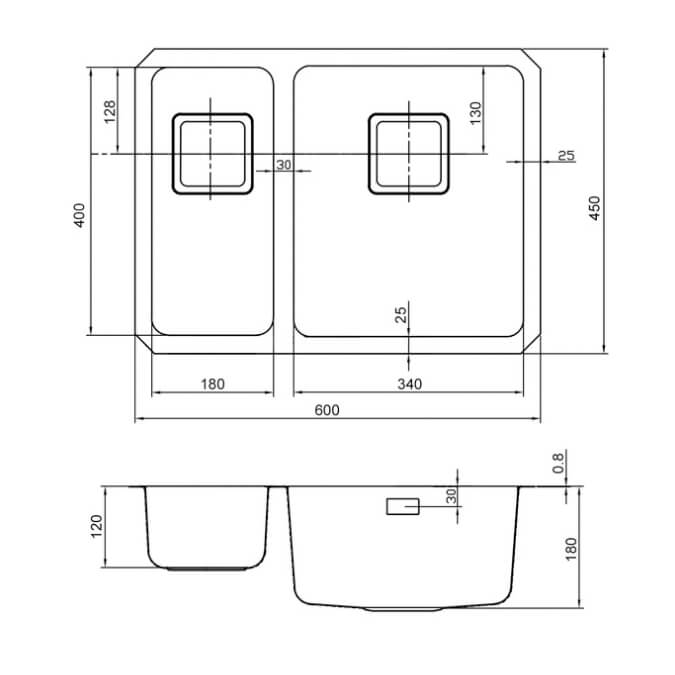

  • Refer to technical drawing for more technical information
  • Download Installation and Aftercare Guide PDF from Technical Info Section
  • Warranty: 25 years from the manufacturer against any manufacturing faults.

Information Breakdown

Colour Micro-Sheen
Country of Origin UK
Warranty/Guarantee 25 Years
Number of bowls 1.5
Waste Type Square BSW
Overall Width 450
Drainer Position Left-Hand
Small Bowl Position Left-Hand
Overall Length 600
Minimum Base Unit Size Required 600
Length of Main Bowl 340
Width of Main Bowl 400
Depth of Main Bowl 180
Length of Small Bowl 180
Cut-Out Length 560
Cut-Out Width 406
Gauge / Thickness 0.8
Waste Hole Size 90
Scratch/Impact/Heat Resistance Yes
Installation Type Undermount

Technical Info

Rangemaster Atlantic Quad Stainless Steel 1.5B Undermount Sink 600 x 450mm

Download Installation and Aftercare Instruction PDF

Download Cutout Template PDF


PRODUCT VARIATIONS INFO & MFC CODE
Available Variations:
  • Left Hand - 600mm Length - QUB3418L/
  • Right Hand - 600mm Length - QUB3418R/
