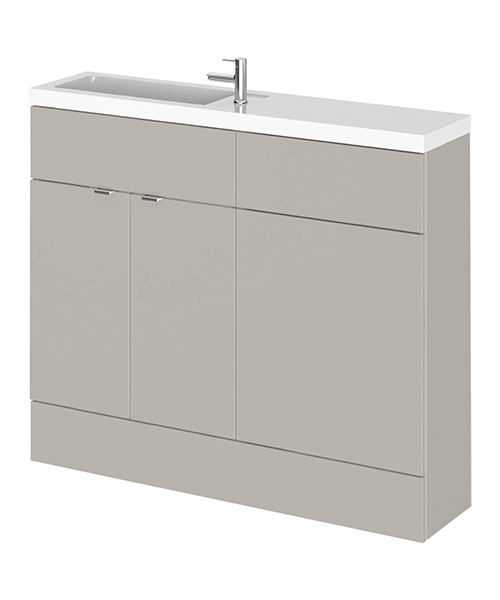

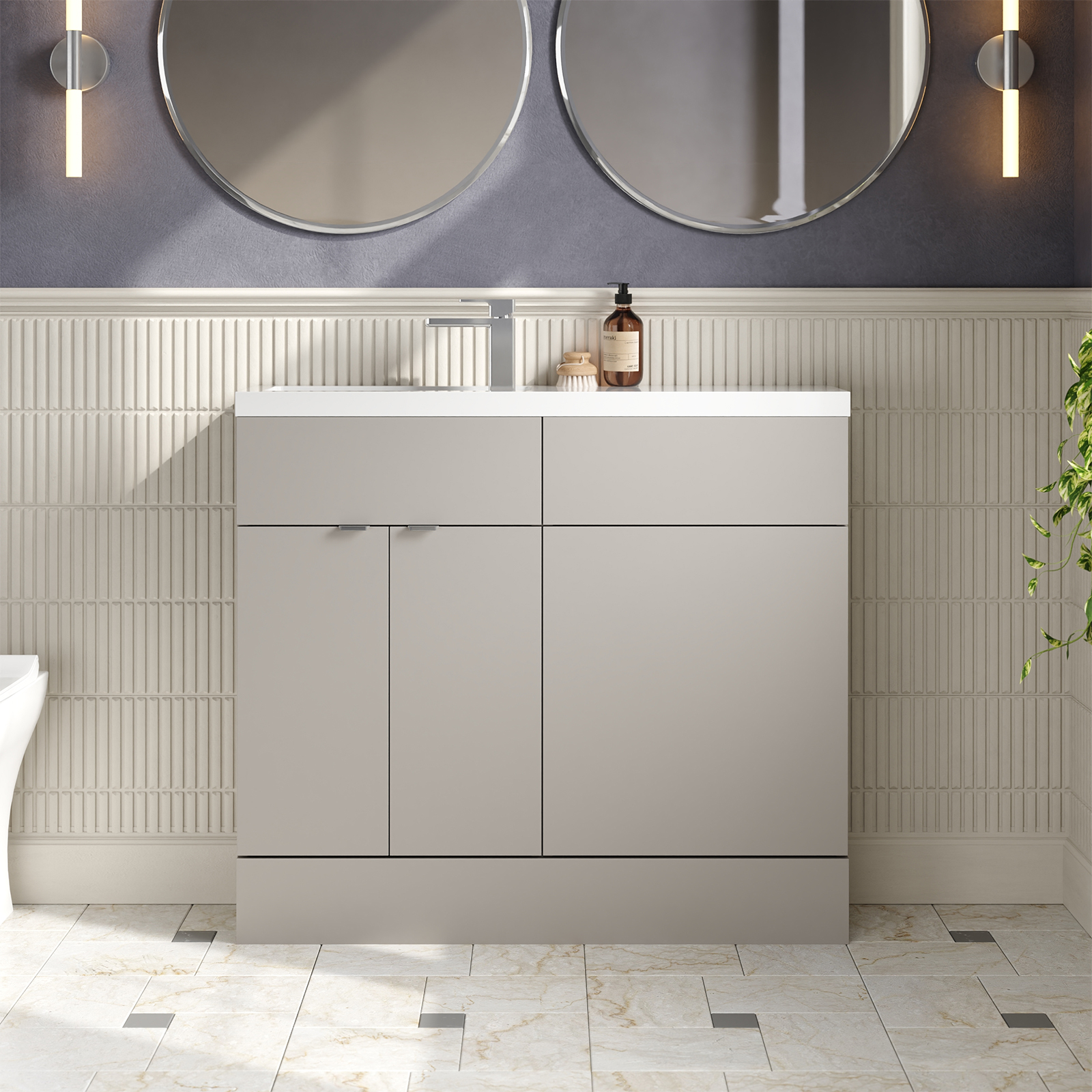

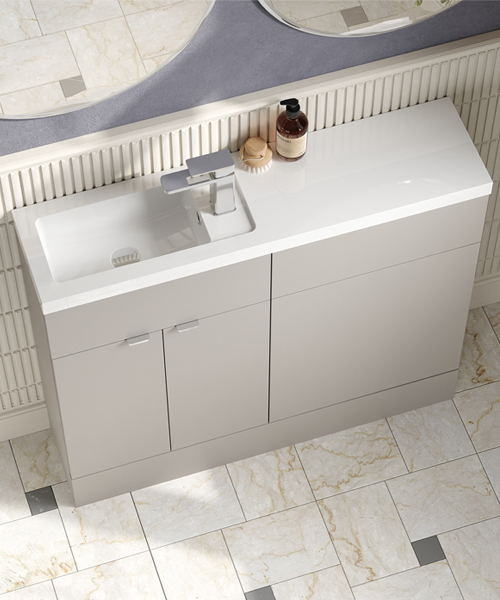

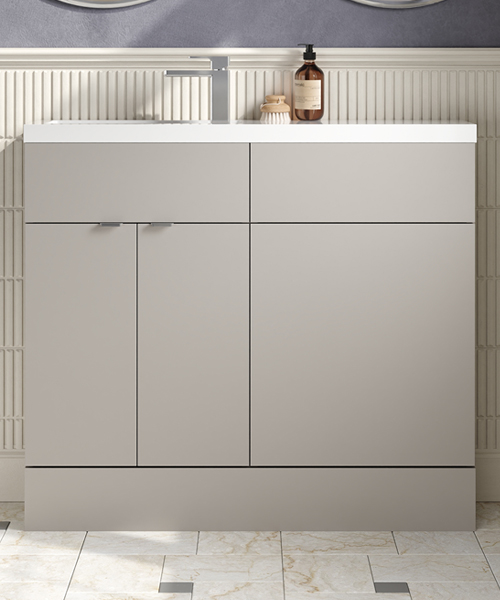

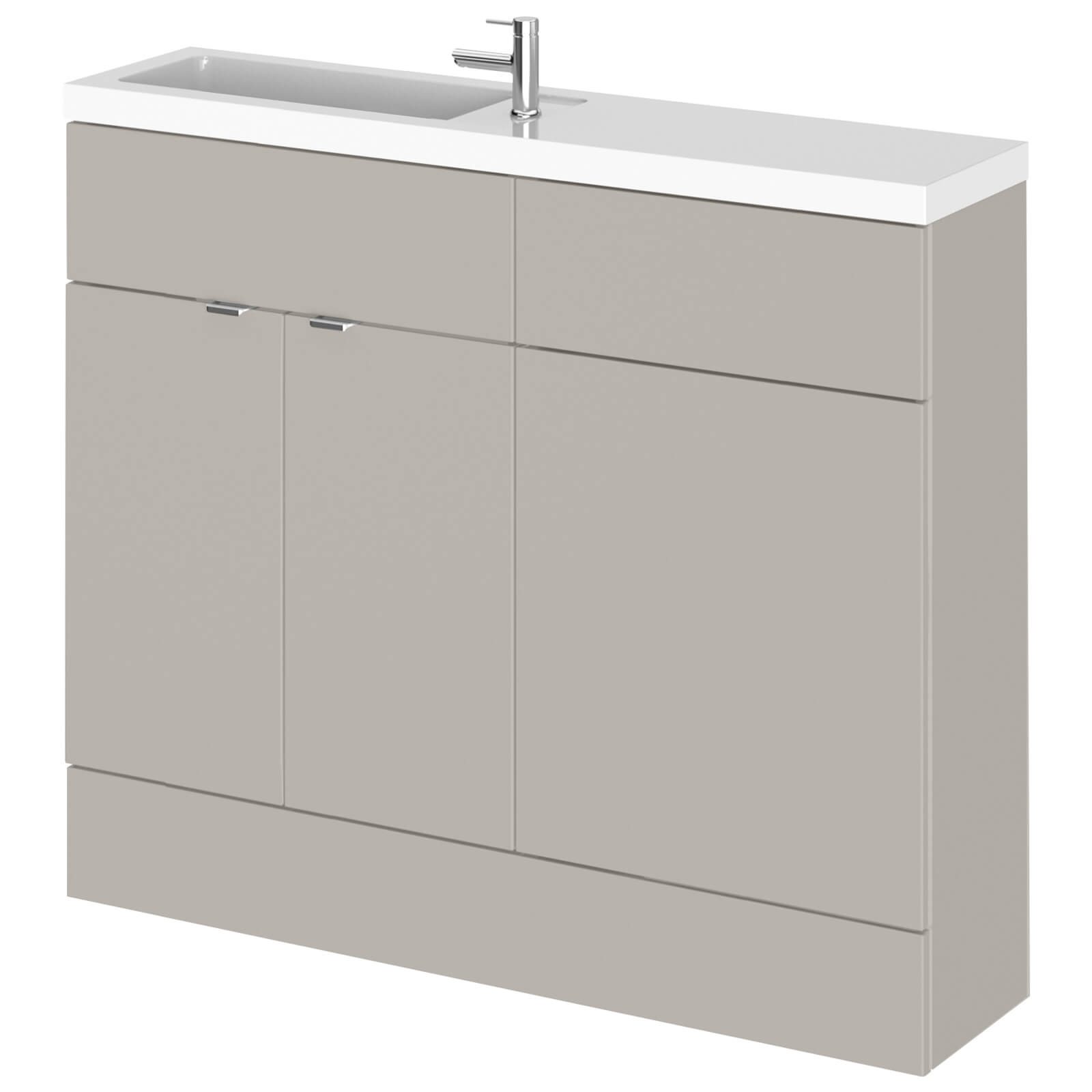

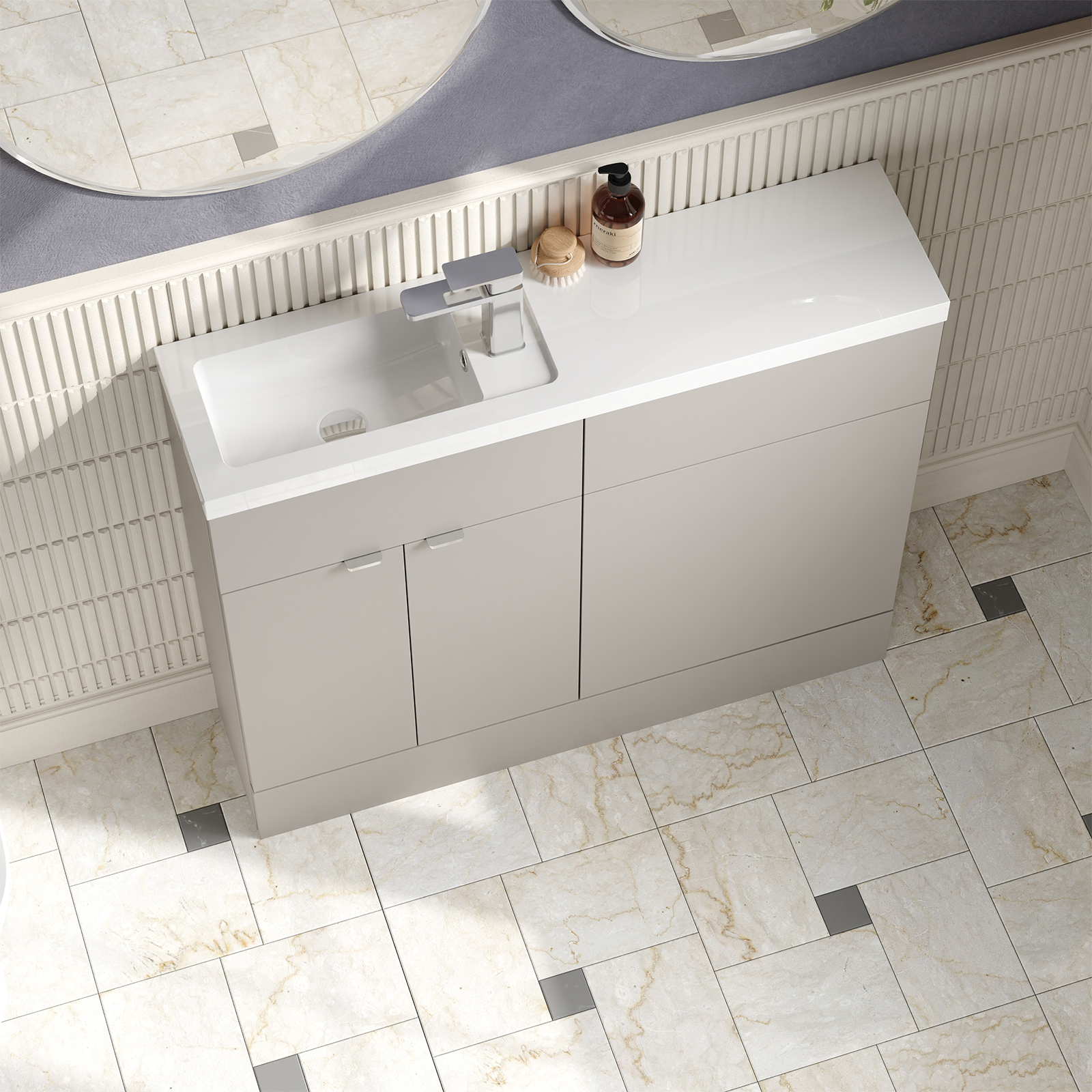

Hudson Reed Fusion 1000mm Compact Furniture Pack - Vanity And WC Unit With Basin
Technical drawing 53942 / CBI142
Additional image of hudsonreed CBI142
Additional image of Hudson Reed Fusion 1000mm Compact Furniture Pack - Vanity And WC Unit With Basin
Additional image for 53942 hudsonreed - CBI142
Hudson image
Alternate image of Hudson Reed Fusion 1000mm Compact Furniture Pack - Vanity And WC Unit With Basin

Hudson Reed Fusion 1000mm Compact Furniture Pack - Vanity And WC Unit With Basin

Hudson Reed Logo
More Finishes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : CBI142
Product Code : 53942
Delivery: £34.95
£378.40
RRP : £946.00
Finishes Available

OP-144410 - Gloss White

qty :
  • The product consists of a Vanity Unit, WC unit, Basin and Plinth
  • Overall Size: Width 1005mm (100.5cm) x Depth 260mm (26cm)
  • Height 904mm (90.4cm)
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • The product consists of a Vanity Unit, WC unit, Basin and Plinth
  • Overall Size: Width 1005mm (100.5cm) x Depth 260mm (26cm)
  • Height 904mm (90.4cm)
  • The tap shown in the image is not included
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instruction
  • Technical drawing available for more technical details
  • Guarantee: 5 years from the Hudson Reed against manufacturing faults
  • Details of Compact Vanity Unit
  • Size: Width:500mm (50cm) x Depth:253mm (25.3cm)
  • Height: 864mm (86.4cm)
  • Cabinet Finish: MFC Painted Gloss
  • Fascia Finish: MDF Painted Gloss
  • Cabinet Thickness: 16mm (1.6cm)
  • Fascia Thickness: 18mm (1.8cm)
  • Supplied with 1 Internal shelf
  • 2 Soft Close door
  • Hinge Type: 95 Degree Clip-On Soft Close
  • Certification: FSC
  • Fixing included
  • Construction Method: Cam and Wood Dowel
  • Units have a thinner depth, ideal for cloakrooms or smaller bathrooms
  • Supplied Rigid
  • Contemporary Wrap-Over handle in Satin Nickle finish included
  • Choice of other handles in different finishes available [Optional]
  • Details of Basin
  • Size: Width 1003mm (100.3cm) x Depth 255mm (25.5cm)
  • Height 135mm (13.5cm)
  • Inner bowl depth: 103mm (10.3cm)
  • Straight Polymarble basin
  • Supplied With 1 Tap Hole
  • Overflow and cover included
  • Details of Compact WC Unit
  • Size: Width:500mm (50cm) x Depth:253mm (25.3cm)
  • Height: 864mm (86.4cm)
  • Cabinet Finish: MFC Painted Gloss
  • Fascia Finish: MDF Painted Gloss
  • Cabinet Thickness: 16mm (1.6cm)
  • Fascia Thickness: 18mm (1.8cm)
  • Certification: FSC
  • Fixing included
  • Construction Method: Cam and Wood Dowel
  • Supplied Rigid
  • Details of Plinth
  • Construction Method: Cam and Wood Dowel
  • Construction Type: Flat-Pack
  • Cabinet Finish: MFC Painted Gloss
  • Fascia Finish: MDF Painted Gloss
  • Cabinet and fascia thickness: 18mm (1.8cm)
  • Available Optional Product:
  • Choice of finish available

Information Breakdown

Colour Gloss White
Warranty/Guarantee 5 Years
Theme Modern
Fixings included Yes
No. of Tap Holes 1
Number Of Doors 2
Furniture Material MFC Painted Gloss
Sink Included Yes
Sink Colour White
Toilet Included No
No. Of Internal Shelves 1
Vanity Cabinet Included Yes
Vanity Cabinet Width 500
Vanity Cabinet Height 864
Vanity Cabinet Depth 255
WC Unit Included Yes
WC Unit Width 500
WC Unit Height 864
WC Unit Depth 255
Sink Material Polymarble
Number Of Sinks 1
Installation Type Floor Mounted
Compatible Handle

Technical Info

Hudson Reed Fusion 1000mm Compact Furniture Pack - Vanity And WC Unit With Basin

Download Technical Data Sheet PDF

Download Mounting Instruction PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Available Finishes Along With Manufacturing Code
    Finish Pack Code Vanity Unit MFC Code WC Unit MFC Code Basin MFC Code Plinth MFC Code
    Gloss White CBI142 OFF105 OFF145 PMB402 OFF191
    Anthracite Woodgrain CBI542 OFF505 OFF545 PMB402 OFF591
    Charcoal Black CBI642 OFF605 OFF645 PMB402 OFF691
    Gloss Grey CBI942 OFF905 OFF945 PMB402 OFF991
    Bleached Oak CBI3042 OFF3005 OFF3045 PMB402 OFF3091
