Name: Reina Arbori Mild Steel Designer Towel Rail 500mm Wide
Brand: Reina
SKU: RND-ARB082W
Price: 121.2 GBP
Availability: InStock

About This Product

Choice of different finishes: White, Anthracite and Chrome
Available in different heights: 820mm, 1130mm and 1510mm
Available in different Variants: Central Heating, Dual Fuel and Electric
Choice of Heating Elements: Standard, On/Off Touch, Thermostatic: LST Mini Round, Mini Round, Touch, LST Weekly, Weekly, Wireless Programmable Thermostat and Square Thermostatic Wifi
Width: 500mm (50cm)
Material: Mild steel
Pipe Centre: 450mm (45cm)
Wall to pipe centres: 61-76mm (6.1cm-7.6cm)
Distance from wall: 102-117mm (10.2cm-11.7cm)
The image shown is for illustration purposes only
Supplied with Air vent and End plug
Brackets for radiator included
EN 442 Compliant Product
The valves shown in the image are not included
For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece
For Electric models, Optional Liquid Filling is required with the heating element
For BTU, Watts and other details, please refer to the chart in the PRODUCT VARIATIONS INFO and MFC CODE Tab
Download the Data Sheet and Installation Guide PDF File from the Technical Info Section
Download the Heating Element and Manual Instruction PDF File from the Technical Info Section

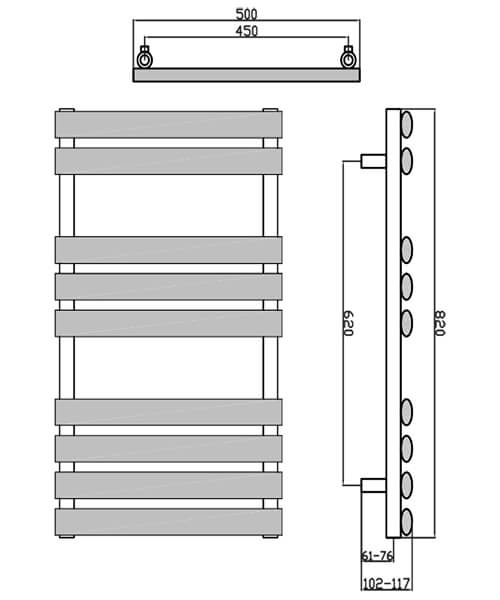

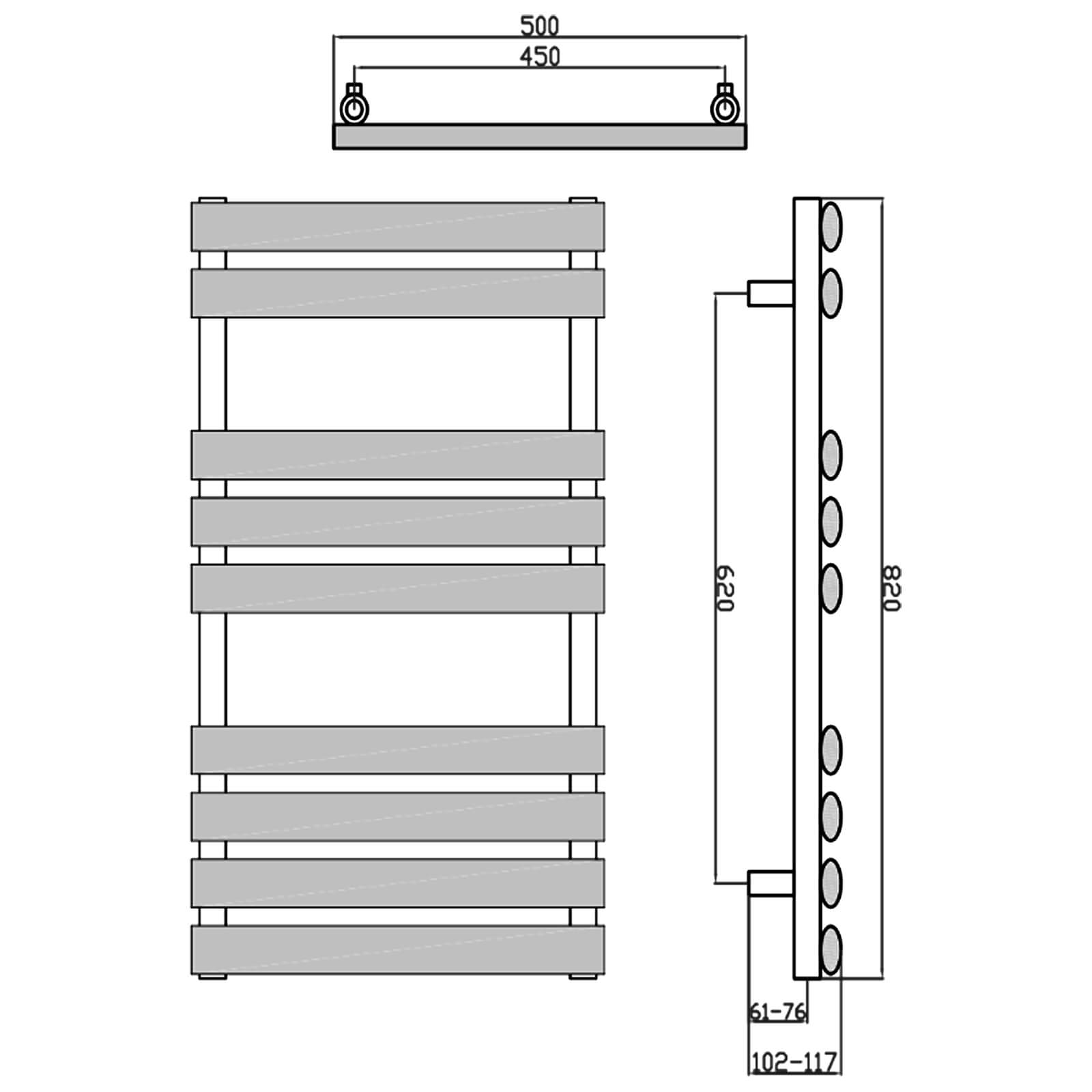

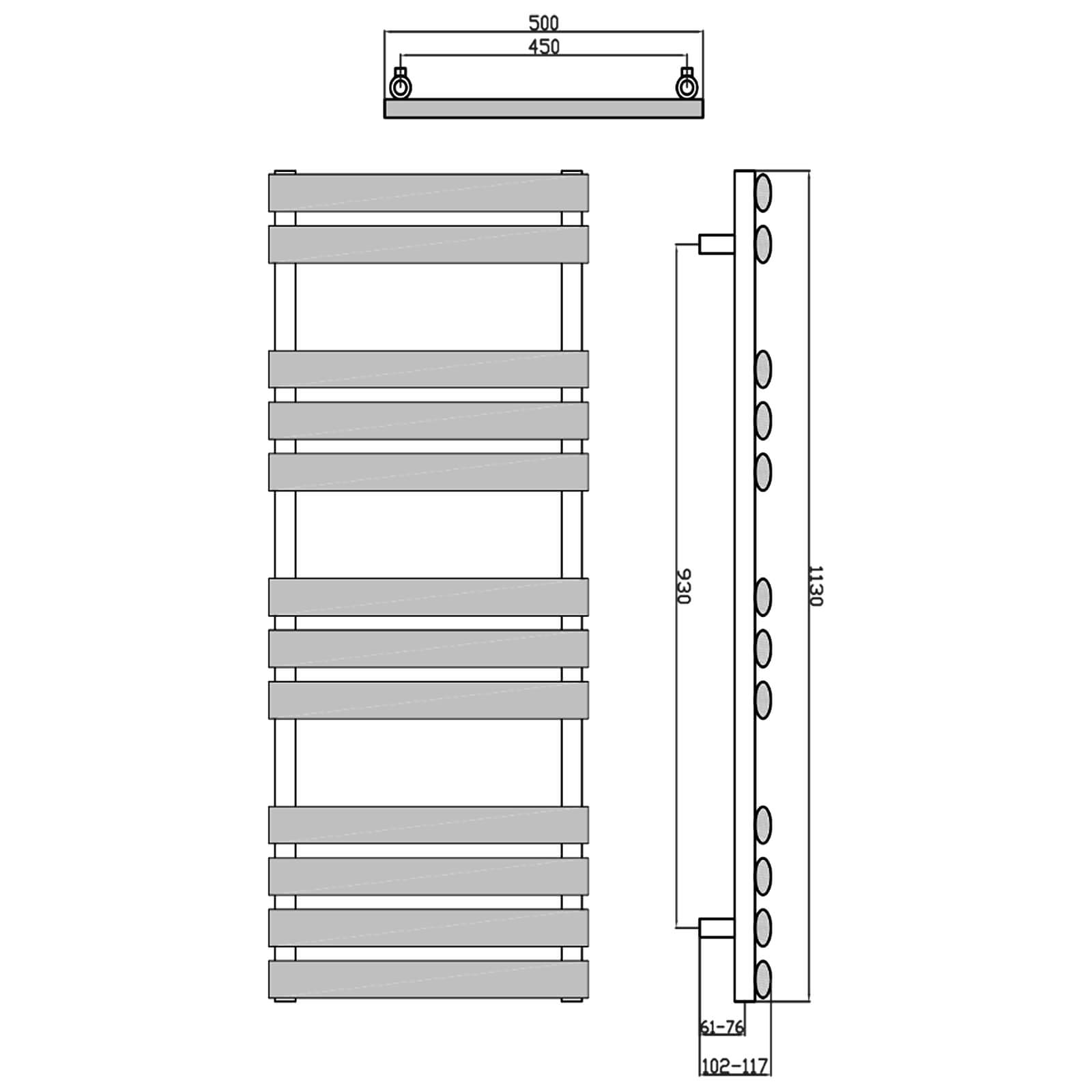

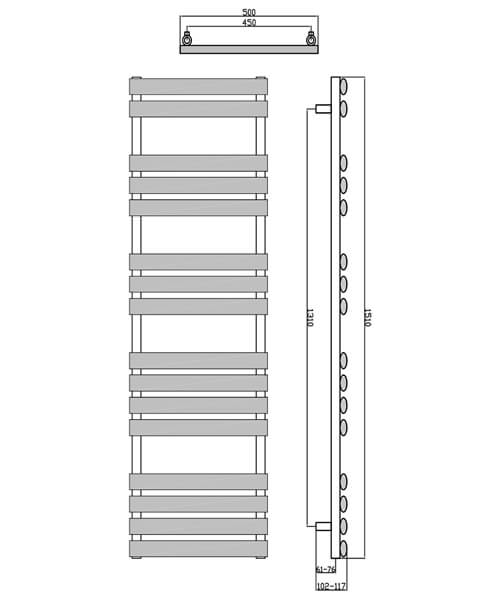

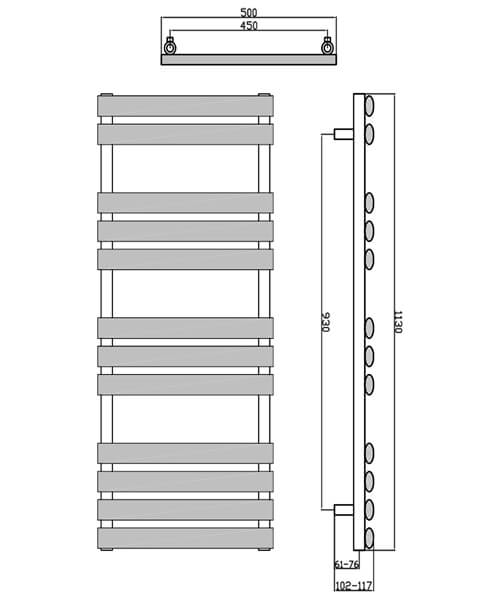

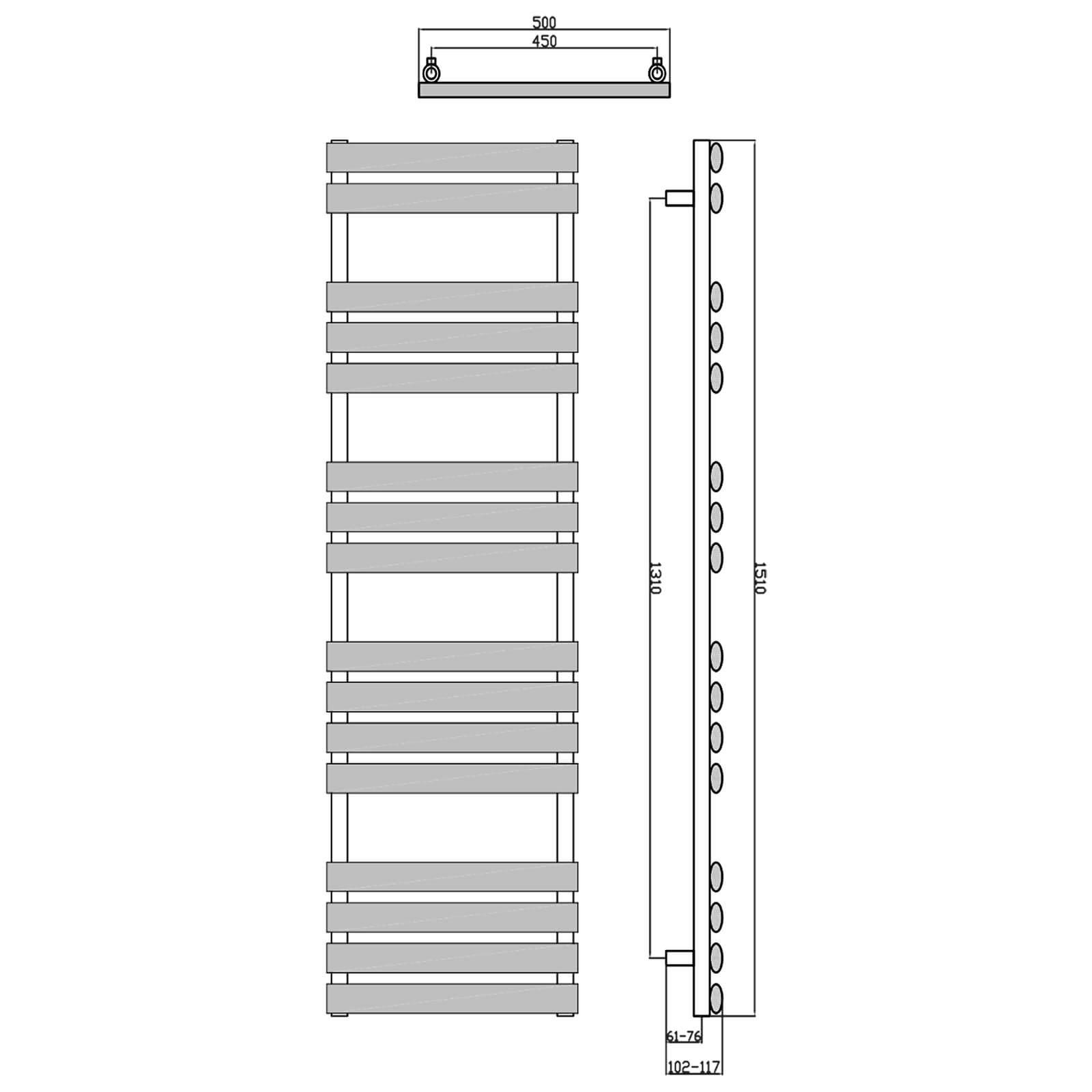

Refer to the technical diagram for complete technical specifications
Guarantee: Five-year from Reina against manufacturing defects
Please Note:
The appropriate wattage of the element (if selected) will be decided by the manufacturer once the order is placed
Available Optional Product:
T-Piece - For Dual Fuel Only
Liquid Filling For Electric Only
Compatible valves
Sleeving kit and chrome pipe kit

Information Breakdown

Colour	White
Country of Origin	Turkey
Warranty/Guarantee	5 Years
Width	500
Compliance/Approvals/Standard	EN 442
Orientation	Vertical
BTU Output	70°C - 2173
Watts	70°C - 637
Tapping / Pipe Centres	450
Valves Included	Sold Separately
Wall to Centre of Inlet	450
Brackets Included	Yes
Design	Modern
Installation Type	Wall Mounted

Compatible Valves

Technical Info

Reina Arbori Mild Steel Designer Towel Rail 500mm Wide

Download Technical Data Sheet PDF

Download Installation Guide PDF

Download Specification For Heating Elements PDF

Download Heating Element Manual Instructions PDF

PRODUCT VARIATIONS INFO & MFC CODE

Specification For White Radiator

Height	820mm	1130mm	1510mm
Fuel Type	Central Heating/Duel Fuel/Electric	Central Heating/Duel Fuel/Electric	Central Heating/Duel Fuel/Electric
Finish	White	White	White
Width	500mm	500mm	500mm
Pipe Centres	450mm	450mm	450mm
Wall to Pipe centres	61-76mm	61-76mm	61-76mm
Wall Distance	102-117mm	102-117mm	102-117mm
Tube Quantity	9	12	16
Total Gap	2	3	4
BTU - Delta-50	1391	1877	2496
Watts - Delta-50	408	550	732
BTU - Delta-60	1781	2402	3195
Watts - Delta-60	522	704	937
MFC	RND-ARB082W	RND-ARB113W	RND-ARB151W

Specification For Anthracite Radiator

Height	820mm	1130mm	1510mm
Fuel Type	Central Heating/Duel Fuel/Electric	Central Heating/Duel Fuel/Electric	Central Heating/Duel Fuel/Electric
Finish	Anthracite	Anthracite	Anthracite
Width	500mm	500mm	500mm
Pipe Centres	450mm	450mm	450mm
Wall to Pipe centres	61-76mm	61-76mm	61-76mm
Wall Distance	102-117mm	102-117mm	102-117mm
Tube Quantity	9	12	16
Total Gap	2	3	4
BTU - Delta-50	1391	1877	2496
Watts - Delta-50	408	550	732
BTU - Delta-60	1781	2402	3195
Watts - Delta-60	522	704	937
MFC	RND-ARB082A	RND-ARB113A	RND-ARB151A

Specification For Chrome Radiator

Height	820mm	1130mm	1510mm
Fuel Type	Central Heating/Duel Fuel/Electric	Central Heating/Duel Fuel/Electric	Central Heating/Duel Fuel/Electric
Finish	Chrome	Chrome	Chrome
Width	500mm	500mm	500mm
Pipe Centres	450mm	450mm	450mm
Wall to Pipe centres	61-76mm	61-76mm	61-76mm
Wall Distance	102-117mm	102-117mm	102-117mm
Tube Quantity	9	12	16
Total Gap	2	3	4
BTU - Delta-50	960	1295	1721
Watts - Delta-50	282	380	505
BTU - Delta-60	1229	1657	2203
Watts - Delta-60	360	486	646
MFC	RND-ARB082C	RND-ARB113C	RND-ARB151C

Specification For Heating Elements

Variants	Finish	MFC
Standard Heating Element	Chrome	ELM/S
-	-	-
On/Off Touch Element	Chrome	ELMOOT-C
On/Off Touch Element	Black	ELMOOT-BL
On/Off Touch Element	Anthracite	ELMOOT-A
-	-	-
LST Mini Round Thermostatic Element	Chrome	ELMMRNLST-C
LST Mini Round Thermostatic Element	Black	ELMMRNLST-BL
LST Mini Round Thermostatic Element	Anthracite	ELMMRNLST-A
LST Mini Round Thermostatic Element	White	ELMMRNLST-W
-	-	-
Mini Round Thermostatic Element	Chrome	ELMMRNC
Mini Round Thermostatic Element	Black	ELMMRNK
Mini Round Thermostatic Element	Anthracite	ELMMRNA
Mini Round Thermostatic Element	White	ELMMRNW
-	-	-
Touch Thermostatic Heating Element	Chrome	ELMTCH-C
Touch Thermostatic Heating Element	Anthracite	ELMTCH-A
Touch Thermostatic Heating Element	Brushed Brass	ELMTCH-BB
-	-	-
LST Weekly Thermostatic Element	Chrome	ELMWKYLST-C
LST Weekly Thermostatic Element	Black	ELMWKYLST-BL
LST Weekly Thermostatic Element	Anthracite	ELMWKYLST-A
LST Weekly Thermostatic Element	White	ELMWKYLST-W
-	-	-
Weekly Thermostatic Element	Chrome	ELMWKYC
Weekly Thermostatic Element	Black	ELMWKYK
Weekly Thermostatic Element	Anthracite	ELMWKYA
Weekly Thermostatic Element	White	ELMWKYW
-	-	-
Wireless Programmable Thermostat	White	ACC-WPRT7RF
-	-	-
Square Thermostatic Wifi Element	Chrome	ELM-SQR

Specification For Accessories

TYPE	Finish	MFC
T-Piece - For Dual Fuel Only	Chrome	ACCS/TP
T-Piece - For Dual Fuel Only	Anthracite	ACCS/TPA
T-Piece - For Dual Fuel Only	White	ACCS/TPW
T-Piece - For Dual Fuel Only	Brushed Brass	ACCS/TPG
T-Piece - For Dual Fuel Only	Brushed Gun Metal	ACCS/TPM
-	-	-
Liquid Filling For Electric Only	-	A/FILLING1
