Hudson Reed Sloane Single Panel Horizontal Radiator 600mm High small Image 4

Hudson Reed Sloane Single Panel Horizontal Radiator 600mm High

Additional image for 61904 hudsonreed - HLW54

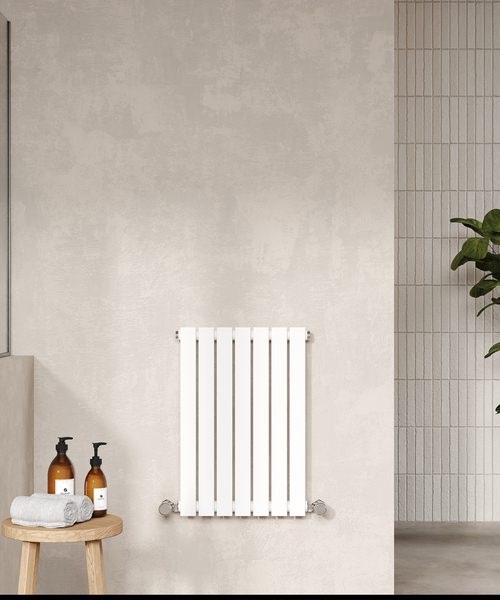

Hudson Reed Sloane Single Panel Horizontal Radiator 600mm High

Name: Hudson Reed Sloane Single Panel Horizontal Radiator 600mm High
Brand: Hudson Reed
SKU: HLW54
Price: 81.6 GBP
Availability: InStock

More Width And Finishes Available

No Rating

Write a Review

Rate This:

MFC Code : HLW54

Product Code : 61904

Delivery: £34.95

£81.60

RRP : £204.00

SELECT Width Step 1

412 [mm]
£81.60
586 [mm]
£106.81
992 [mm]
£155.21

SELECT Finish Step 2

qty :

Compatible Valves Read More About the Product

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

None
OP-144344 - Magnetic Robe Hook + £21.72 [ View Image ]
OP-144345 - Radiator Hook + £14.19 [ View Image ]
OP-144346 - Magnetic Towel Rail + £50.59 [ View Image ]
OP-144347 - Robe Hook for Radiator + £9.79 [ View Image ]
OP-144348 - Towel Rail for Radiator + £34.58 [ View Image ]

About This Product

Available in different widths and finishes [Refer Option]
Single panel horizontal radiator
Dimension: Depth 53mm (5.3cm) x Height 600mm (60cm)
Fixing screws and brackets included
Constructed from using steel material
Installation type: wall mounted
Tappings are 1/2" British standard pipe
Wall to centre of tappings: 51
Type of heat: water
No. of heat setting: 1
Projection from wall: 110mm
After installing any new radiators, when refilling the system it is recommended a suitable inhibitor is used
For more details refer Production Variation Info & MFC Code tab shown below
Valves shown in the image are not included - sold separately

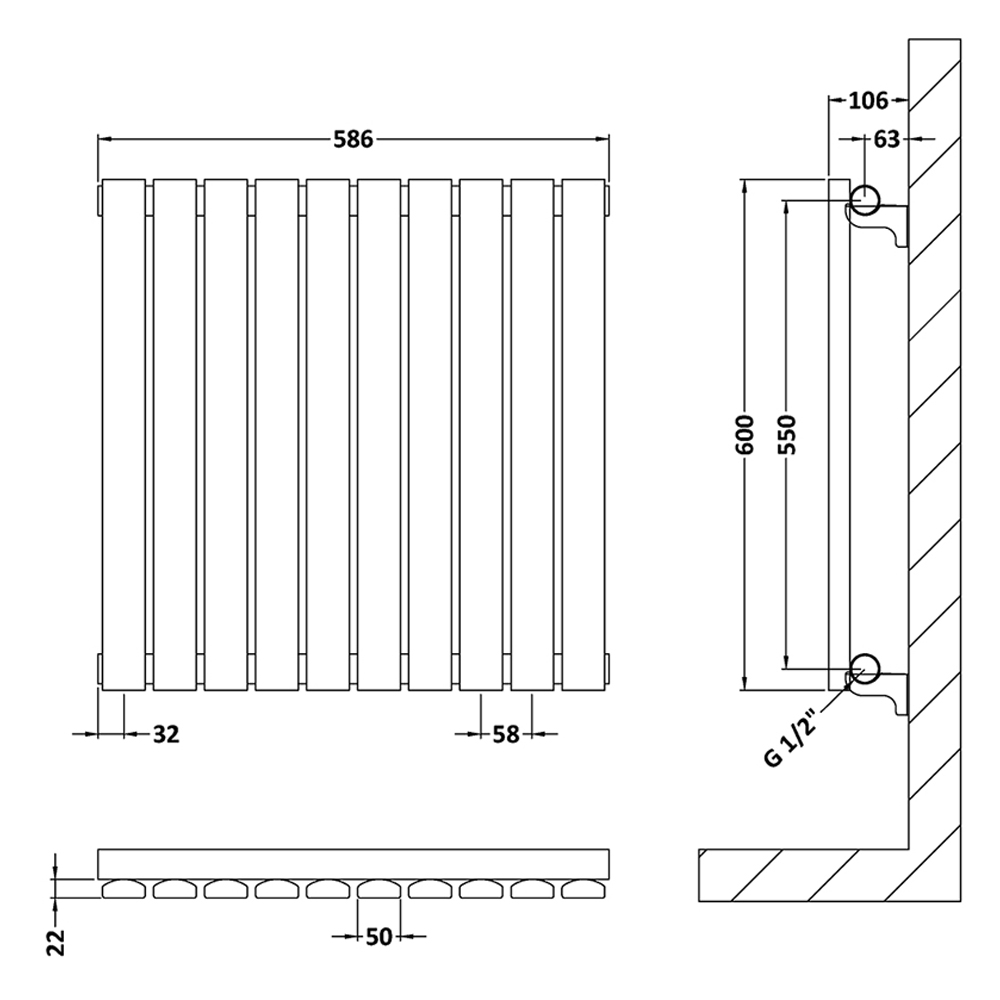

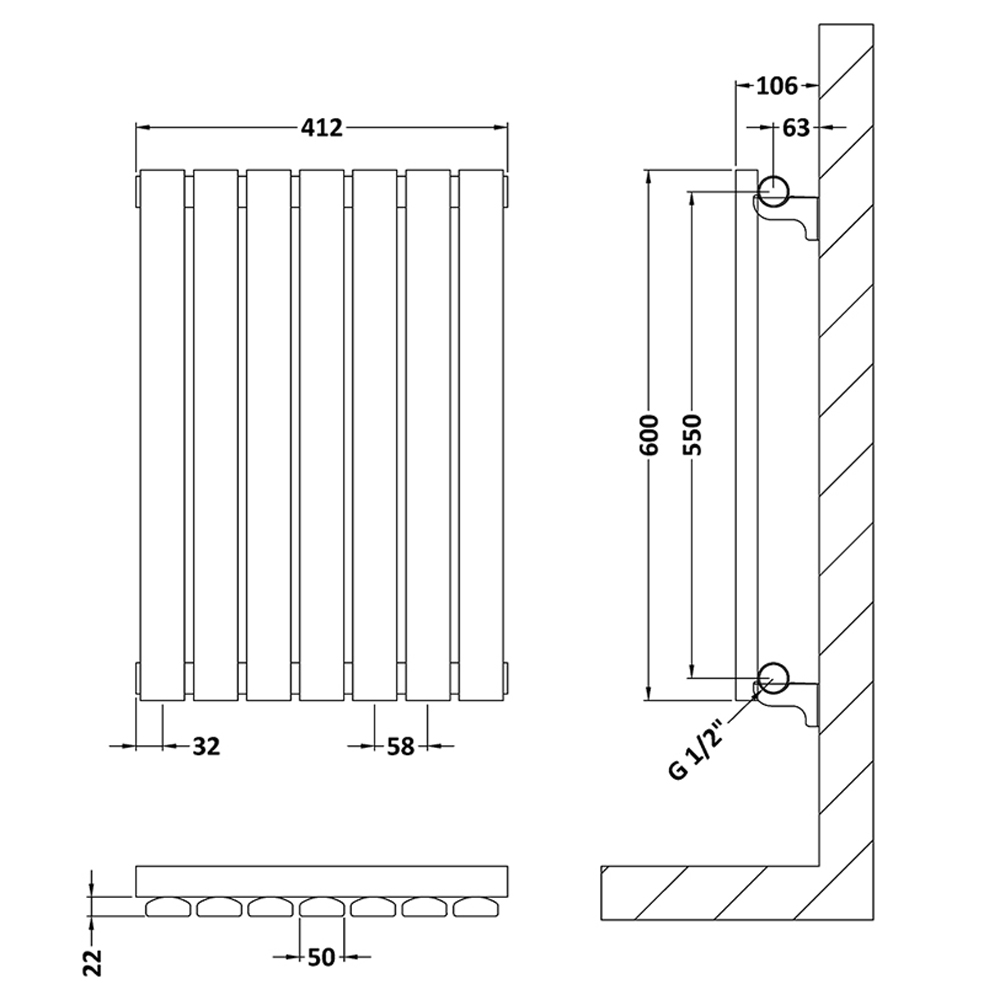

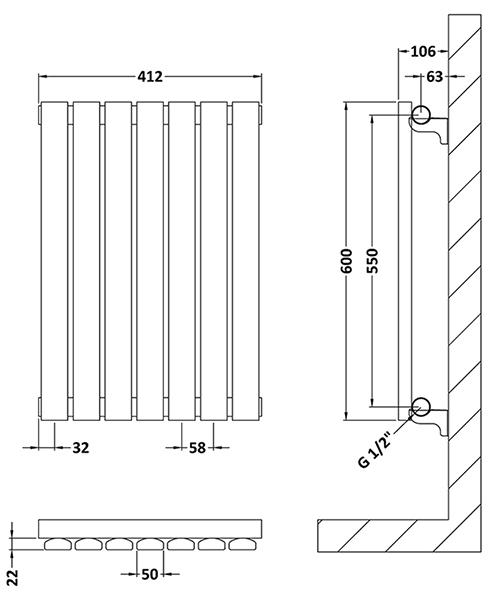

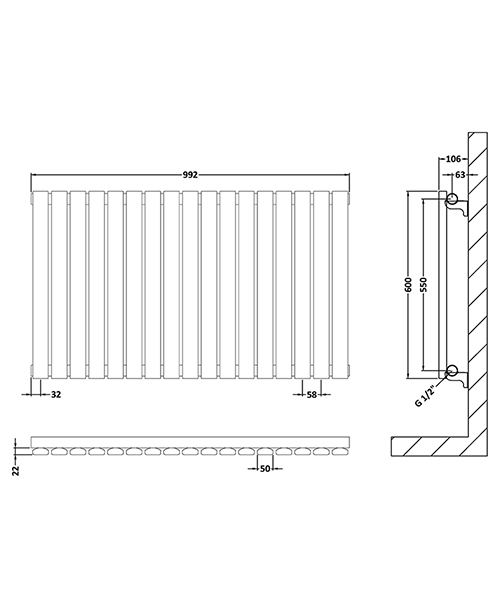

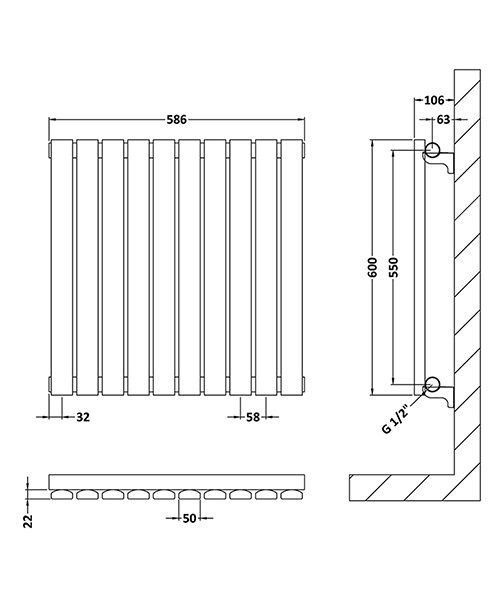

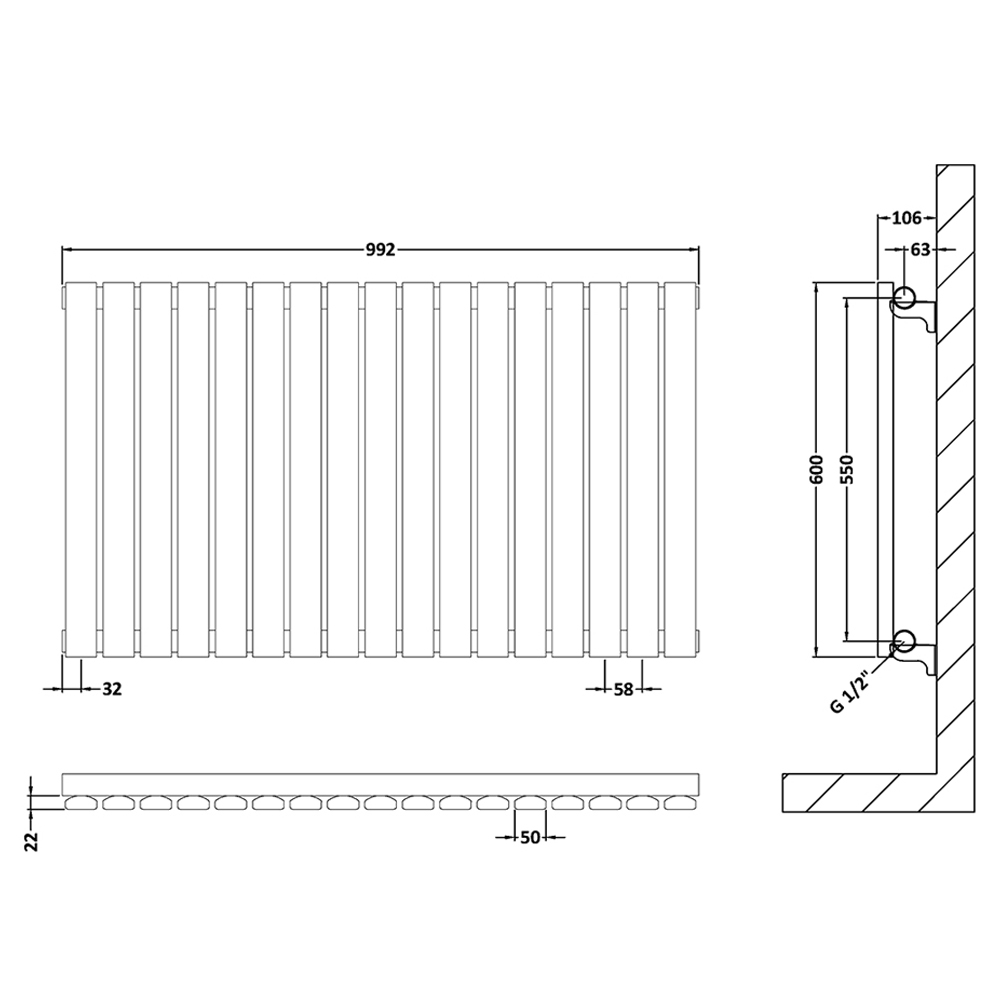

Refer technical drawing for more technical dimensions
For fitting instruction download PDF from technical tab
Guarantee: 5 years from Hudson Reed against manufacturing defects.
Available Optional Products:
Radiator widths - 412mm (412cm), 586mm (58.6cm) and 992mm (99.2cm)
Choice of finishes - Anthracite: RAL Number - 7016 and High Gloss White: RAL Number - 9016
Radiator valves
Robe hook.
Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Compatible Valves

Technical Info

Download Technical Data Sheet PDF

Download Installation Instructions PDF

PRODUCT VARIATIONS INFO & MFC CODE

Available Sizes Along With Manufacturing Code

Title	Width 412mm	Width 586mm	Width 992mm
Anthracite Finish - RAL Number: 7016 - MFC	HLA54	HLA55	HLA56
High Gloss White Finish - RAL Number: 9016 - MFC	HLW54	HLW55	HLW56
Number Of Sections / Panels	14	10	17
BTU - 30 Deg. C	490	701	1191
Thermal Output - 30 Deg. C - Watts	144	205	349
BTU - 50 Deg. C	952	1361	2313
Thermal Output - 50 Deg. C - Watts	279	399	678
BTU - 60 Deg. C	1206	1723	2930
Thermal Output - 60 Deg. C - Watts	354	505	859
