Hudson Reed Revive 499 x 1800mm Vertical Designer Radiator With Mirror

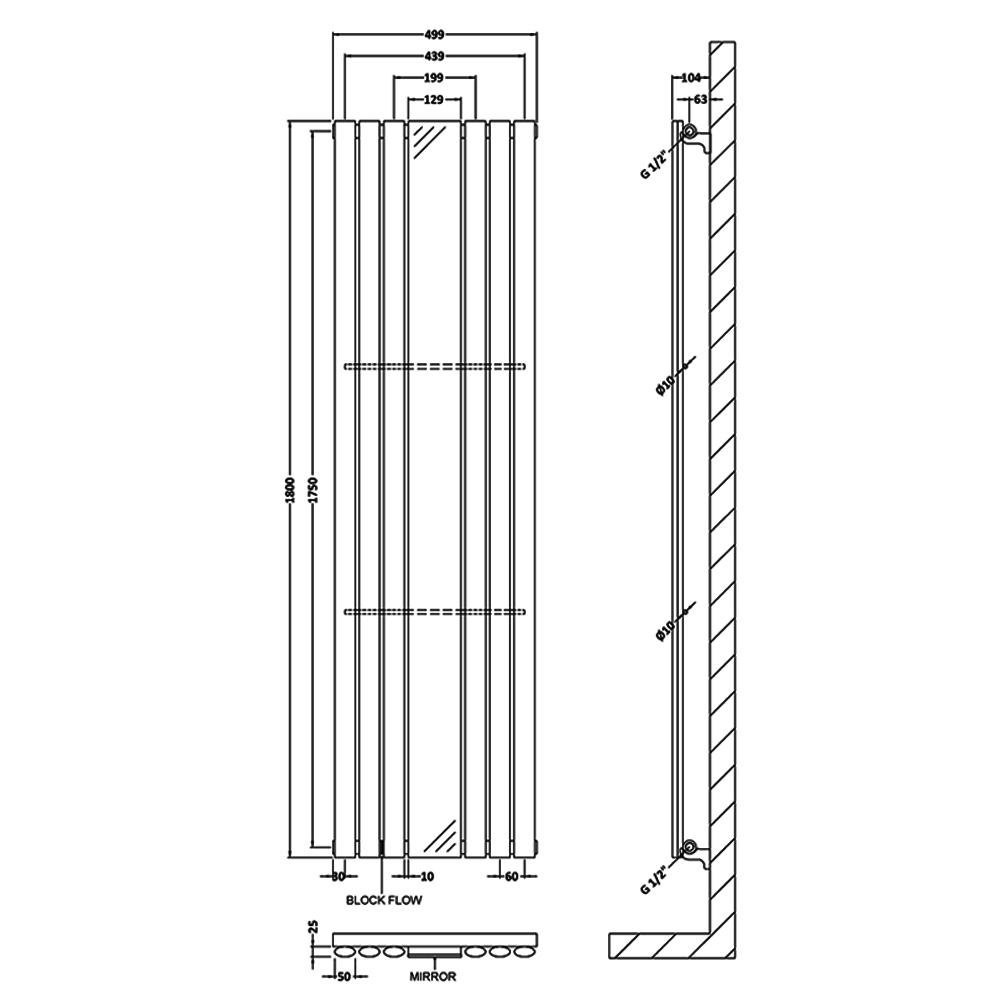

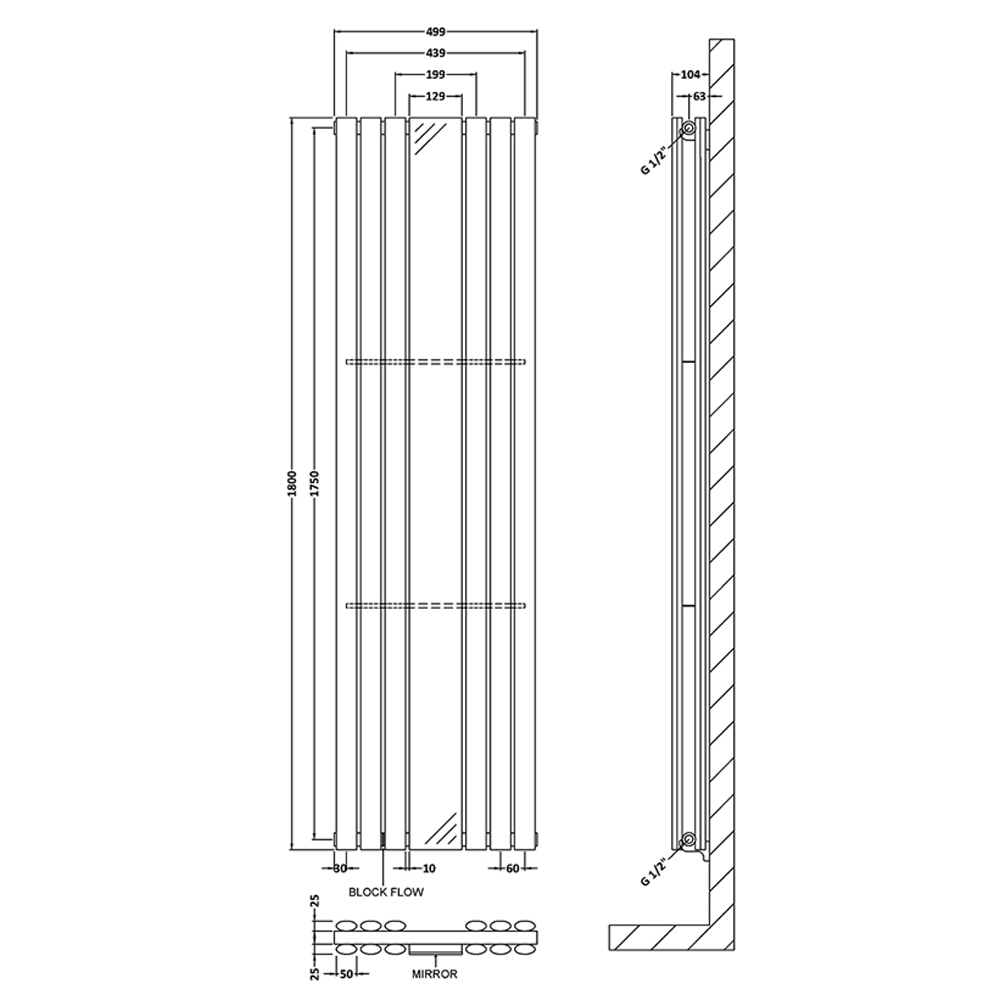

Technical drawing 16210 / HLA78
Additional image of Hudson Reed Revive 499 x 1800mm Vertical Designer Radiator With Mirror

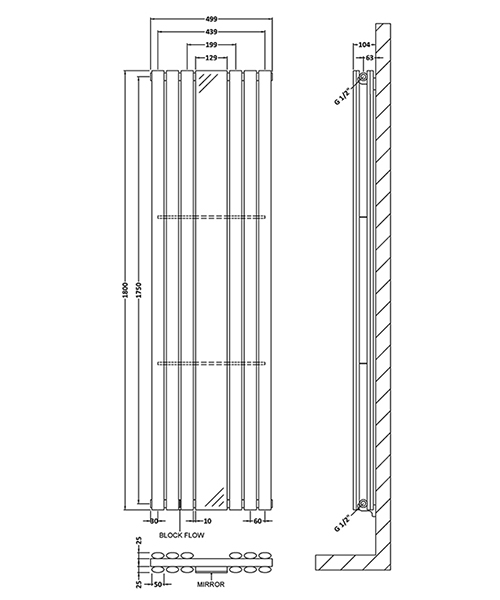

Additional image for 16210 hudsonreed - HLA78
Hudson image

Hudson Reed Revive 499 x 1800mm Vertical Designer Radiator With Mirror

Hudson Reed Logo
Variation Available: Single Panel / Double Panel
Overall Rating: Stars Rating 2 out of 2 customers rated 70%
Rate This:
MFC Code : HLA78
Product Code : 16210
Delivery: £34.95
£157.60
RRP : £394.00
Other Variation Available

OP-144419 - Single Panel

qty :
  • Single or Double Panel designer Radiator [See Option]
  • Supplied with mirror
  • Dimensions: Width 499mm (49.9cm) x Depth 55mm (5.5cm) x Height 1800mm (180cm)
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • Single or Double Panel designer Radiator [See Option]
  • Supplied with mirror
  • Dimensions: Width 499mm (49.9cm) x Depth 55mm (5.5cm) x Height 1800mm (180cm)
  • Finish: Anthracite RAL Number : 7016
  • Material: Steel
  • Installation type: wall mounted
  • Orientation: Vertical
  • Wall to centre of Tapping: 65mm
  • Pipe center : 540mm
  • Type of Heat: Water
  • No. of Heat setting: 1
  • Rounded edged with classic and simplistic feature
  • Supplied with fixing screws
  • Radiator brackets included
  • After installing any new radiators; when refilling the system, suitable inhibitor to be used
  • All tapping are 1/2" British Standard Pipe
  • Fully Certified BS EN 442-1:2014
  • Valves shown in the image are not included
  • Refer technical drawing for complete dimensions details
  • For fitting instruction download PDF from Technical tab
  • Guarantee: 20 years from the Manufacturer.
  • Additional details of Single Panel radiator
  • BTU/Hr:   @30°C - 1195      @40°C - 2566        @50°C - 3250
  • Watts:        @30°C - 350       @40°C - 752         @50°C - 987
  • Maximum projection from wall: 90mm
  • Number of Sections/Panels: 6
  • Packaging volume: 116.1
  • Additional details of Double Panel radiator
  • BTU/Hr:  @30°C - 1942      @40°C - 4006        @50°C - 5075
  • Watts:      @30°C - 569        @40°C - 1174        @50°C - 1520
  • Maximum projection from wall: 110mm
  • Number of Sections/Panels: 12
  • Packaging volume: 123 Litres
  • Optional products:
  • Compatible radiator valves.
Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. Dimension are subjected to minor deviation.

Information Breakdown

Colour Anthracite
Warranty/Guarantee 20 Years
Width 499
Projection (Depth) 55
Orientation Vertical
BTU Output @30°C - 1195, @40°C - 2566, @50°C - 3250
Watts @30°C - 350, @40°C - 752, @50°C - 987
Valves Included Sold Separately
Wall to Centre of Inlet 65
Design Modern
Panel Configuration Single
Installation Type Wall Mounted
Compatible Valves

Technical Info

Hudson Reed Revive 499 x 1800mm Vertical Designer Radiator With Mirror

Download Installation Instructions PDF

Download Customer Datasheet PDF
