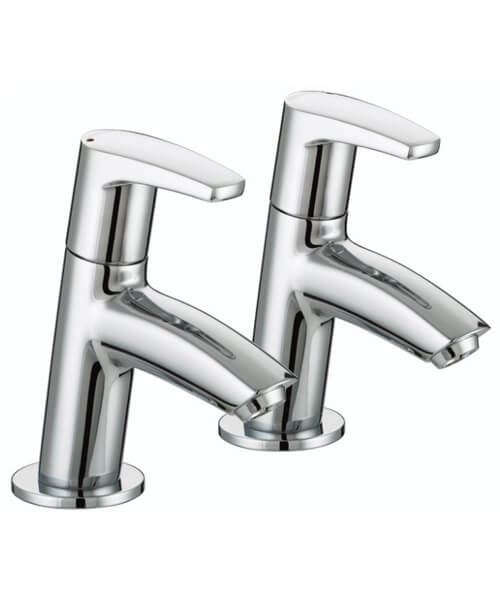

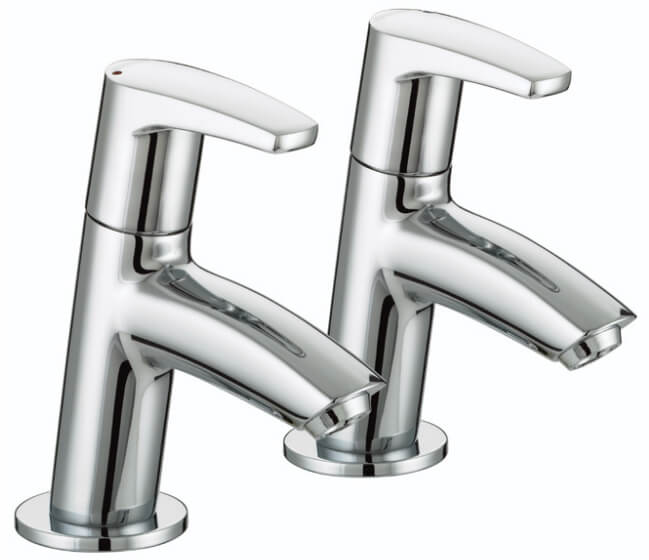

Bristan Orta Deck Mounted Pair Of Chrome Basin Pillar Taps

Bristan Orta Deck Mounted Pair Of Chrome Basin Pillar Taps

Name: Bristan Orta Deck Mounted Pair Of Chrome Basin Pillar Taps
Brand: Bristan
SKU: OR 1/2 E4 C
Price: 85 GBP
Availability: InStock

Available In 2 Variations

No Rating

Write a Review

Rate This:

MFC Code : OR 1/2 E4 C

Product Code : 63889

Delivery: £7.95

£85.00

RRP : £138.02

Other Variation Available

2 Litre Per Minute Flow Regulator
3 Litre Per Minute Flow Regulator

OP-194191 - 2 Litre Per Minute Flow Regulator

qty :

Manufactured Using Brass Material
Supplied with Metal Handles
Available in 2 Variations: Eco-4 Tap and Eco-6 Tap

About This Product

Manufactured Using Brass Material
Supplied with Metal Handles
Available in 2 Variations: Eco-4 Tap and Eco-6 Tap
Mount Type: Deck Mounted
Handle Type: Lever
Size [mm]: 50 x 115 x 120mm [Width x Depth x Height]
Size [cm]: 5 x 11.5 x 12cm [Width x Depth x Height]
Base to Spout: 41mm [4.1cm]
Centre of Inlet to Centre of Outlet: 82mm [8.2cm]
Supplied with Metal Back Nuts
Connection Inlet: 1/2 Inch BSP
Connection Outlet: M16 Aerator
Number of Tap Holes: 2
Valve/Cartridge Type: 1/2 Inch Ceramic Disc Valve
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar Water Pressure
Maximum Hot Water Temperature: 65°C
Maximum Static Pressure: 10 Bar

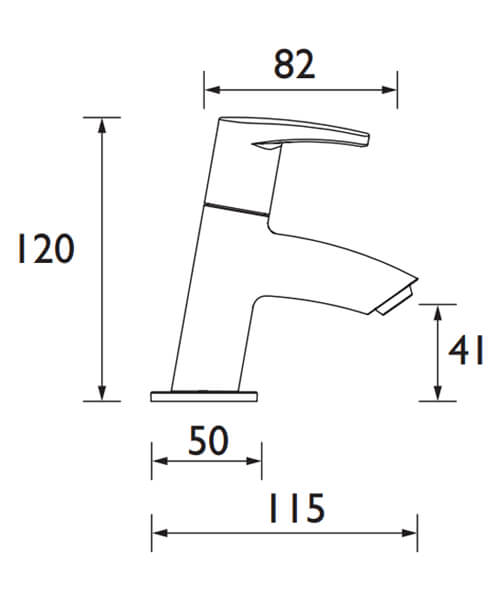

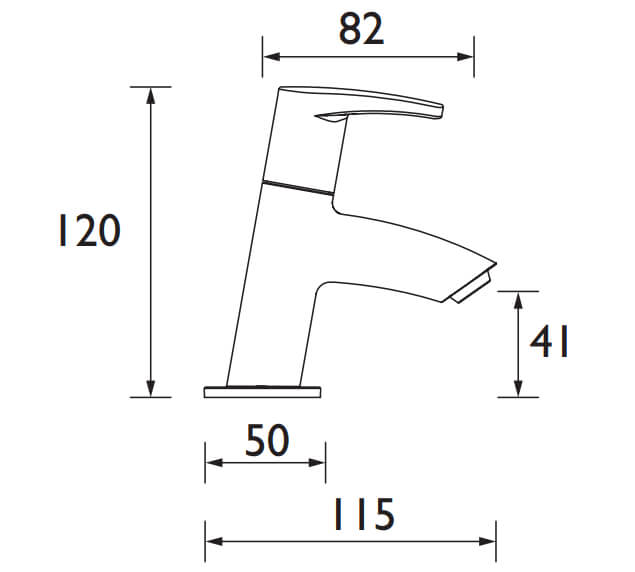

Refer to the Technical Diagram for the Complete Technical Dimensions
10-Year Guarantee from the Manufacturer
Details of Eco 4 Tap:
Supplied with 2 x 2 Litre Per Minute Flow Regulators
Details of Eco 6 Tap:
Supplied with 2 x 3 Litre Per Minute Flow Regulators

Information Breakdown

Colour	Chrome
Warranty/Guarantee	10 Years
Theme	Modern
Width	50
No. of Tap Holes	2
Base To Spout	41
Spout Reach	82
Handle Style	Lever
Inlet Connections	1/2 Inch BSP
Installation Type	Deck Mounted
Minimum Operating Pressure (Bar)	0.2
