Hudson Reed 32mm Slimline ABS Acrylic Quadrant Shower Tray

Hudson Reed Logo
More Finish And Size Available
No Rating No Rating Write a Review
Rate This:
MFC Code : NLT61105
Product Code : 61371
Delivery: £34.95
£108.00
RRP : £270.00
SELECT FINISH Step 1

SELECT Size Step 2

SELECT Waste And Grills Step 3

SELECT Plinth Kit And Leg Set Step 4


qty :

Check Availability 5 Working Days Apprx

About This Product

  • Choice of finish: White Slate, Grey Slate and Black Slate - [See Option]
  • Available in different size: 800 x 800mm and 900 x 900mm - [See Option]
  • Material: Acrylic Capped ABS Caco3 and Pu
  • Shape: Quadrant
  • 32mm slim height
  • Radius: 550mm (55cm)
  • Waste position: Positioned Centrally
  • Patented technology - Light, Strong and Durable
  • All trays have a flat underside making installation and leveling easier
  • Acrylic capped constructed from a polyurethane resin mixed with a filler, including volcanic ash
  • Safe for handling and fitting
  • Waste and grills shown in the image are not included
  • Download Data Sheet and Fitting Instruction PDF File from the Technical Info Section

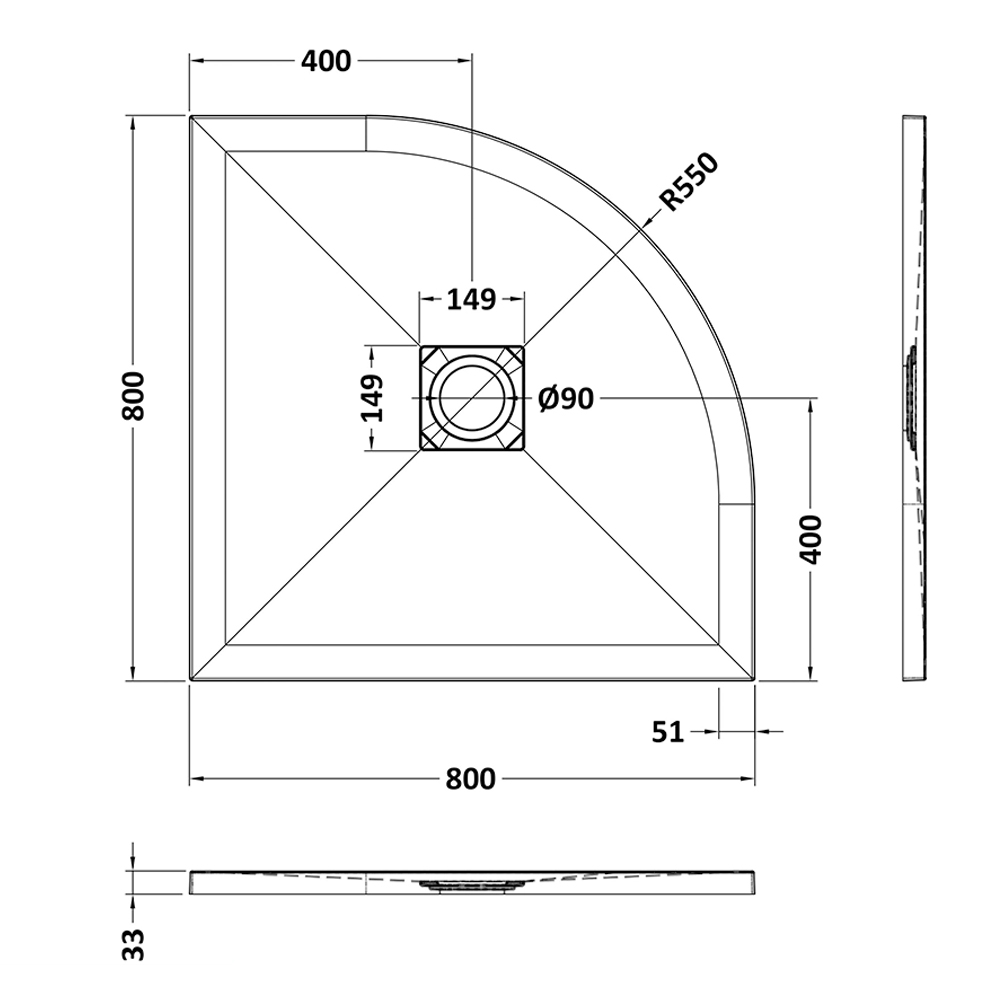

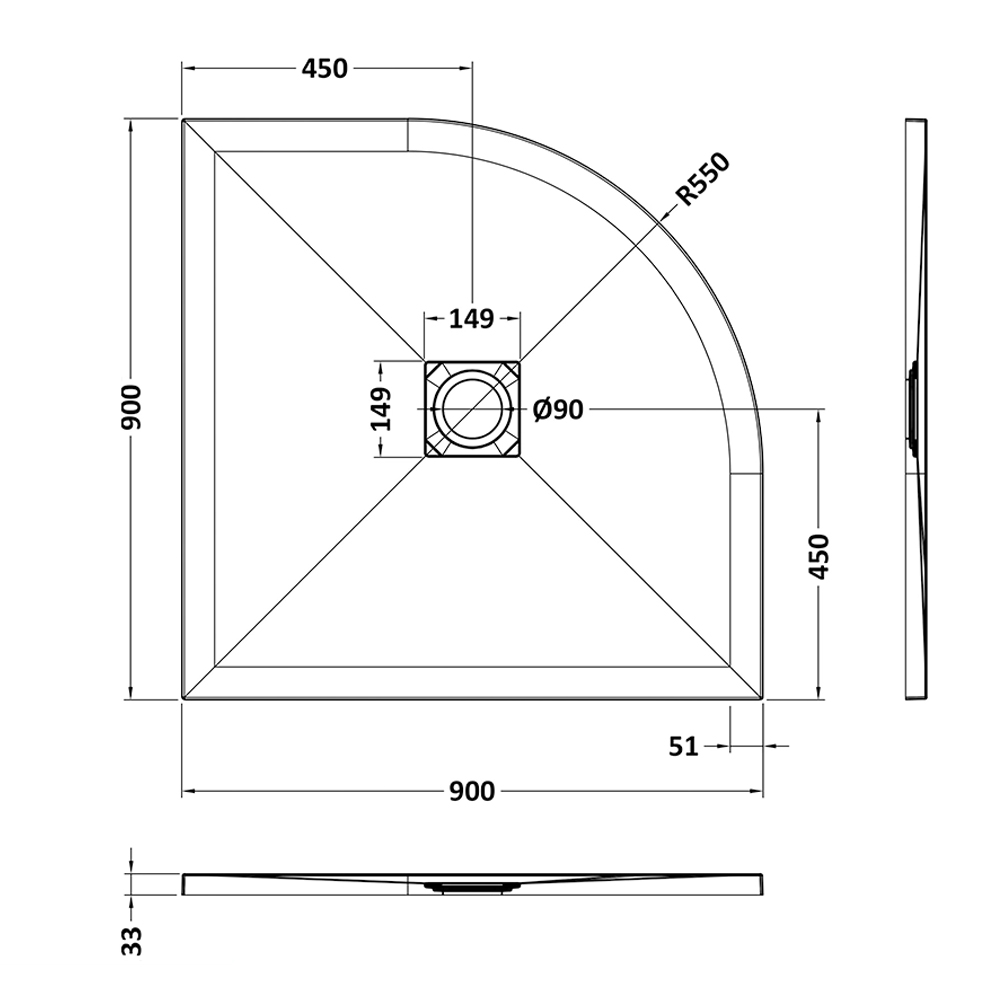

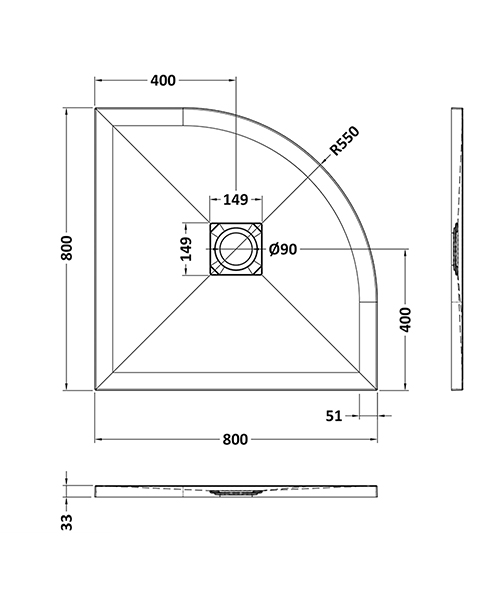

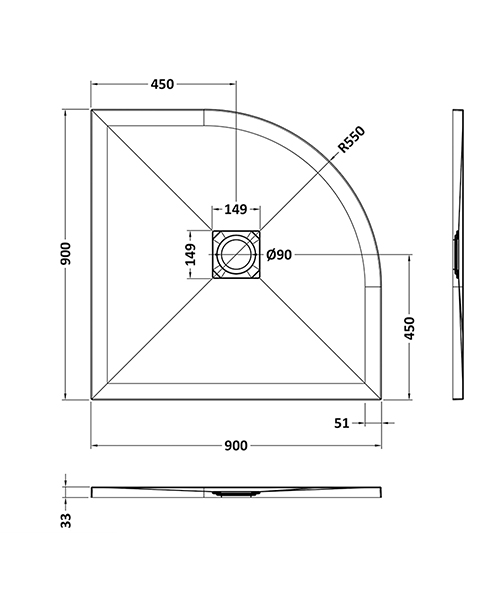

  • Refer to the technical drawing for more details
  • Guarantee: Lifetime from Hudson Reed against manufacturing defects.
  • Available Optional Products:
  • Square Waste and Grills
  • Easy plumb leg And Plinth set.

Information Breakdown

Colour Slate White
Warranty/Guarantee 800
Material Acrylic Capped ABS Caco3 And Pu
Weight In Kg 22.73kg
Radius 550
Height 32
Depth 800
Drain Placement Positioned Centrally

Technical Info


PRODUCT VARIATIONS INFO & MFC CODE
  • Details For Quadrant Shower Tray
    MFC Code Length Width Finish
    NLT61105 800mm 800mm White Slate
    NLT71105 800mm 800mm Grey Slate
    NLT91105 800mm 800mm Black Slate
    NLT61106 900mm 900mm White Slate
    NLT71106 900mm 900mm Grey Slate
    NLT91106 900mm 900mm Black Slate
  • Details For Waste And Grills
    MFC Code Grill Trap Finish
    STW001S Chrome Grill White
    STW004S White Grill White
    STW005S Brass Grill White
    STW007S Chrome Grill Black
    STW002S White Grill Black
    STW006S Brass Grill Black
