Reina Avola Mild Steel Designer Straight Towel Rail 500mm Wide

Reina Logo
More Variations Available
No Rating No Rating Write a Review
Rate This:
MFC Code : RND-AVL082A
Product Code : 72757
Delivery: £34.95
£138.00
RRP : £216.00
SELECT Finish Step 1

SELECT Height Step 2

SELECT Radiator Type Step 3

SELECT Heating Element Type Step 4

SELECT Essential Accessories Step 5

qty :
Compatible Valves Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

Options & Accessories: You May Require

Chrome Pipe Kit
Accessories

Reina provides an optional Chrome Pipe Kit that you may require for the installation. These kit are highly recommended from the manufacturer. Please note: Image shown is for illustration purpose only.



About This Product

  • Choice of Finishes: Anthracite, White and Chrome
  • Choice of Heights: 823mm, 1124mm and 1424mm
  • Choice of Variants: Central Heating, Dual Fuel and Electric
  • Choice of Heating Elements: Standard, On/Off Touch, Thermostatic: LST Mini Round, Mini Round, Touch, LST Weekly, Weekly, Wireless Programmable Thermostat and Square Thermostatic Wifi
  • Material: Mild steel
  • Width: 500mm (50cm)
  • Pipe centres: 455mm (45.5cm)
  • Wall to pipe centres: 55-65mm (5.5cm - 6.5cm)
  • Distance from wall: 82-92mm (8.2cm - 9.2cm)
  • Supplied with Air vent and End plug
  • Brackets for radiator included
  • EN 442 compliant product
  • The image shown is for illustration purposes only
  • The valves shown in the image are not included
  • For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece
  • For Electric models, Optional Liquid Filling is required with the heating element
  • For BTU, Watts and other details, please refer to the chart in the PRODUCT VARIATIONS INFO and MFC CODE Tab
  • Download the Data Sheet and Installation Guide PDF File from the Technical Info Section
  • Download the Heating Element and Manual Instructions PDF File from the Technical Info Section
  • Refer to the technical diagram for complete technical specifications
  • Guarantee: Five-year from Reina against manufacturing defects
  • Please Note:
  • The appropriate wattage of the element (if selected) will be decided by the manufacturer once the order is placed
  • Available Optional Product:
  • T-Piece - For Dual Fuel Only
  • Liquid Filling For Electric Only
  • Compatible valves
  • Sleeving kit and chrome pipe kit

Information Breakdown

Colour Anthracite
Warranty/Guarantee 5 Years
Width 500
Projection (Depth) 82
Compliance/Approvals/Standard EN 442
Orientation Vertical
BTU Output 50°C - 1356
Watts 50°C - 398
Tapping / Pipe Centres 455
Valves Included Sold Separately
Wall to Centre of Inlet 55
Brackets Included Yes
Installation Type Wall Mounted
Compatible Valves

Technical Info

Reina Avola Mild Steel Designer Straight Towel Rail 500mm Wide

Download Technical Data Sheet PDF

Download Installation Guide PDF

Download Specification For Heating Elements PDF

Download Heating Element Manual Instructions PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Specification For Anthracite Radiator
    Height 823mm 1124mm 1424mm
    Fuel Type Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric
    Finish Anthracite Anthracite Anthracite
    Width 500mm 500mm 500mm
    Pipe Centres 455mm 455mm 455mm
    Wall to Pipe Centres 55mm 55mm 55mm
    Wall Distance 82mm 82mm 82mm
    Tube Quantity 9 12 15
    Total Gap 2 3 4
    BTU - Delta-50 1356 1834 2292
    Watts - Delta-50 398 538 672
    BTU - Delta-60 1736 2348 2934
    Watts - Delta-60 509 689 860
    MFC RND-AVL082A RND-AVL112A RND-AVL142A
  • Specification For White Radiator
    Height 823mm 1124mm 1424mm
    Fuel Type Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric
    Finish White White White
    Width 500mm 500mm 500mm
    Pipe Centres 455mm 455mm 455mm
    Wall to Pipe Centres 55mm 55mm 55mm
    Wall Distance 82mm 82mm 82mm
    Tube Quantity 9 12 15
    Total Gap 2 3 4
    BTU - Delta-50 1356 1834 2292
    Watts - Delta-50 398 538 672
    BTU - Delta-60 1736 2348 2934
    Watts - Delta-60 509 689 860
    MFC RND-AVL082W RND-AVL112W RND-AVL142W
  • Specification For Black Radiator
    Height 823mm 1124mm 1424mm
    Fuel Type Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric
    Finish Black Black Black
    Width 500mm 500mm 500mm
    Pipe Centres 455mm 455mm 455mm
    Wall to Pipe Centres 55mm 55mm 55mm
    Wall Distance 82mm 82mm 82mm
    Tube Quantity 9 12 15
    Total Gap 2 3 4
    BTU - Delta-50 1356 1834 2292
    Watts - Delta-50 398 538 672
    BTU - Delta-60 1736 2348 2934
    Watts - Delta-60 509 689 860
    MFC RND-AVL082K RND-AVL112K RND-AVL142K
  • Specification For Heating Elements
    Variants Finish MFC
    Standard Heating Element Chrome ELM/S
    - - -
    On/Off Touch Element Chrome ELMOOT-C
    On/Off Touch Element Black ELMOOT-BL
    On/Off Touch Element Anthracite ELMOOT-A
    - - -
    LST Mini Round Thermostatic Element Chrome ELMMRNLST-C
    LST Mini Round Thermostatic Element Black ELMMRNLST-BL
    LST Mini Round Thermostatic Element Anthracite ELMMRNLST-A
    LST Mini Round Thermostatic Element White ELMMRNLST-W
    - - -
    Mini Round Thermostatic Element Chrome ELMMRNC
    Mini Round Thermostatic Element Black ELMMRNK
    Mini Round Thermostatic Element Anthracite ELMMRNA
    Mini Round Thermostatic Element White ELMMRNW
    - - -
    Touch Thermostatic Heating Element Chrome ELMTCH-C
    Touch Thermostatic Heating Element Anthracite ELMTCH-A
    Touch Thermostatic Heating Element Brushed Brass ELMTCH-BB
    - - -
    LST Weekly Thermostatic Element Chrome ELMWKYLST-C
    LST Weekly Thermostatic Element Black ELMWKYLST-BL
    LST Weekly Thermostatic Element Anthracite ELMWKYLST-A
    LST Weekly Thermostatic Element White ELMWKYLST-W
    - - -
    Weekly Thermostatic Element Chrome ELMWKYC
    Weekly Thermostatic Element Black ELMWKYK
    Weekly Thermostatic Element Anthracite ELMWKYA
    Weekly Thermostatic Element White ELMWKYW
    - - -
    Wireless Programmable Thermostat White ACC-WPRT7RF
    - - -
    Square Thermostatic Wifi Element Chrome ELM-SQR
  • Specification For Accessories
    TYPE Finish MFC
    T-Piece - For Dual Fuel Only Chrome ACCS/TP
    T-Piece - For Dual Fuel Only Anthracite ACCS/TPA
    T-Piece - For Dual Fuel Only White ACCS/TPW
    T-Piece - For Dual Fuel Only Brushed Brass ACCS/TPG
    T-Piece - For Dual Fuel Only Brushed Gun Metal ACCS/TPM
    - - -
    Liquid Filling For Electric Only - A/FILLING1


You May Also Require

Related Product

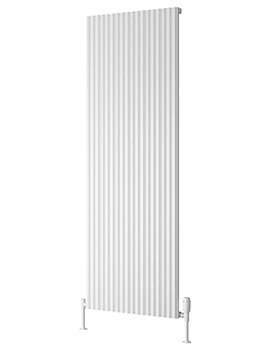

View Related Product 72746 Reina Delia 1800mm High Aluminium Vertical Designer Radiator £413.40 £ 636.00
