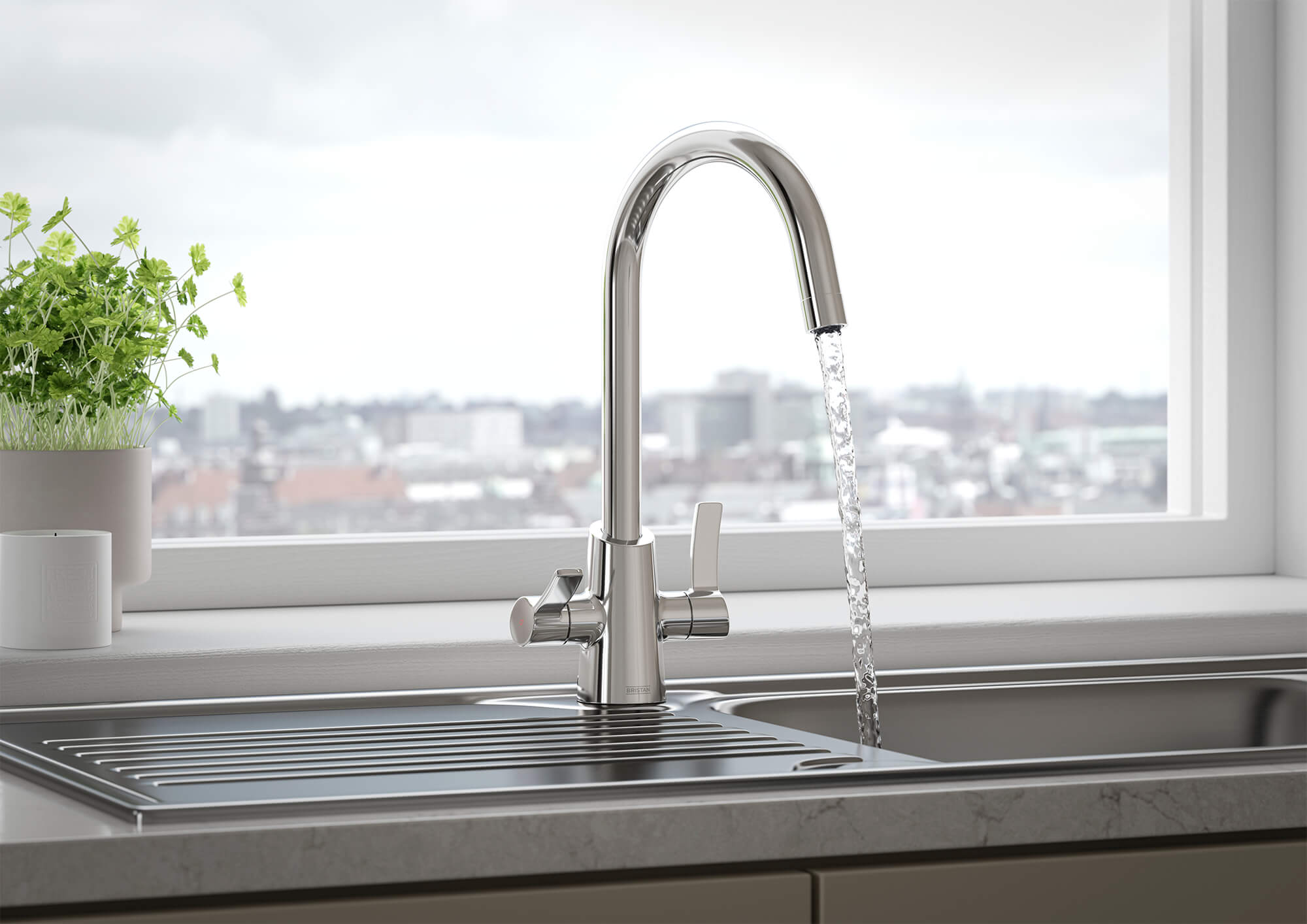

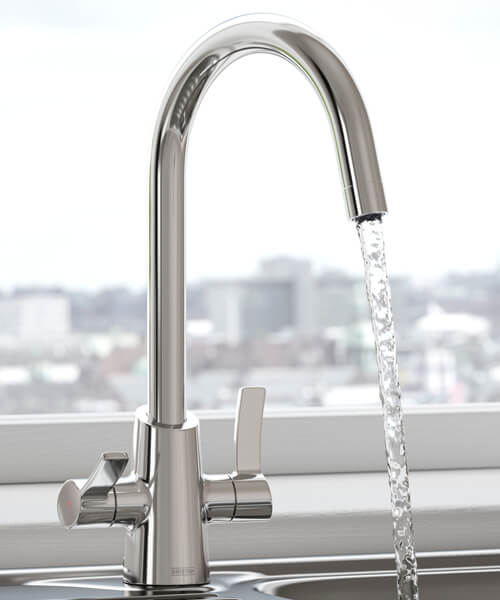

Bristan Acorn Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout

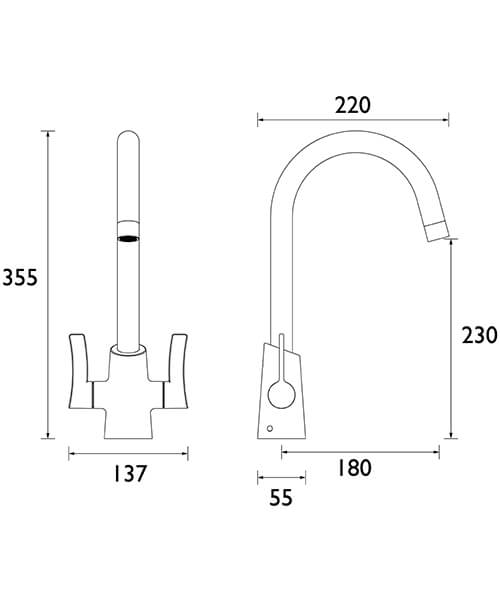

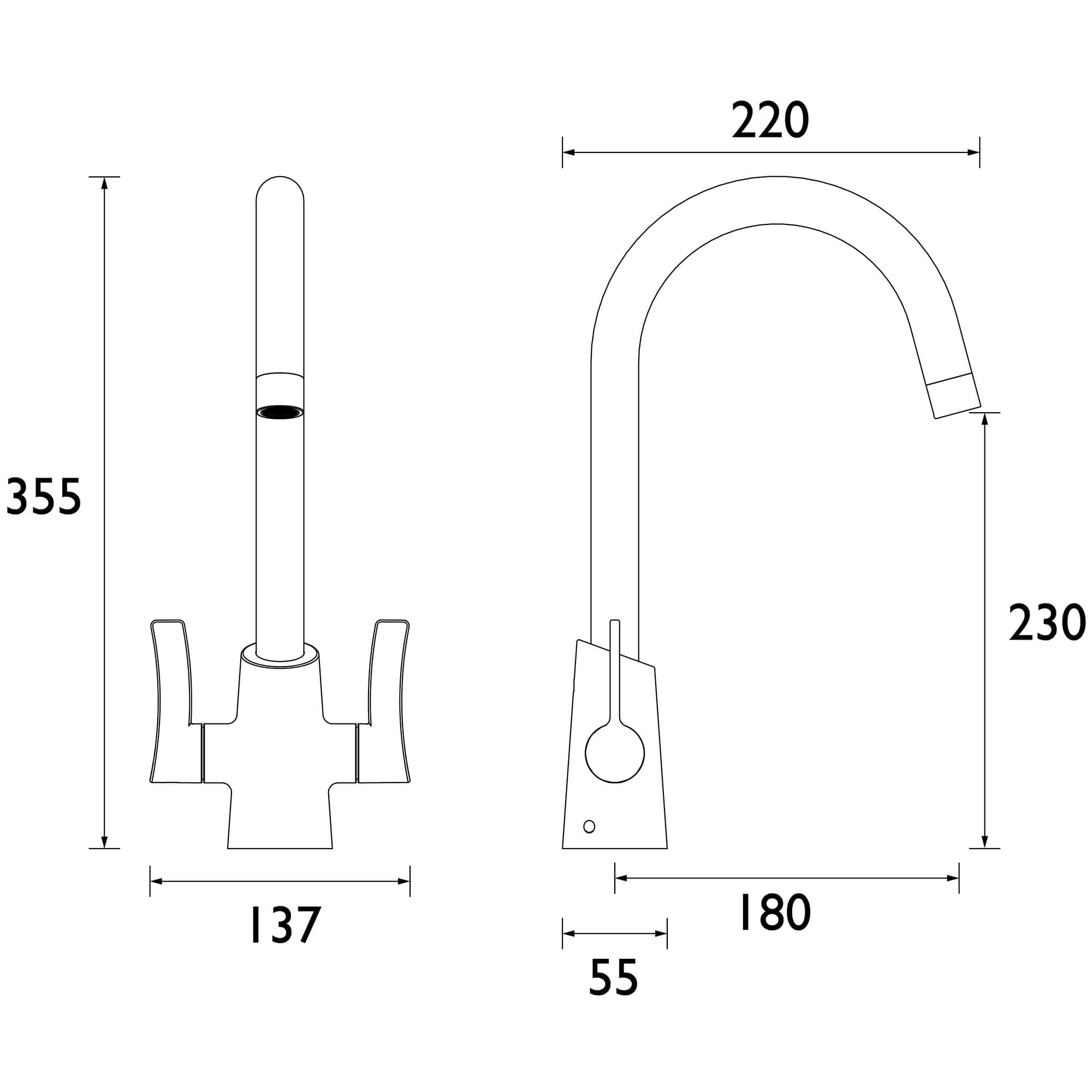

Technical drawing 68464 / ACR EFSNK C
Additional image of Bristan Acorn Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout

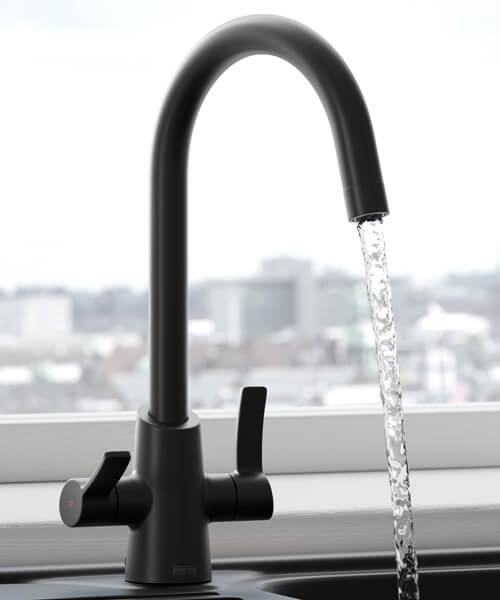

Additional image for 68464 Bristan - ACR EFSNK C

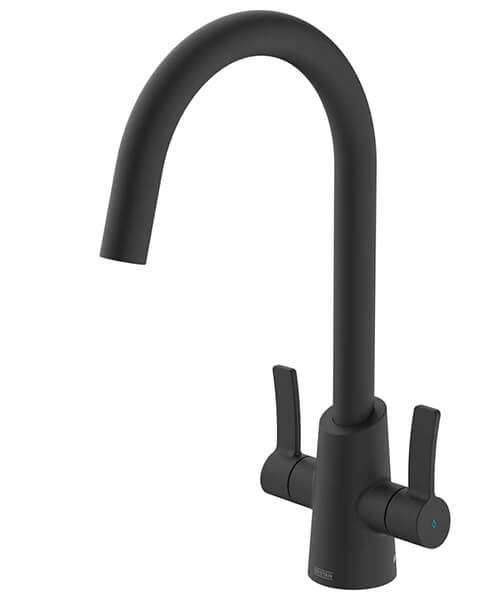

Bristan image

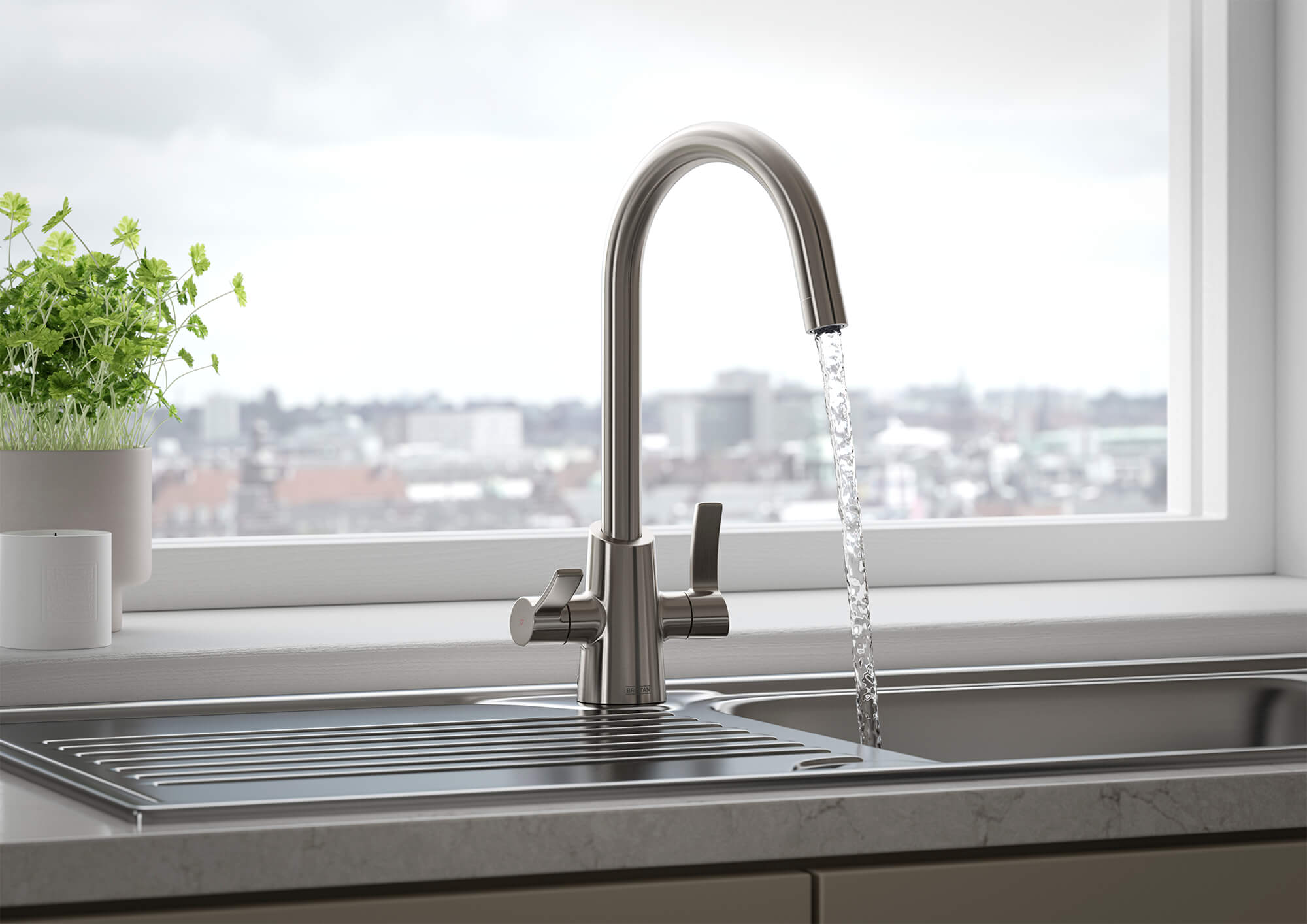

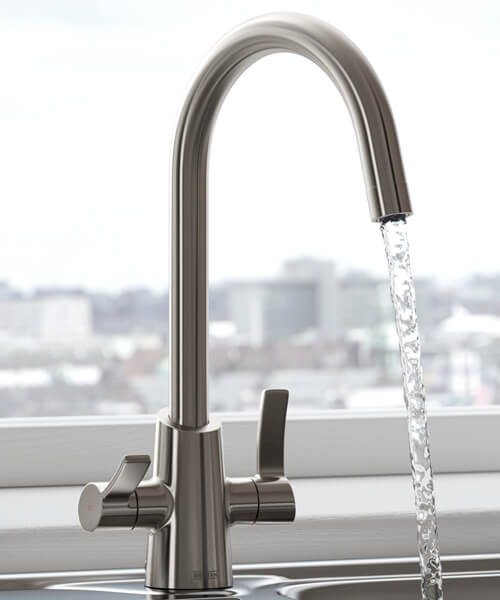

Alternate image of Bristan Acorn Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout
Alternate image of Bristan Acorn Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout

Bristan Acorn Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout

Bristan Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : ACR EFSNK C
Product Code : 68464
Delivery: £7.95
£93.60
RRP : £150.00
Finishes Available

qty :
  • WRAS Approved
  • Features Swivel Spout
  • Manufactured Using Brass Material
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • WRAS Approved
  • Features Swivel Spout
  • Manufactured Using Brass Material
  • Available in 3 Finishes: Chrome, Black and Stainless Steel
  • Includes: Allen Key, Isolation Valves, Top Fix Easyfit Base, Easyfit tool and Flexi Tails
  • Size [mm]: 137 x 220 x 355mm [Width x Depth x Height]
  • Size [cm]: 13.7 x 22 x 35.5cm [Width x Depth x Height]
  • Base to Spout: 230mm [23cm]
  • Centre of Inlet to Centre of Outlet: 180mm [18cm]
  • Mount Type: Deck Mounted
  • Handle Type: Paddle Lever
  • Connection Inlet: 1/2 Inch BSP Flexible Tails
  • Connection Outlet: Housed M22 8L/M Aerator
  • Number of Tap Holes: 1
  • Maximum Fitting Depth: 35mm
  • Valve/Cartridge Type: 1/2 Inch Ceramic Disc Valves
  • Maximum Hot Water Temperature: 65°C
  • Maximum Static Pressure: 10 Bar
  • Flow Type: Single Flow
  • Isolation Included: Yes
  • High-Quality Metal Fixings for Security and Durability
  • Includes Ceramic Disc Valves for Added Durability and Ease of Use
  • Unique Patented Top Fix Design for Simple Installation from Above the Sink
  • Suitable for Low and High Water Pressure Systems
  • Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure
  • Plumbing System Requirements: Suitable for All Plumbing Systems
  • Push the Tap onto the Base and Secure it into Position with the Supplied Easyfit tool and Screws
  • Drop and Twist the Top Fix Base into the Tap Hole from Above, and Lock it into place with the Allen Key Provided
  • Supplied with Two Isolation Valves and Flexi Tails means You Can Connect to the Water Supply at this Point and isolate the Base
  • Refer to the Technical Image for the Technical Dimension
  • Download the Product datasheet and Installation Instruction PDF File from the Technical Info Section
  • 10 Years of Guarantee Against any Manufacturing Defect

Information Breakdown

Warranty/Guarantee 10 Years
Theme Modern
Width 137
Valve Type 1/2 Inch Ceramic Disc Valves
Base To Spout 230
Spout Reach 180
Handle Style Paddle Lever
WRAS Approved Yes
Inlet Connections 1/2 Inch BSP
Spout Swivel Yes
Tails Flexible
Installation Type Deck Mounted
Minimum Operating Pressure (Bar) 0.3

Technical Info

Bristan Acorn Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout

Download Product Data Sheet PDF

Download Installation Instructions PDF


PRODUCT VARIATIONS INFO & MFC CODE
  • Available Finishes
    Finish MFC

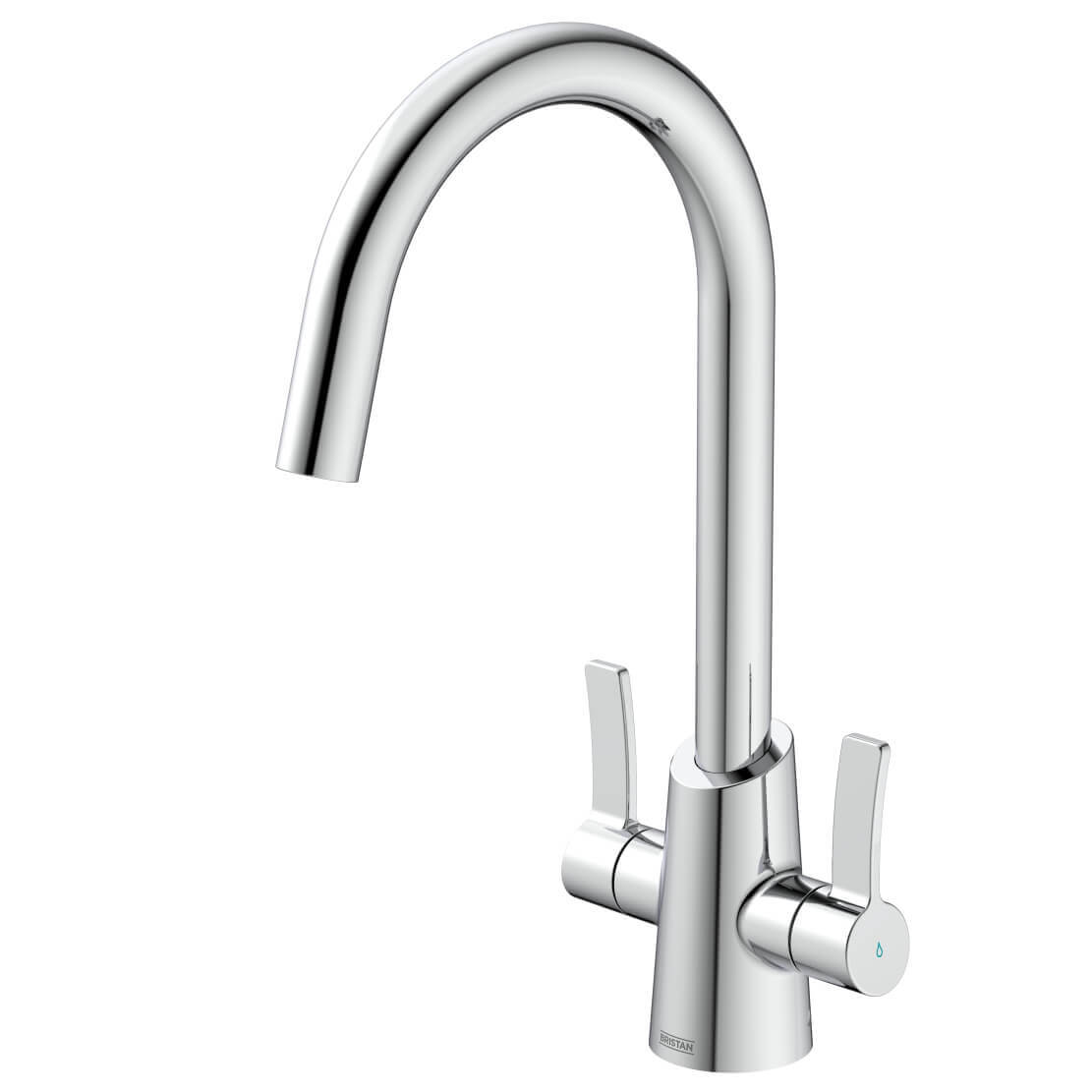

    Chrome ACR EFSNK C

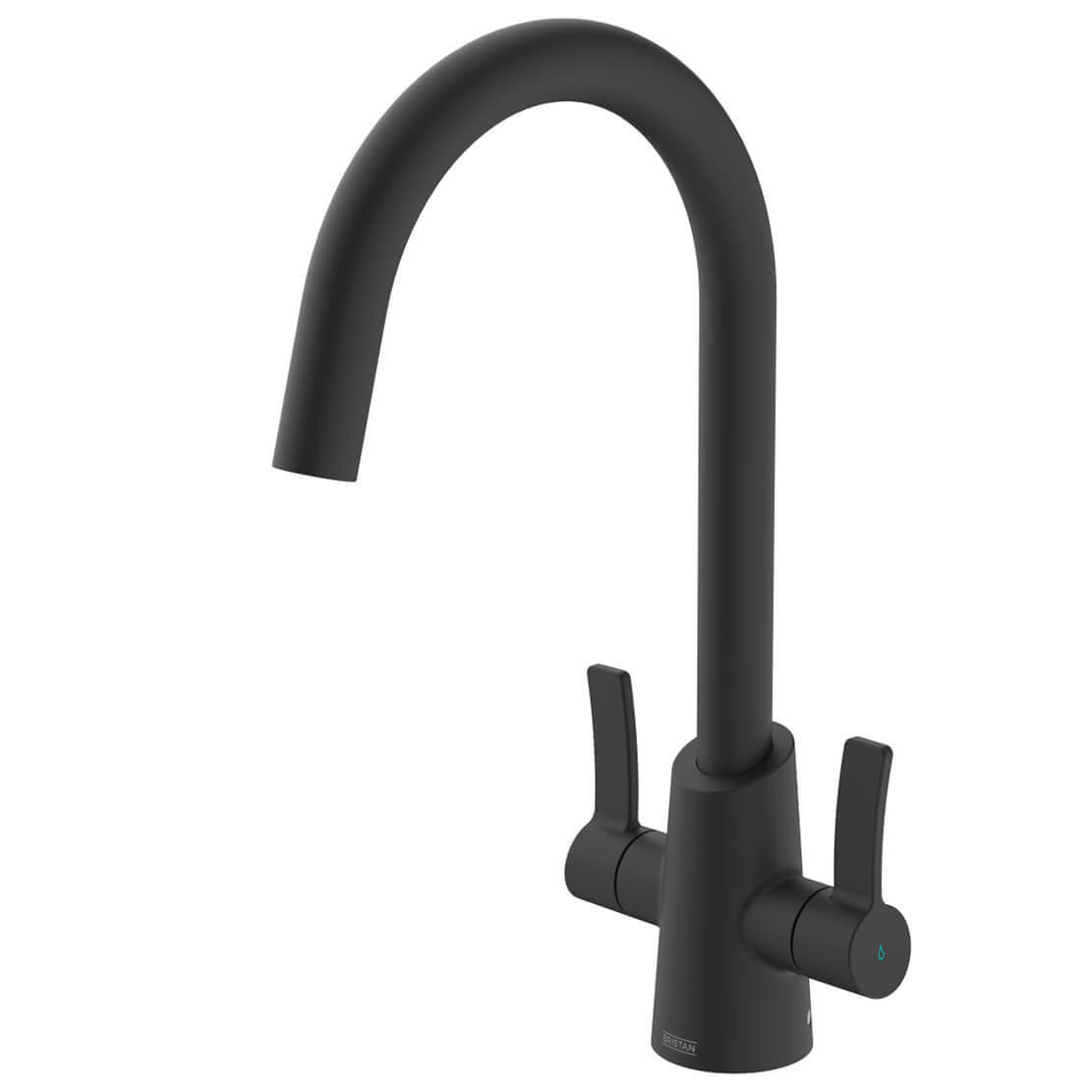

    Black ACR EFSNK BLK

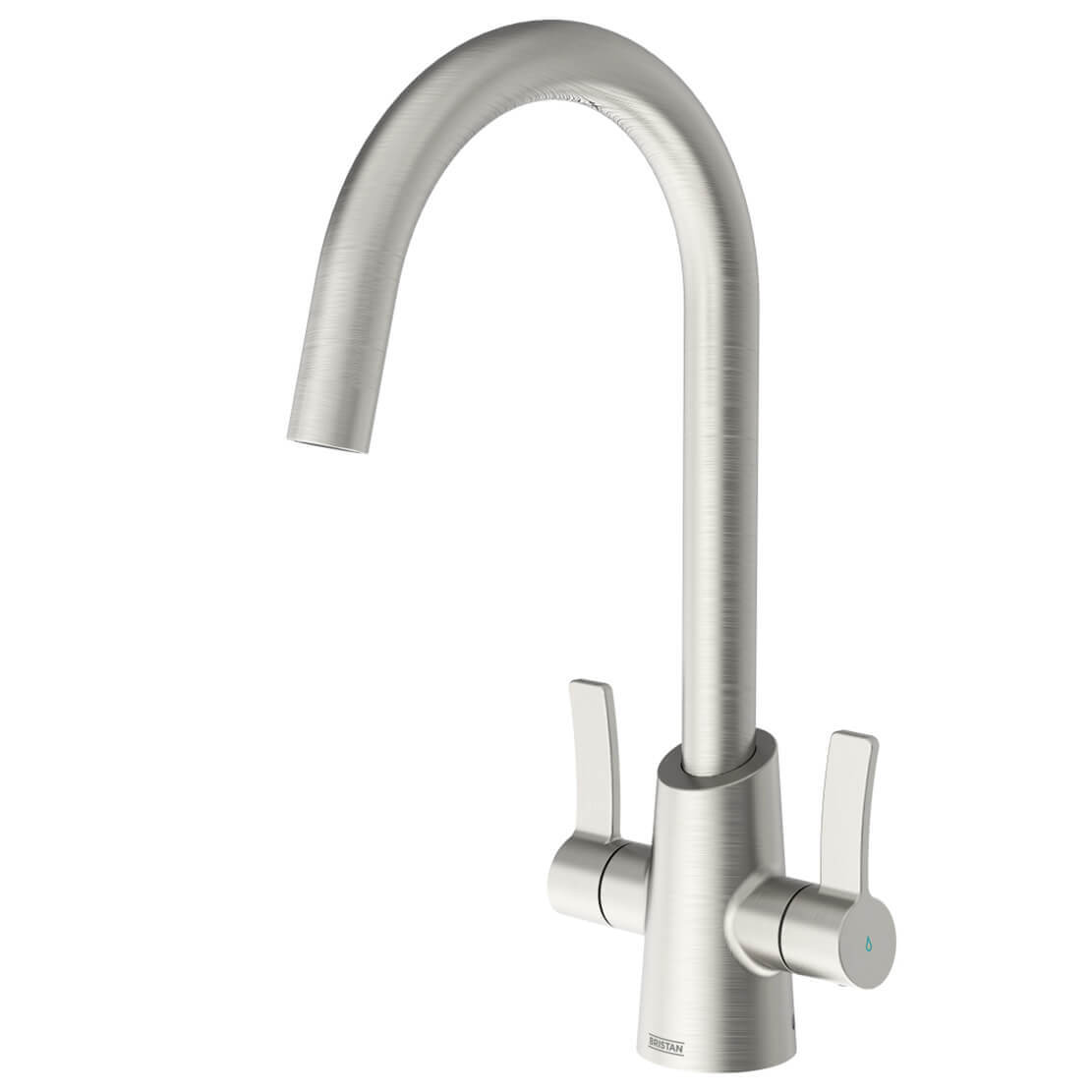

    Stainless Steel ACR EFSNK SS
