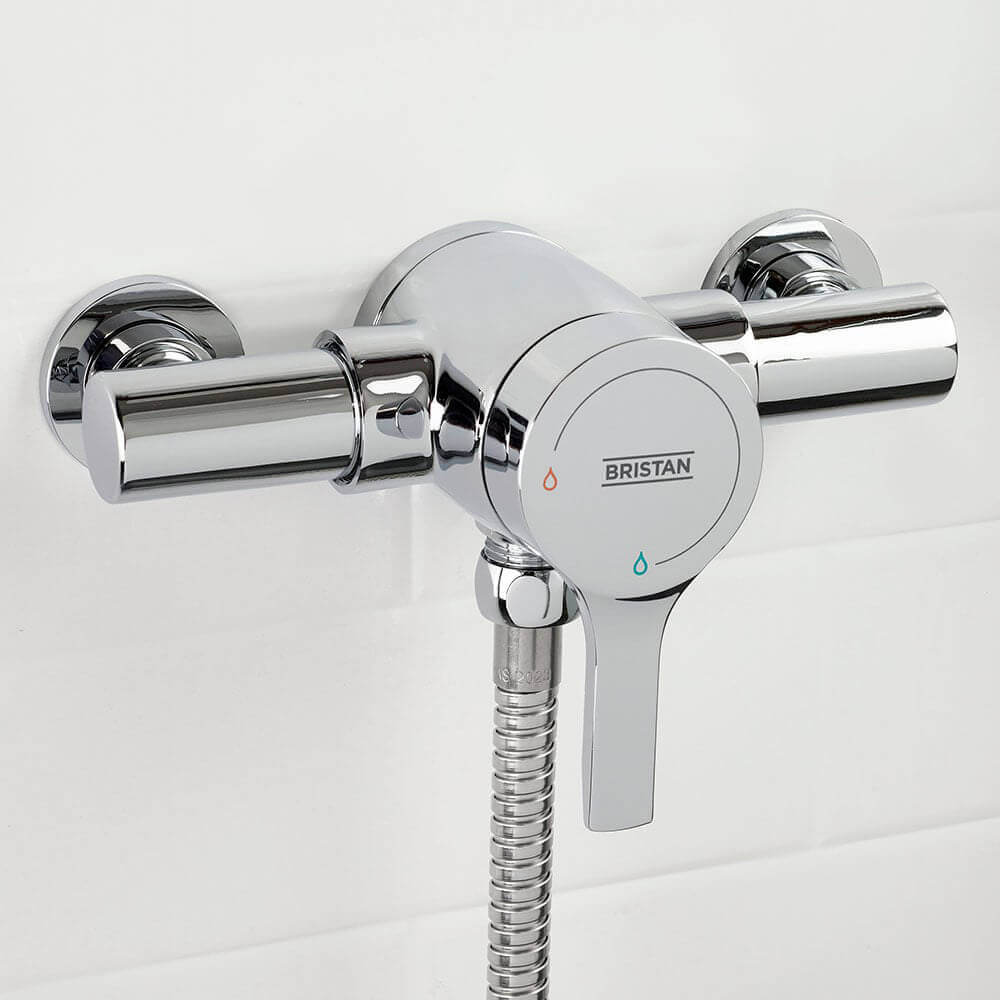

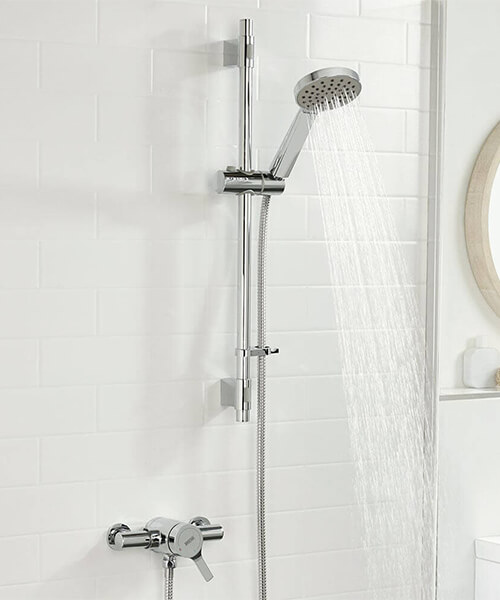

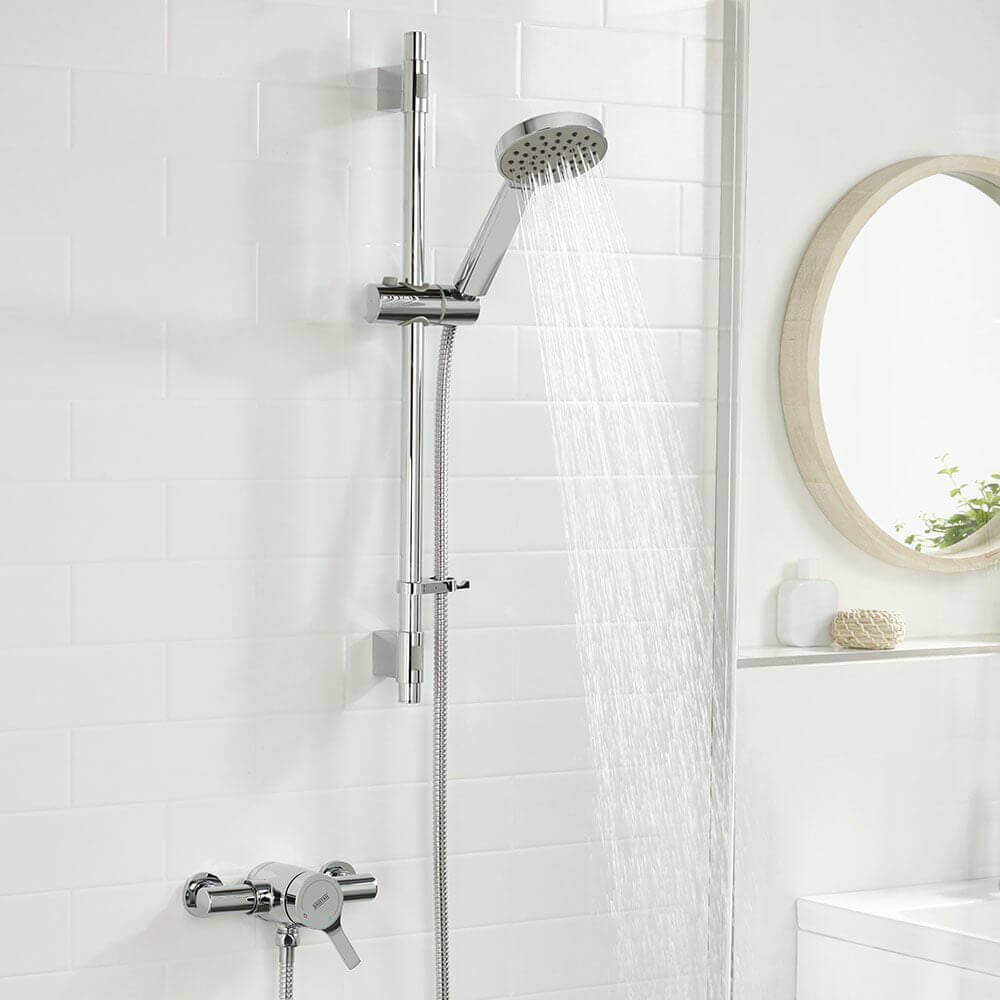

Bristan Onza Exposed Thermostatic Shower Valve with Handset and Riser Rail Kit

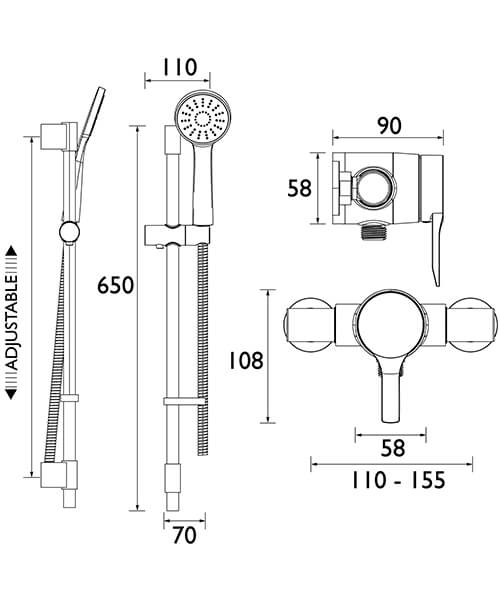

Technical drawing 68473 / NZA SHXAR C
Additional image of Bristan Onza Exposed Thermostatic Shower Valve with Handset and Riser Rail Kit

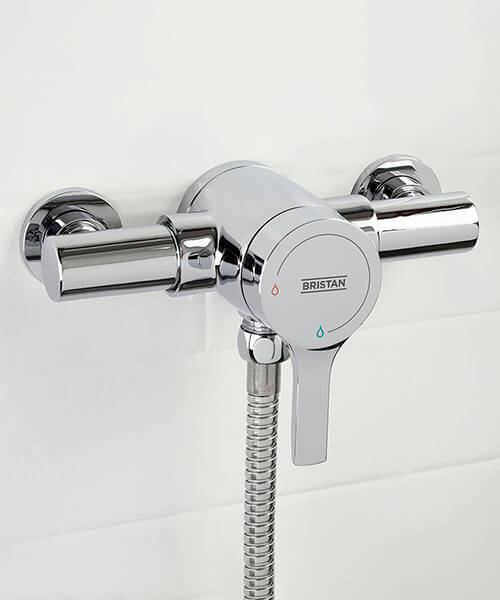

Additional image for 68473 Bristan - NZA SHXAR C

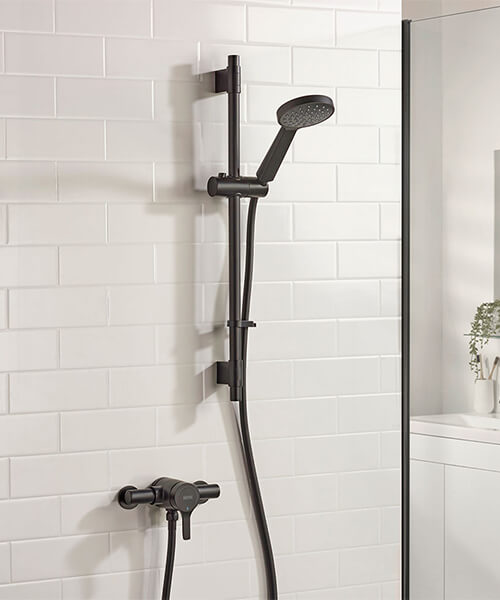

Bristan image

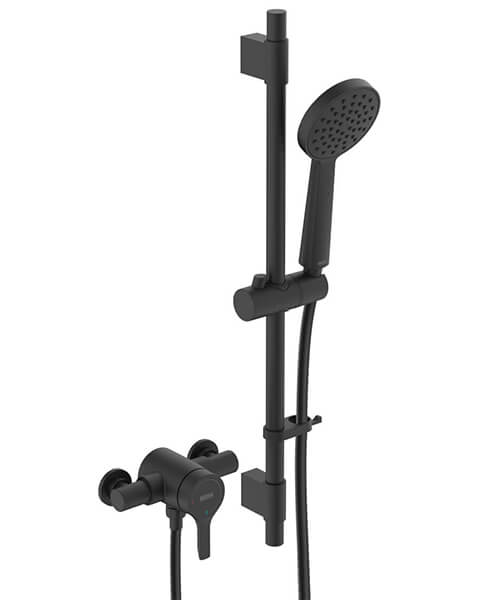

Alternate image of Bristan Onza Exposed Thermostatic Shower Valve with Handset and Riser Rail Kit
Alternate image of Bristan Onza Exposed Thermostatic Shower Valve with Handset and Riser Rail Kit

Bristan Onza Exposed Thermostatic Shower Valve with Handset and Riser Rail Kit

Bristan Logo
Available In 2 Finishes
No Rating No Rating Write a Review
Rate This:
MFC Code : NZA SHXAR C
Product Code : 68473
Delivery: £29.95
£167.40
RRP : £279.00
Finishes Available

OP-221860 - Chrome

qty :
  • Certified to TMV2 and NSF
  • Manufactured Using Brass, Stainless Steel and ABS Material
  • WRAS Approved
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • Certified to TMV2 and NSF
  • Manufactured Using Brass, Stainless Steel and ABS Material
  • WRAS Approved
  • Check Valve Included

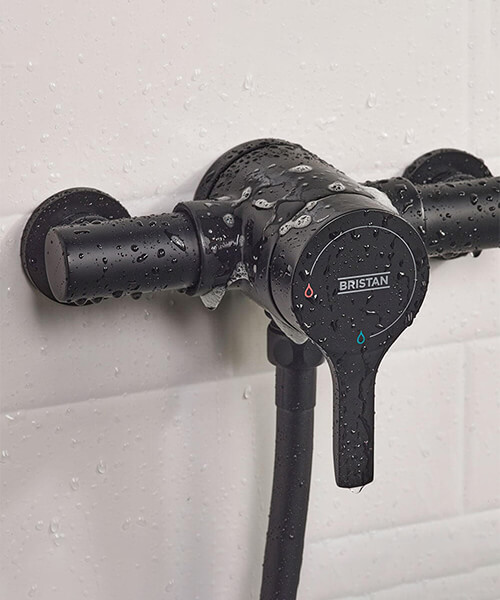

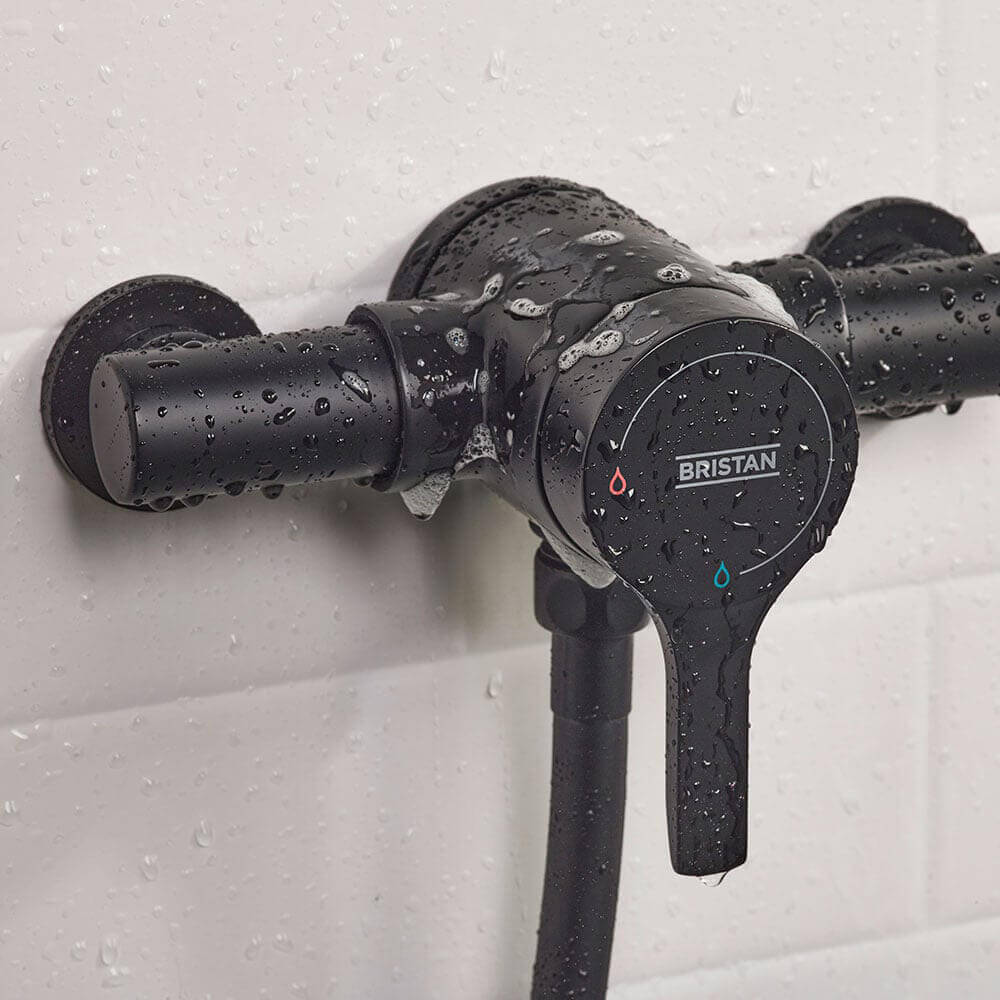

  • Available in 2 Finishes: Chrome and Black
  • Depth of Valve: 90mm [9cm]
  • Height of Riser Rail: 650mm [65cm]
  • Inlet Centre of Valve: 110-115mm [11-11.5cm]
  • Number of Controls: 1
  • Shower Type: Sequential Mini Valve
  • Shower Kit: Adjustable Riser
  • Valve/Cartridge Type: Sequential Cartridge
  • Maximum Hot Water Supply Temperature: 60°C
  • Maximum Static Pressure: 10 Bar
  • Connection Inlet: 15mm Compression
  • Connection Outlet: G 1/2 Inch
  • Suitable for High Water Pressure Systems
  • Required Minimum 1.0 Bar to Maximum 5.0 Bar Water Pressure
  • The Single Sequential Lever to Control Both Flow and Temperature in One
  • Automatic Shut-Off in the Event of Hot or Cold Water Supply Failure for Family-Safe Showering
  • Thermostatic Cartridge with Preset Temperature Safety Stop at 41°C for Family-Safe Showering
  • Salt Spray Tested to Ensure Added Durability
  • A Hard-Wearing, Flawless, Scratch-Resistant Chrome Finish That Lasts for Years

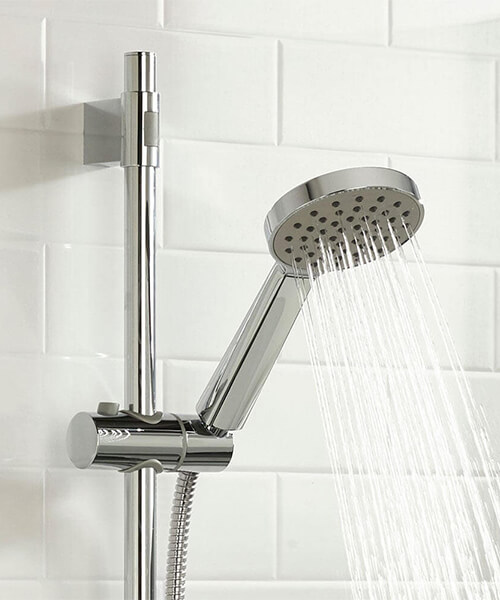

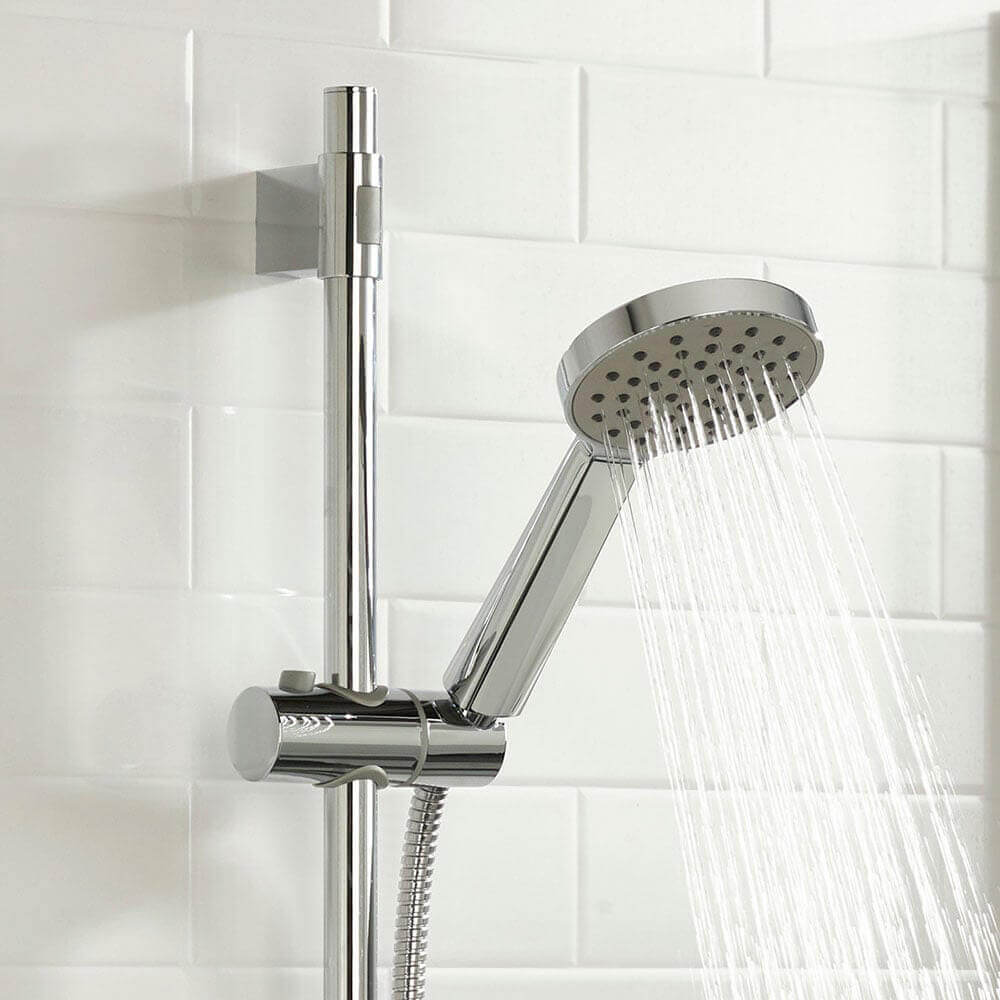

  • Rub-Clean Handset: Limescale and Debris Build-Up is Quickly and Easily Removed by Rubbing a Finger or Cloth Over the Nozzles
  • Easy Installation with Adjustable Elbow Inlets, Which Enable You to Use on Existing Pipework Centres Between 110mm and 155mm

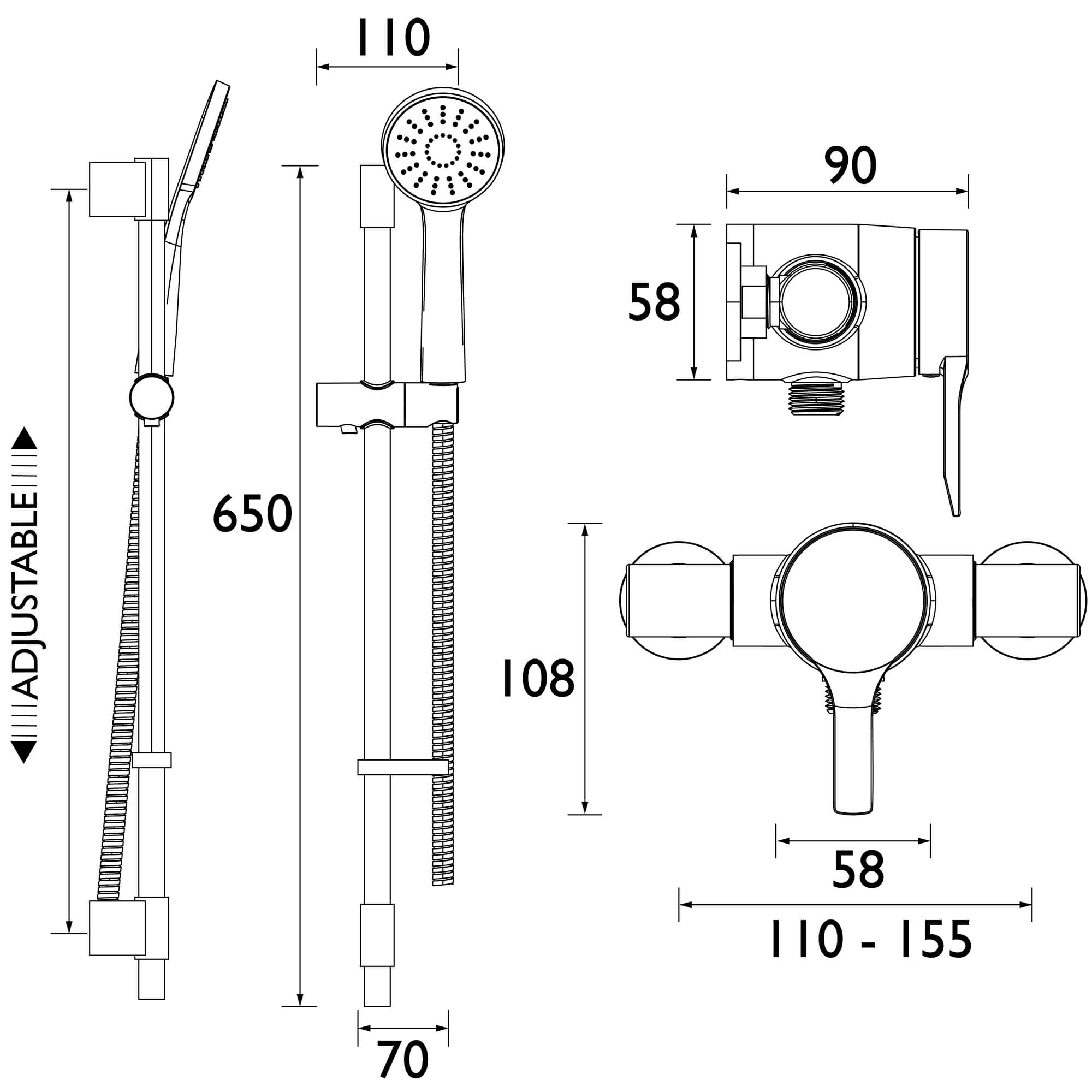

  • Refer to the Technical Image for the Technical Dimension
  • Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section
  • 5 Years On Parts and 1 Year of Labour Guarantee from the Manufacturer

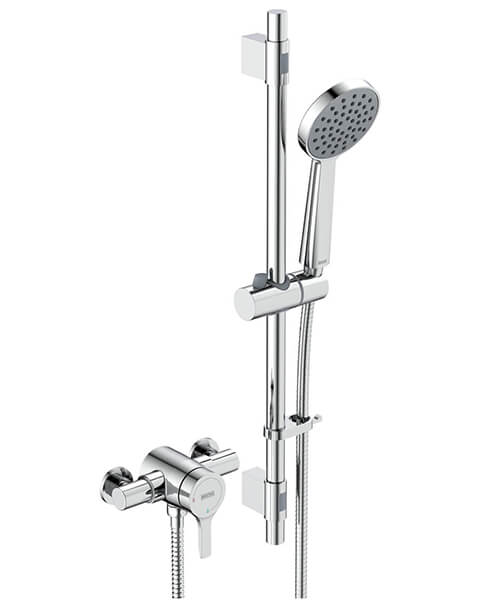

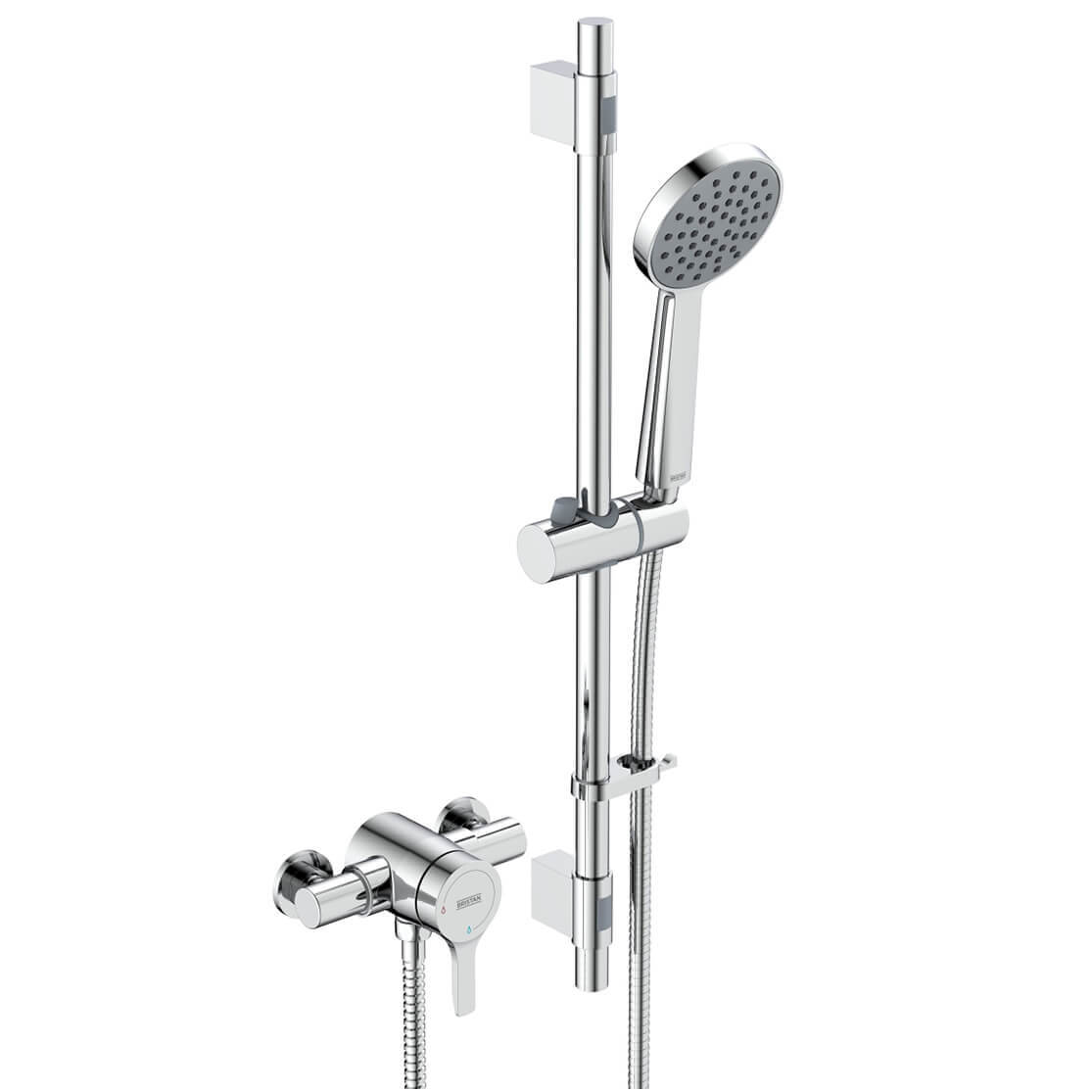

  • Pack Includes:
  • Shower Valve, Hose, Hose Retainer, Riser Rail and a Rub-Clean Anti-Limescale Single-Function Handset

Information Breakdown

Colour Chrome
Warranty/Guarantee 5 Years
Theme Modern
Inlet Connections 15mm Compression
Hose Included Yes
Temperature Control Thermostatic
Showerhead Finish Chrome
Riser Rail & Kit Finish Chrome
Handset Included Yes
Rail Length 650
Outlet Elbow Included Yes
Minimum Operating Pressure (Bar) 1.0

Technical Info

Bristan Onza Exposed Thermostatic Shower Valve with Handset and Riser Rail Kit

Download Product Data Sheet PDF

Download Installation Instructions PDF
