Burlington Guild Traditional Thermostatic Mixer Valve With Fixed Head And Handset

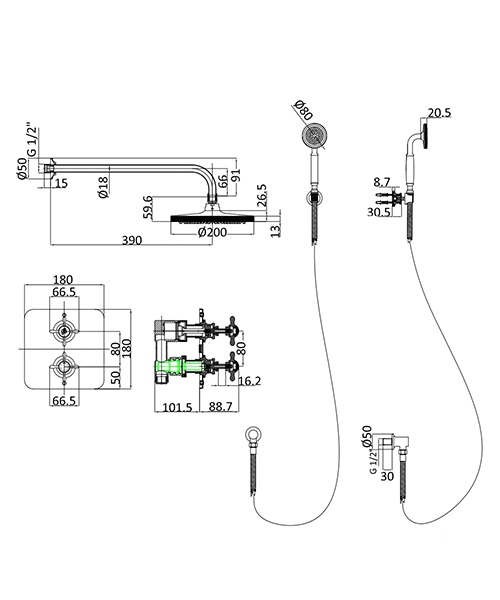

Technical drawing 71745 / GUSHOWERPACKSQ3C

Additional image of Burlington GUSHOWERPACKSQ3C

Burlington Guild Traditional Thermostatic Mixer Valve With Fixed Head And Handset

Name: Burlington Guild Traditional Thermostatic Mixer Valve With Fixed Head And Handset
Brand: Burlington
SKU: GUSHOWERPACKSQ3C
Price: 792.8 GBP
Availability: InStock

No Rating

Write a Review

Rate This:

MFC Code : GUSHOWERPACKSQ3C

Product Code : 71745

Delivery: £34.95

£792.80

Finishes Available

OP-222334 - Chrome

qty :

Available in different finishes
Material: Brass
Installation: Wall-mounted

About This Product

Available in different finishes
Material: Brass
Installation: Wall-mounted
Includes dual outlet concealed thermostatic valve, fixed shower head, arm, handset and hose
Inlet connection thread: G3/4-Inch
Outlet connection thread: G1/2-Inch
Quarter-turn operation
Thermostatic cartridge
40mm Diverter
Traditional crosshead design
Suitable for medium water pressure System
Minimum water pressure required: 0.5 bar
Maximum water pressure required: 5.0 bar
Primary Flow Rate (l/min): 0.5 Bar: 8.2, 1 Bar: 11.6, 2 Bar: 14.16, 3 Bar: 17.08, 4 Bar: 19.48, 5 Bar: 21.8
Handset Flow Rate (l/min): 0.5 Bar: 16.65, 1 Bar: 23.56, 2 Bar: 29.68, 3 Bar: 37.2, 4 Bar: 43.92, 5 Bar: 46.7
Standards: EN1111

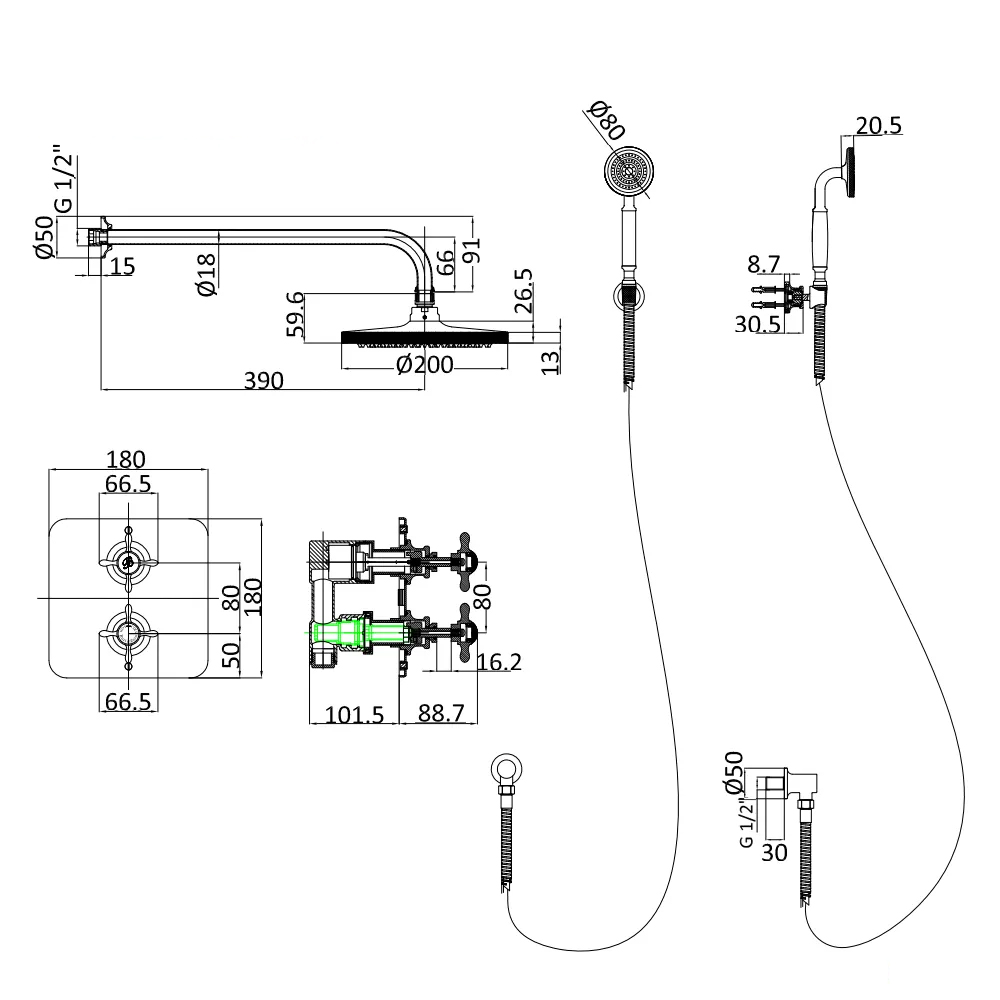

Refer to the technical diagram for complete size details
Guarantee: 15-year from the manufacturer
For installation instruction, download the PDF file

Information Breakdown

Colour	Chrome
Warranty/Guarantee	15 Years
Theme	Traditional
Temperature Control	Thermostatic
Handset Included	Yes
Shower Head Included	Yes
Minimum Operating Pressure (Bar)	0.5
