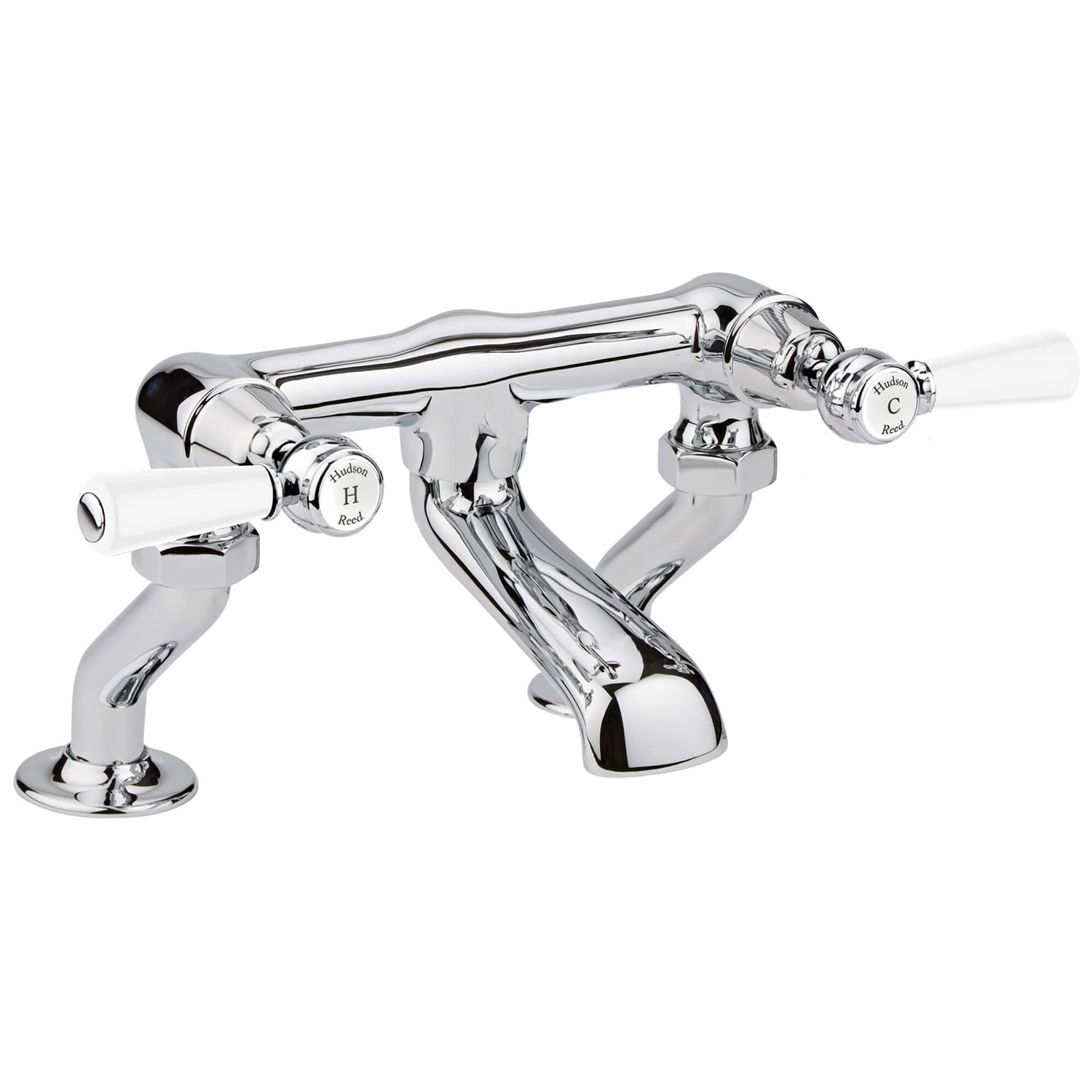

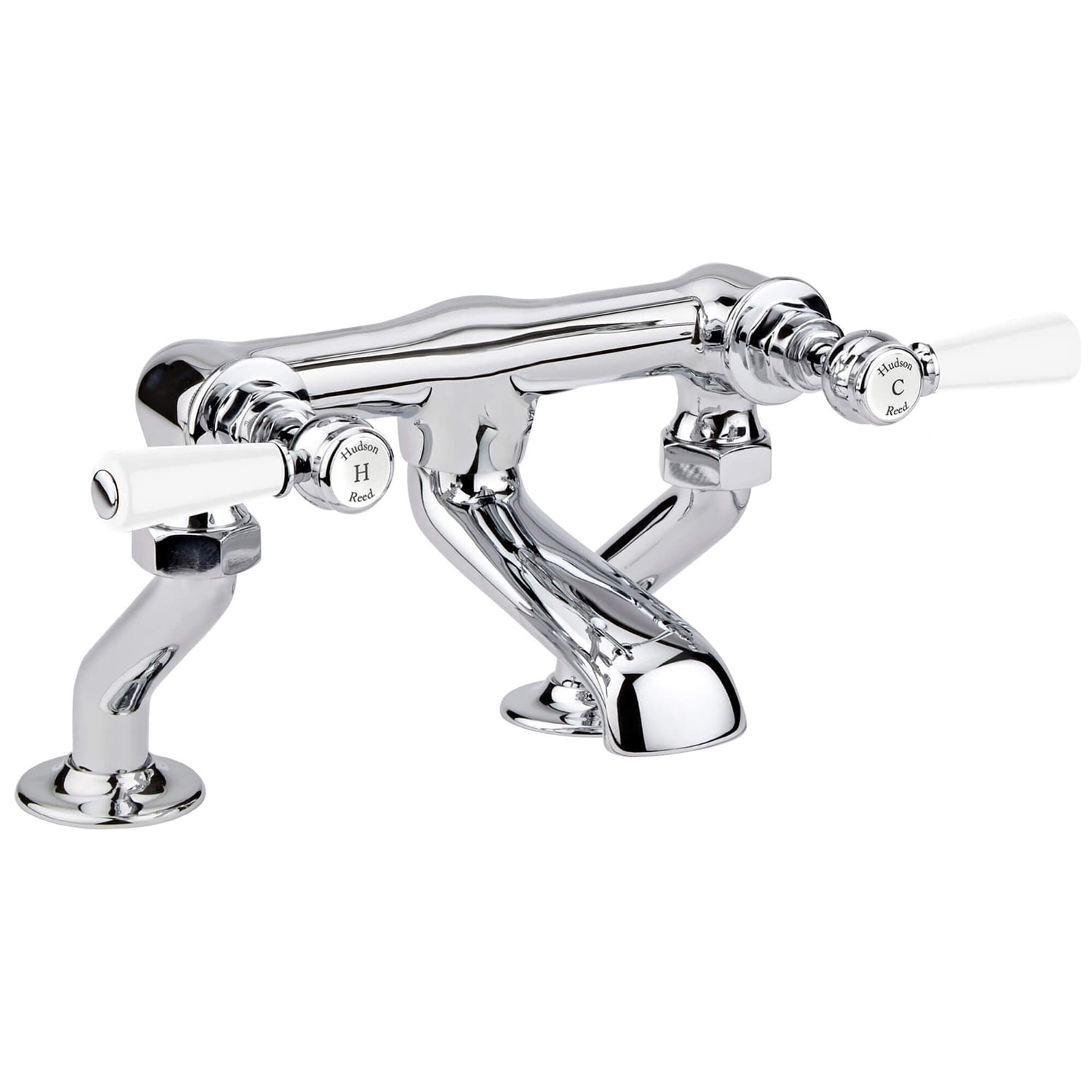

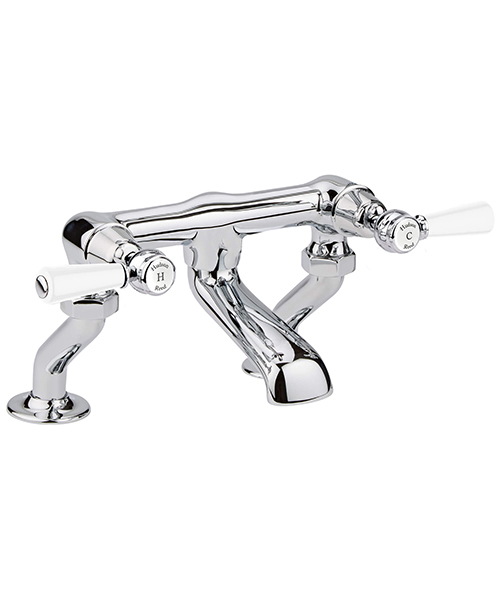

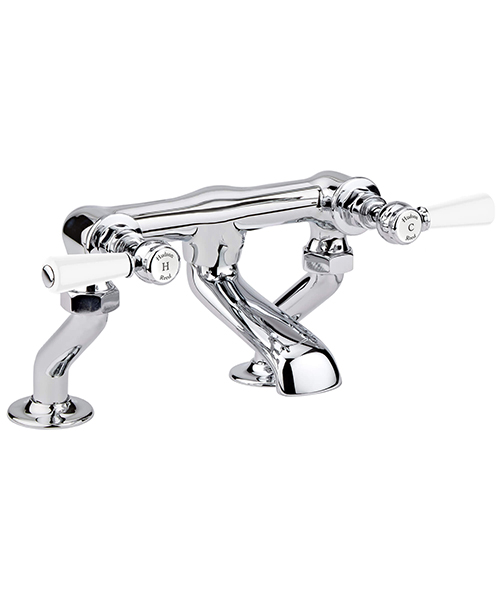

Hudson Reed Topaz Bath Filler Tap

Name: Hudson Reed Topaz Bath Filler Tap
Brand: Hudson Reed
SKU: BC303HL
Price: 144.2 GBP
Availability: InStock

No Rating

Write a Review

Rate This:

MFC Code : BC303HL

Product Code : 72994

Delivery: £7.95

£144.20

RRP : £412.00

Variation Available

OP-222489 - Chrome and White Lever - Hexagonal Collar

qty :

Lever-Handle Deck-Mounted Bath Filler Tap
Cartridge Type: 1/4-Turn Ceramic Disc
Constructed using high-quality brass Material
Ceramic disc technology for long-lasting and smooth operation
Single lever handle operation
Dimension: Width 338mm (33.8cm) x Depth 217mm (21.7cm)
Height: 175mm 17.5cm
Base to Spout: 63mm (6.3cm)
Inlet Centre: 196mm (19.6cm)
Centre of the Inlet to the Centre of the Outlet: 121mm (12.1cm)
Pipe Centres: 90mm - 300mm (9cm - 30cm)
Pipe Size: 22mm (3/4" BSP)
Requires 2 Tapholes for Installation
Weight: 2kg
Stunning traditional bath filler offering a timeless design
During installation, extra care must be taken to avoid damaging the fittings
Compatible with low-pressure water systems
Requires a Minimum of 0.2 Bar of Water Pressure for Smooth Flow
The minimum flow rate is litres per minute at bar water pressure
Download the PDF from the technical Info Section for the technical data sheet and mounting instructions

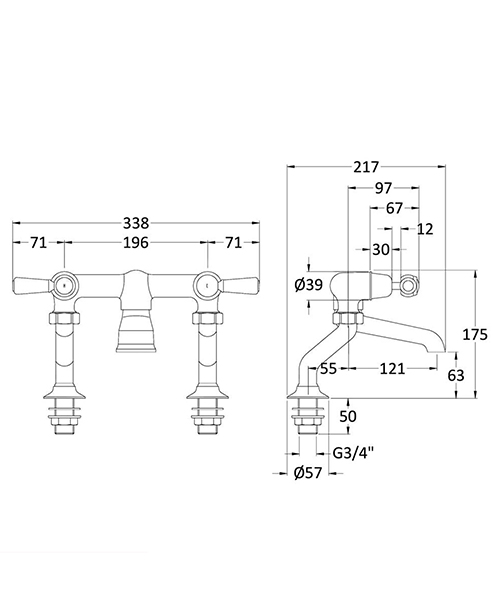

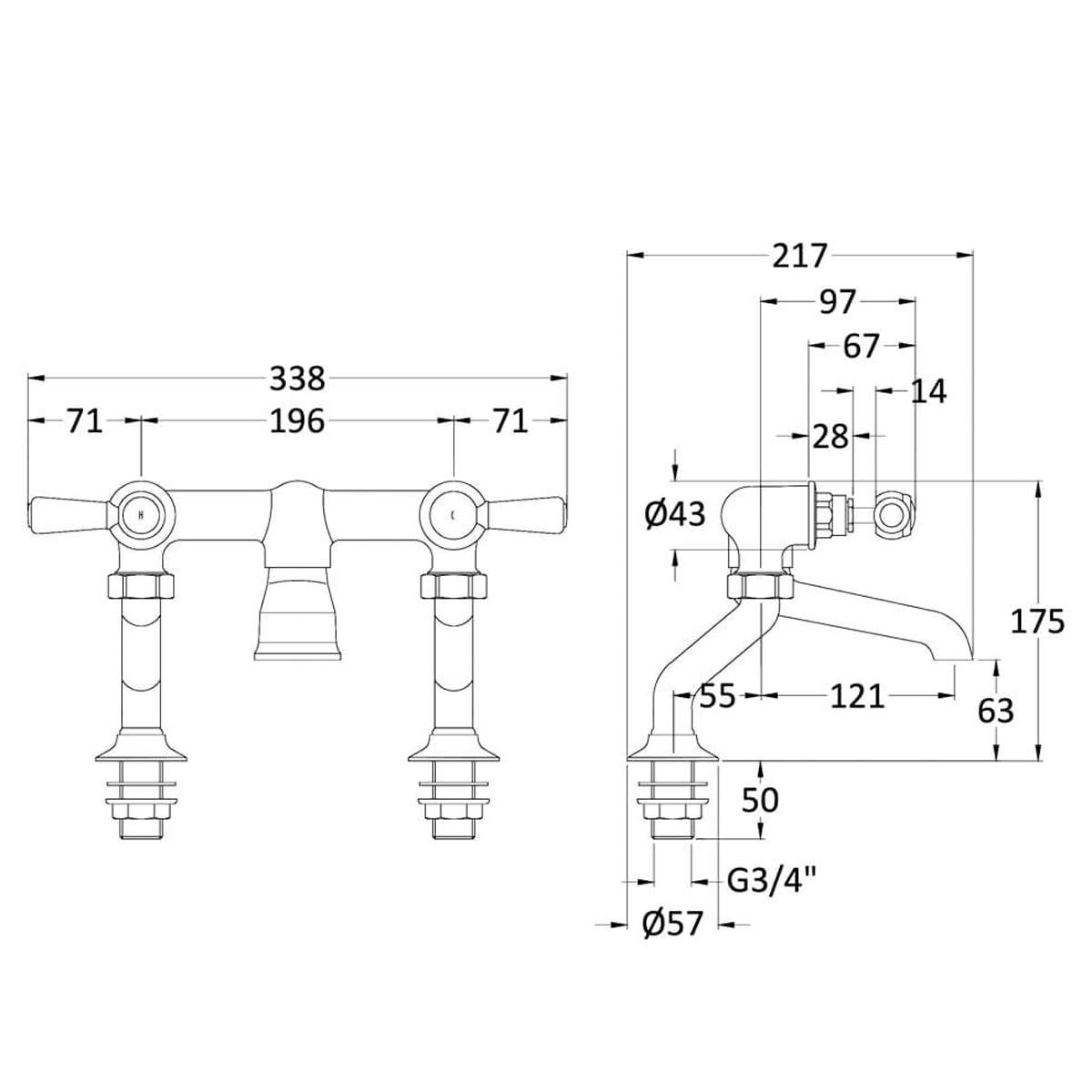

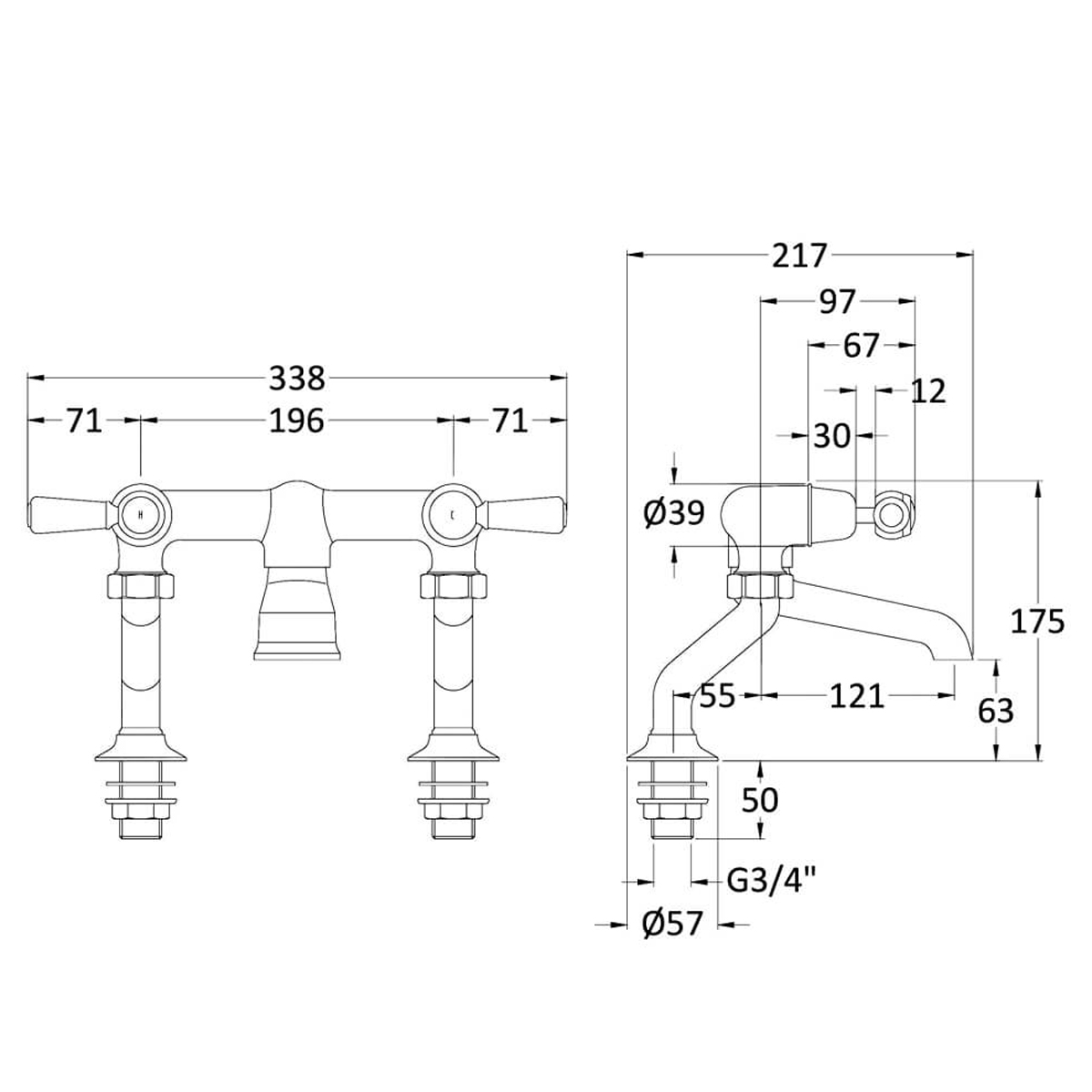

Refer to the technical drawing for more technical specifications
Guarantee: 20-Year for chrome finish and 3-Year for other finishes against manufacturing defects
Available Optional Product:
Available in different finishes Chrome, Brushed Brass and Brushed Pewter
Available with Black or White Handles and Indices
Taps come in a Hexagonal or Dome Collar

Colour	Chrome
Warranty/Guarantee	20 Years
Theme	Traditional
Width	338
Height	175
No. of Tap Holes	2
Base To Spout	63
Spout Reach	121
Handle Style	Lever
Inlet Connections	G 3/4-Inch
Valve Included	Yes
Inlet Centres	196
Installation Type	Deck Mounted
Minimum Operating Pressure (Bar)	0.2

Download Technical Data Sheet PDF

Download Mounting Instruction PDF

Specifications For Tap

Finish	Indices Finish	Handle Finish	Handle Style	Collar	MFC
Chrome	White	White	Lever	Hexagonal Collar	BC303HL
Chrome	White	White	Lever	Dome Collar	BC303DL
-	-	-	-	-

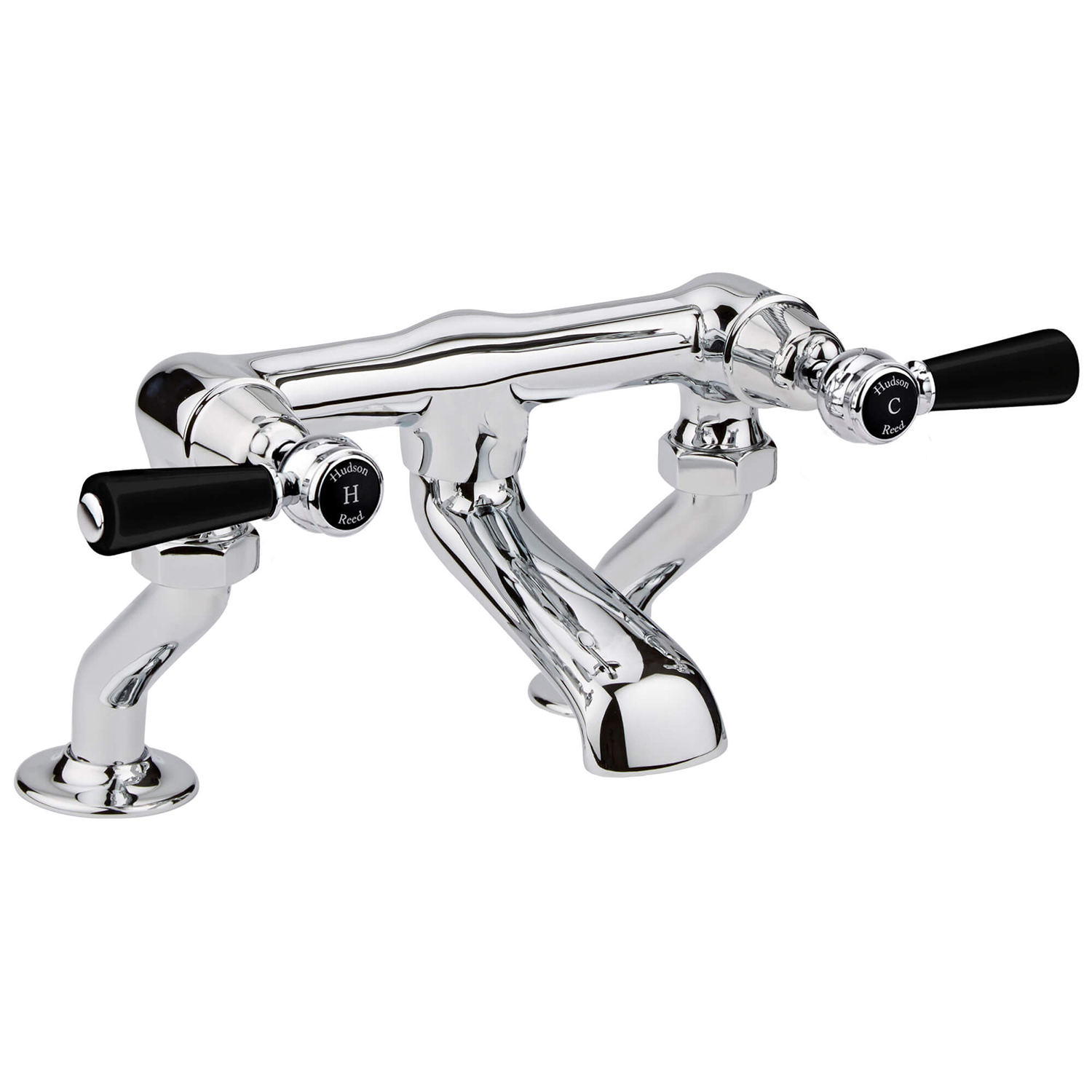

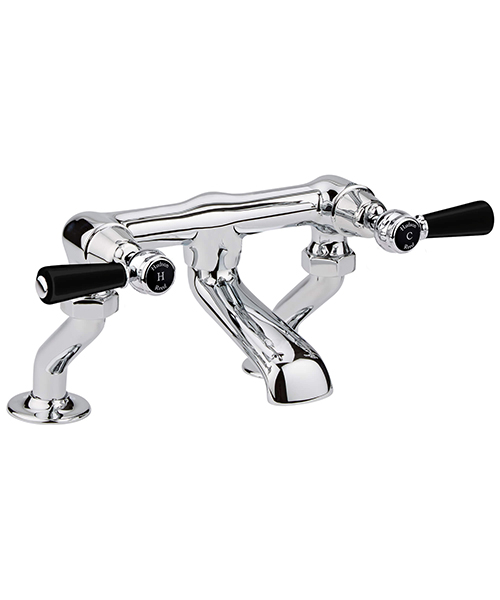

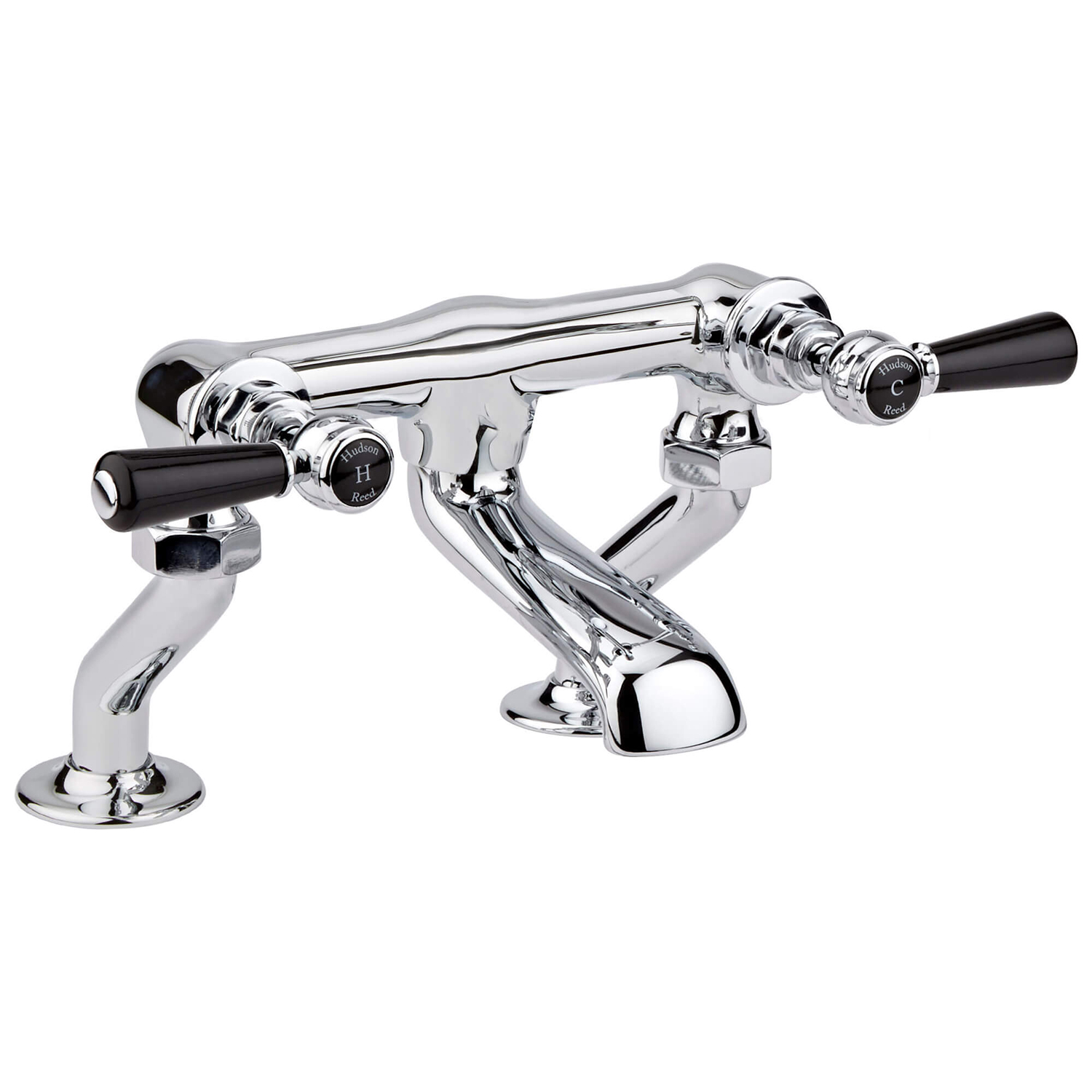

Chrome	Black	Black	Lever	Hexagonal Collar	BC403HL
Chrome	Black	Black	Lever	Dome Collar	BC403DL
-	-	-		-

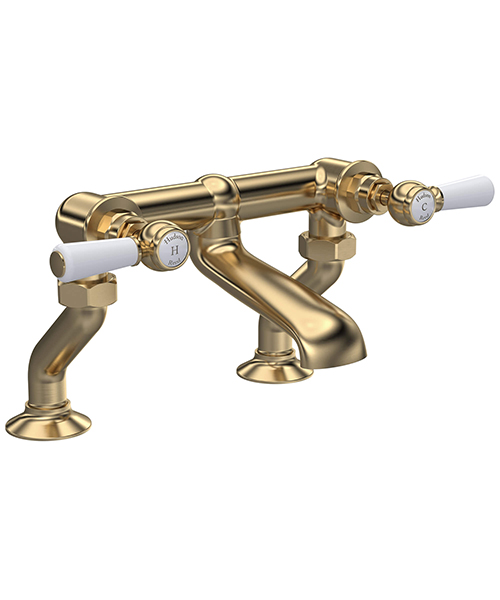

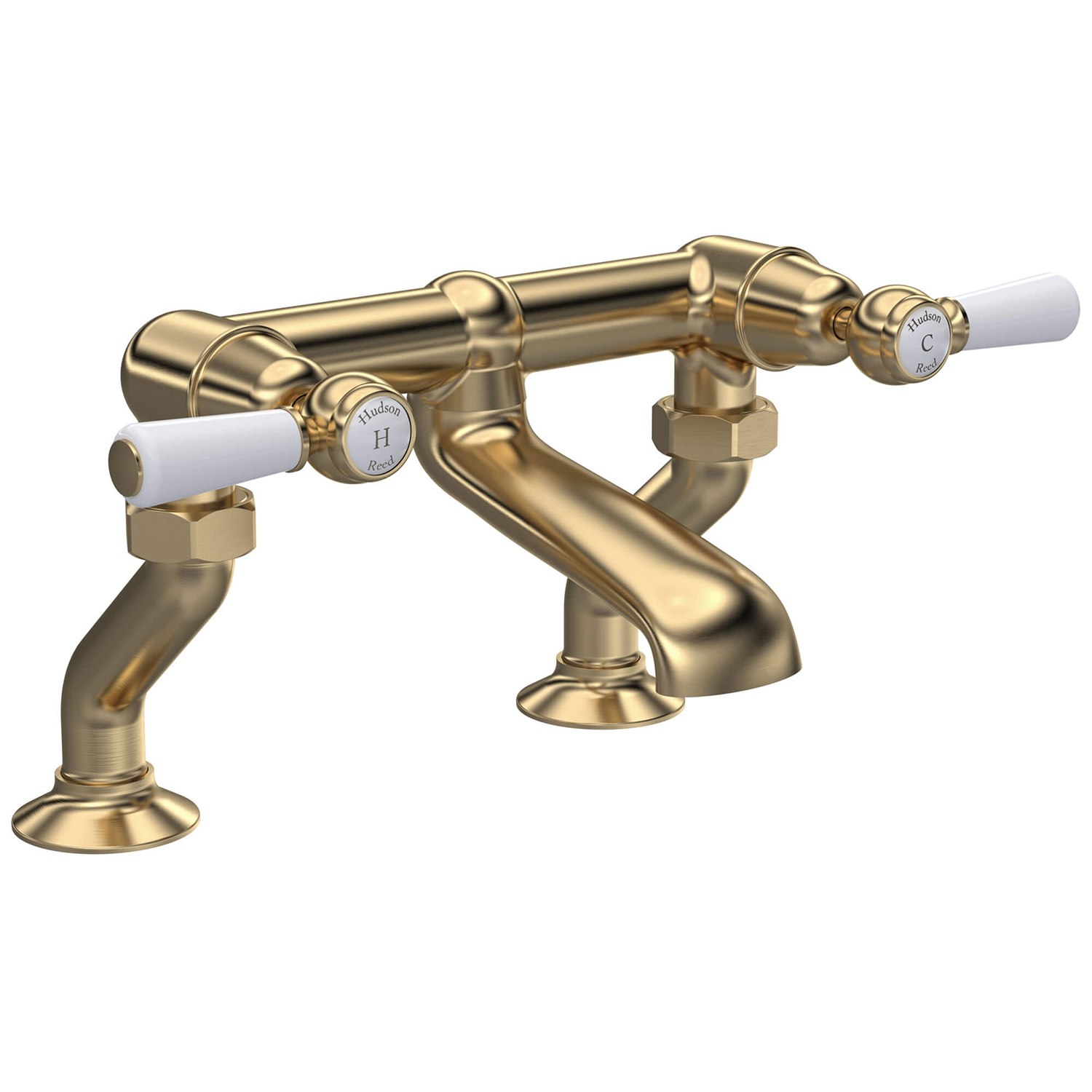

Brushed Brass	White	White	Lever	Hexagonal Collar	BC803HL
Brushed Brass	White	White	Lever	Dome Collar	BC803DL
-	-	-		-

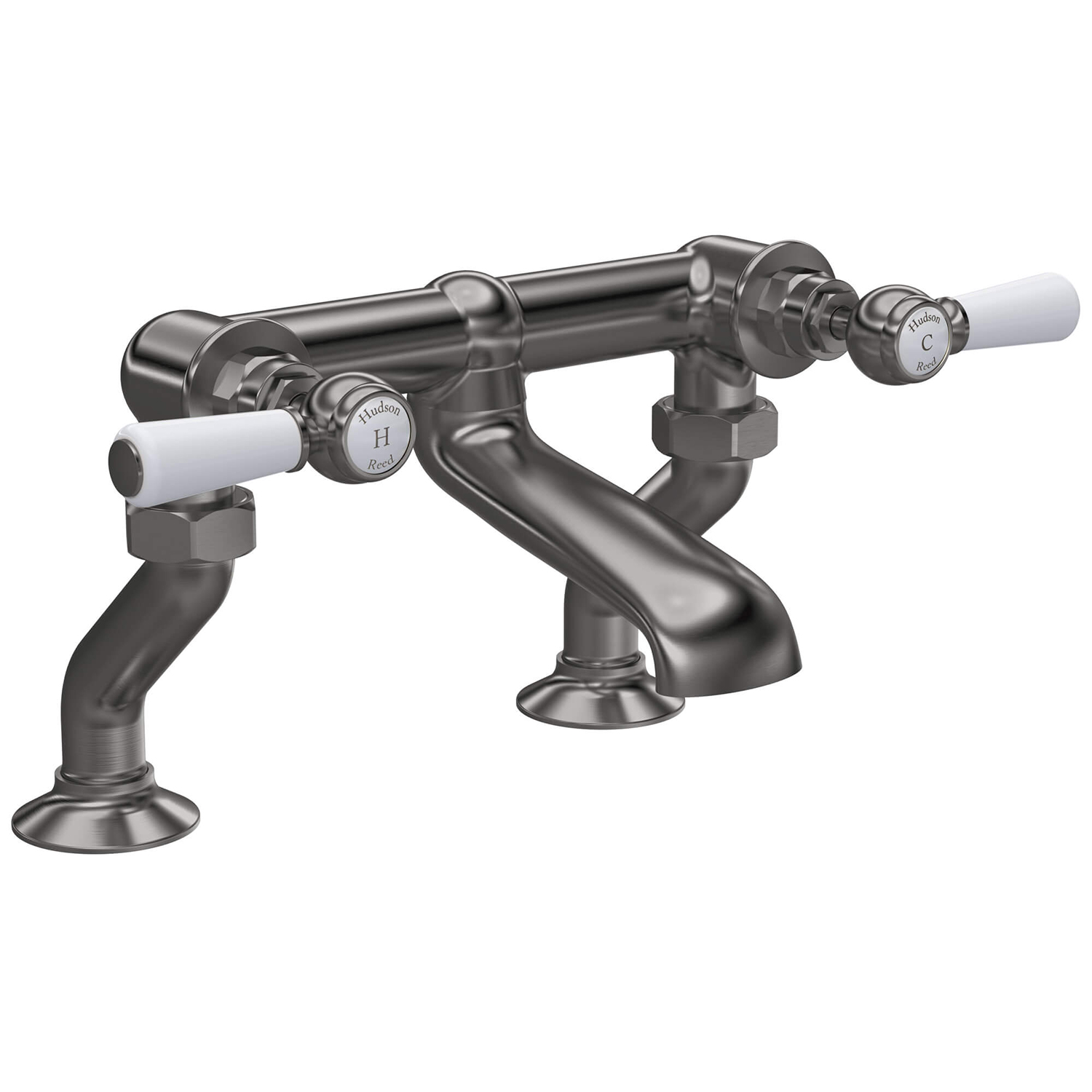

Brushed Pewter	White	White	Lever	Hexagonal Collar	BC703HL
Brushed Pewter	White	White	Lever	Dome Collar	BC703DL
