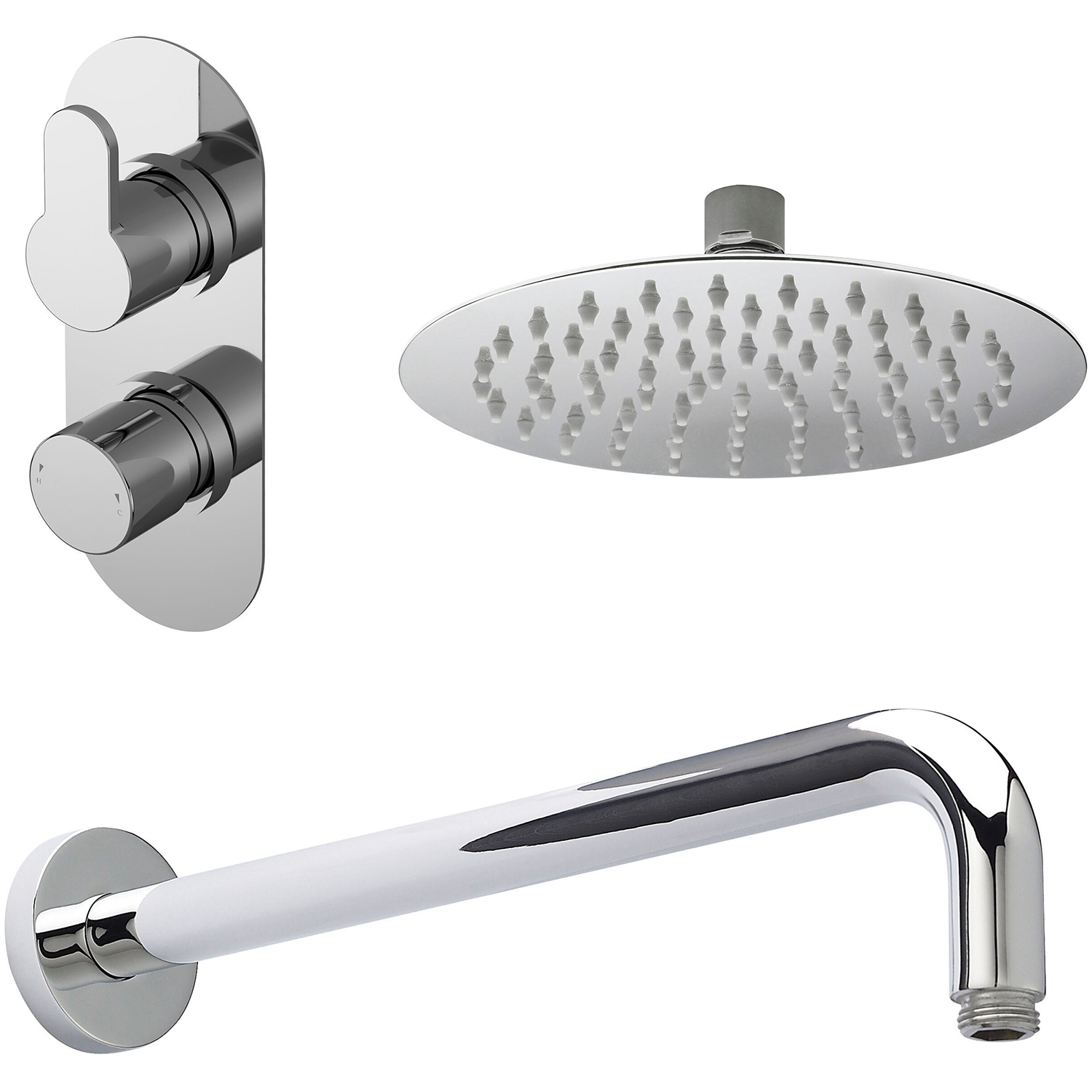

Nuie Arvan Wall Mounted Dual Control Thermostatic Shower Valve With Fixed Head

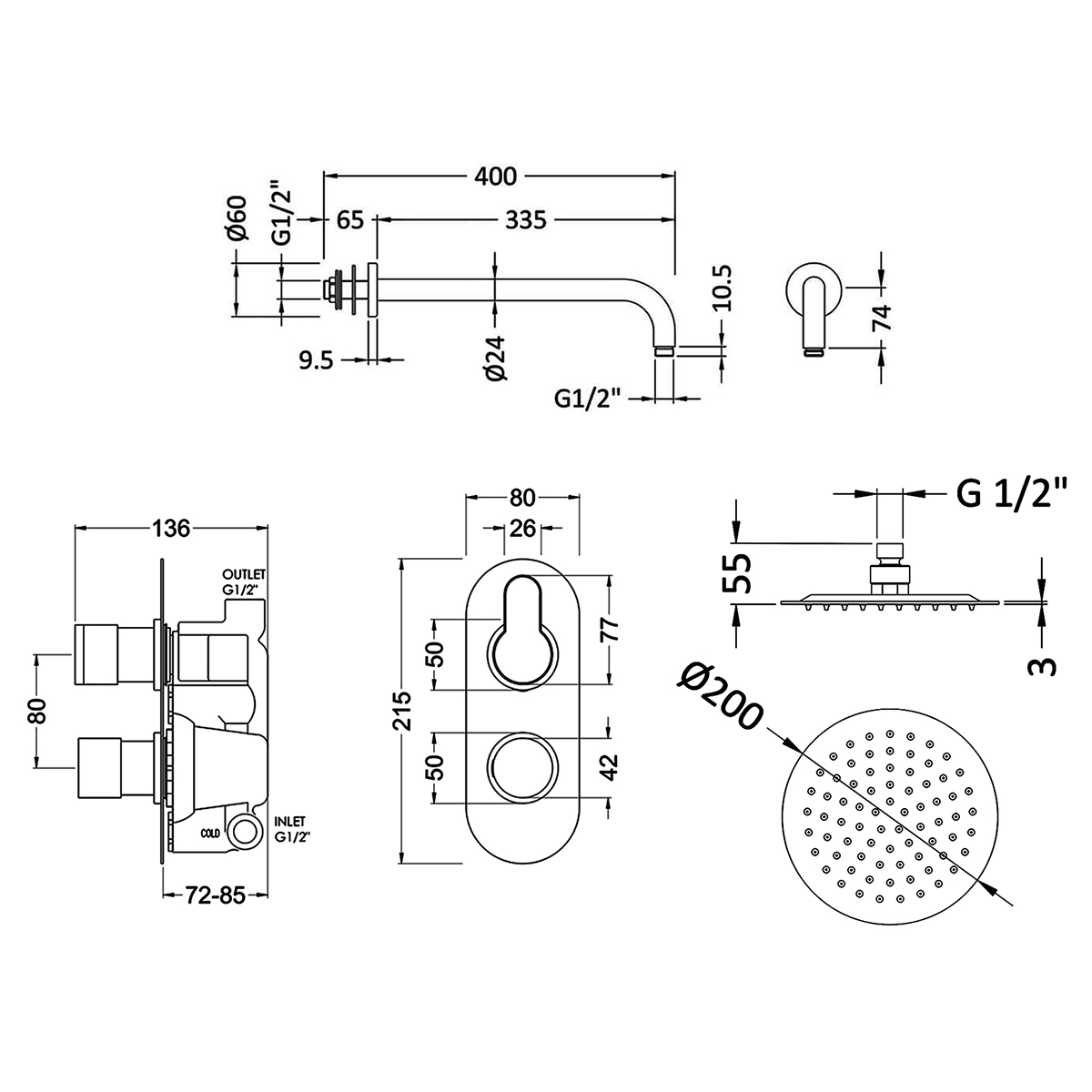

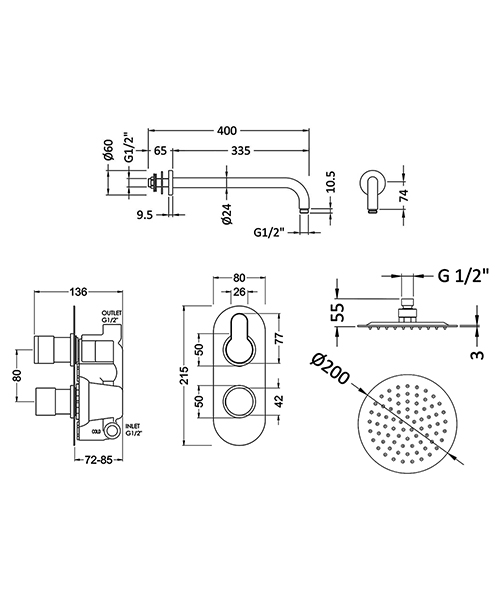

Technical drawing 72996 / SBR01TW1

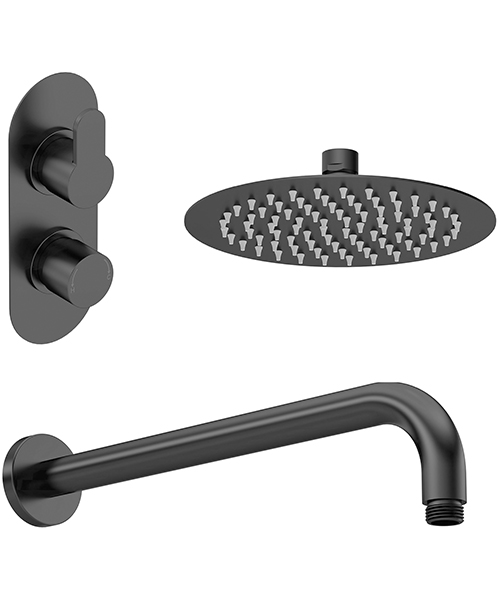

Additional image of Premier SBR01TW1

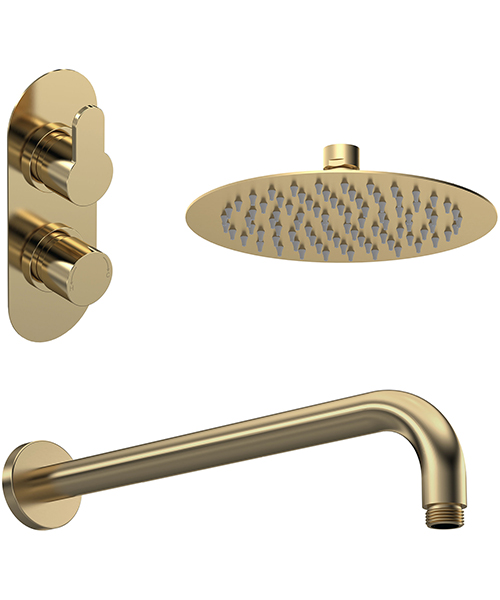

Additional image of Nuie Arvan Wall Mounted Dual Control Thermostatic Shower Valve With Fixed Head

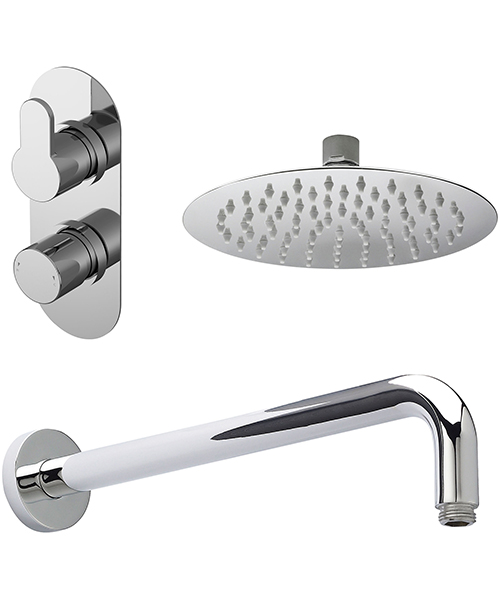

Nuie Arvan Wall Mounted Dual Control Thermostatic Shower Valve With Fixed Head

Nuie Logo

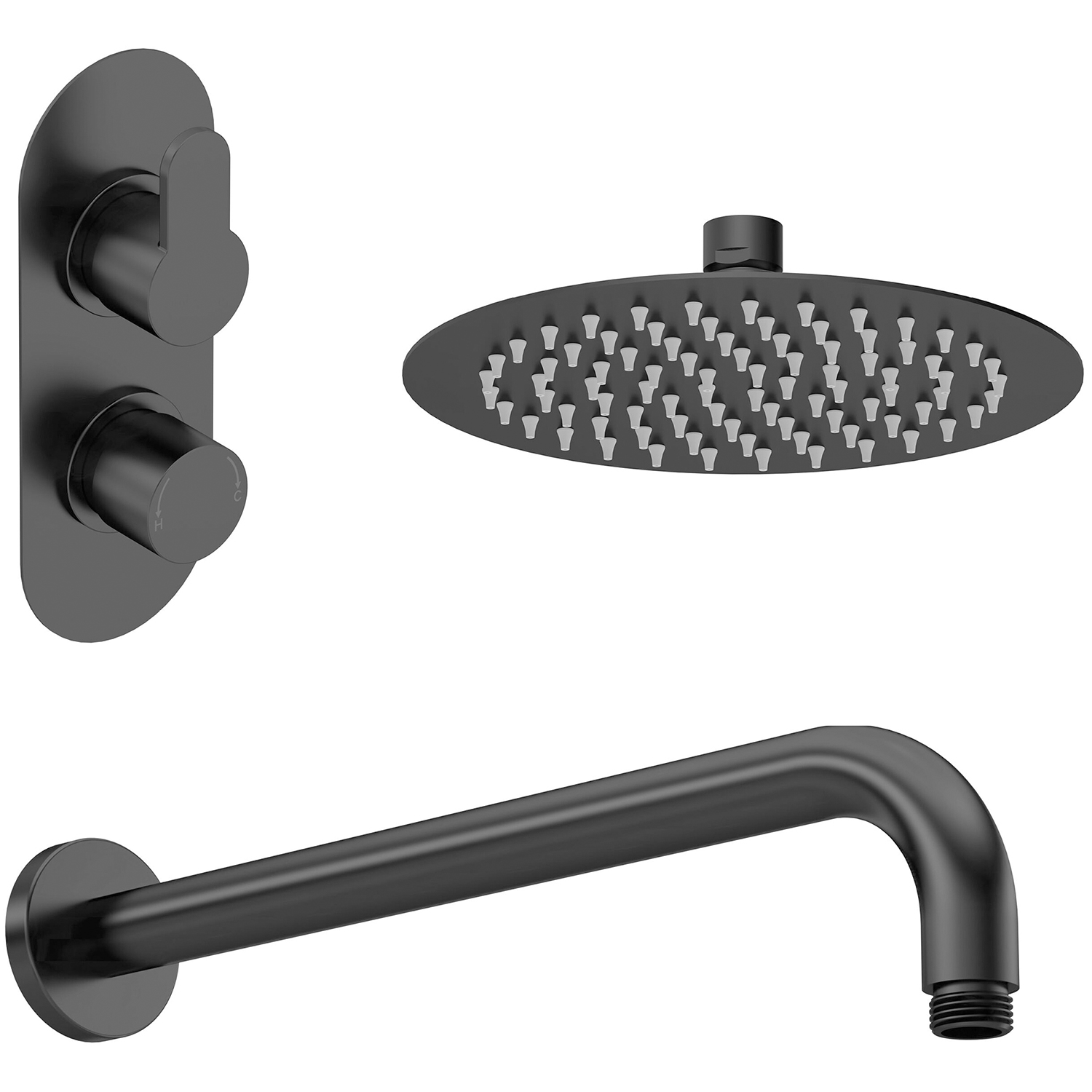

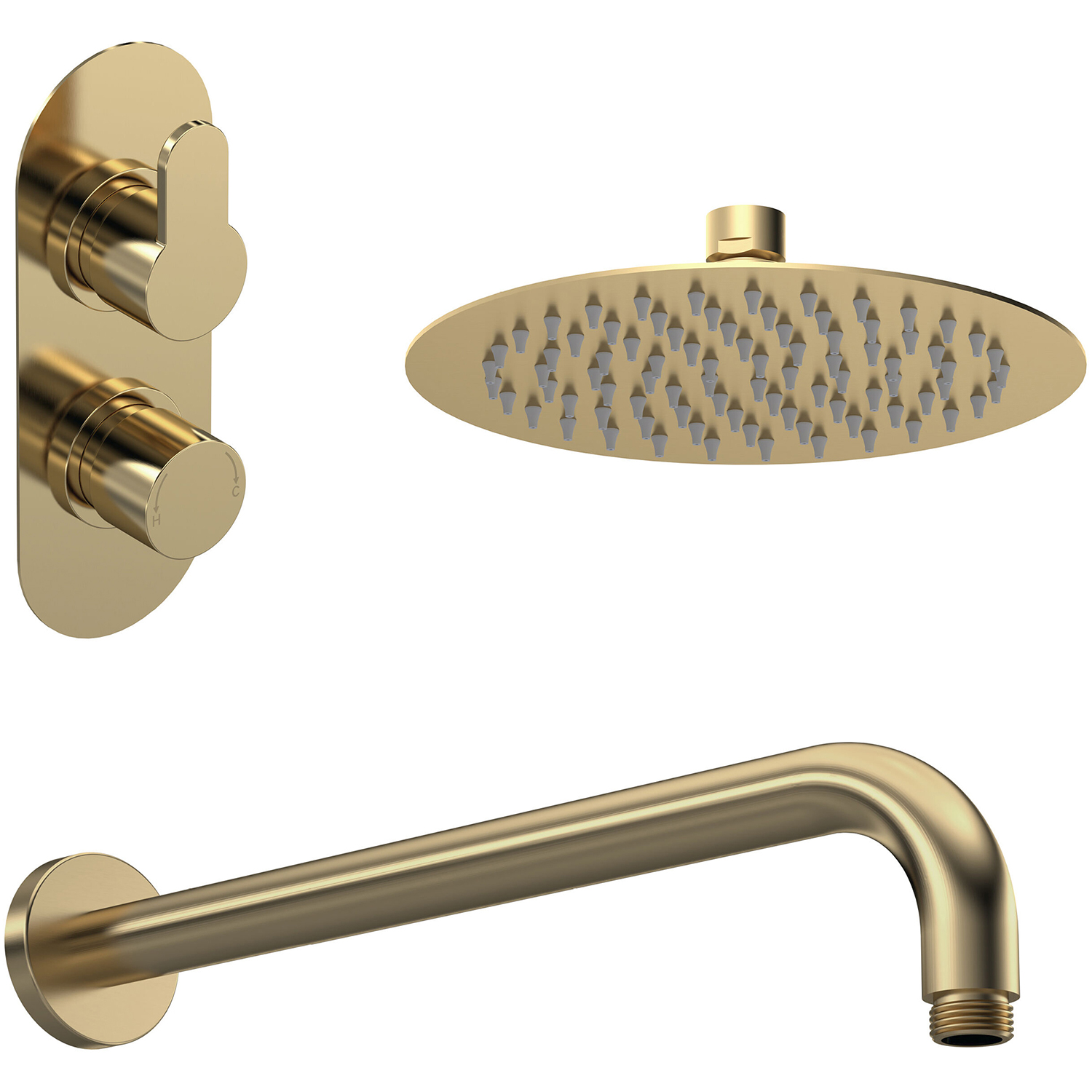

Available Finishes: Chrome / Matt Black / Brushed Brass
No Rating No Rating Write a Review
Rate This:
MFC Code : SBR01TW1
Product Code : 72996
Delivery: £34.95
£508.00
RRP : £635.00
Finishes Available

OP-222514 - Chrome

qty :
  • Pack Includes: Concealed Dual-Outlet Thermostatic Shower Valve, Round Fixed Shower Head, and Wall-Mounted Arm
  • Sleek Modern Design
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instructions
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Pack Includes: Concealed Dual-Outlet Thermostatic Shower Valve, Round Fixed Shower Head, and Wall-Mounted Arm
  • Sleek Modern Design
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instructions
  • Technical drawing available for more technical details
  • Guarantee: 5 Years on Chrome Finish, 3 Years on Other Finishes
  • Detail of Shower Valve:
  • Constructed Using Brass and ABS Material
  • Stain and Rust-Resistant
  • Number of Outlets: 1
  • Number of Handles: 2
  • WRAS and TMV2 Approved
  • TMV2 Approval Number: 2603035
  • Installation Type: Recessed and Wall-Mounted
  • Comes Complete with Valve and Cartridge
  • Accurate Flow Control Thermostatic Valve
  • 1/4-Turn Ceramic Cartridge Disc
  • Dimension: Width 80mm (8cm) x Depth 136mm (13.6cm)
  • Height 215mm (21.5cm)
  • Wall-Mount Cavity: Min. 72mm (7.2cm) and Max. 85mm (8.5cm)
  • Mountable in Vertical or Horizontal Orientation
  • Inlet and Outlet Connection: G 1/2 Inch
  • Suitable for Low-Pressure Water System
  • Requires 0.1 Bar Operating Water Pressure
  • Features:
  • Stain and Rust-Resistant Construction with Precise and Reliable Flow Control
  • Advanced Thermostatic Control Maintains Water Temperature Within ±2°C, Even During Pressure Fluctuations
  • Compatible with Concealed Shower Systems for a Seamless Installation
  • Patented Cartridge Design Resists Calcium Buildup, Making It Ideal for Hard Water Conditions
  • Suitable for All Plumbing Systems, Including Gravity-Fed, Pumped, Unvented High-Pressure, and Fully Modulated Combi-Boilers
  • Integrated Thermal Safety Protection Automatically Shuts off in Case of Hot or Cold Water Supply Failure, Preventing Scalding
  • Fully Reversible Cartridge Eliminates the Need for Re-Plumbing if Hot and Cold Supplies are Incorrectly Connected
  • Easy Maintenance-Remove, rotate the Cartridge by 180°, and Reinstall
  • Detail of the Round Fixed Shower Head:
  • Single Shower Head Mode
  • Constructed Using Stainless Steel Material
  • Dimension: Ø200mm (Ø20cm) x 55mm (5.5cm) [Diameter x Height]
  • Inlet Connection: G 1/2 Inch
  • Installation Type: Wall or Surface Mounted
  • Suitable for Medium Pressure System
  • Requires a Minimum 0.5 Bar Water Pressure
  • Detail of Wall-Mounted Arm
  • Constructed Using Solid Brass Material
  • Dimension: Length 400mm (40cm) x Width 60mm (6cm)
  • Height 85mm
  • Connection Thread: G 1/2 Inch
  • Round Shape
  • Available Optional Product
  • Available in different finishes: Chrome, Matt Black, Brushed Brass

Information Breakdown

Colour Chrome
Country of Origin China
Warranty/Guarantee Chrome - 5 Years, Other Finishes - 3 Years
Theme Modern
Compliance/Approvals/Standard WRAS, TMV2
Configuration Valve, Head and Arm
Temperature Control Theromstatic
Anti-Scald Yes
Shower Head Included Yes
Shower Head Size 200
Minimum Operating Pressure (Bar) 0.1 bar

Technical Info

Nuie Arvan Wall Mounted Dual Control Thermostatic Shower Valve With Fixed Head

Download Technical Data Sheet PDF

Download Mounting Instruction For Shower Valve PDF

Download Mounting Instruction For Shower Head PDF

Download Mounting Instruction For Shower Arm PDF
