Bristan Artisan Thermostatic Bar Valve With Adjustable Riser Kit

Product Code : 3228
Brand : Bristan
5 Years

Availablity: 3 Working Days Apprx
Shipping : £ 5.95
Overall Rating :
 4.3 out of 5 based on 3 Votes
Rate This

RRP : £250.00
Price : £138.62138.62
Qty :
Product Info

The Bristan Artisan Thermostatic Bar Shower Valve with its Riser Kit is a truly stunning creation, with its highly advanced features and sophisticated design. This shower kit has a tough brass construction and incorporates ceramic disc valves. With an eco-smart feature for flow control, it is a contemporary essential and ideal for the modern bathroom. Its smart body is coated with shining chrome to add style to your bathroom decor.

  • Bristan Artisan Thermostatic Bar Shower Valve
  • Surface Mounted Bar Shower valve
  • With Adjustable Riser Kit and Fast Fit Connections
  • Chrome finish Shower valve and Riser kit
  • Supplied with 1.5m hose, riser rail, hose retainer and multi function handset with rub clean nozzles
  • Contemporary style
  • Body is of brass construction
  • Quarter turn 1/2 inch ceramic disc valve
  • Thermostatic cartridge valve
  • Suitable for all plumbing systems (Preferably balanced)
  • 15mm compression inlet connections
  • G 1/2 inch outlet connection
  • Water pressure required 0.1bar to 5.0bar (Min/Max)
  • Maximum Static Pressure 10.0bar

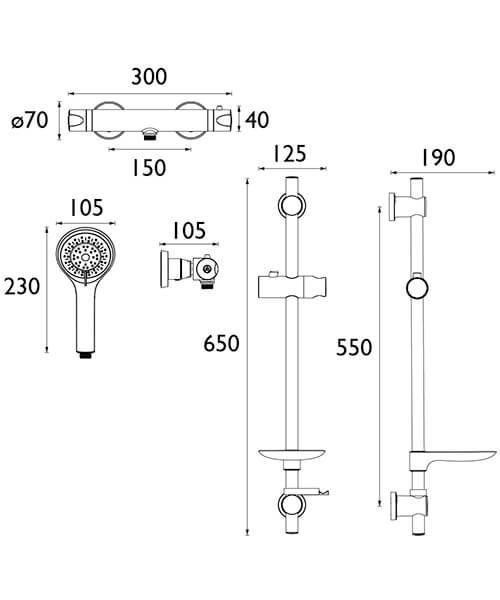

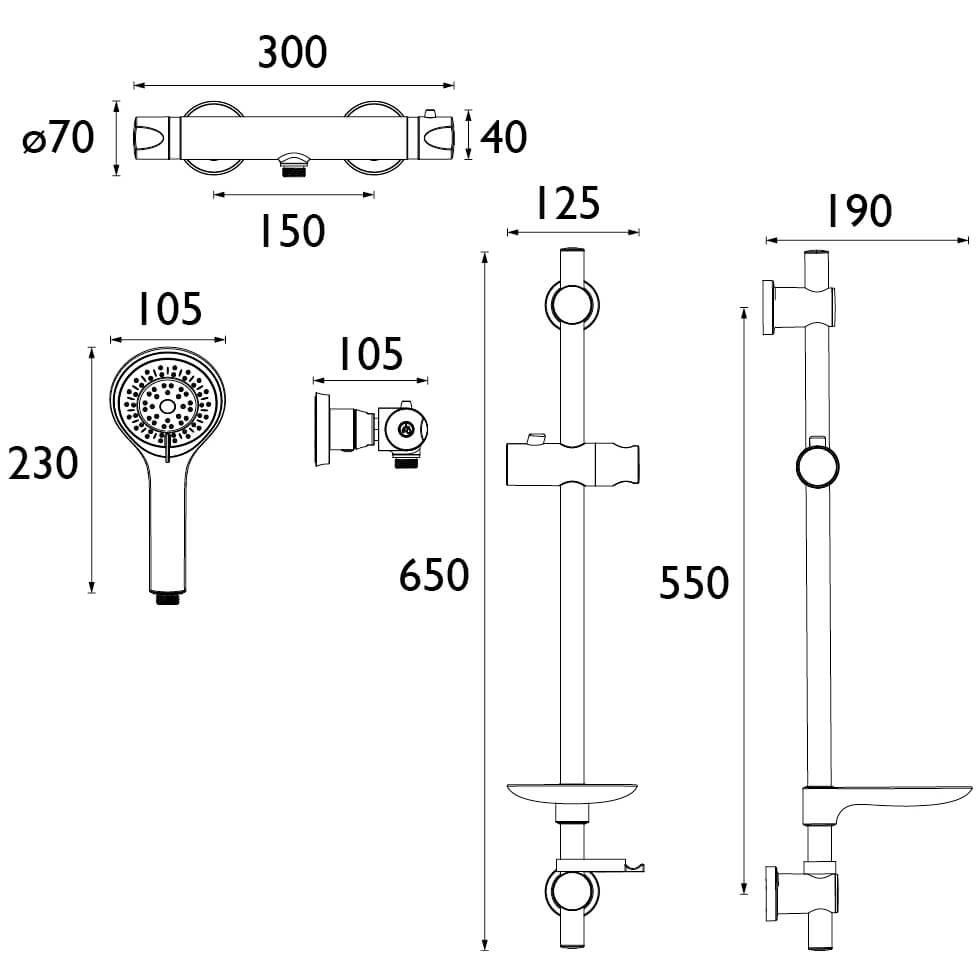

  • Dimension for fitting is 150mm inlet centres
  • TMV2 approved shower valve
  • Dual control – Flow and temperature are controlled separately, giving accurate control of both
  • The Thermostatic Cartridge influences the variation in the temperature as well as the pressure of the inward bound water by restricting the showering temperature at +/- 1° C. Thus unwavering outlet temperature is provided
  • The hazard of scorching or chilling is diminished to the maximum extent with the facility of the mechanical shut down in case of occurrence of the malfunctioning of hot or cold water supply
  • Factory set to a maximum of 38°C to eliminate the ability to select an unsafe temperature – this is adjustable to suit user preference and up to a maximum of 46°C
  • Utilises unique fast fit system – wall mount WMNT10 C
  • Riser rail brackets can be adjust up and down the rail to cover any existing holes or cover tile joints.
  • Chrome plated to BS EN 248
  • Flow rate is 5.8 l/m open outlet (without hose) at 0.2 bar
  • Eco Smart feature on flow control - restricts flow - can be over-ridden
  • Product supplied with 2 x 7 litre per minute flow regulators, one fitted in each inlet to control water flow when fitted to instantaneous water heaters (combination boilers). These can be removed to suit different water delivery systems, i.e. low pressure gravity fed systems. (Flow Regulators accurate to +/- 10%).
  • Manufacturing code of this Shower valve with Adjustable Riser kit is AR2 SHXMTFF C
  • Guarantee: 5 years from Bristan covering manufacturing faults
