Nuie Windon Square Thermostatic Valve With Fixed Head And Slide Rail Kit

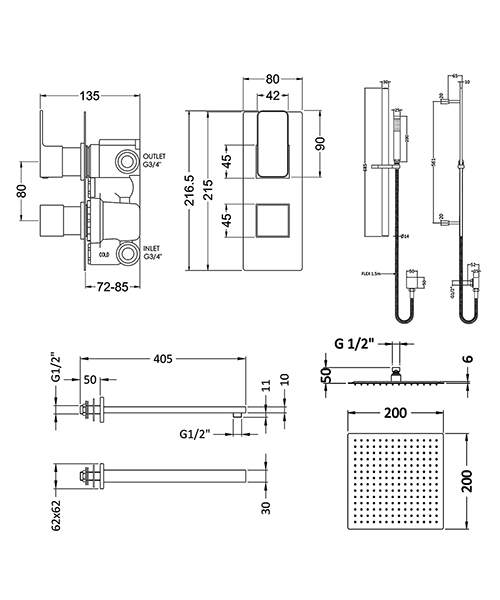

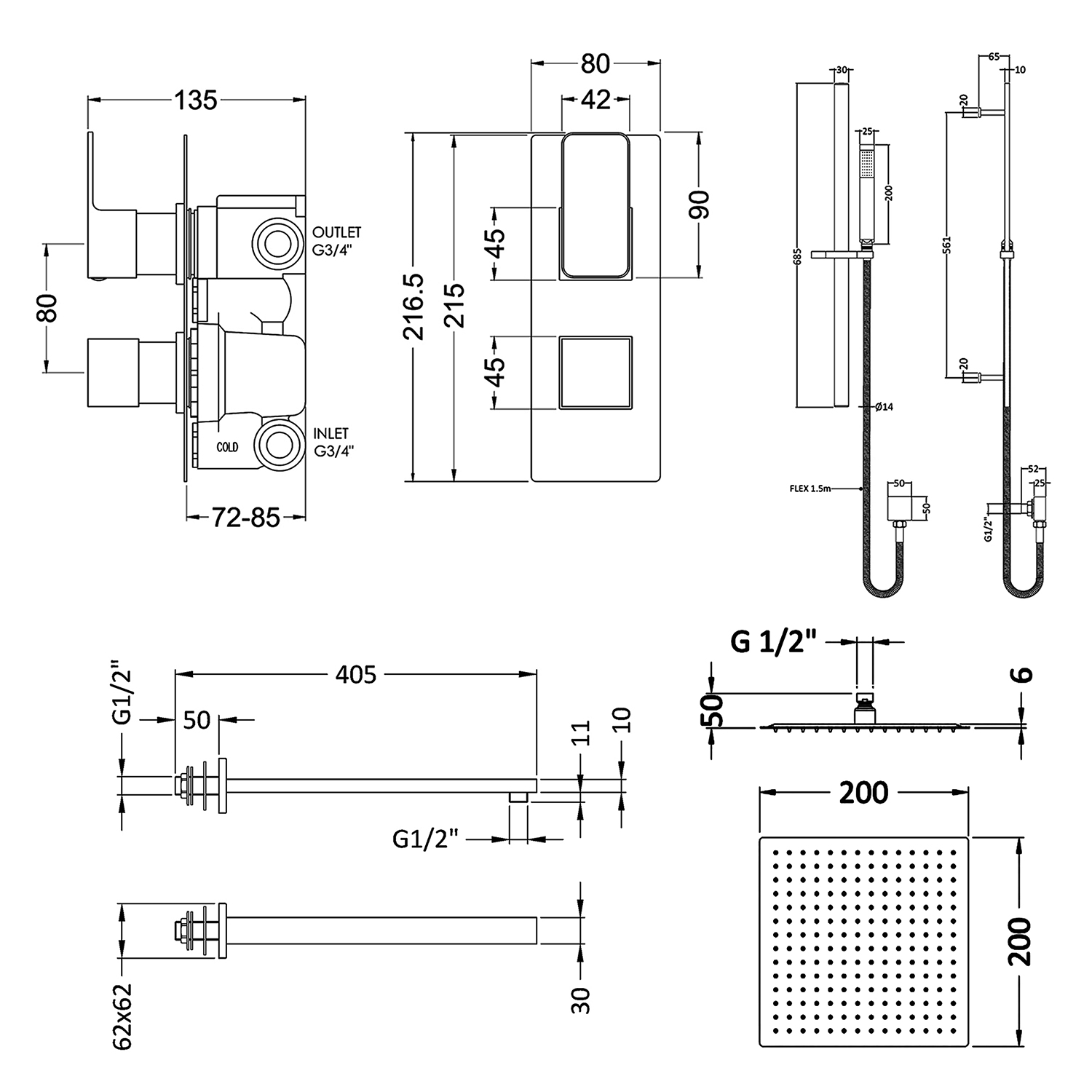

Technical drawing 72999 / SBS46TW2

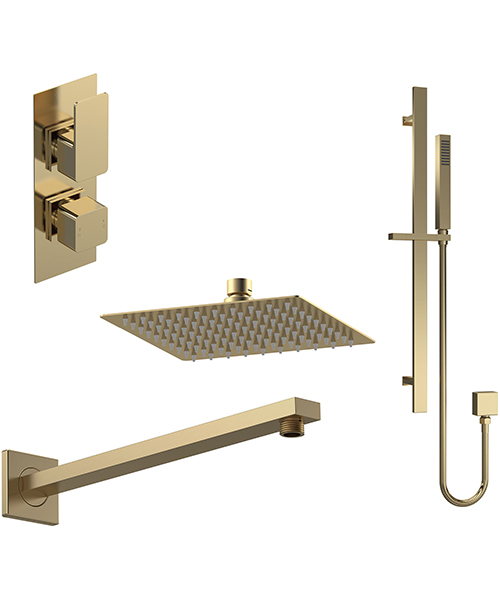

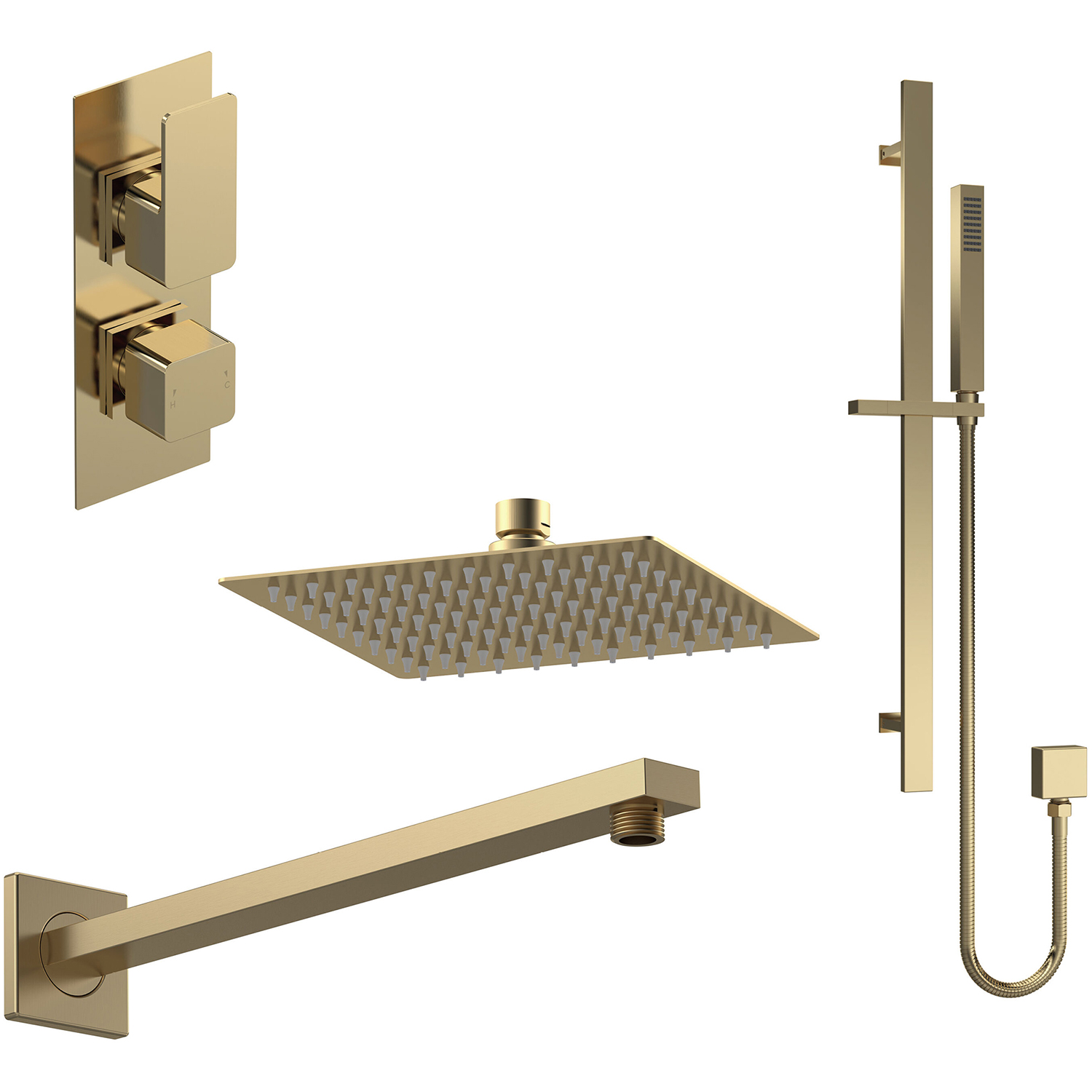

Additional image of Premier SBS46TW2

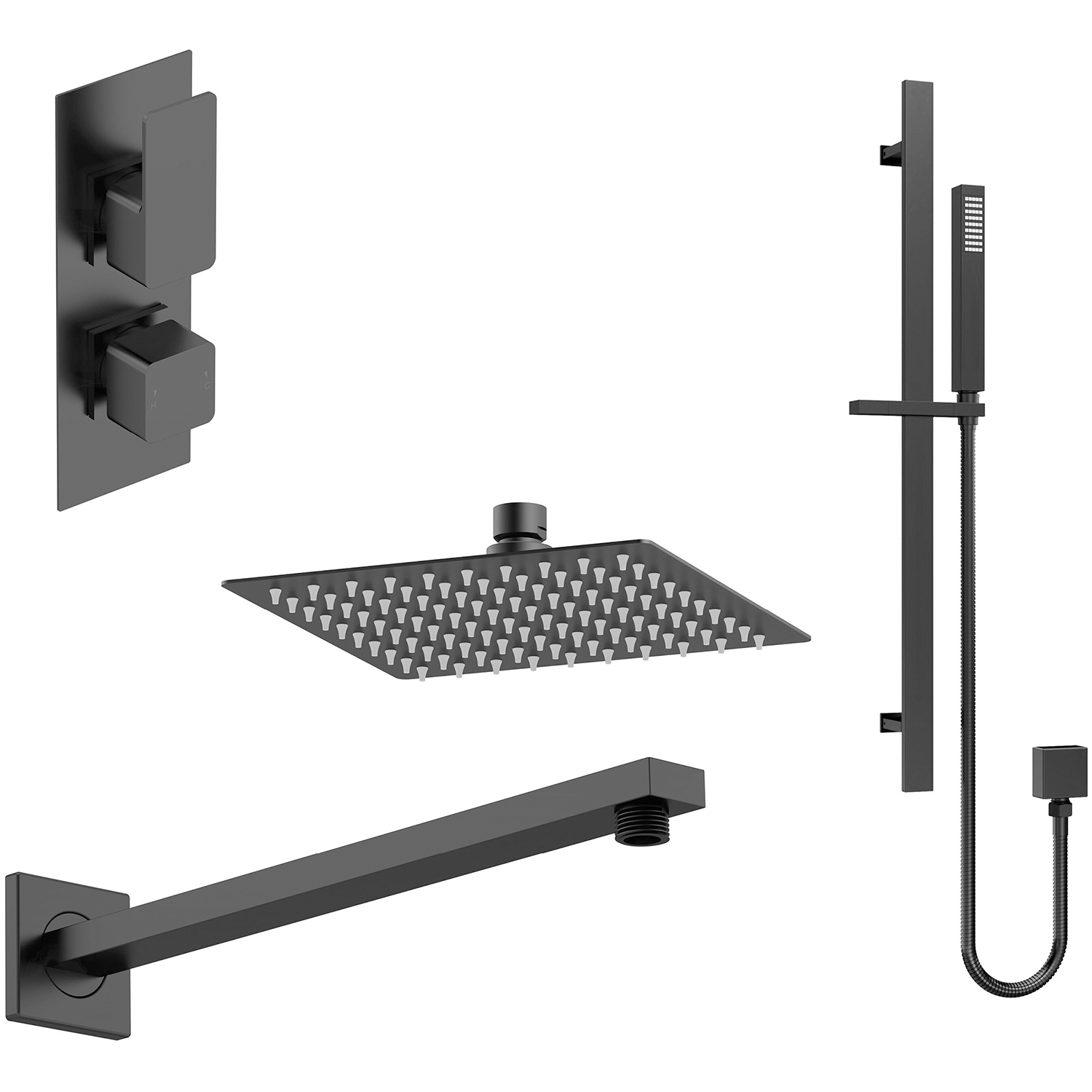

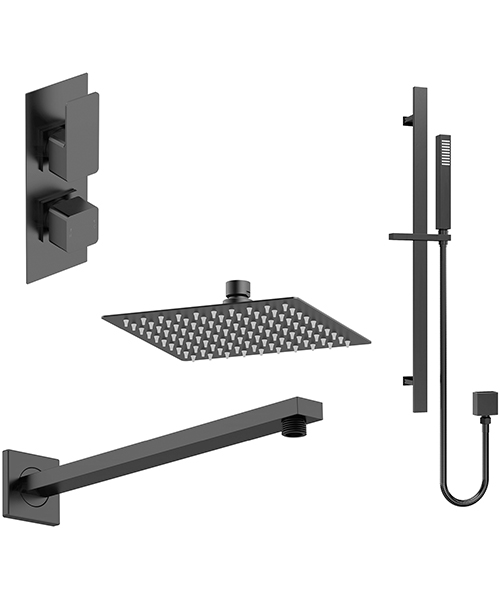

Nuie Windon Square Thermostatic Valve With Fixed Head And Slide Rail Kit

Nuie Logo
Available Finishes: Matt Black / Brushed Brass
No Rating No Rating Write a Review
Rate This:
MFC Code : SBS46TW2
Product Code : 72999
Delivery: £7.95
£537.20
RRP : £1343.00
Finishes Available

OP-222522 - Matt Black

qty :
  • Includes a 3-outlet concealed thermostatic valve with integrated diverter and wall-mounted outlet elbow
  • Comes complete with a square fixed shower head, wall arm, and a slide rail kit featuring a handset and hose
  • Easy to Clean
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Includes a 3-outlet concealed thermostatic valve with integrated diverter and wall-mounted outlet elbow
  • Comes complete with a square fixed shower head, wall arm, and a slide rail kit featuring a handset and hose
  • Easy to Clean
  • Minimalist, sleek square design
  • Stain and rust-resistant construction with precise and reliable flow control
  • TMV2 Approved Product
  • TMV2 Approval Number: 2603035
  • Compatible with Medium‑pressure water systems
  • Requires a minimum operating water pressure of 0.5 bar
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instructions
  • Technical drawing available for more technical details
  • Guarantee: 3-Year from the manufacturer against any manufacturing defects
  • Detail of Shower Valve:
  • Manufactured using Brass and ABS material
  • Number of Outlets: 2
  • Number of Handles: 2
  • WRAS and TMV2 approved
  • Stain and rust-resistant valve
  • Supplied with the valve and cartridge
  • Accurate flow control thermostatic valve
  • 1/4-Turn ceramic cartridge disc
  • Installation type: Recessed and wall
  • Overall Dimension: Width 80mm (8cm) x Depth 135mm (13.5cm)
  • Height 215mm (21.5cm)
  • Wall-mount cavity: Min. 72mm (7.2cm) and max. 85mm (8.5cm)
  • Pipe size: 22mm (2.2cm) (3/4-Inch BSP)
  • Inlet and outlet connection: G 1/2 Inch
  • Control type: Manual
  • Suitable for both vertical and horizontal installation
  • Features:
  • Advanced thermostatic control maintains water temperature within +/-2 °C, even during pressure fluctuations
  • Compatible with concealed shower systems for a seamless installation
  • Patented cartridge design resists calcium buildup, making it ideal for hard water conditions
  • Suitable for all plumbing systems, including gravity-fed, pumped, unvented high-pressure, and fully modulated combi-boilers
  • Integrated thermal safety protection automatically shuts off in case of hot or cold water supply failure, preventing scalding
  • Fully reversible cartridge eliminates the need for re-plumbing if hot and cold supplies are incorrectly connected
  • Easy maintenance: remove, rotate the cartridge by 180°, and reinstall
  • Detail of Slide Rail Kit with Outlet Elbow and Handset:
  • Manufactured using brass and ABS material
  • Hose and handset included
  • Single-function handset
  • Rail height: 685mm (68.5cm)
  • Handset dimension: Diameter Ø25mm (2.5cm) x Height 200mm (20cm)
  • Hose length: 1500mm (150cm)
  • Outlet elbow included
  • Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
  • Details of Fixed Shower Head:
  • Manufactured using stainless steel material
  • Single function
  • Dimension: Width 200mm (20cm) x Depth 200mm (20cm)
  • Height 50mm (5cm)
  • Inlet Connection: G 1/2 Inch
  • Installation type: Wall or surface-mounted
  • Detail of Wall-Mounted Arm:
  • Manufactured using solid brass material
  • Length: 405mm (40.5cm)
  • Connection thread: G 1/2 Inch
  • Available Optional Product
  • Available in different finishes: Matt Black, Brushed Brass

Information Breakdown

Colour Matt Black
Warranty/Guarantee 3 Years
Theme Modern
Compliance/Approvals/Standard WRAS, TMV2
Inlet Connections G 1/2"
Hose Included Yes
Configuration Valve, Head, Arm, Outlet, Handset And Hose
Anti-Scald Yes
Diverter Included Yes
Showerhead Finish Matt Black
Riser Rail & Kit Finish Matt Black
Auto shutdown if hot or cold supplies fail Yes
Handset Included Yes
Spray Patterns (Shower Handset) 1
Spray Patterns (Shower Head) 1
Shower Head Included Yes
Shower Head Size 200
Rail Length 685
Diverter Type Integrated
Outlet Elbow Included Yes
Minimum Operating Pressure (Bar) 0.5

Technical Info

Nuie Windon Square Thermostatic Valve With Fixed Head And Slide Rail Kit

Download Technical Data Sheet PDF

Download Mounting Instruction For Shower Valve PDF

Download Mounting Instruction For Slide Rail Kit PDF

Download Mounting Instruction For Shower Arm PDF
