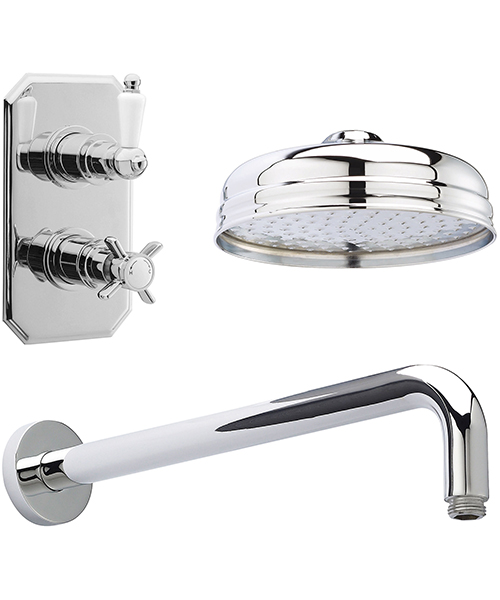

Nuie Chrome Traditional Twin Thermostatic Valve With Arm And Fixed Head

Nuie Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : SBT58TW1
Product Code : 75503
Delivery: £7.95
£332.00
RRP : £830.00

Nuie Chrome Traditional Twin Thermostatic Valve With Arm And Fixed Head.

Read More About the Product
qty :
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Manufacturing code of this product: SBT58TW1

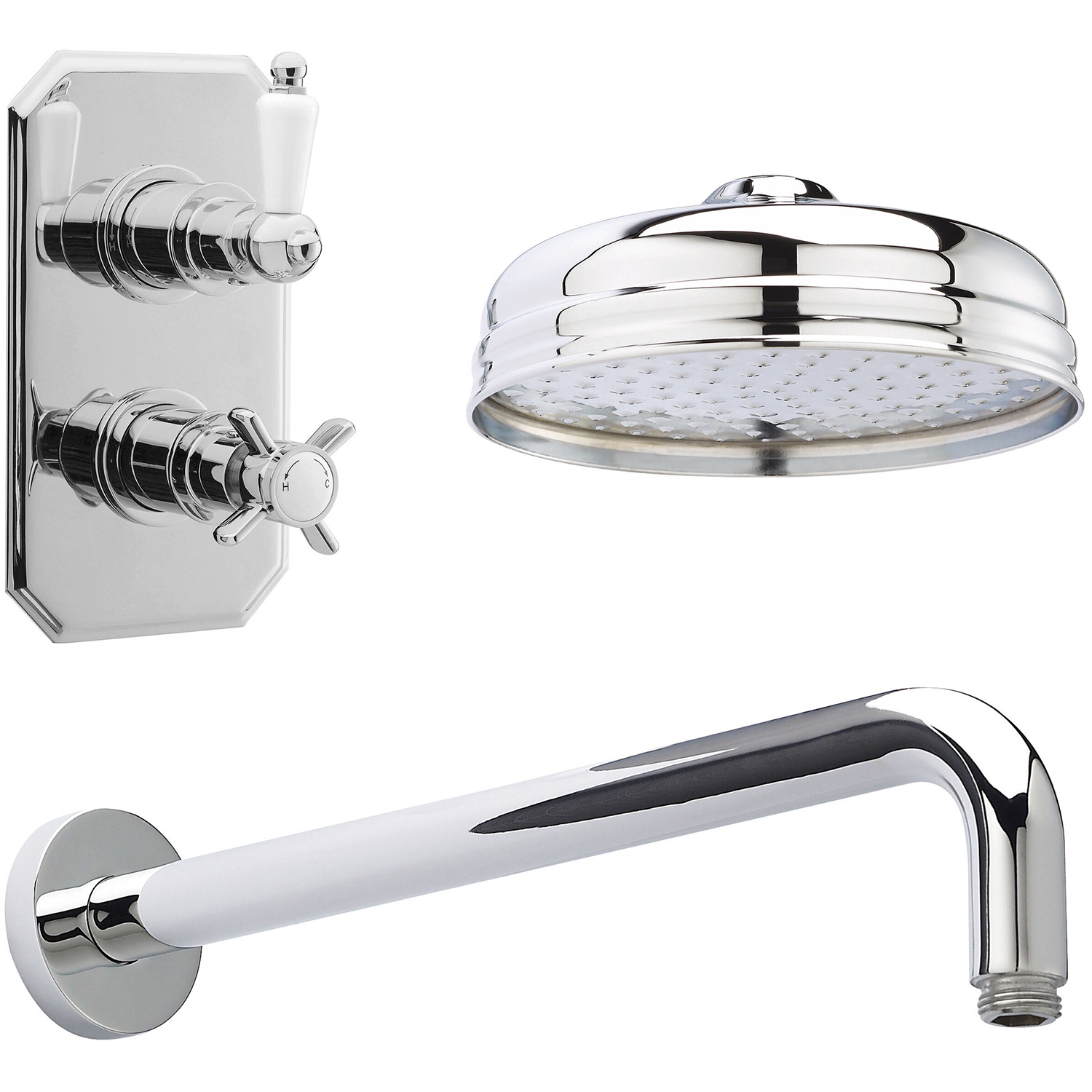

  • Pack Includes: 2-Outlet concealed thermostatic shower valve and fixed shower head with wall-mounted arm
  • Traditional round design
  • Features: Stain and Rust-Resistance
  • The Minimum Water Pressure Recommended for Smooth Working is 0.1 Bar [LP-Low Pressure] and a Maximum of 3.0 Bar [HP-High Pressure]
  • Download the PDF from the Technical Info Section for the technical data sheet and mounting instructions

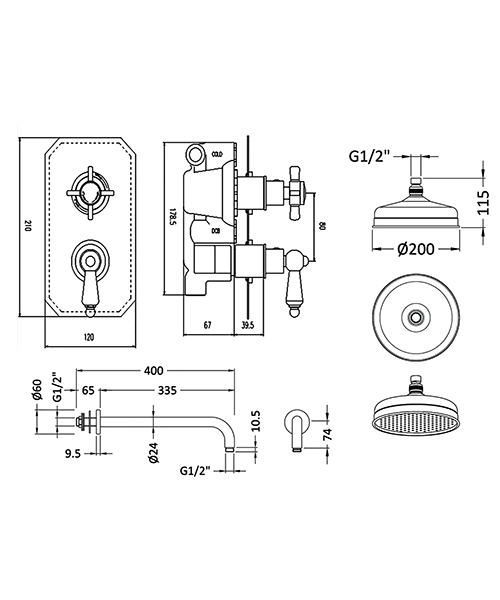

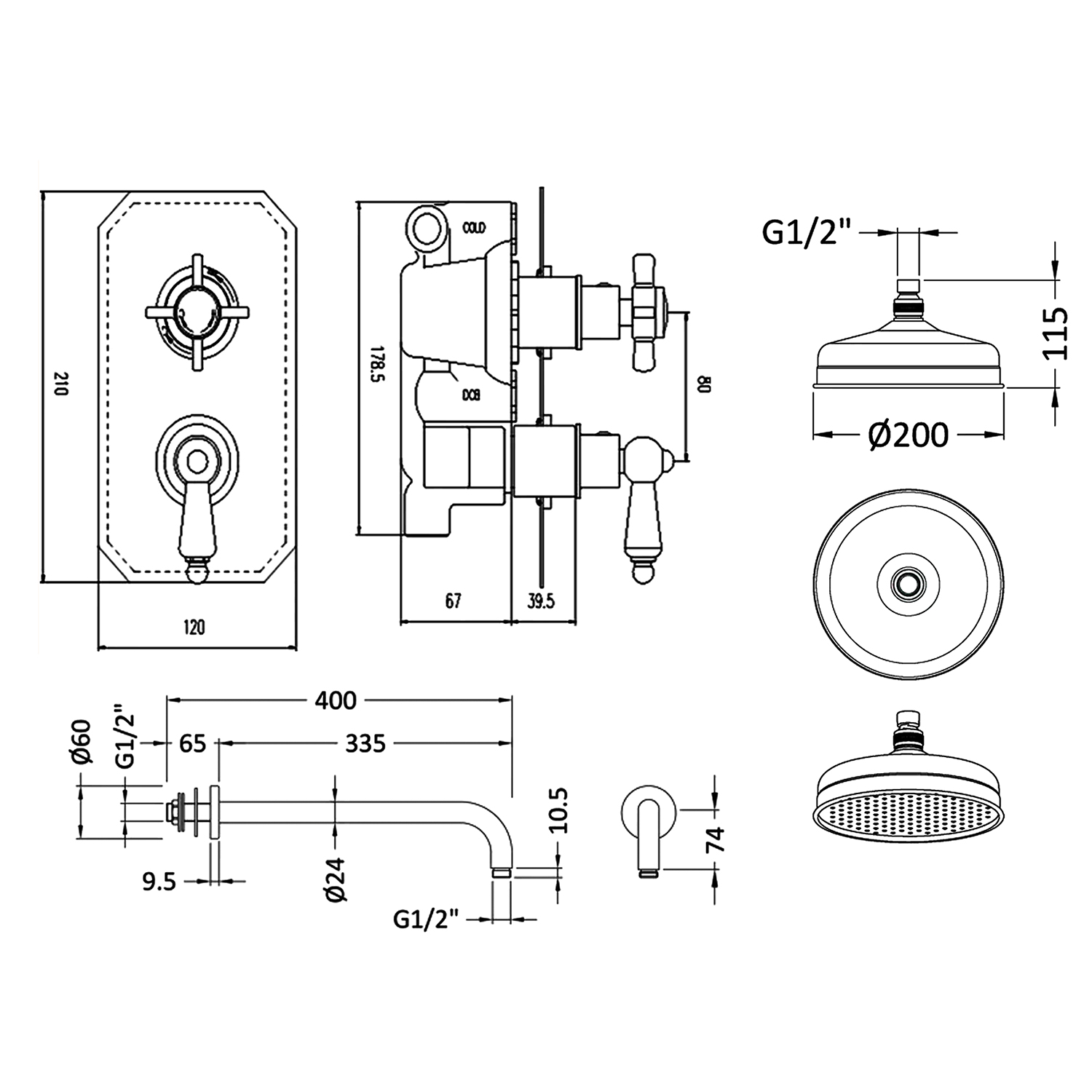

  • Technical drawing available for more technical details
  • Guarantee: 5-year from the manufacturer against any manufacturing defects
  • Detail of Valve:
  • Number of Outlets: 1
  • Number of Handles: 2
  • WRAS and TMV2 Approved
  • TMV2 Approval Number: 2603035
  • Made in Britain
  • Handle Type: Crosshead / Lever
  • Made using ABS and Brass material
  • Backplate dimension: Width 120mm (12cm) x Depth 135mm (135cm)
  • Height 210mm (21cm)
  • Pipe Size: 15mm (1/2-Inch BSP)
  • Can be mounted vertically (portrait) or horizontally (landscape)
  • Suitable for wall or recessed installation
  • Accurate flow control
  • 1/4-Turn ceramic disc cartridge
  • Flow Rates: 0.1 Bar - 5.5, 0.2 Bar - 7.1, 0.5 Bar - 14, 1 Bar - 20, 2 Bar - 29, 3 Bar - 44
  • Weight: 2.18kg
  • Features:
  • Thermostatic control to +/- 2 to 3° celsius even if the water pressure fluctuates
  • In the event of hot or cold water failure, the valve will shut down the water Supply, providing complete thermal protection and preventing scalding
  • The patented cartridge is highly resistant to calcium buildup - even in hard water areas
  • Suitable for use with all systems: Gravity-fed pumped unvented high-pressure or fully modulated combi-boilers
  • Excellent flow rates even at low pressure
  • The features cartridge is fully reversible - If hot and cold supplies are the wrong way round, it doesn't need re-plumbing
  • Remove the cartridge, turn 180°, and replace
  • Detail of Fixed Shower Head:
  • 8 Inch apron single-head function head
  • Made using solid brass material
  • Dimension: Diameter Ø200mm (20cm) x Height 115mm (11.5cm)
  • Inlet connection: G 1/2 Inch
  • Installation type: Wall or surface-mounted
  • Weight: 0.3kg
  • Detail of Wall-Mounted Arm:
  • Made using solid brass material
  • Dimension: Length 400mm (40cm) x Width 62mm (6.2cm)
  • Height 104mm (10.4cm)
  • Connection thread: G 1/2 Inch
  • Weight: 0.32kg

Information Breakdown

Colour Chrome
Warranty/Guarantee 5 Years
Theme Traditional
Compliance/Approvals/Standard WRAS, TMV2
Inlet Connections G 1/2"
Configuration Valve, Head and Arm
Temperature Control Theromstatic
Anti-Scald Yes
Showerhead Finish Chrome
Spray Patterns (Shower Head) 1
Shower Head Included Yes
Shower Head Size 200
Minimum Operating Pressure (Bar) 0.1

Technical Info

Nuie Chrome Traditional Twin Thermostatic Valve With Arm And Fixed Head

Download Technical Data Sheet PDF

Download Mounting Instruction For Shower Valve PDF

Download Mounting Instruction For Shower Head PDF

Download Mounting Instruction For Shower Arm PDF
