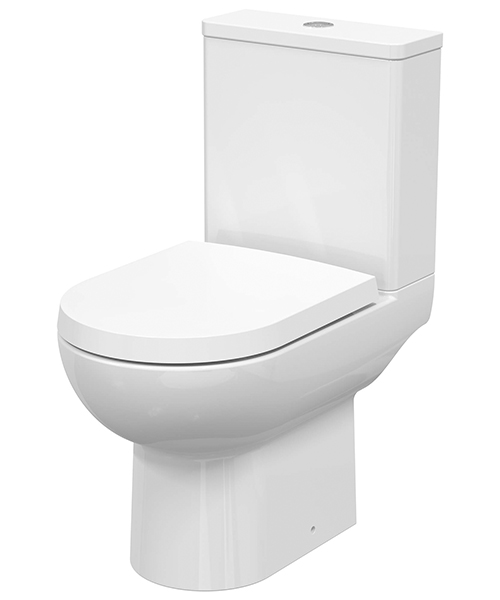

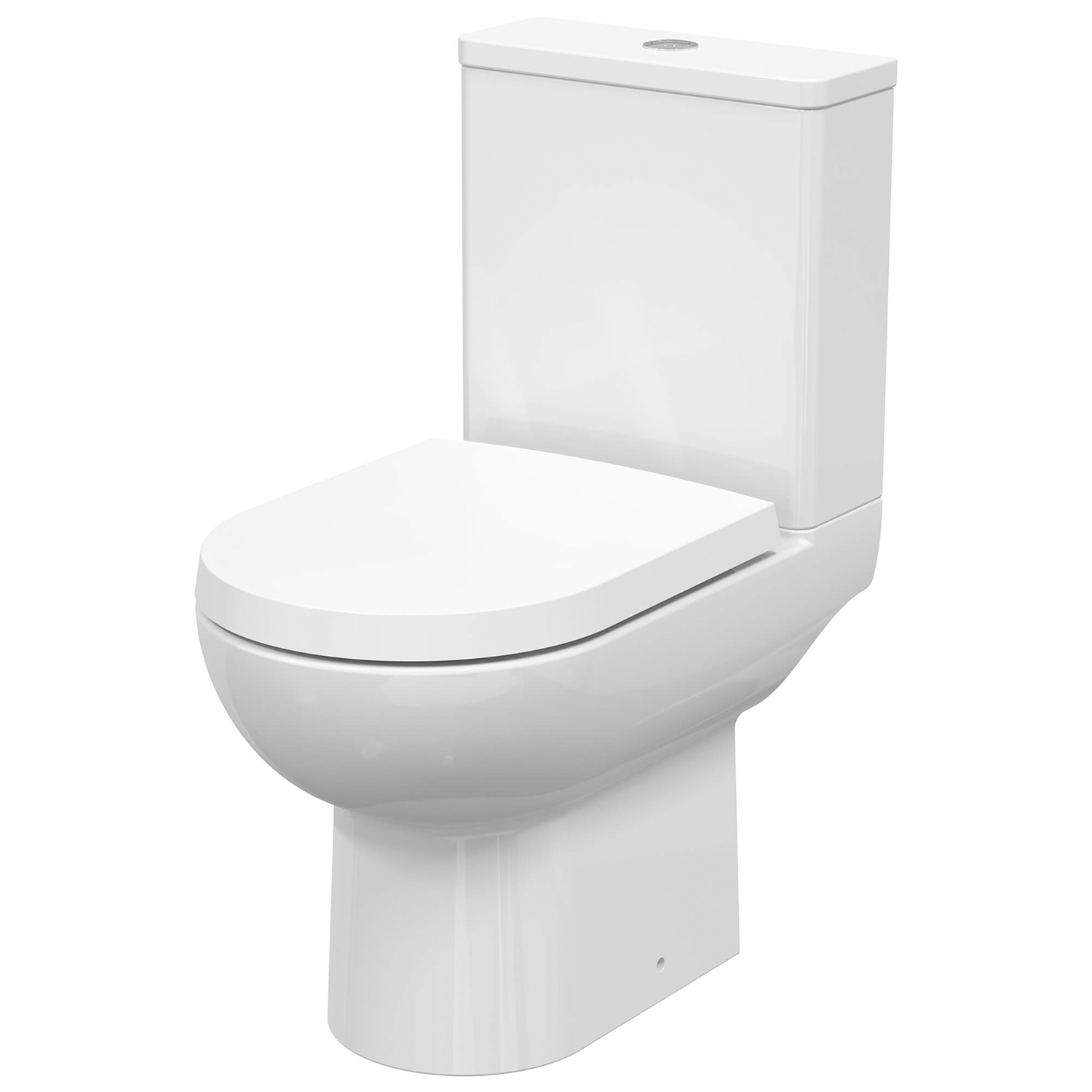

Nuie Isla 375 x 620mm Compact Close Coupled Rimless Pan And Cistern White

Nuie Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : CLW006
Product Code : 75517
Delivery: £34.95
£167.60
RRP : £419.00

Nuie Isla 375 x 620mm Compact Close Coupled Rimless Pan And Cistern White.

Read More About the Product
qty :
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • The Manufacturing Code of this Product is CLW006
  • Compact close‑coupled rimless toilet featuring dual‑flush push button cistern
  • Ce Certified
  • Comes in a white finish
  • Overall Dimension: Width 375mm (37.5cm) x Height 800mm (80cm)
  • Projection from the wall: 620mm (62cm)
  • Compatible with floor-standing installation
  • Modern curves create a clean, neat design
  • Compact design for smaller spaces
  • Contemporary style toilet
  • The toilet seat shown in the Image is Not Included
  • Download the PDF from the technical Info Section for the technical data sheet

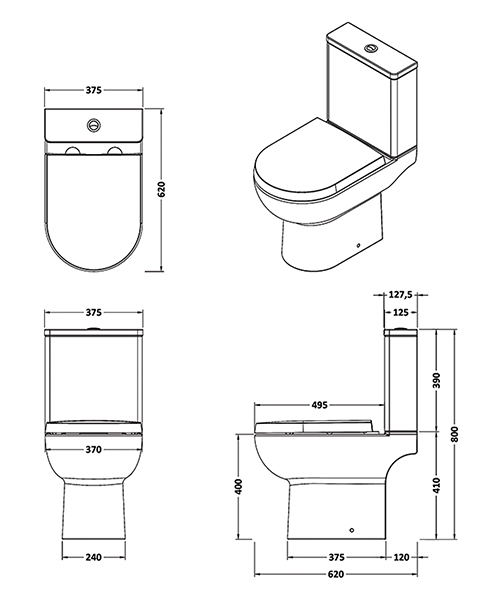

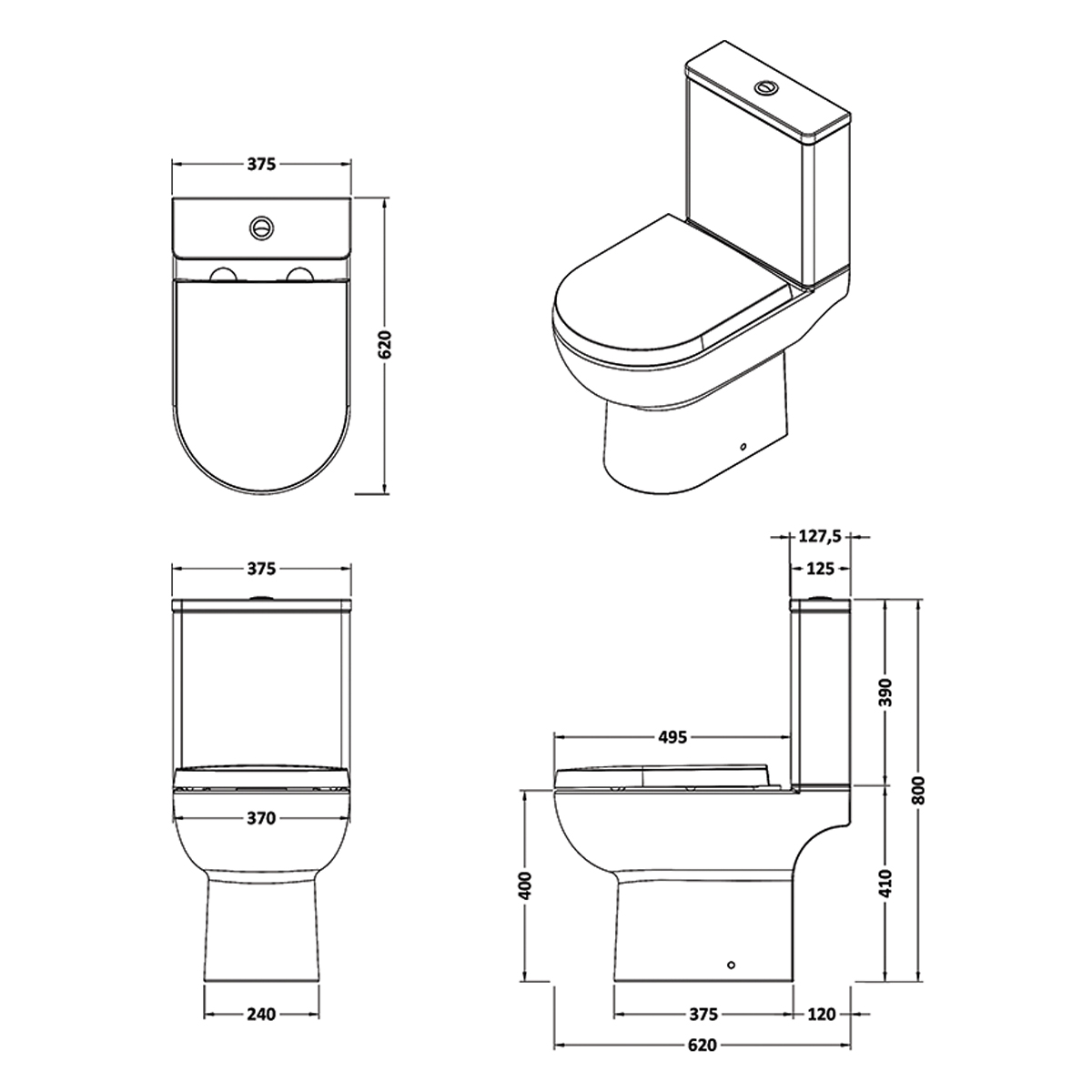

  • Refer to the Technical Drawing for More Details
  • Guarantee: 5-Year from Nuie against manufacturing faults
  • Specification of Open Back Pan:
  • Dimension: Width 370mm (37cm) x Height 410mm (41cm)
  • Rimless design for improved hygiene and easier cleaning
  • Constructed using high-quality vitreous china
  • The Semi-Flush-to-Wall Pan is Easier to Install and Conceals Unsightly Pipework
  • Trap Style: P-Trap
  • Bowl Shaped: Round
  • Specification of Close Coupled Cistern:
  • Water-Saving Dual Flush Mechanism
  • Dimension: 375mm (37.5cm) x 127.5mm (12.75cm)
  • Height 390mm (39cm)
  • Flush volume: 6/3 Litres
  • Chrome-plated flush button
  • Button crafted from high‑quality plastic
  • Available Optional Product:
  • Toilet Seat

Information Breakdown

Colour White
Warranty/Guarantee 5 Years
Theme Modern
Material Vitreous China
Compact Design Yes
Projection (Depth) 620
Compliance/Approvals/Standard CE
Pan Width 370
Pan Height 410
Toilet Overall Height 800
Rimless Bowl Yes
Cistern Included Yes
Cistern Width 375
Cistern Height 390
Flush Type Dual
Full Flush Volume in litres 6
Half Flush Volume in litres 3
Cistern Lever Or Button Placement Top
Configuration Pan, Cistern
Seat Included Sold Separately
Bowl Shape Round
Cistern Depth (projection) 127.5
Front Of Bowl To Centre Of Seat Holes 440
Base width 240
Base to centre of outlet 186
Base Depth (projection) 375
Outlet Diameter 102
Cistern Fixing Centres 225
Installation Type Floor-Standing
Compatible Seat

Technical Info

Nuie Isla 375 x 620mm Compact Close Coupled Rimless Pan And Cistern White

Download Technical Data Sheet PDF
