Nuie Isla 375 x 660mm White Close Coupled Rimless WC Pan And Cistern

Nuie Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : CLW007
Product Code : 75518
Delivery: £34.95
£180.00
RRP : £450.00

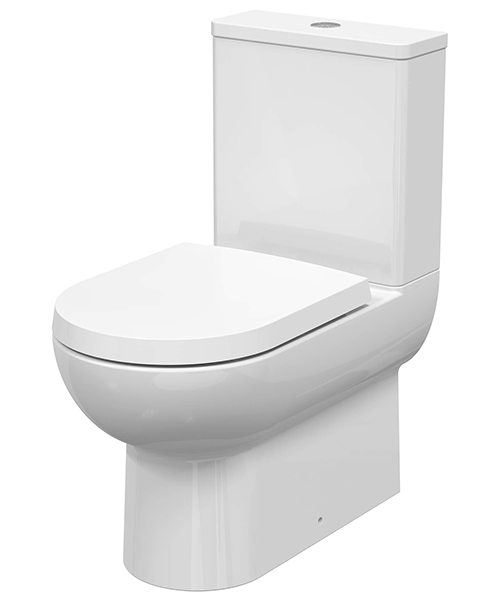

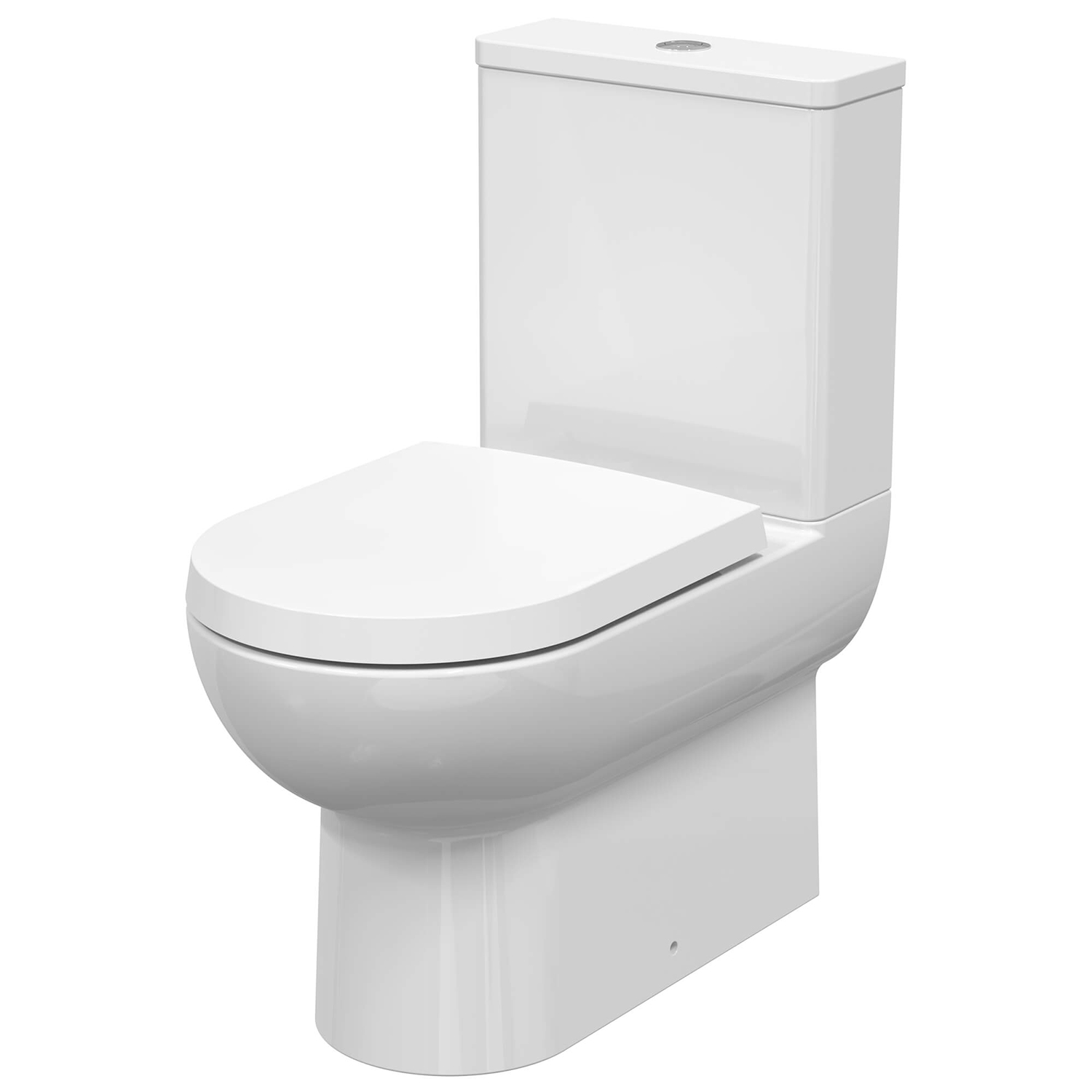

Nuie Isla 375 x 660mm White Close Coupled Rimless WC Pan And Cistern.

Read More About the Product

qty :
Check Availability 5 Working Days Apprx

About This Product

  • The Manufacturing Code of this Product is CLW007
  • Fully back-to-wall, close-coupled toilet featuring a dual flush cistern
  • Made using high-quality vitreous china
  • It comes in a white finish
  • Ce Certified
  • Overall Dimension: Width 375mm (37.5cm) x Height 800mm (80cm)
  • Projection from the wall: 660mm (66cm)
  • Ideal for floor-standing back-to-wall installation
  • Elegant curves deliver a sleek, modern look
  • Contemporary style toilet
  • Weight: 38.50 Kg
  • The toilet seat shown in the Image is Not Included
  • Download the PDF from the technical Info Section for the technical data sheet

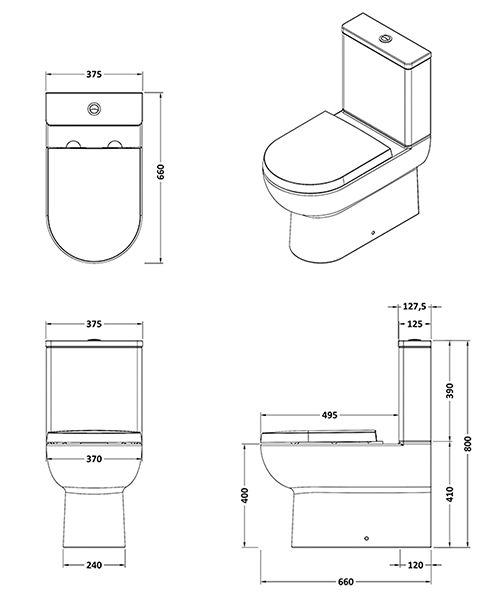

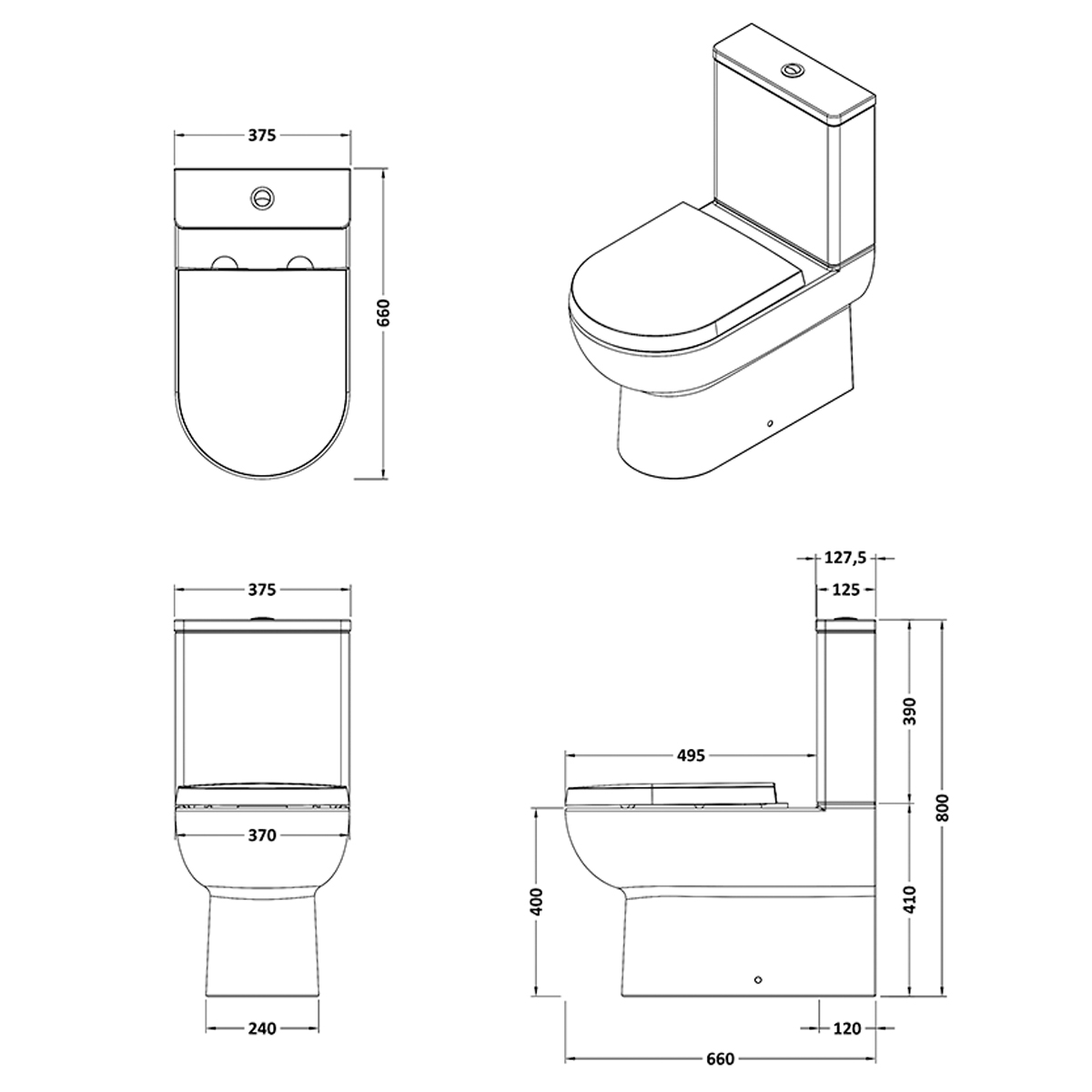

  • Refer to the Technical Drawing for More Details
  • Guarantee: 5-Year from Nuie against manufacturing faults
  • Specification of WC Pan:
  • Rimless design for improved hygiene and easier cleaning
  • Fully flush design conceals all pipework for a seamless finish
  • Dimension: Width 370mm (37cm) x Height 410mm (41cm)
  • Edge: Rimless
  • Bowl shape: Round
  • Trap style: P-Trap
  • Weight: 24.50 Kg
  • Specification of Cistern:
  • Dual flush water saving mechanism
  • Dimension: Width 375mm (37.5cm) x Depth 135.5mm (13.55cm)
  • Height 390mm (39cm)
  • Plastic push flush button operation
  • Chrome-plated finish button
  • Capacity: 6/3 litres
  • Weight: 14 Kg
  • Available Optional Products:
  • Luxury D-Shape Seat

Information Breakdown

Colour White
Warranty/Guarantee 5 Years
Theme Modern
Material Vitreous China
Weight In Kg 38.50
Projection (Depth) 660
Compliance/Approvals/Standard CE
Pan Width 370
Pan Height 410
Toilet Overall Height 800
Rimless Bowl Yes
Cistern Included Yes
Cistern Width 375
Cistern Height 390
Flush Type Dual
Full Flush Volume in litres 6
Half Flush Volume in litres 3
Flush Mechanism P
Cistern Lever Or Button Placement Push Button
Configuration Pan, Cistern
Seat Included Sold Separately
Bowl Shape Round
Cistern Depth (projection) 135.5
Seat Post Hole Centers 153
Front Of Bowl To Centre Of Seat Holes 440
Base width 260
Base to centre of outlet 180
Base Depth (projection) 550
Outlet Diameter 100
Cistern Fixing Centres 225
Installation Type Floor-Standing
