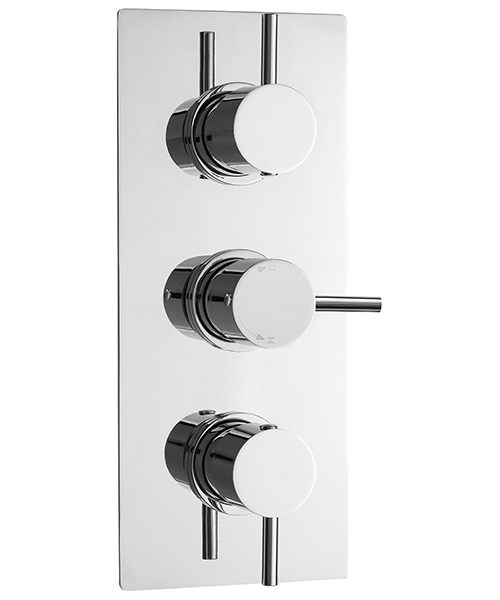

Nuie Quest Thermostatic Triple Concealed Shower Valve Chrome

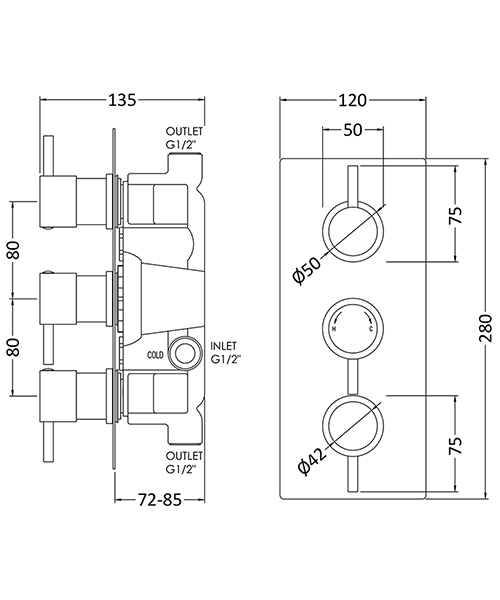

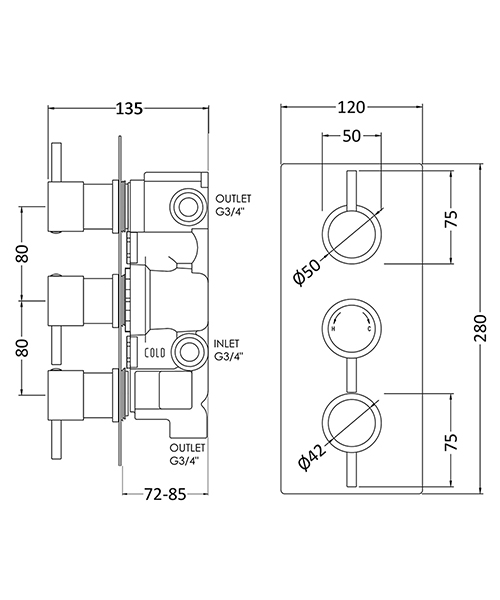

Technical drawing 75519 / QUEV53
Additional image of Premier QUEV53
Additional image of Nuie Quest Thermostatic Triple Concealed Shower Valve Chrome

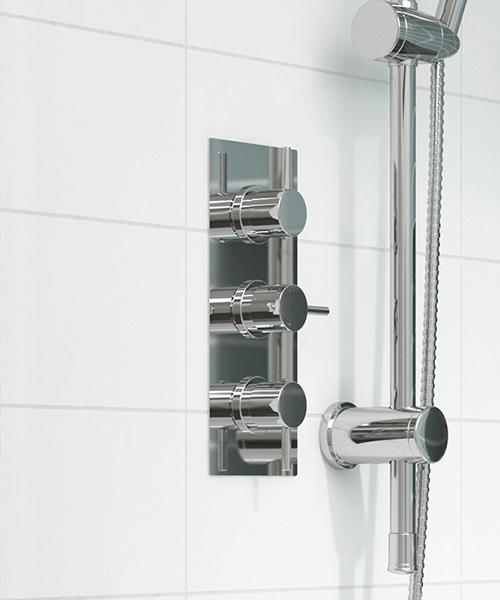

Additional image for 75519 Premier - QUEV53
Nuie image
Alternate image of Nuie Quest Thermostatic Triple Concealed Shower Valve Chrome

Nuie Quest Thermostatic Triple Concealed Shower Valve Chrome

Nuie Logo
Available Variants: Without / With Diverter
No Rating No Rating Write a Review
Rate This:
MFC Code : QUEV53
Product Code : 75519
Delivery: £34.95
£254.00
RRP : £635.00
Other Variation Available

OP-222544 - Without Diverter

qty :
  • Minimalist sleek design
  • It comes in a chrome finish
  • Suitable for both vertical and horizontal installation
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Minimalist sleek design
  • It comes in a chrome finish
  • Suitable for both vertical and horizontal installation
  • Installation type: concealed/wall
  • Stain and rust-resistant
  • Dimension: Width 120mm (12cm) x Depth 135mm (13.5cm)
  • Height 280mm (28cm)
  • Shape: Rectangular
  • Lever shape: Round
  • Cartridge: 1/4-Turn Ceramic Disc
  • Thermostatic Control to +/- 2 Degrees even if the Water Pressure Fluctuates
  • Full Thermal Protection to Prevent Scalding in the event of Hot or Cold Water Shut-Off
  • In the event of Hot or Cold Water Failure, the Valve Will Shut Down as Per the Relevant Standard
  • The Unique Cartridge is Highly Resistant to Calcium Buildup, even in Hard Water Areas
  • Our Valves are Suitable for Use with All Systems: Gravity-Fed Pumped Unvented High Pressure or Fully Modulated Combi-Boilers
  • The Cartridge is Fully Reversible, meaning if the hot and Cold Supplies are the Wrong Way Round, it doesn't need Re-Plumbing
  • Simply remove the Cartridge, turn 180° and replace
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instruction

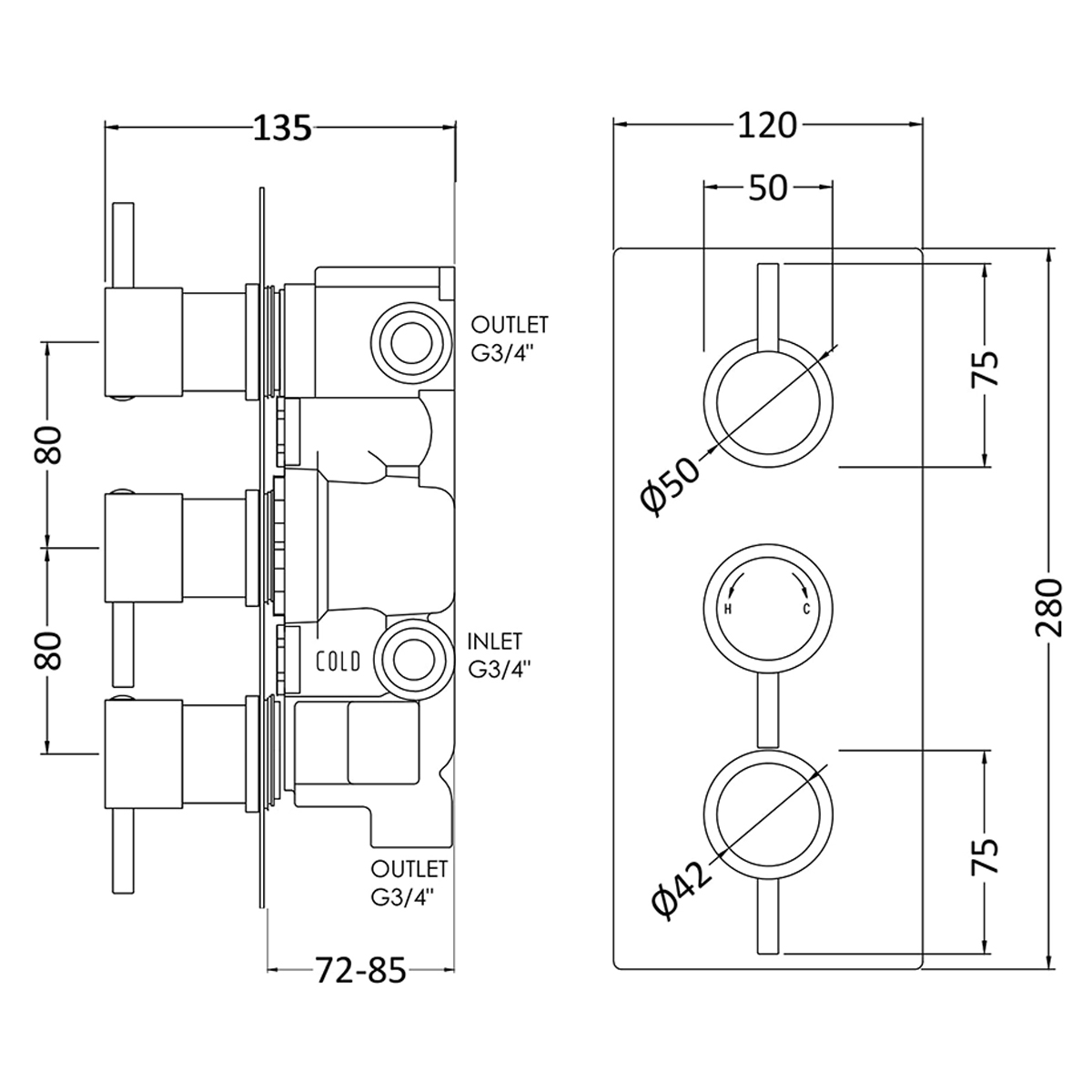

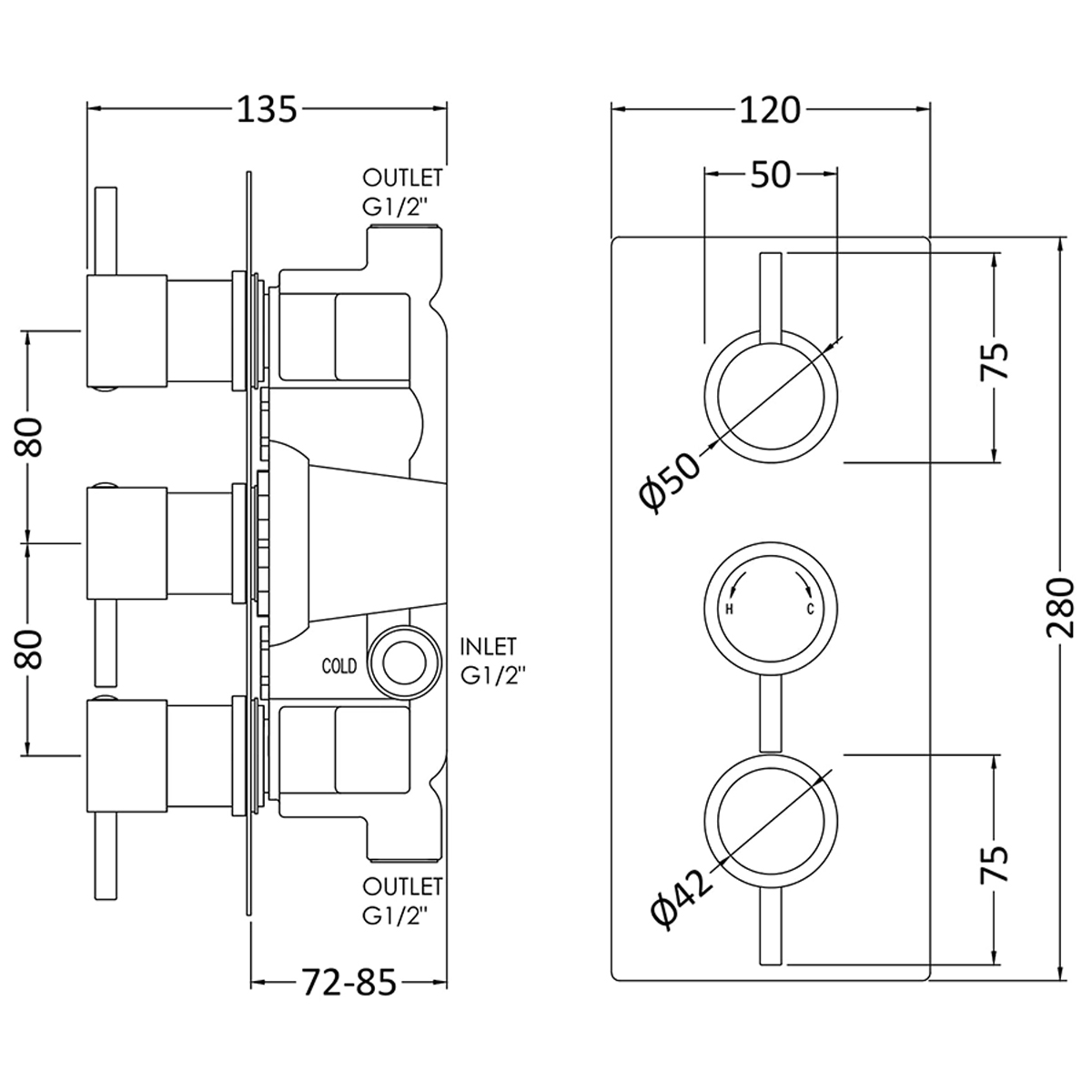

  • Refer to the Technical Drawing for More Details
  • Guarantee: 5-Year from Nuie against manufacturing faults
  • Specification of Shower Valve without Diverter:
  • Made using high-quality brass and ABS
  • WRAS-Approved Product (Number: 2204707)
  • TMV2 Approval Number: 2603035
  • Number of handles: 3
  • Number of outlets: 2
  • Pipe size: 15mm
  • Flow Rate (l/m): 0.2 bar: 7.1, 0.5 bar: 14, 1 bar: 20, 2 bar: 29, 3 bar: 44
  • Suitable for a low-pressure water system
  • Requires a minimum operating water pressure of 0.1 bar
  • Specification of Shower Valve with Diverter
  • Made using high-quality brass
  • Suitable for a medium-pressure water system
  • Requires a minimum operating water pressure of 0.5 bar
  • Pipe Size: 15mm and 22mm
  • Available Optional Product
  • Different variants available: Without and With Diverter

Information Breakdown

Colour Chrome
Warranty/Guarantee 5 Years
Theme Modern
Compliance/Approvals/Standard WRAS
Handle Style Round
Inlet Connections G1/2"
Valve Included Yes
Inlet Centres 80
Anti-Scald Yes
TMV2 Approved Yes
Number of Handles 3
Number of Outlet 2
Orientation Landscape, Portrait
Cartridge Type 1/4 Turn Ceramic Disc
Minimum Operating Pressure (Bar) 0.1

Technical Info

Nuie Quest Thermostatic Triple Concealed Shower Valve Chrome

Download Technical Data Sheet PDF

Download Mounting Instruction PDF
