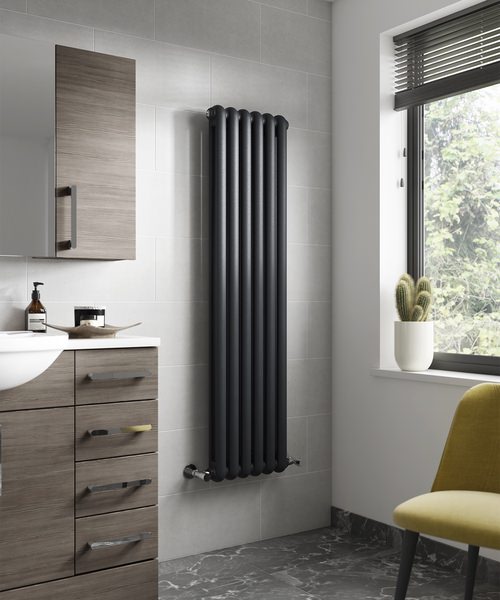

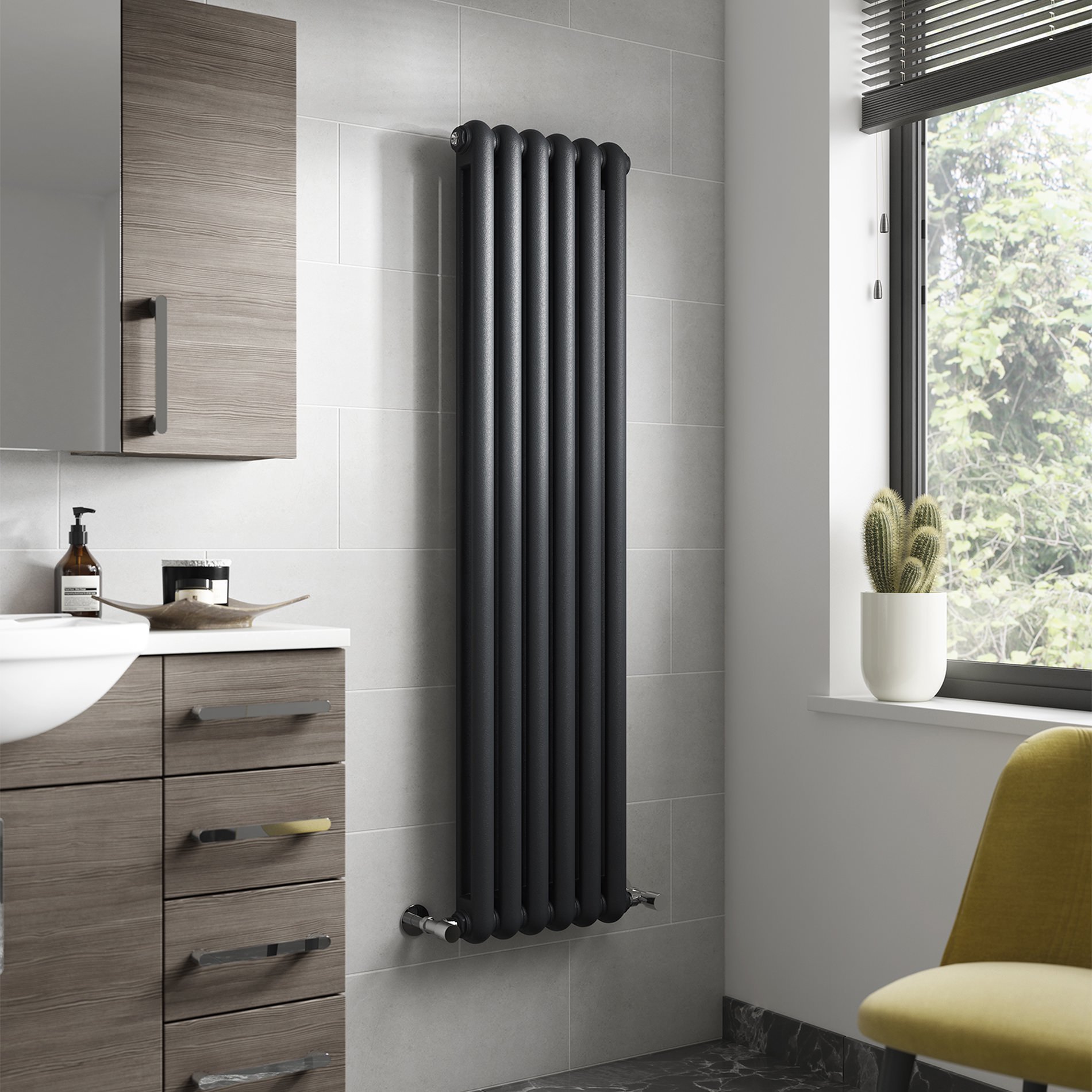

Hudson Reed Salvia Wide Double Panel Vertical Designer Radiator

Hudson Reed Logo
More Sizes And Finishes Available
No Rating No Rating Write a Review
Rate This:
MFC Code : HSA002
Product Code : 10713
Delivery: £34.95
£159.20
RRP : £398.00
SELECT Select Height Step 1

SELECT FINISH Step 2


qty :

Check Availability 5-7 Working Days Apprx
Radiator Accessories
Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.



About This Product

  • Available in 2 heights: [See Option]
  • Choice of finishes available [See Option]
  • Dimensions: Width 383mm (38.3cm) x Depth 80mm (8cm)
  • Installation type: Wall Mount/Vertical
  • Material: Steel
  • Comes complete with fixing screws
  • Exceptional heat output
  • All tappings are 1/2" BSP
  • Pipe centres: 473mm
  • Brackets included
  • Wall to Centre of Tapping: 80mm
  • No of heat setting: 1
  • Number of Section / Panel: 12
  • Maximum projection from wall: 1500mm : 130mm  & 1800mm: 190mm
  • Valves shown in the image are not included
  • Refer technical drawing for complete dimensions details
  • Download installation instruction PDF from the technical tab
  • Guarantee: 20 years from the Manufacturer.
  • Optional Products:
  • Compatible valves
  • Towel rail and Robe hook.
Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Information Breakdown

Colour High Gloss White
Warranty/Guarantee 20 Years
Width 383
Orientation Vertical
BTU Output @60°C: 3879, @50°C: 3105, @30°C: 1666
Watts @60°C: 1137, @50°C: 910, @30°C: 488
Valves Included Sold Separately
Brackets Included Yes
Design Modern
Panel Configuration Double Panel
Installation Type Wall Mounted

Technical Info


PRODUCT VARIATIONS INFO & MFC CODE
  • Available Finishes And Sizes Along With Manufacturing Code
    HEIGHT MM FINISH BTU/ HR @ 30 DEG. CEL. WATT @ 30 DEG. CEL. BTU/ HR @ 50 DEG. CEL. WATT @ 50 DEG. CEL. BTU/ HR @ 60 DEG. CEL. WATT @ 60 DEG. CEL. MFC
    1500 White (RAL No. 9016) 1666 488 3105 910 3934 1137 HSA002
    1500 Anthracite (RAL No. 7016) 1666 488 3105 910 3934 1137 HSA006
    1800 White (RAL No. 9016) 2017 591 3757 1101 4760 1374 HSA001
    1800 Anthracite (RAL No. 7016) 1901 557 3713 1088 4704 1382 HSA005
