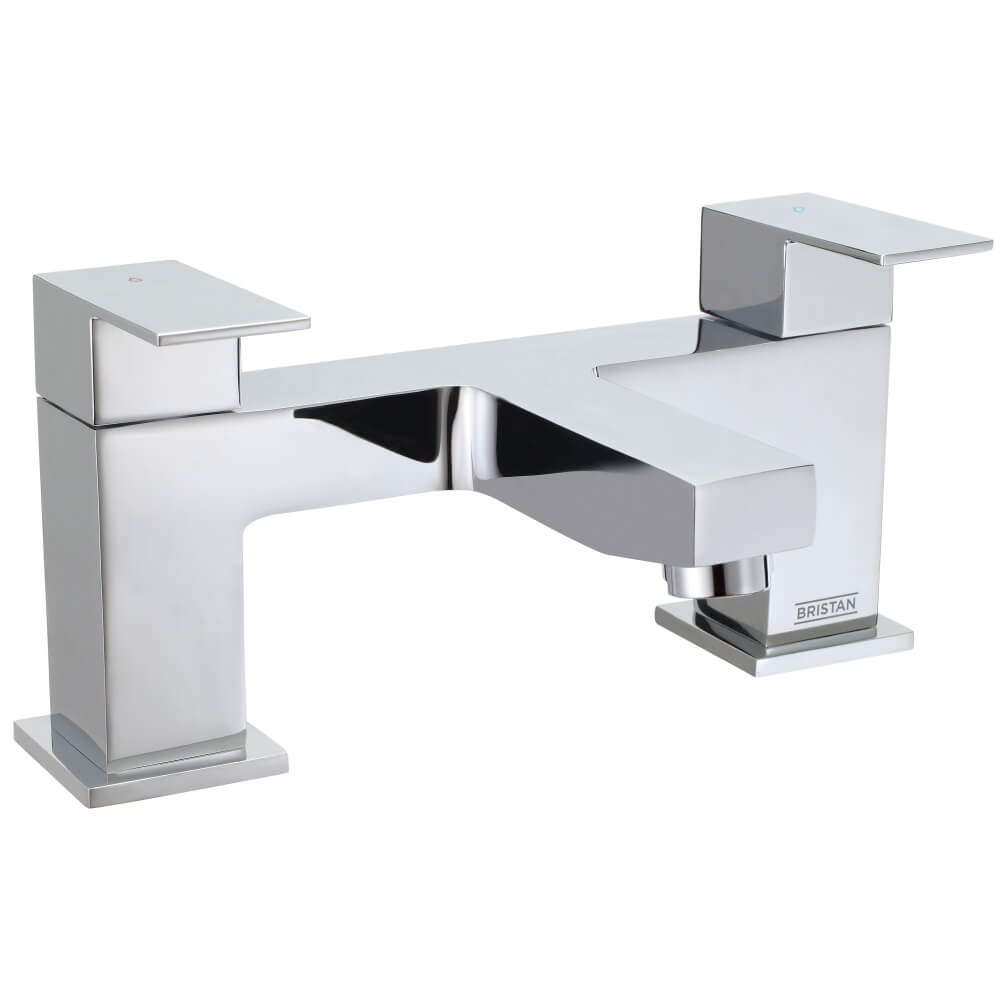

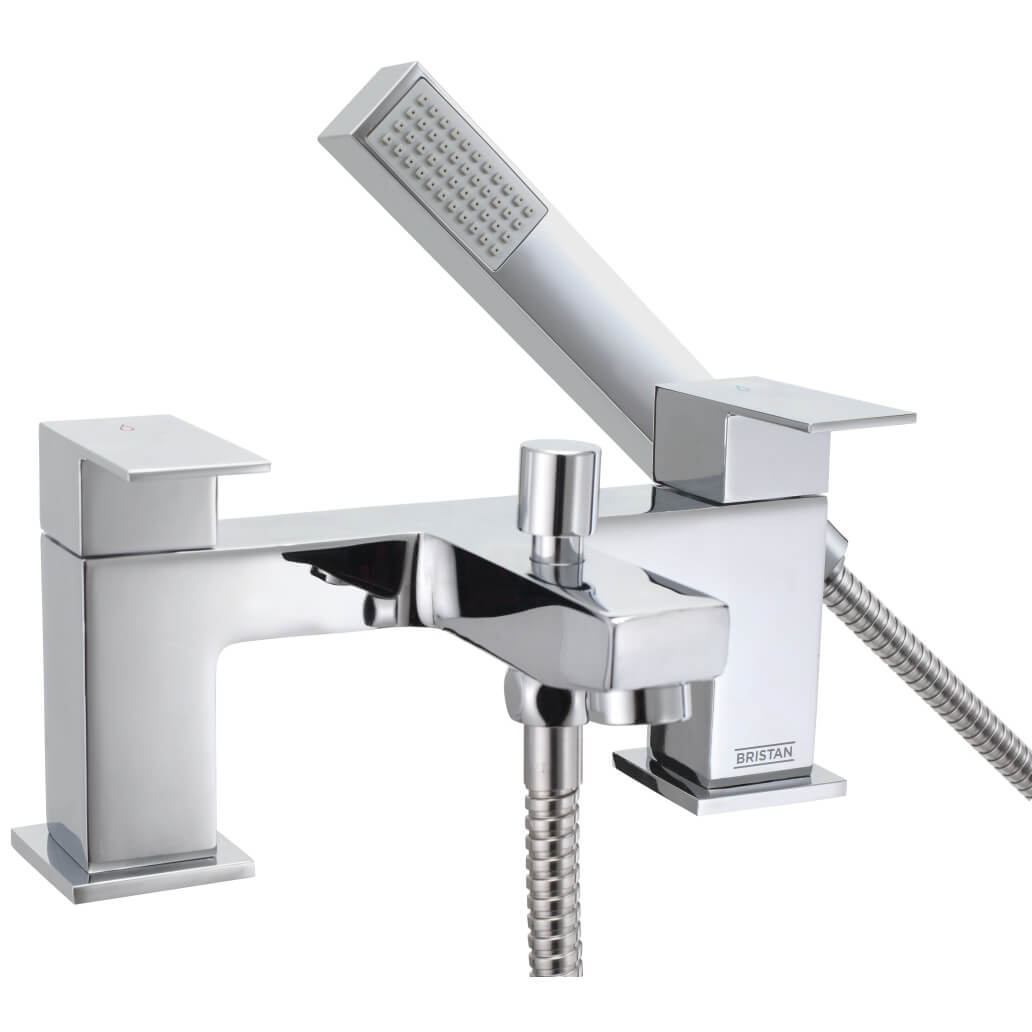

Bristan Qubo Deck Mounted Chrome Finish Bath Mixer Tap

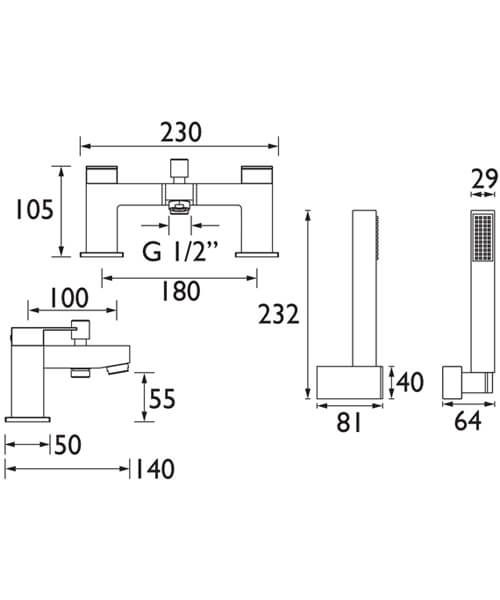

Technical drawing 68307 / QB BF C

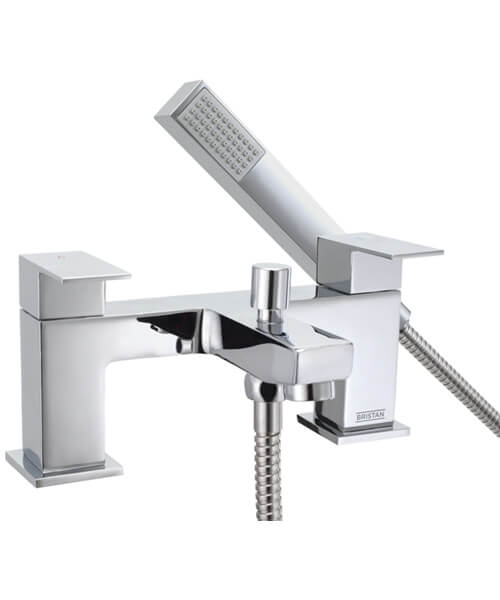

Additional image of Bristan QB BF C
Technical drawing 68307 / QB BF C

Bristan Qubo Deck Mounted Chrome Finish Bath Mixer Tap

Bristan Logo
Available In 2 Variations: Tap Only / Tap With Stick Handset
No Rating No Rating Write a Review
Rate This:
MFC Code : QB BF C
Product Code : 68307
Delivery: £7.95
£116.77
RRP : £230.00
Other Variation Available

OP-213945 - Tap Only

qty :
  • Choice of variations: Tap Only, Tap With Stick Handset
  • It comes in a chrome finish
  • Manufactured using brass material
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • Choice of variations: Tap Only, Tap With Stick Handset
  • It comes in a chrome finish
  • Manufactured using brass material
  • Salt-spray tested to ensure added durability
  • Deck-mounted installation
  • Handle type: Lever
  • Connection inlet: 3/4-Inch BSP
  • Connection outlet: M24 Housed Aerator
  • Number of tapholes: 2
  • Valve/cartridge type: 3/4-Inch Ceramic Disc Valve
  • Suitable for all plumbing system
  • Maximum hot water temperature: 60°C
  • Maximum static pressure: 10 Bar
  • Flow type: Single
  • Suitable for low and high water pressure systems
  • Long-lasting 1/4-turn ceramic disc valves for added durability and smooth control
  • Robust metal fixing nut to secure the tap in place reducing the risk of loosening over time
  • A hardwearing, flawless, scratch-resistant chrome finish that lasts for years
  • Rub-clean handset - limescale and debris build-up is quickly and easily removed by rubbing a finger or cloth over the nozzles
  • Features of tap only:
  • Size in [mm]: 230 x 139 x 113.5mm [Width x Depth x Height]
  • Size in [cm]: 23 x 13.9 x 11.35cm [Width x Depth x Height]
  • Base to spout: 52.8mm - (5.28cm)
  • Inlet centres: 180mm - (18cm)
  • Centre of the inlet to centre of the outlet: 101mm - (10.1cm)
  • Minimum dynamic pressure: 0.2 Bar
  • Maximum dynamic pressure: 5 Bar
  • WRAS-APPROVED
  • Features of tap with stick handset:
  • Size in [mm]: 230 x 140 x 105mm [Width x Depth x Height]
  • Size in [cm]: 23 x 14 x 10.5cm [Width x Depth x Height]
  • Height of handset: 232mm - (23.2cm)
  • Inlet connection: G1/2-Inch
  • Base to spout: 55mm - (5.5cm)
  • Inlet centres: 180mm - (18cm)
  • Centre of the inlet to centre of the outlet: 100mm - (10cm)
  • Minimum dynamic pressure: 0.3 Bar
  • Maximum dynamic pressure: 5 Bar

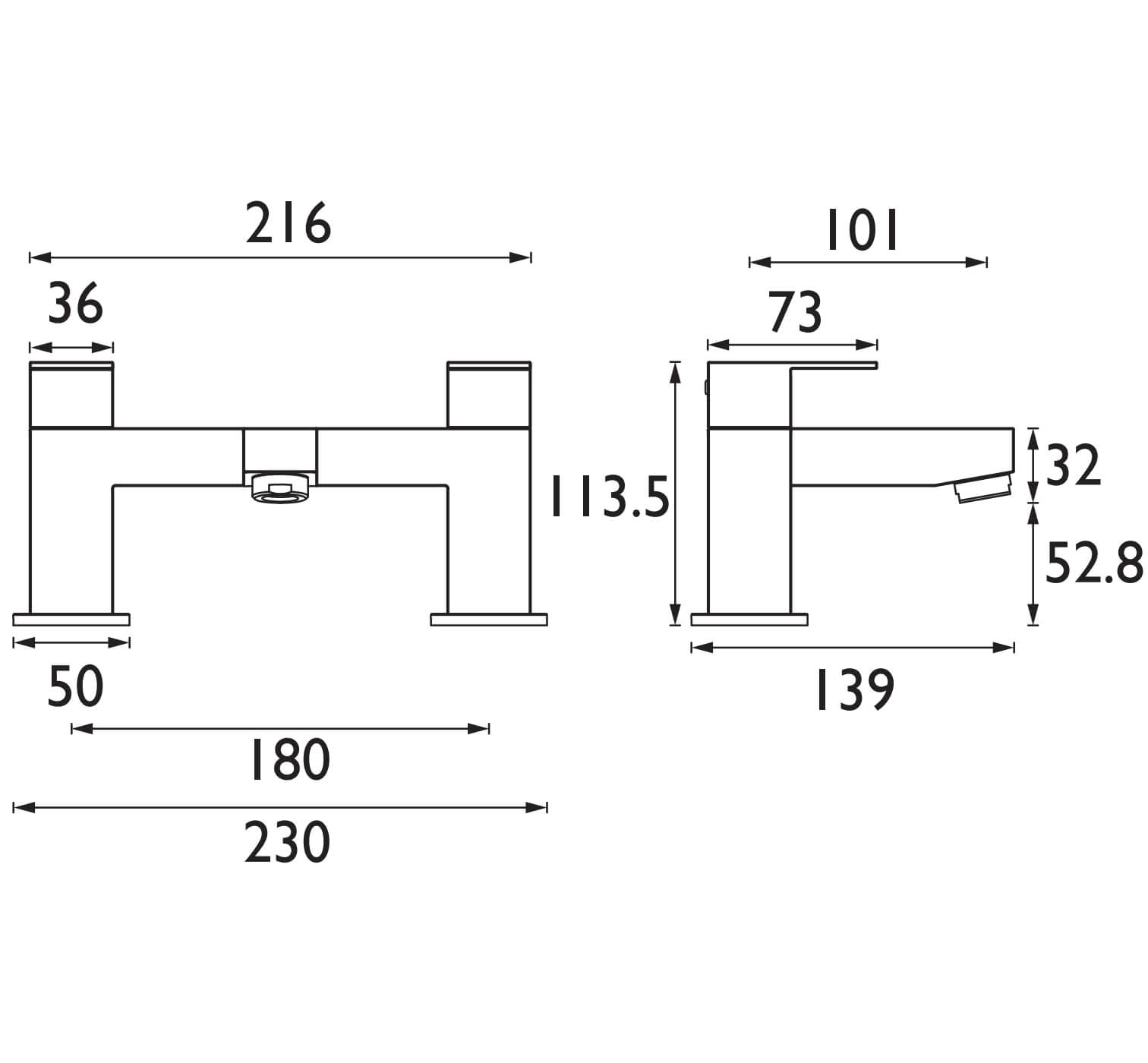

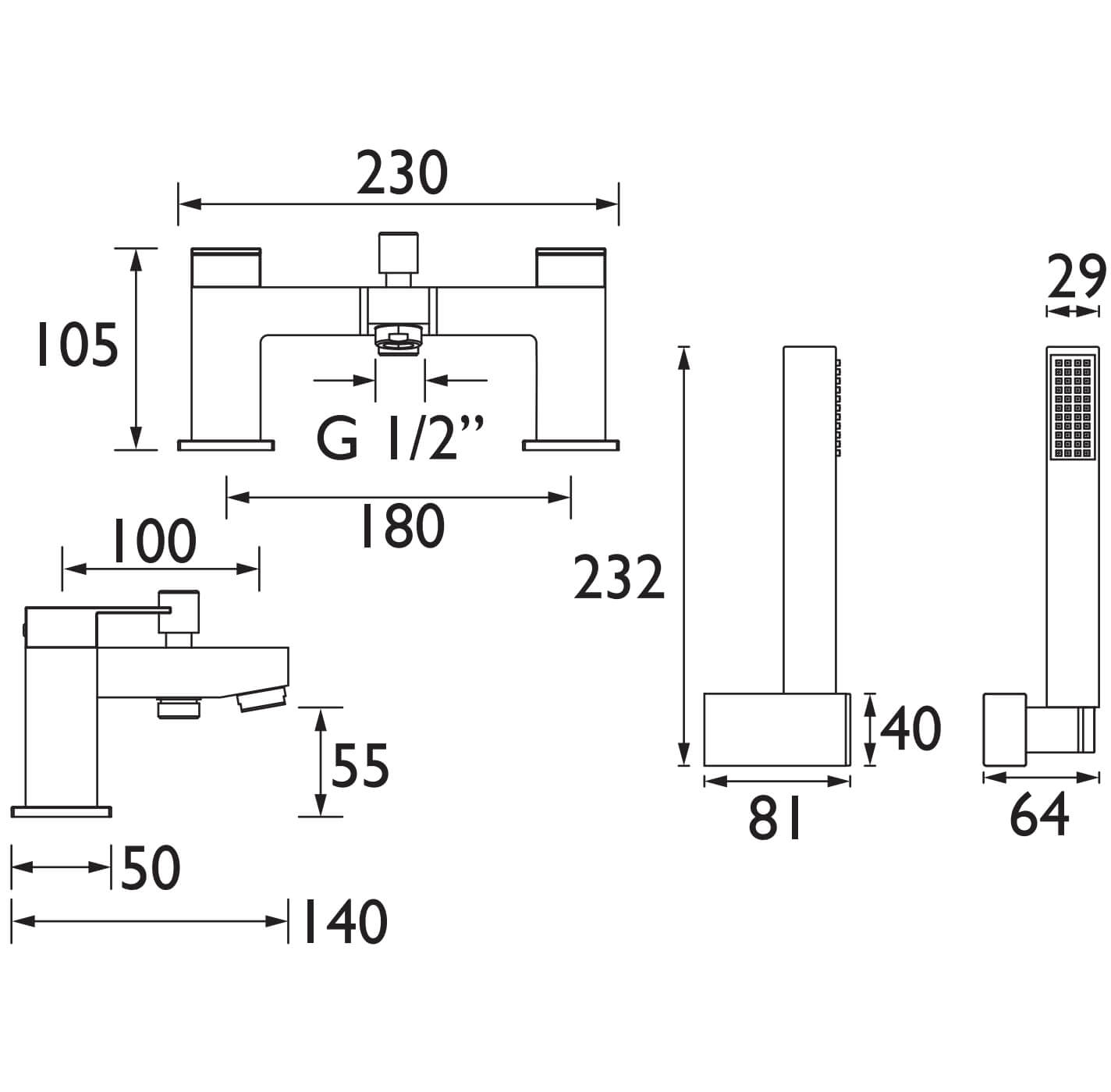

  • Refer to the technical drawing for size details
  • Download installation instructions and data sheet PDF files from our technical info section
  • Lifetime guarantee against any manufacturing defect

Information Breakdown

Colour Chrome
Warranty/Guarantee Lifetime
Theme Modern
Width 230
No. of Tap Holes 2
Base To Spout 52.8, 55
Spout Reach 101, 100
WRAS Approved Yes
Inlet Connections G1/2 Inch
Inlet Centres 180
Handset Included Yes
Installation Type Deck Mounted
Minimum Operating Pressure (Bar) 0.2, 0.3
