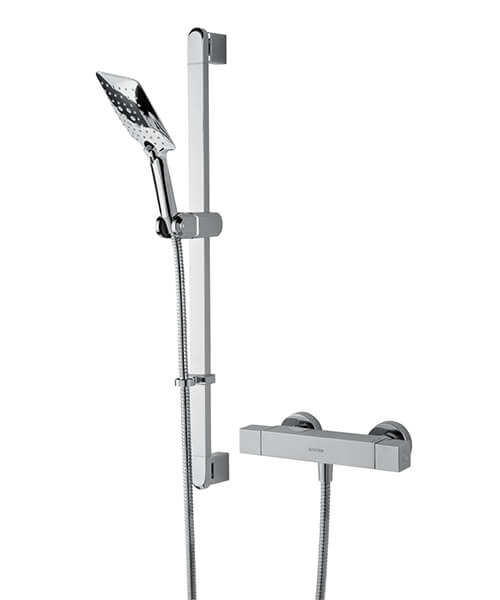

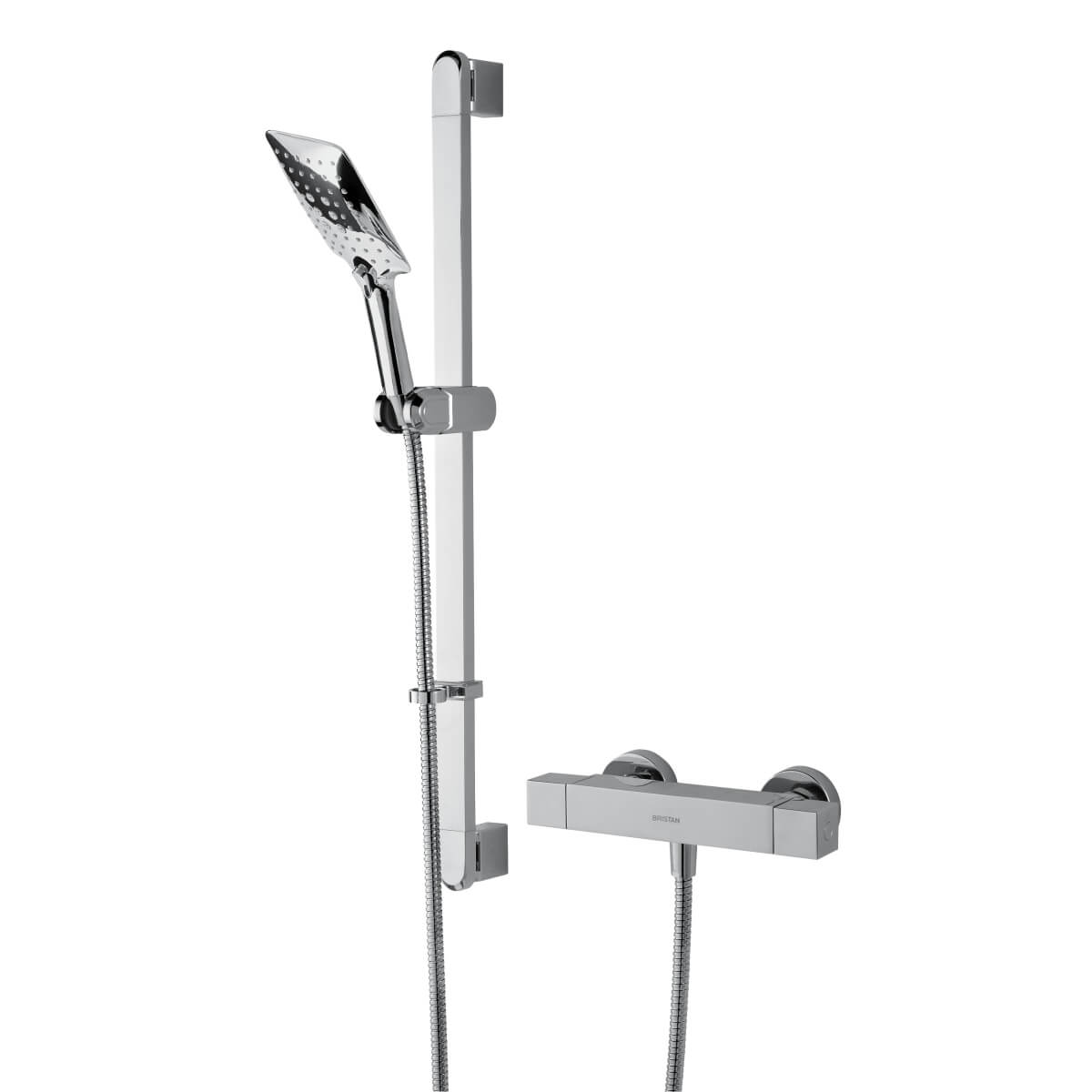

Bristan Qubo Chrome Exposed Thermostatic Bar Shower with Handset and Kit

Bristan Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : QB SHXSMFF C
Product Code : 68475
Delivery: £29.95
£235.00
RRP : £393.00

Bristan Qubo Chrome Exposed Thermostatic Bar Shower with Handset and Kit

Read More About the Product
qty :
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5-7 Working Days Apprx

About This Product

  • WRAS Approved
  • Adjustable Riser Kit Included
  • Manufactured Using Brass Material
  • Manufacturing Code of this Product: QB SHXSMFF C
  • Pack Includes:
  • Bar Shower Valve, Hose, Riser Rail and a Rub-Clean Anti-Limescale Multi-Function Handset
  • Details of Kits:
  • It Comes in a Chrome-Plated Finish
  • Size of Valve [mm]: 265 x 70mm [Width x Depth]
  • Size of Valve [cm]: 26.5 x 7cm [Width x Depth]
  • Height of Riser Rail: 705mm [70.5cm]
  • Inlet Centre of Valve: 150mm [15cm]
  • Number of Controls: 2
  • 15mm Inlet Connections
  • Shower Type: Bar Shower
  • Shower Head Type: Multi-Function Handset
  • Shower Kit: Adjustable Riser
  • Valve/Cartridge Type: Thermostatic Cartridge
  • Maximum Hot Water Supply Temperature: 60°C
  • Maximum Static Pressure: 10 Bar
  • Connection Inlet: 15mm Compression
  • Connection Outlet: G 1/2 Inch
  • Check Valve Included: Yes
  • Isolation Valve Included: Yes
  • Suitable for Low and High Water Pressure Systems
  • Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure
  • Dual Control: Flow and Temperature are Controlled Separately
  • Automatic Shut-Off in the Event of Hot or Cold Water Supply Failure
  • A Hard-Wearing, Flawless Chrome Finish That Lasts for Years
  • Scratch-Resistant and Salt Spray Tested to Ensure Added Durability
  • Thermostatic Cartridge with a Preset Temperature Safety Stop at 38°C for Family-Safe Showering
  • A Higher Temperature Can be Selected, if Required, by selecting the Override Function
  • Multi-Function Rub Clean Handset: Limescale and Debris Build-Up is Quickly and Easily Removed by Rubbing a Finger or Cloth Over the Nozzles
  • Supplied with a Fast-Fit Wallmount 12 Fixing Kit with Built-In Front-of-Wall Isolation Valves On Both the Hot and Cold Feed, Making it Simple to Fit, Maintain and Replace

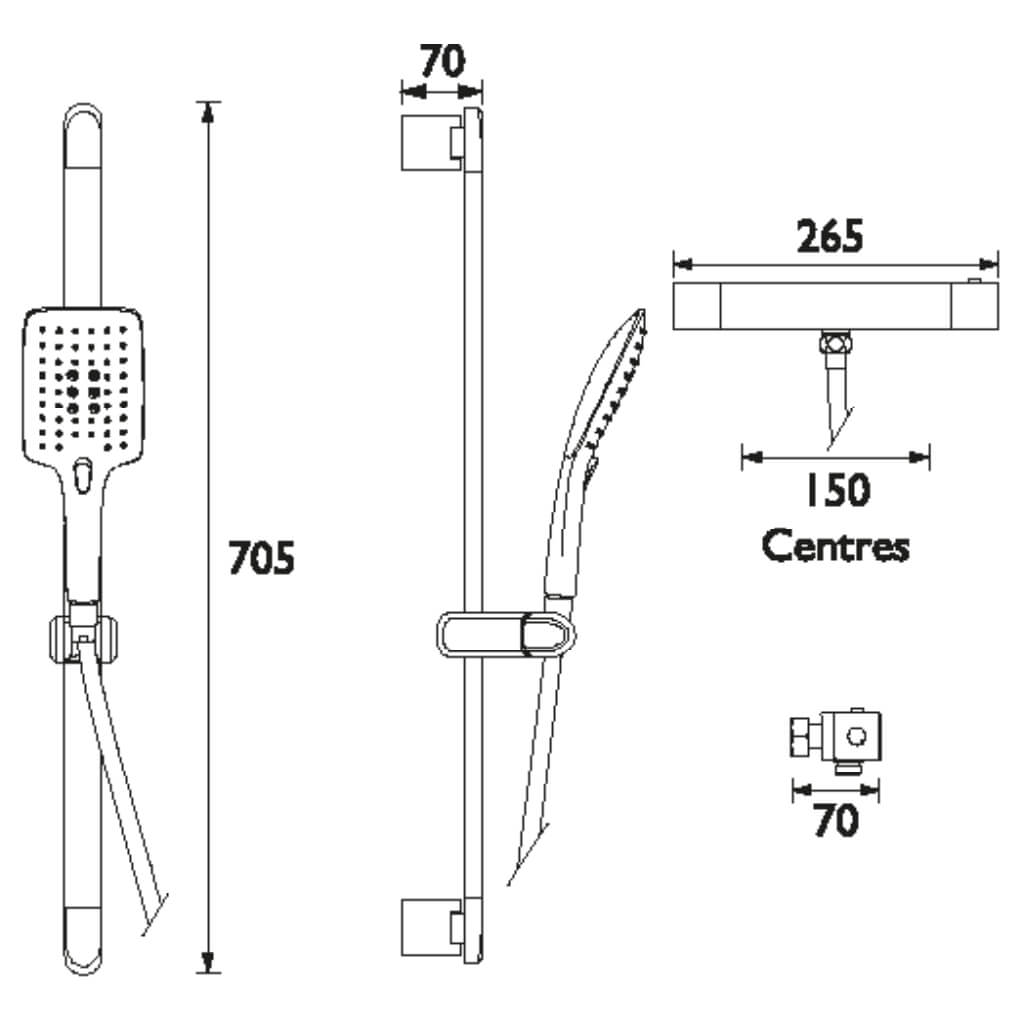

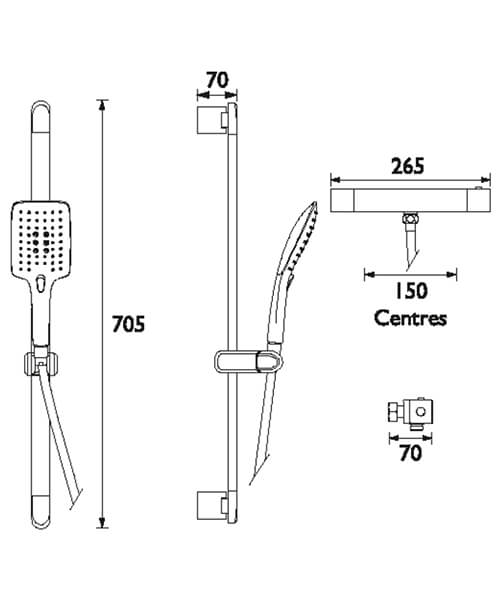

  • Refer to the Technical Image for the Technical Dimension
  • Download the Product datasheet and Installation Instruction PDF File from the Technical Info Section
  • 5 Years On Parts and 1 Year of Labour Guarantee from the Manufacturer

Information Breakdown

Colour Chrome
Warranty/Guarantee 5 Years
Theme Modern
Inlet Connections 15mm Compression
Hose Included Yes
Temperature Control Thermostatic
Riser Rail & Kit Finish Chrome
Auto shutdown if hot or cold supplies fail Yes
Handset Included Yes
Rail Length 705
Minimum Operating Pressure (Bar) 0.3

Technical Info

Bristan Qubo Chrome Exposed Thermostatic Bar Shower with Handset and Kit

Download Product Data Sheet PDF

Download Installation Instructions PDF
