Hudson Reed Topaz 2 Hole Wall Mounted Bath Filler Tap small Image 4

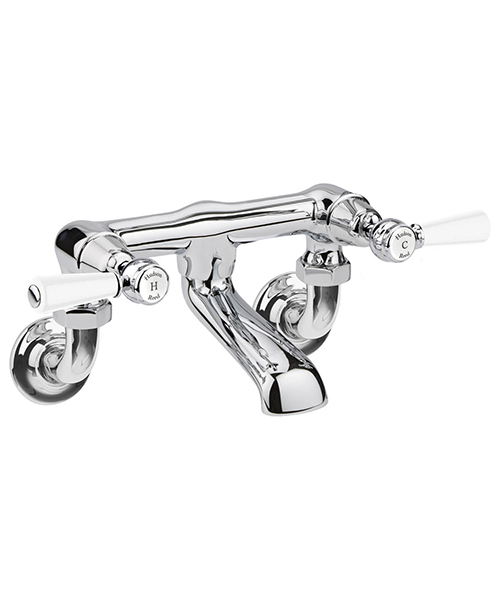

Hudson Reed Topaz 2 Hole Wall Mounted Bath Filler Tap

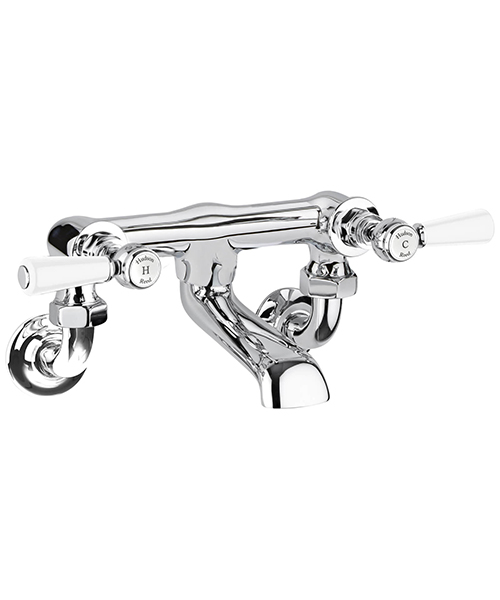

Additional image of hudsonreed BC303DLWM

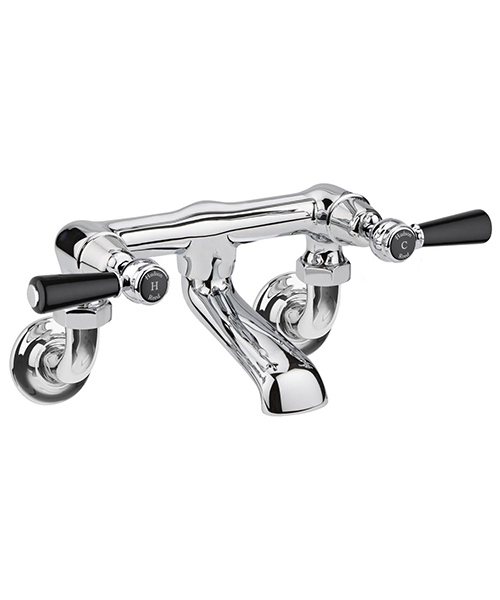

Additional image of Hudson Reed Topaz 2 Hole Wall Mounted Bath Filler Tap

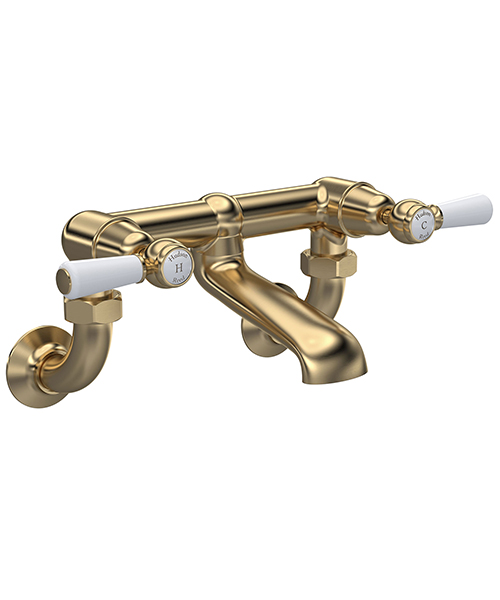

Alternate image of Hudson Reed Topaz 2 Hole Wall Mounted Bath Filler Tap

Hudson Reed Topaz 2 Hole Wall Mounted Bath Filler Tap

Name: Hudson Reed Topaz 2 Hole Wall Mounted Bath Filler Tap
Brand: Hudson Reed
SKU: BC303DLWM
Price: 175 GBP
Availability: InStock

Variations Available

No Rating

Write a Review

Rate This:

MFC Code : BC303DLWM

Product Code : 72995

Delivery: £7.95

£175.00

RRP : £500.00

Variation Available

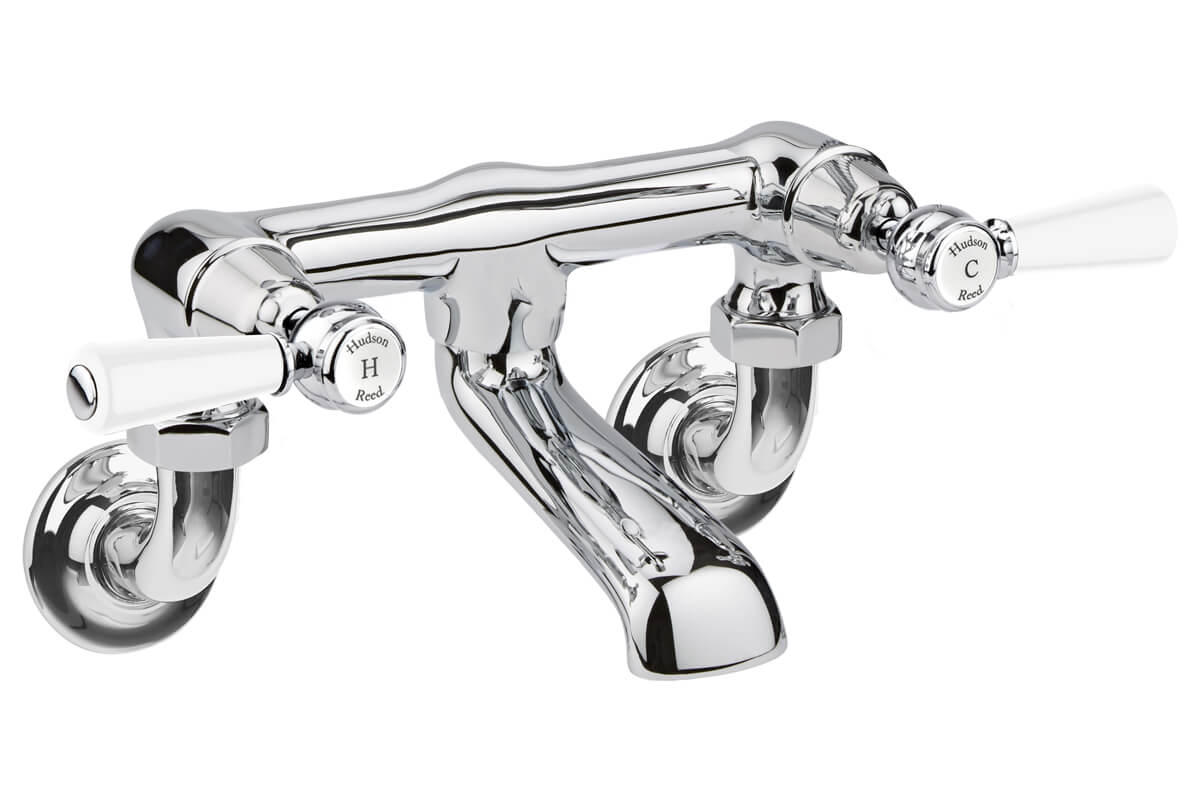

Chrome and White Indices - Dome Collar £175.00

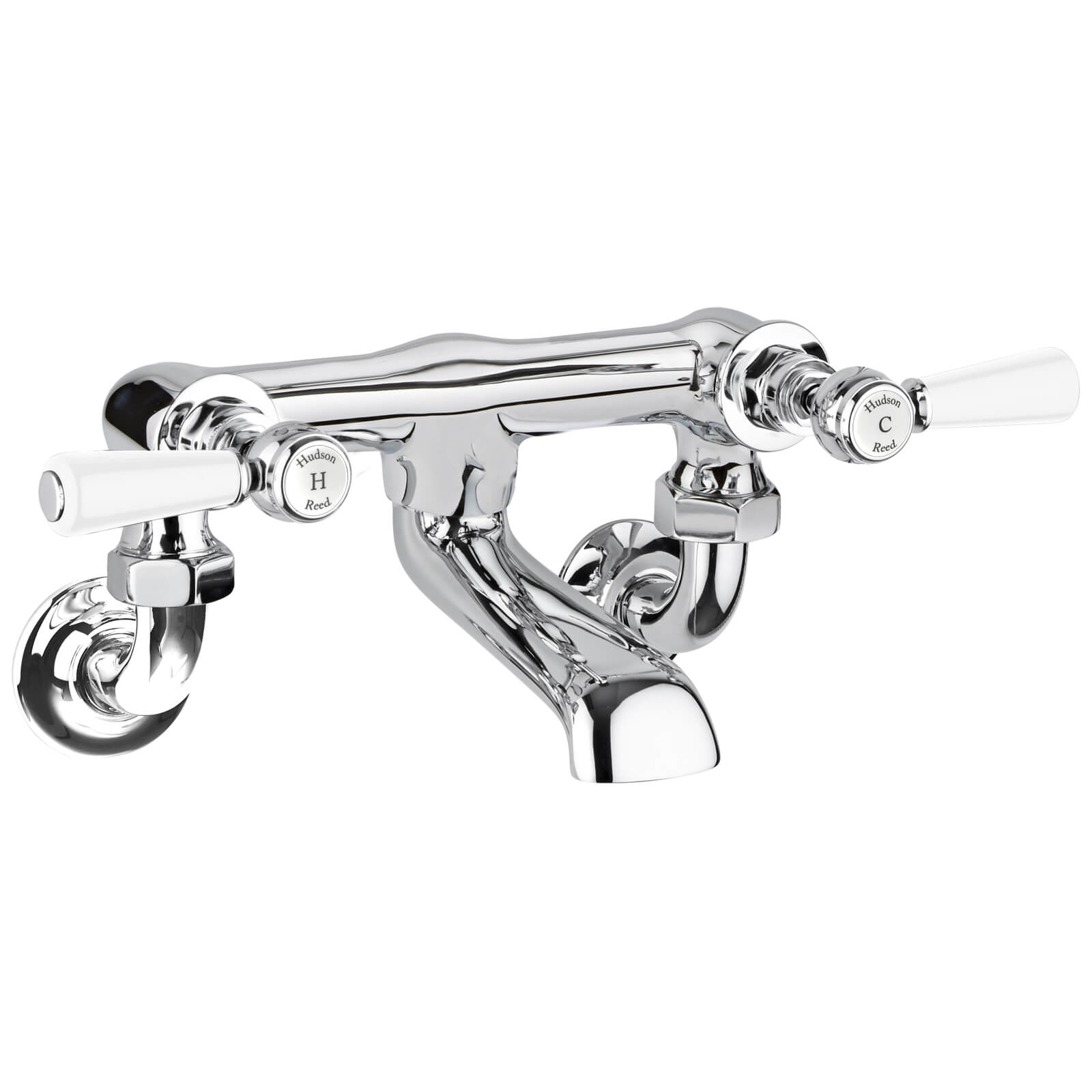

Chrome and White Indices - Hexagonal Collar £175.00

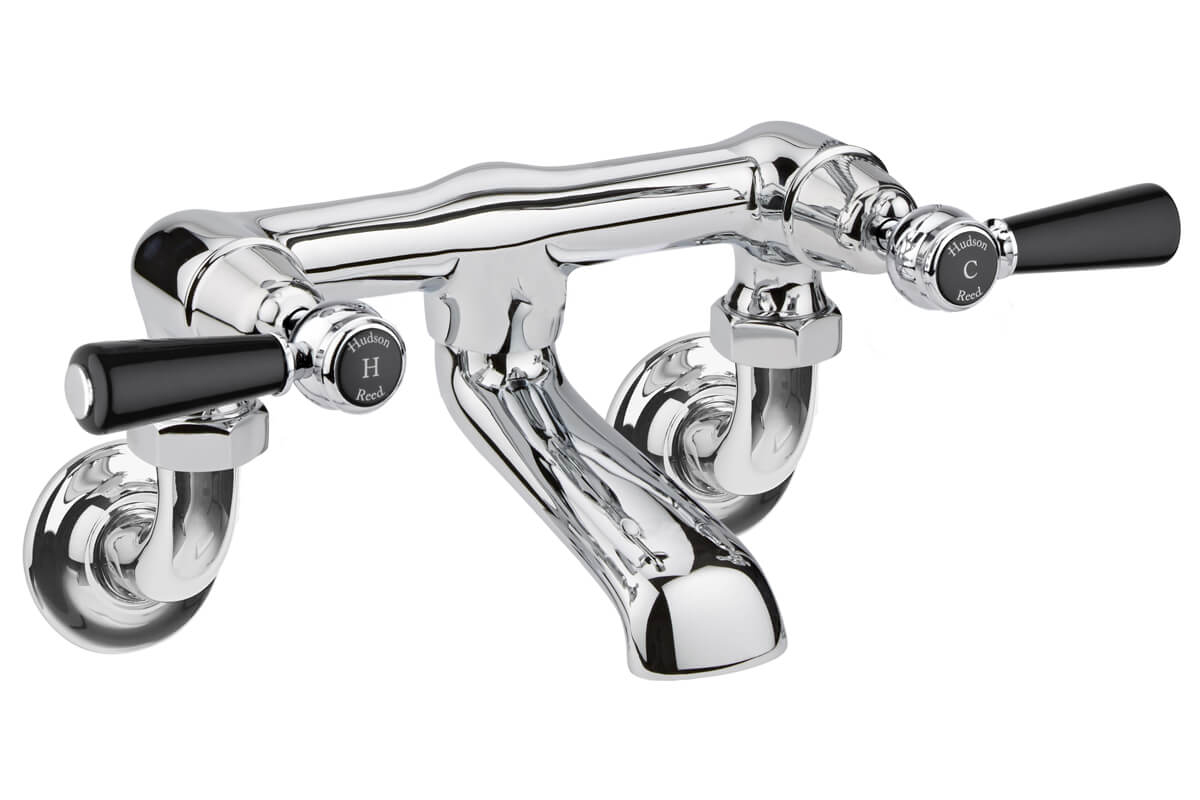

Chrome and Black Indices - Dome Collar £257.40

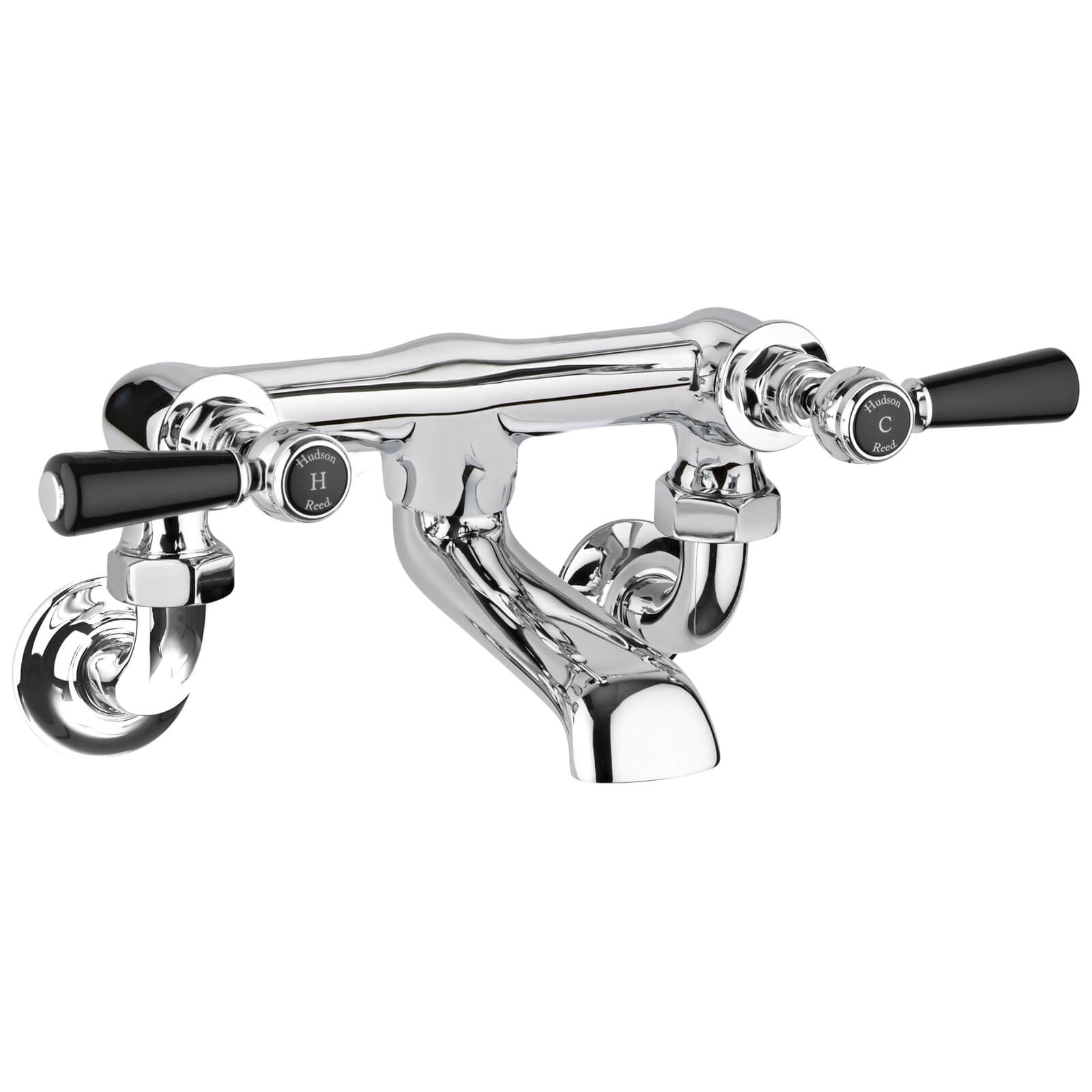

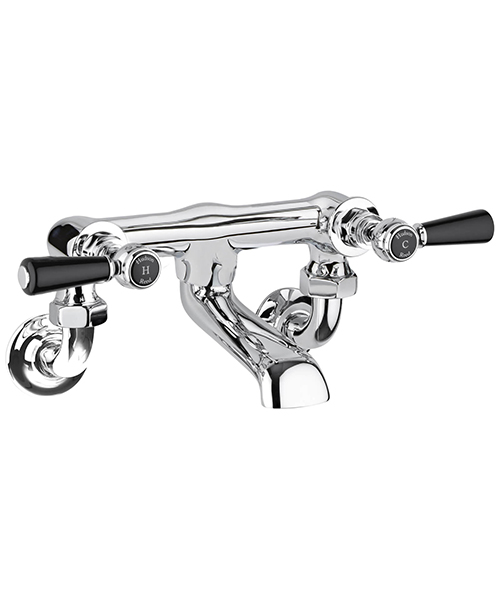

Chrome and Black Indices - Hexagonal Collar £257.40
Brushed Pewter and White Indices - Dome Collar £275.00
Brushed Pewter and White Indices - Hexagonal Collar £275.00

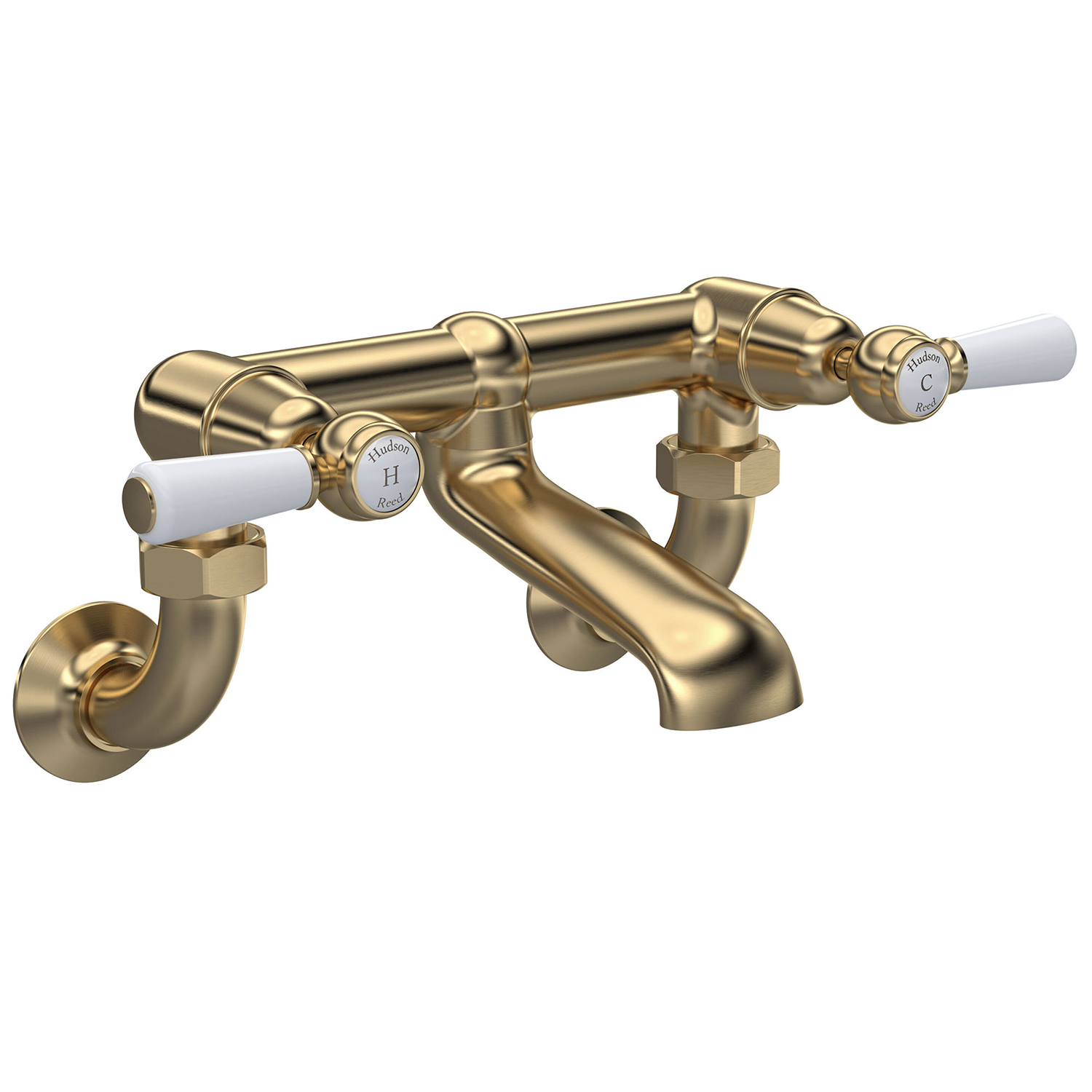

Brushed Brass and White Indices - Dome Collar £275.00
Brushed Brass and White Indices - Hexagonal Collar £275.00

OP-222497 - Chrome and White Indices - Dome Collar

qty :

About This Product

Cartridge type: 1/4 turn
Made using High-quality brass material
Features ceramic disc technology for long life and ease of use
Wall-mounted bath filler tap
Handle Style: Lever
Stunning traditional bath filler offering a timeless design
Dimension: Width 338mm (33.8cm) x Depth 197mm (19.7cm)
Height 142mm (14.2cm)
Number of tap holes required: 2
Weight: 2kg
Pipe Size: 220mm (3/4" BSP)
Pipe Centres: 196mm (19.6cm)
Centre of the Inlet to Centre of the Outlet: 121mm (12.1cm)
Suitable for a low water pressure system
Required minimum 0.2 bar of water pressure for smooth flow
During installation, extra care must be taken to avoid damaging the fittings
Download the PDF from the technical Info Section for the technical data sheet and mounting instructions

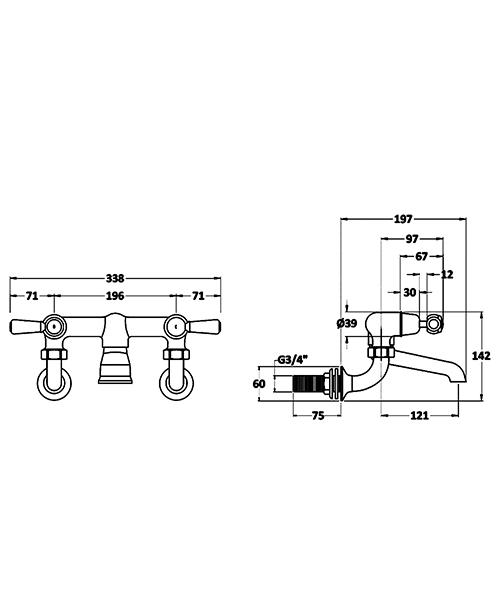

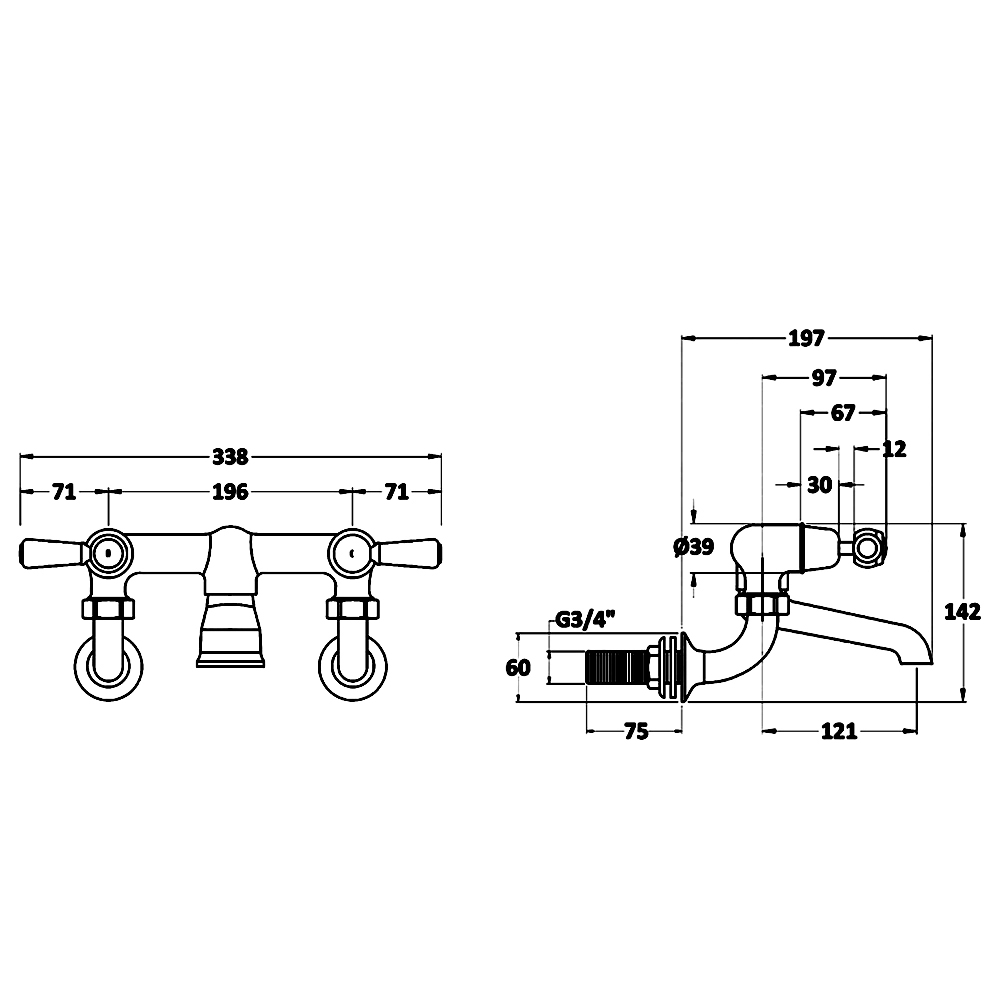

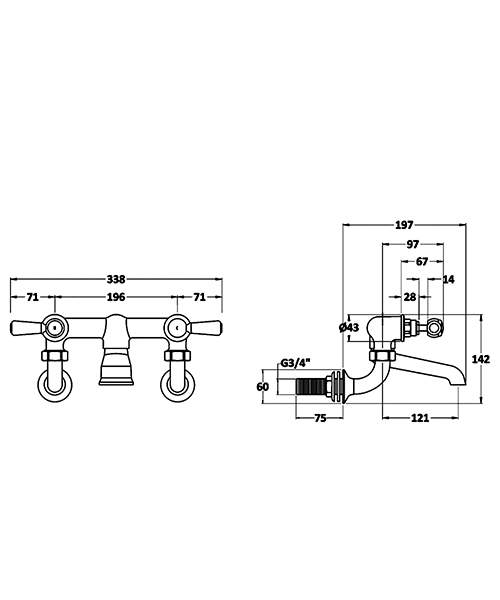

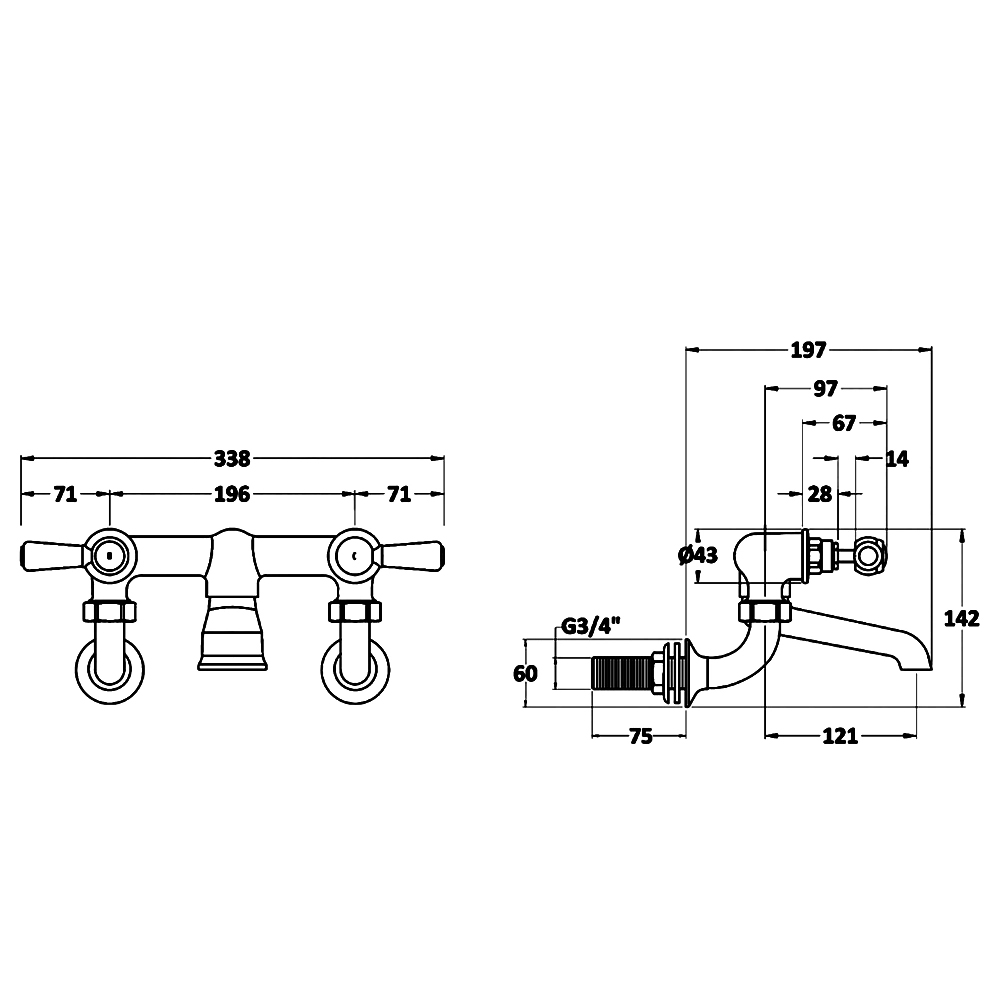

Refer to the technical drawing for more technical specifications
Guarantee: 20-Year for Chrome finish and 3-Year for Other Finishes Against Manufacturing Defects
Available Optional Product:
Available in different finishes Chrome, Brushed Brass and Brushed Pewter
Available with Black or White Handles and Indices
Taps come in a Hexagonal or Dome Collar

Information Breakdown

Colour	Chrome
Warranty/Guarantee	20 Years
Theme	Traditional
Width	338
Height	142
No. of Tap Holes	2
Handle Style	Lever
Flow Rates (l/min)	0.1-Bar: 10, 0.5-Bar: 36.2, 1-Bar: 53, 2-Bar: 75.7, 3-Bar: 92
Inlet Connections	G3/4"
Valve Included	Yes
Inlet Centres	196
Installation Type	Wall Mounted
Minimum Operating Pressure (Bar)	0.2

Technical Info

Download Technical Data Sheet PDF

Download Mounting Instruction PDF

PRODUCT VARIATIONS INFO & MFC CODE

Specifications For Tap

Finish	Indices Finish	Handle Finish	Handle Style	Collar	MFC
Chrome	White	White	Lever	Dome Collar	BC303DLWM
Chrome	White	White	Lever	Hexagonal Collar	BC303HLWM
-	-	-	-	-	-
Chrome	Black	Black	Lever	Dome Collar	BC403DLWM
Chrome	Black	Black	Lever	Hexagonal Collar	BC403HLWM
-	-	-		-	-
Brushed Pewter	White	White	Lever	Hexagonal Collar	BC703DLWM
Brushed Pewter	White	White	Lever	Dome Collar	BC703DLWM
-	-	-	-	-	-
Brushed Brass	White	White	Lever	Hexagonal Collar	BC803DLWM
Brushed Brass	White	White	Lever	Dome Collar	BC803HLWM
