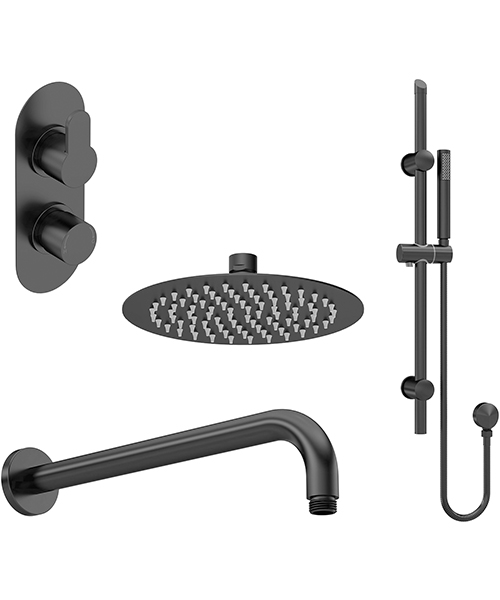

Nuie Arvan Twin Thermostatic Valve With Rail Kit And Fixed Shower Head

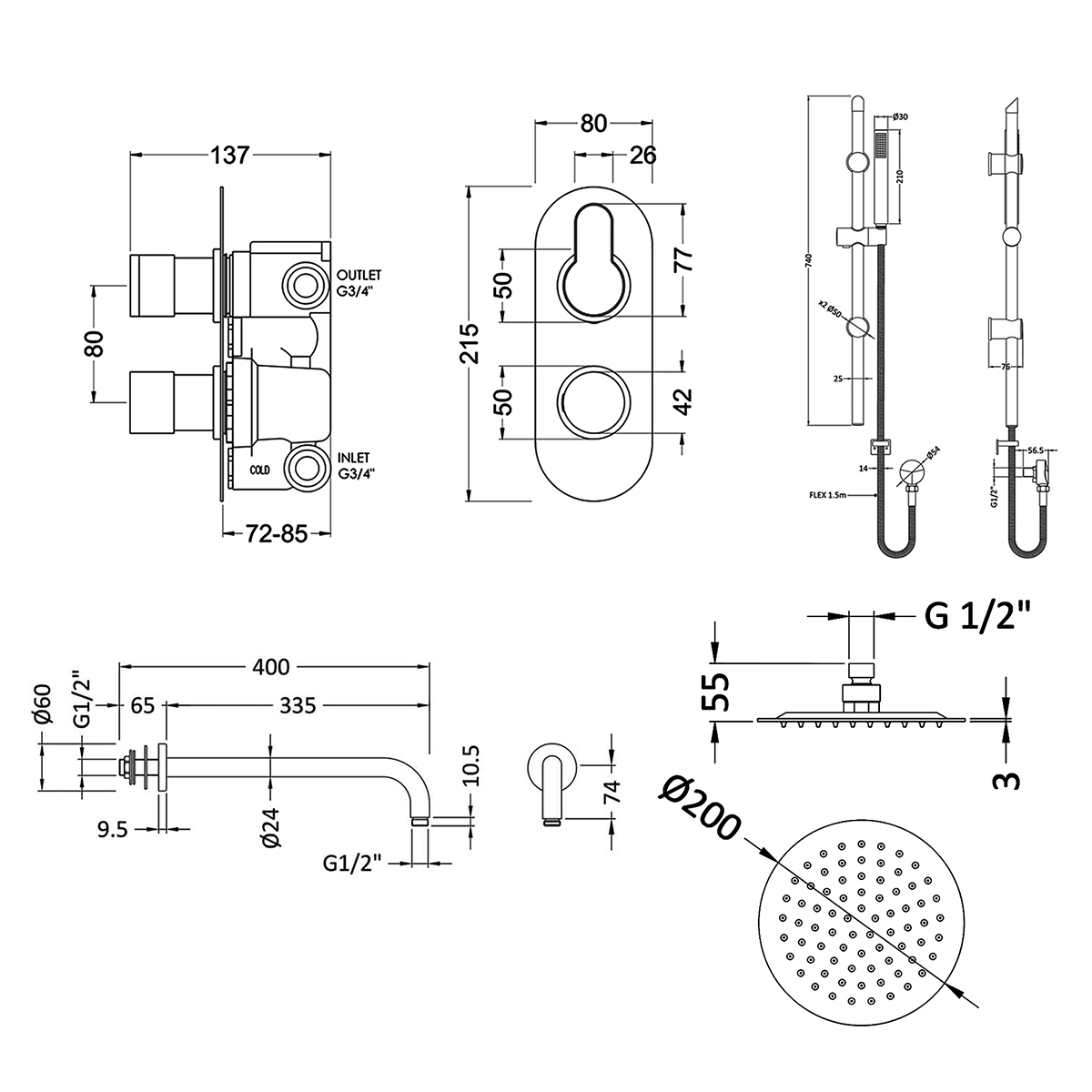

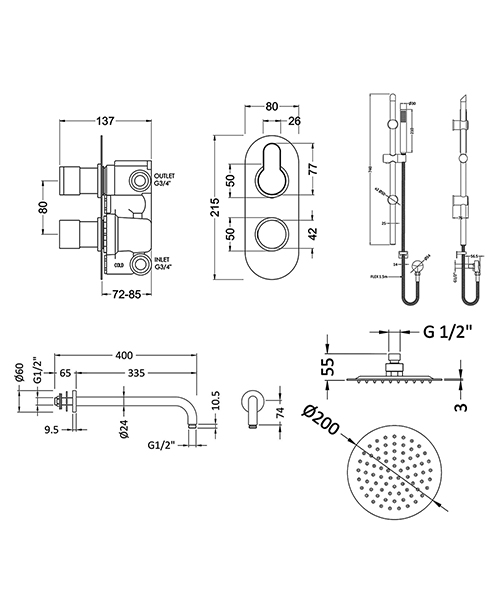

Technical drawing 72998 / SBR46TW2

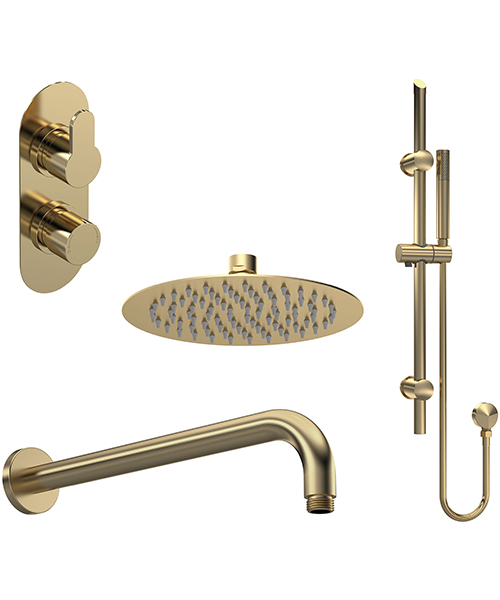

Additional image of Premier SBR46TW2

Nuie Arvan Twin Thermostatic Valve With Rail Kit And Fixed Shower Head

Nuie Logo
Available Finishes: Matt Black / Brushed Brass
No Rating No Rating Write a Review
Rate This:
MFC Code : SBR46TW2
Product Code : 72998
Delivery: £7.95
£330.00
RRP : £916.00
Finishes Available

OP-222520 - Matt Black

qty :
  • Pack Includes: 2 Outlet Concealed Thermostatic Shower Valve with Integrated Diverter, Slide Rail Kit, Outlet Elbow, Handset and Hose
  • Features: Easy to Clean
  • Minimalist, Sleek Round Design
Read More About the Product
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Pack Includes: 2 Outlet Concealed Thermostatic Shower Valve with Integrated Diverter, Slide Rail Kit, Outlet Elbow, Handset and Hose
  • Features: Easy to Clean
  • Minimalist, Sleek Round Design
  • Compatible with Medium‑pressure water systems
  • Requires a minimum operating water pressure of 0.5 bar
  • Stain and Rust-Resistant Construction with Precise and Reliable Flow Control
  • Download the PDF from the technical Info Section for the technical data sheet and mounting instructions
  • Technical drawing available for more technical details
  • Guarantee: 3-Year from the Manufacturer Against any Manufacturing Defects
  • Detail of of Shower Valve:
  • Constructed of Brass and ABS Material
  • Installation Type: Recessed and Wall
  • Number of Outlets: 2
  • Number of Handles: 2
  • WRAS and TMV2 Approved
  • TMV2 Approval Number: 2603035
  • Stain and Rust-Resistant Valve
  • Supplied with Valve and Cartridge
  • Accurate Flow Control Thermostatic Valve
  • 1/4-Turn Ceramic Cartridge Disc
  • Dimension: Width 80mm (8cm) x Depth 136mm (13.6cm)
  • Height 215mm (21.5cm)
  • Wall-Mount Cavity: Min. 72mm (7.2cm) and Max. 85mm (8.5cm)
  • Pipe Size: 22mm (2.2cm) (3/4-Inch BSP)
  • Inlet and Outlet Connection: G 1/2 Inch
  • Control Type: Manual
  • Mountable in Vertical or Horizontal Orientation
  • Features:
  • Advanced Thermostatic Control Maintains Water Temperature Within +/-2 °C, Even During Pressure Fluctuations
  • Compatible with Concealed Shower Systems for a Seamless Installation
  • Patented Cartridge Design Resists Calcium Buildup, Making it Ideal for Hard Water Conditions
  • Suitable for All Plumbing Systems, Including Gravity-Fed, Pumped, Unvented High-Pressure, and Fully Modulated Combi-Boilers
  • Integrated Thermal Safety Protection Automatically Shuts Off in Case of Hot or Cold Water Supply Failure, Preventing Scalding
  • Fully Reversible Cartridge Eliminates the Need for Re-Plumbing if Hot and Cold Supplies are Incorrectly Connected
  • Easy Maintenance-Remove, Rotate the Cartridge by 180°, and Reinstall
  • Detail of Slide Rail Kit with Outlet Elbow and Handset:
  • Supplied with Hose and Handset
  • Made using brass and ABS material
  • Rail Height: 740mm (74cm)
  • Dimension of Handset: Diameter Ø30mm (3cm) x Height 210mm (21cm)
  • Hose Length: 1500mm (150cm)
  • Single-Function Handset
  • Outlet Elbow Included
  • Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
  • Detail of Fixed Shower Head:
  • Made using Stainless Steel Material
  • Single Function
  • Dimension: Diameter Ø200mm (20cm) x Height 55mm 5.5cm
  • Inlet Connection: G 1/2 Inch
  • Installation Type: Wall or Surface Mounted
  • Detail of Wall-Mounted Arm
  • Made using solid brass material
  • Dimension: Length 400mm (40cm) x Width 62mm (6.2cm)
  • Height 104mm (10.4cm)
  • Available Optional Product
  • Available in different finishes: Matt Black, Brushed Brass

Information Breakdown

Colour Matt Black
Warranty/Guarantee 3 Years
Theme Modern
Compliance/Approvals/Standard WRAS, TMV2
Inlet Connections G 1/2"
Hose Included Yes
Spray Pattern 1
Configuration Valve, Head, Arm, Outlet, Handset And Hose
Temperature Control Theromstatic
Anti-Scald Yes
Diverter Included Yes
Showerhead Finish Matt Black
Riser Rail & Kit Finish Matt Black
Auto shutdown if hot or cold supplies fail Yes
Handset Included Yes
Spray Patterns (Shower Handset) 1
Spray Patterns (Shower Head) 1
Shower Head Included Yes
Shower Head Size 200
Rail Length 740
Diverter Type Integrated
Outlet Elbow Included Yes
Minimum Operating Pressure (Bar) 0.5

Technical Info

Nuie Arvan Twin Thermostatic Valve With Rail Kit And Fixed Shower Head

Download Technical Data Sheet PDF

Download Mounting Instruction For Shower Valve PDF

Download Mounting Instruction For Slide Rail Kit PDF

Download Mounting Instruction For Shower Arm PDF
