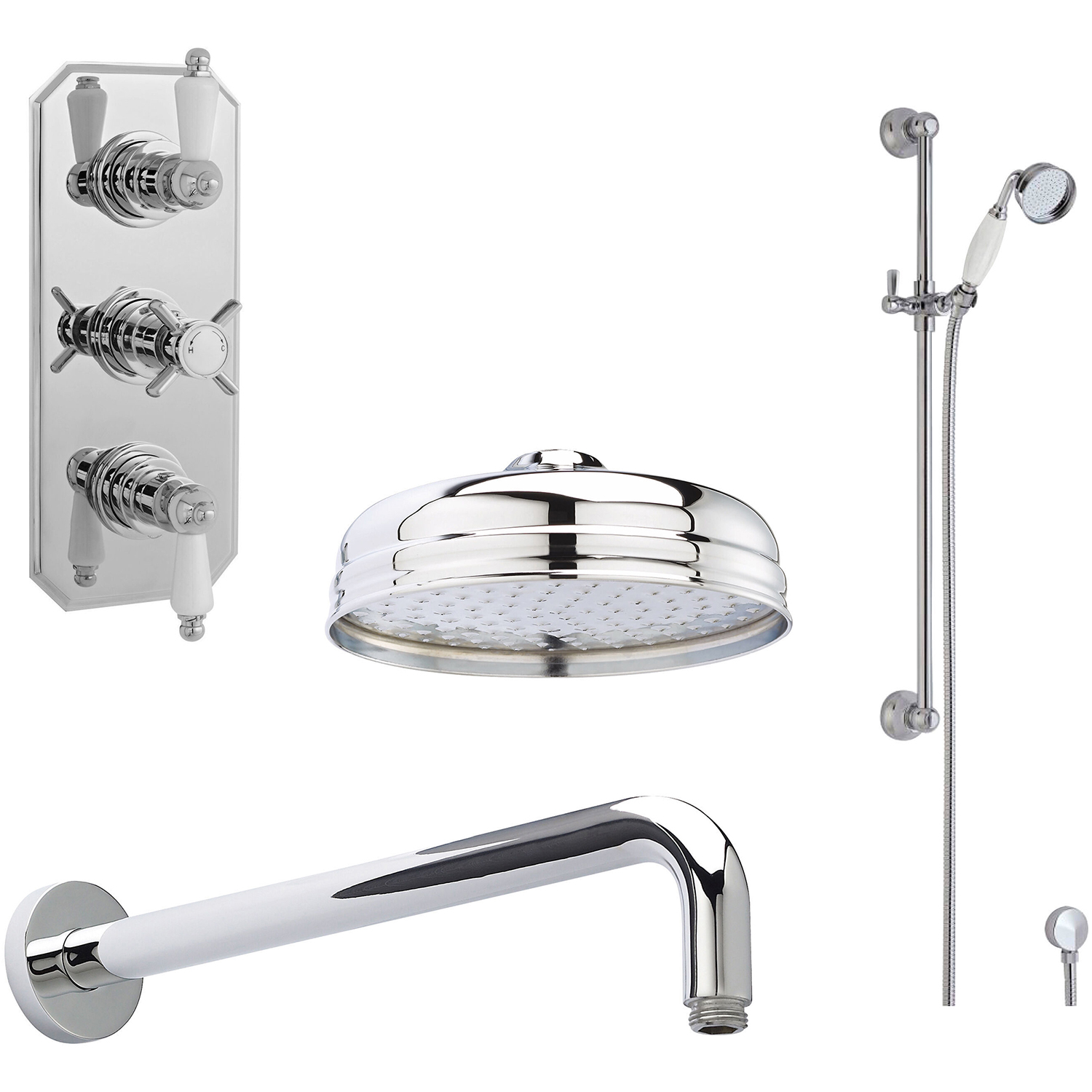

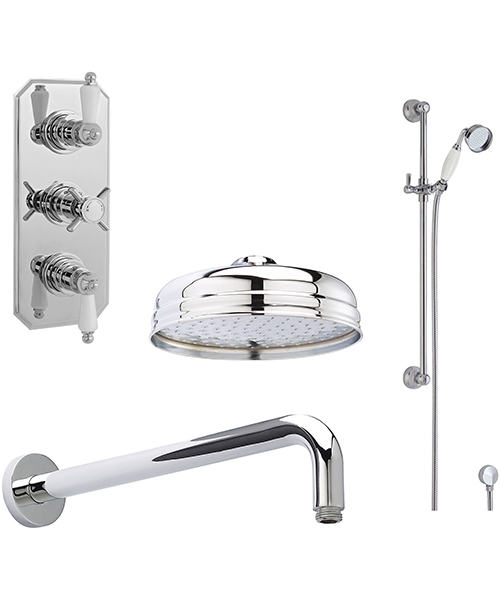

Nuie Chrome Triple Thermostatic Valve With Shower Kit And Fixed Head

Nuie Logo
No Rating No Rating Write a Review
Rate This:
MFC Code : SBT57TR2
Product Code : 75502
Delivery: £7.95
£453.60
RRP : £1134.00

Nuie Chrome Triple Thermostatic Valve With Shower Kit And Fixed Head.

Read More About the Product
qty :
Questions Ask Technical Question?
Reviews Write a Review
Check Availability 5 Working Days Apprx

About This Product

  • Manufacturing code of this product: SBT57TR2
  • Pack includes a 4-outlet concealed thermostatic shower valve and a wall-mounted outlet elbow
  • Comes complete with a round fixed shower head, wall arm, and a slide rail kit featuring a handset and hose
  • Features: easy to clean
  • Traditional round design
  • Stain and rust-resistant
  • Download the PDF from the Technical Info Section for the technical data sheet and mounting instructions

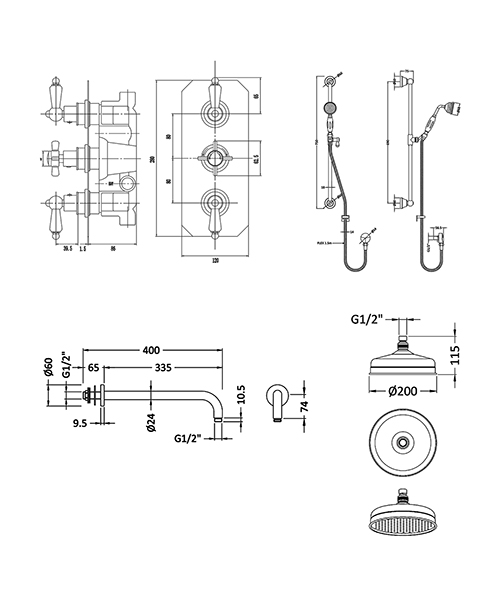

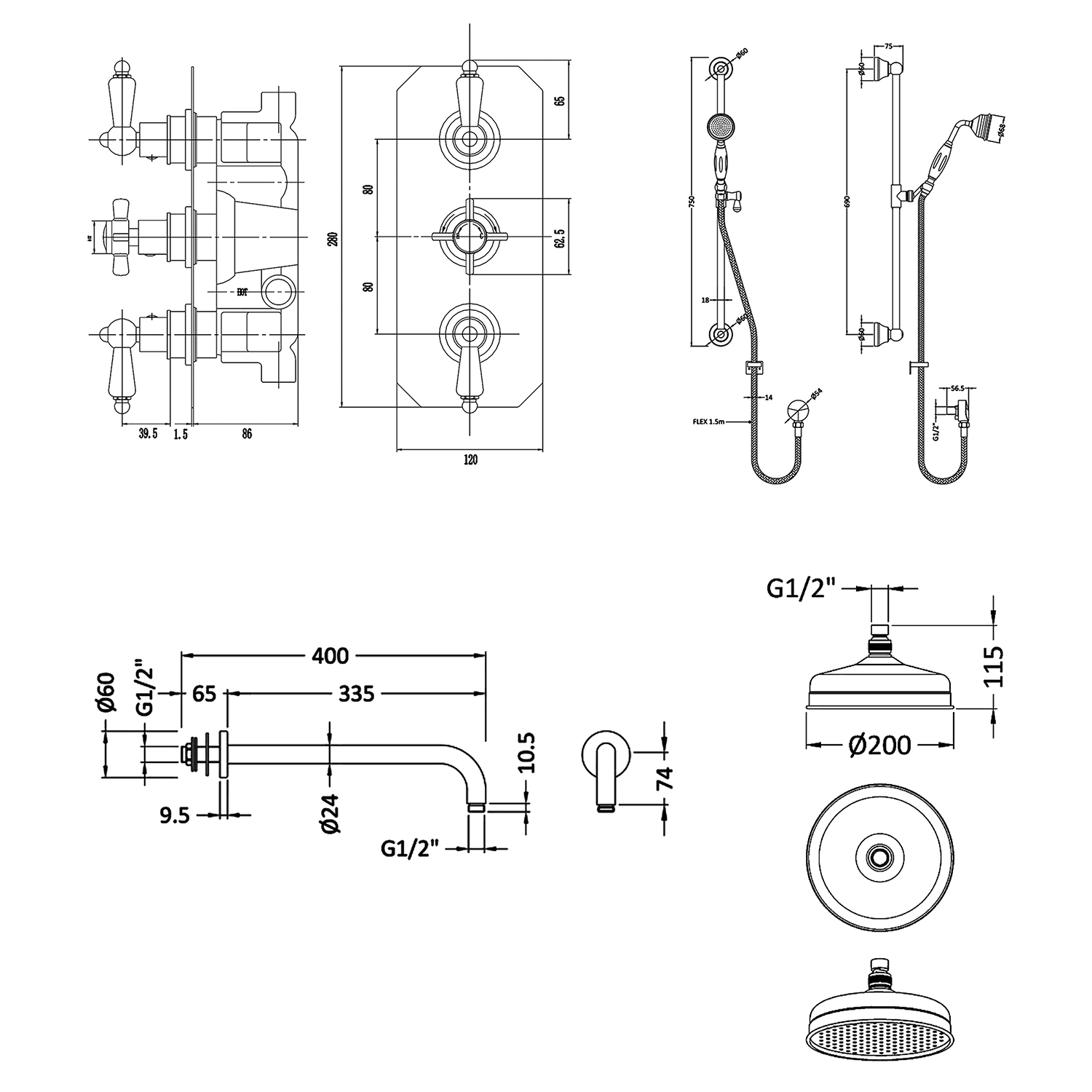

  • Technical drawing available for more technical details
  • Guarantee: 5-year from the manufacturer against any manufacturing defects
  • Detail of Shower Valve
  • Manufactured using Brass and ABS material
  • Number of outlets: 2
  • Number of handles: 3
  • WRAS and TMV2 Approved
  • TMV2 Approval Number: 2603035
  • Installation type: Concealed
  • Mount type: recessed and wall
  • Supplied with a valve and a cartridge
  • Made in Britain
  • 1/4-Turn ceramic cartridge disc
  • Handle type: Crosshead / Lever
  • Backplate dimension: Width 120mm (12cm) x Depth 124mm (12.4cm)
  • Height 280mm (28cm)
  • Inlet and outlet connection: G 1/2 Inch
  • Control type: Manual
  • Can be installed vertically or horizontally (Portrait or Landscape)
  • Separate controls for temperature and flow [Operates 2 shower accessories separately or simultaneously: Fixed head and slide rail kit, fixed head body jets or slide rail kit and body jets]
  • Suitable for all plumbing systems
  • Compatible with low-pressure water systems
  • Recommended water pressure: Minimum 0.1 bar (Low Pressure) for smooth operation; Maximum 4.0 bar (High Pressure)
  • Flow Rates: 0.1 Bar - 5.5, 0.5 Bar - 14, 1 Bar - 20, 2 Bar - 29, 3 Bar - 44
  • Features:
  • Complete thermal protection to prevent scalding in the event of a hot or cold water shut-off
  • Even if the water pressure fluctuates, the thermostatic valve control is to +/- 2 to 3° Celsius
  • In case of hot and cold water supplies come in the wrong way, no need for re-plumbing (Remove the cartridge, 180 °; and replace)
  • The cartridge fitted is patented and is highly resistant to calcium buildup, even in hard water areas
  • Anti-scald - Built-In Anti-scald device allows hot water to be blended to a safe Temperature and will shut down automatically in 1.5 seconds in case of cold water failure
  • Suitable for all plumbing systems, including gravity-fed, pumped, unvented, high-pressure, and fully modulated combi-boilers
  • Detail of Slide Rail Kit with Outlet Elbow, Handset:
  • Manufactured using brass and ABS material
  • Handset, hose and outlet elbow Includes
  • Rail kit dimension: Width 70mm (7cm) x Depth 150mm (15cm)
  • Height 750mm (75cm)
  • Handset diameter: Ø68mm (6.8cm)
  • Hose Length: 1500mm (150cm)
  • Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
  • Single-setting function handset
  • Compatible with low-pressure water systems
  • Requires a minimum operating water pressure of 0.1 bar
  • Mount type: Wall or surface
  • Detail of Fixed Shower Head:
  • 8-inch Apron single-function fixed head
  • Manufactured using stainless steel material
  • Dimension: Diameter Ø200mm (20cm) x Height 115mm (11.5cm)
  • Inlet connection: G 1/2 Inch
  • Suitable for wall-mounted or ceiling arms
  • Compatible with medium-pressure water systems
  • Requires a minimum operating water pressure of 0.5 bar
  • Detail of Wall-Mounted Arm:
  • Manufactured using solid brass material
  • Length: 400mm (40cm)
  • Connection thread: G 1/2 Inch

Information Breakdown

Colour Chrome
Warranty/Guarantee 5 Years
Theme Traditional
Compliance/Approvals/Standard WRAS, TMV2
Inlet Connections G 1/2"
Hose Included Yes
Configuration Valve, Head, Arm, Outlet, Handset And Hose
Temperature Control Theromstatic
Anti-Scald Yes
Showerhead Finish Chrome
Riser Rail & Kit Finish Chrome
Auto shutdown if hot or cold supplies fail Yes
Handset Included Yes
Spray Patterns (Shower Handset) 1
Spray Patterns (Shower Head) 1
Shower Head Included Yes
Shower Head Size 200
Rail Length 750
Outlet Elbow Included Yes
Minimum Operating Pressure (Bar) 0.1

Technical Info

Nuie Chrome Triple Thermostatic Valve With Shower Kit And Fixed Head

Download Technical Data Sheet PDF

Download Mounting Instruction For Shower Valve PDF

Download Mounting Instruction For Slide Rail Kit PDF

Download Mounting Instruction For Shower Head PDF

Download Mounting Instruction For Shower Arm PDF
